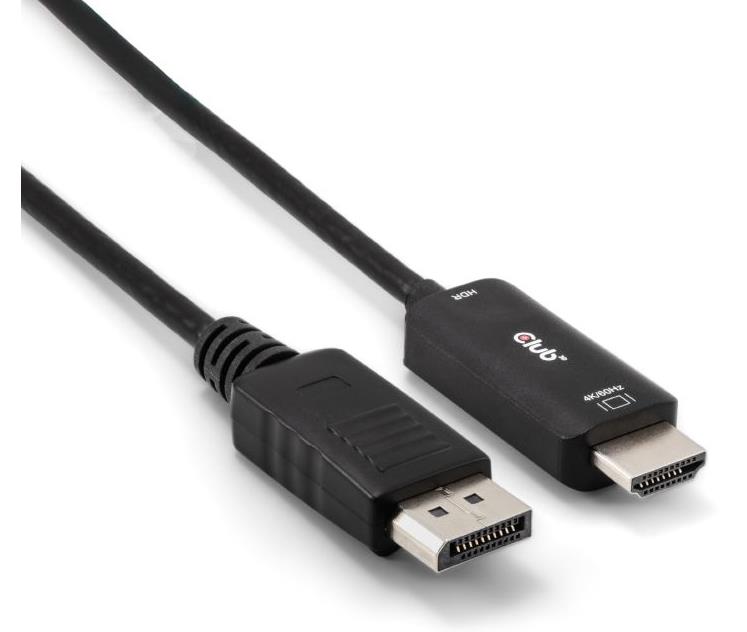

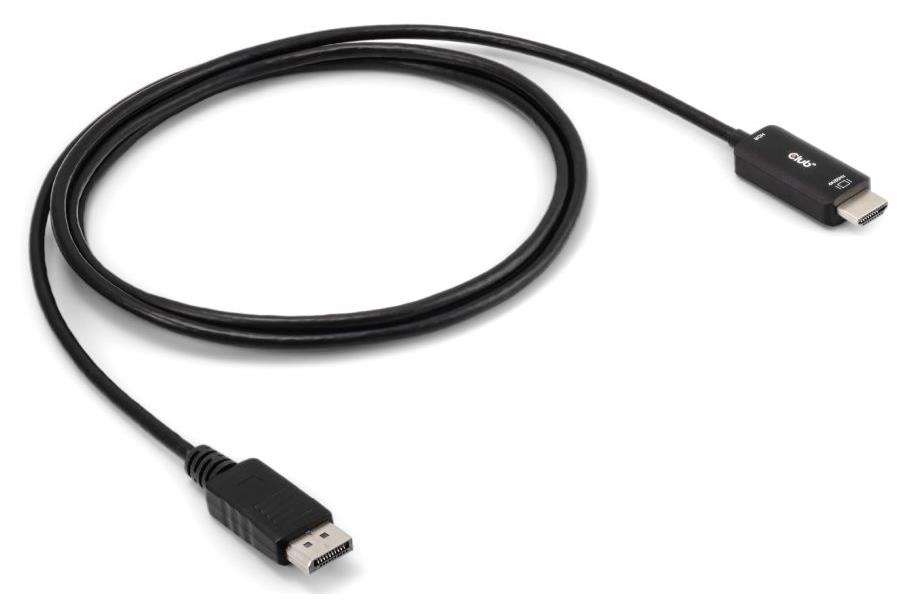

The Club 3D CAC-1083 is a DisplayPort™ 1.4 to HDMI™ 4K60Hz Cable with HDR M/M 2m / 6.56ft converter. It features support for HDR Video quality deep color media content playback. The DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification.
The CAC-1083 supports up to 4096 x 2160p at 60Hz UHD resolutions.
Color Formats. It supports RGB/YCbCr video color formats with a color depth of 12bpc as long as it fits within the DisplayPort™ and HDMI™ link bandwidth. The CAC-1083 also supports HDR with deep color up to 12Bpc at 4K 60Hz is supported.
Note: For HDR to function, the source system needs to support DisplayPort 1.4 and the monitor needs to have support for HDR.
General
| Unit Calculated Weight | 0.12 kg |
| Unit Calculated Volume | 0.001174 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | CLUB3D CAC-1083. Cable length: 2 m, Connector 1: HDMI Type D (Micro), Connector 1 gender: Male. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS. Weight: 68 g. Package weight: 114 g, Package type: Hanging box, Paper/cardboard packaging weight: 45 g. Quantity per pack: 1 pc(s) |
| Unit Box Height | 0.18 |
| Unit Box Length | 0.145 |
| Unit Box Width | 0.045 |
| Model | CAC-1083 |
Features
| Cable length | 2 m |
| Connector 1 | HDMI Type D (Micro) |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| DisplayPort version | 1.4 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
Weight & dimensions
| Weight | 68 g |
Packaging data

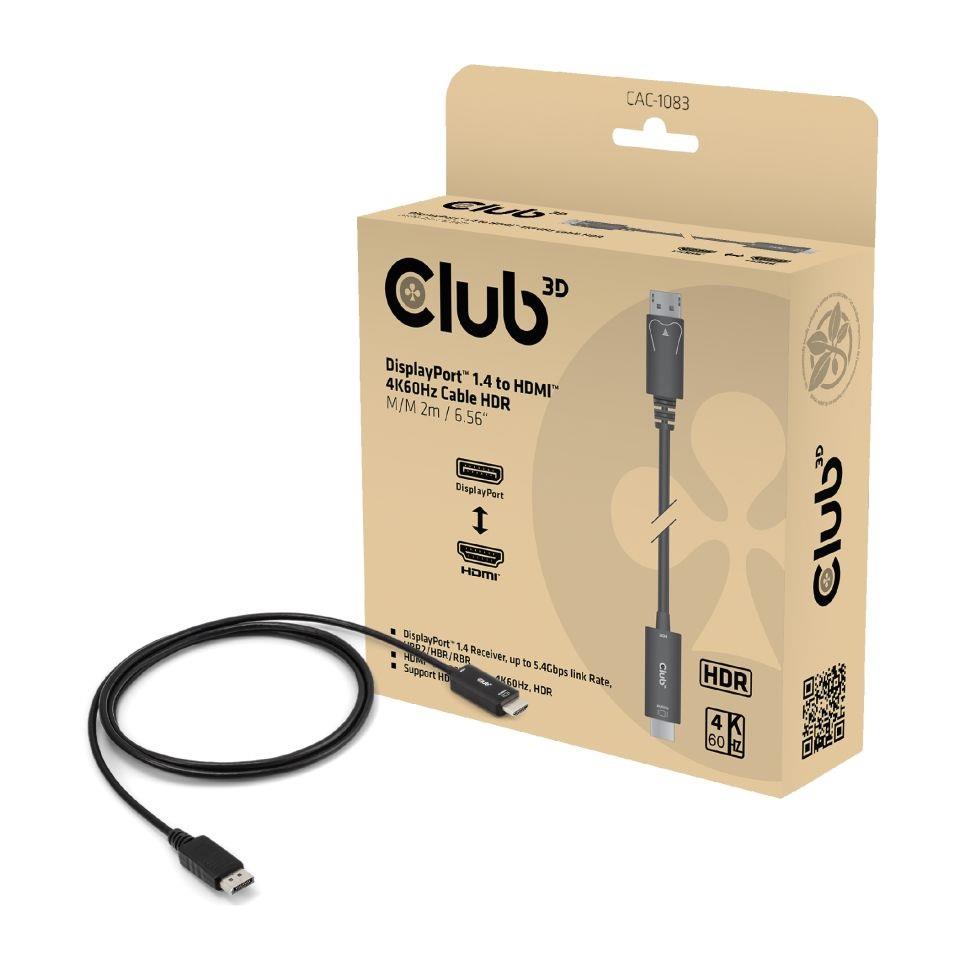

| Package type | Hanging box |
| Package weight | 114 g |
| Paper/cardboard packaging weight | 45 g |
| Plastic packaging weight | 1 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Packaging content
| Quantity per pack | 1 pc(s) |
Logistics data
| Harmonized System (HS) code | 8544 4290 |
