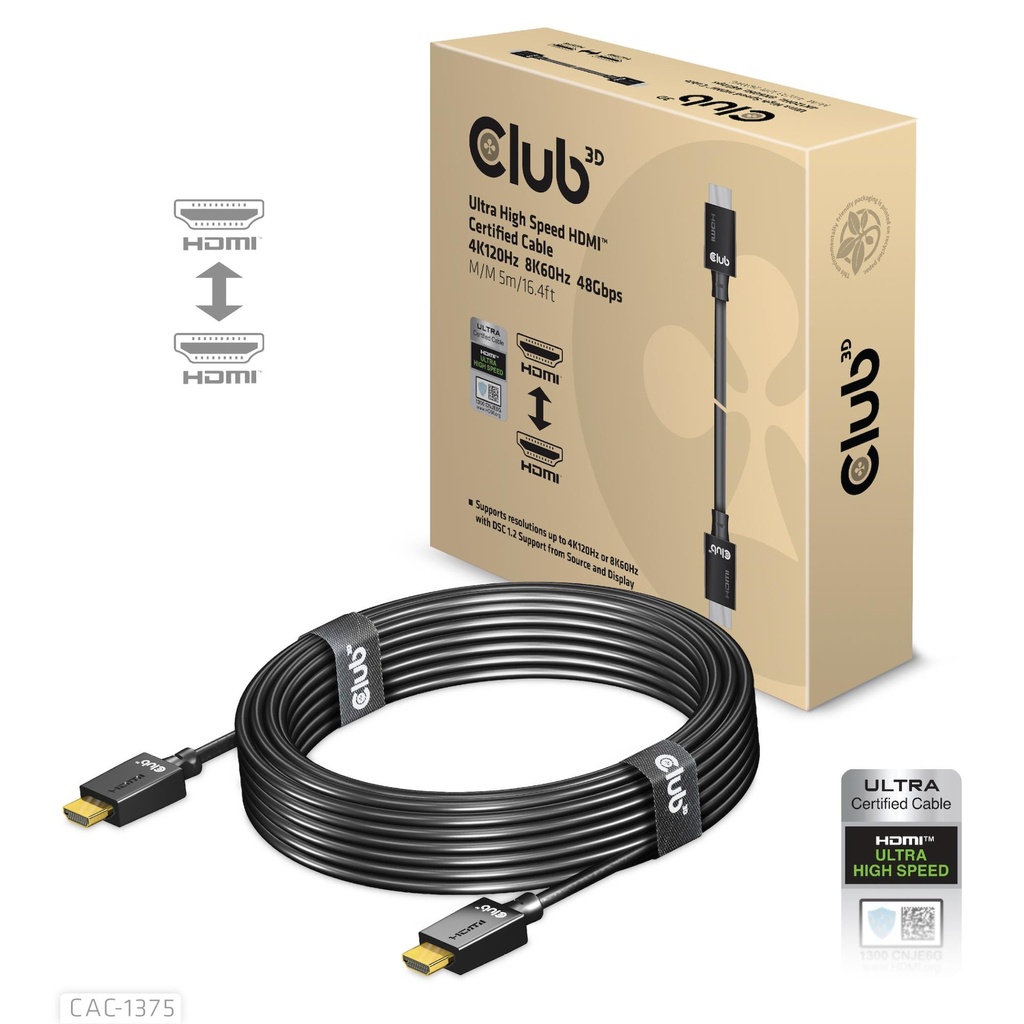

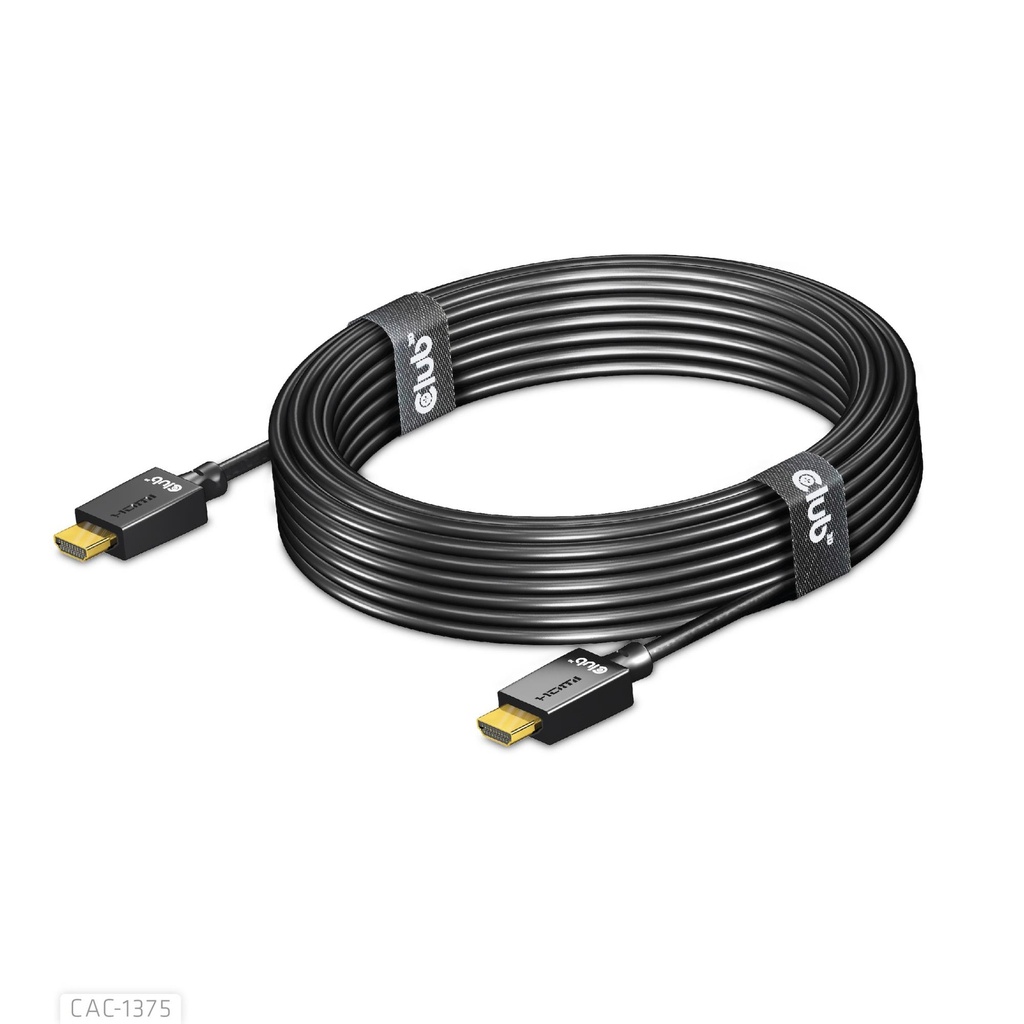

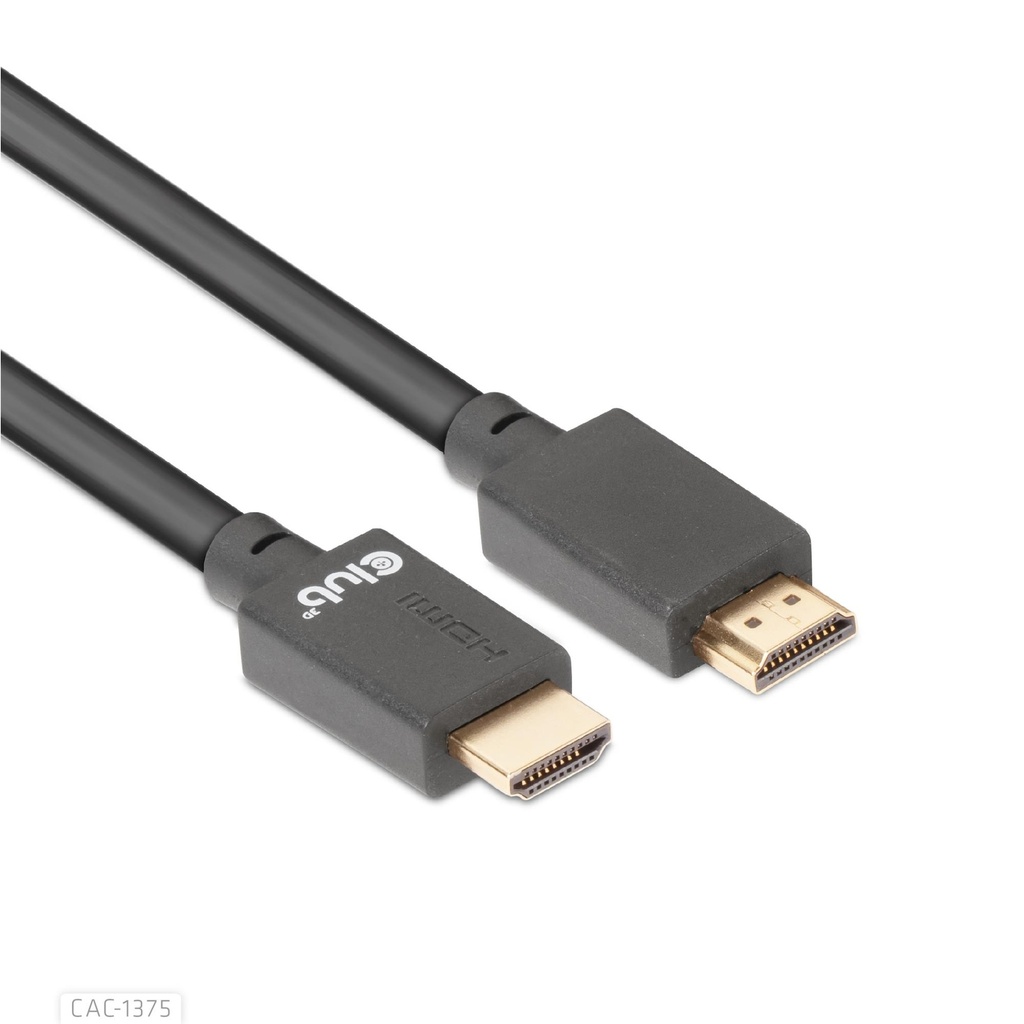

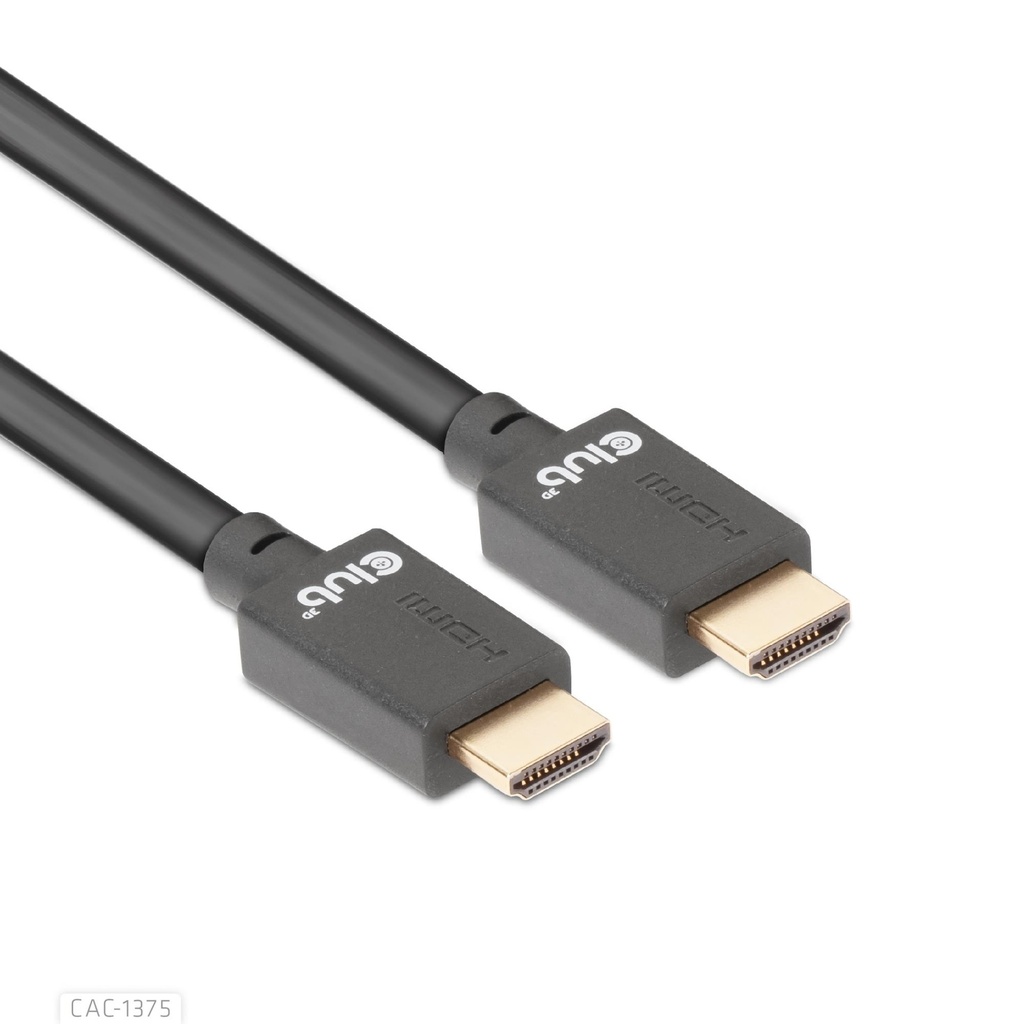

The Club 3D CAC-1375 Ultra High Speed HDMI™2.1 Certified Cable is built to handle the highest quality video- and audio- signals.
HDMI™2.1 Increased Bandwidth to 48Gbps.
The increase in maximum bandwidth compared to previous versions is achieved by increasing both the bitrate of the data channels (from 6Gbps to 12Gbps) and the number of channels (from 3 to 4). This allows support for resolutions up to supports 4K at 120Hz or 8K at 60Hz! New feature included in this Specification is Display Stream Compression (DSC) 1.2, this is used for video formats higher than 8K with 4:2:0.
Enhanced refresh rate features:
- Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid motion in games
- Quick Media Switching (QMS) for movies and video eliminates the delay that can result in blank screens before content is displayed
- Quick Frame Transport (QFT) reduces latency.
- HDMI™2.1 also supports Static- and Dynamic HDR metadata.
All HDMI™2.1 features are fully supported by this Club 3D CAC-1375 Cable. It is the ideal solution for the ultimate future proof HDMI™2.1 experience.
- Features:
- Fully Compliant to the Ultra High Speed HDMI™2.1 Certified specification
- Professional quality cable
- Low EMI emission
- Gold plated connectors for maximum conductivity and 28 AWG
- Enhanced gaming and media features
- Color space BT.2020 with 10bits,12bits,16bits
- Backwards compatible to earlier HDMI™ versions
- Supports Display Stream Compression (DSC) 1.2

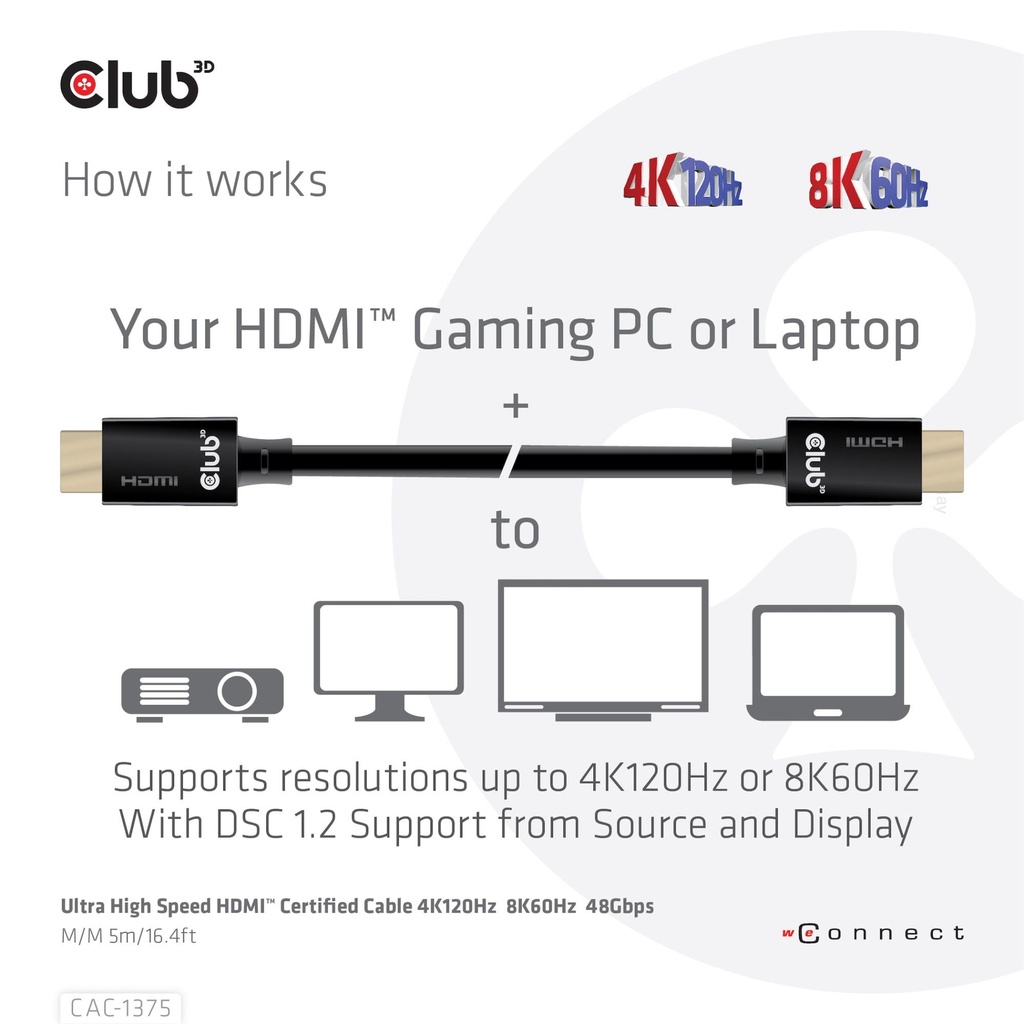

- Supports (U)HD resolutions up to 4K120Hz (with DSC 1.2) or 8K60Hz
- Supports Enhanced Audio Return Channel (eARC)
- Supports Static- and Dynamic- HDR Metadata
- Support for VRR, QMS, QFT and Auto Low Latency Mode
General
| Unit Calculated Weight | 0.49 kg |
| Unit Calculated Volume | 0.001543 cubm |
| Units per Shipping Box | 1 |
| Summary | CLUB3D Ultra High Speed HDMI™ Certified Cable 4K120Hz 8K60Hz 48Gbps M/M 5m/16.4ft. Cable length: 5 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.1, Data transfer rate: 48 Gbit/s, Audio Return Channel (ARC), Product colour: Black |
| Unit Box Height | 0.035 |
| Unit Box Length | 0.21 |
| Unit Box Width | 0.21 |
| Model | CAC-1375 |
Features
| Audio Return Channel (ARC) | Yes |
| AWG wire size | 28 |
| Cable length | 5 m |
| Cable type | Round cable |
| Connector 1 | HDMI Type A (Standard) |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | HDMI Type A (Standard) |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Data transfer rate | 48 Gbit/s |
| HDMI version | 2.1 |
| Mac operating systems supported | Yes |
| Maximum refresh rate | 144 Hz |
| Plug and Play | Yes |
| Product colour | Black |
| Windows operating systems supported | Yes |
Certificates
| Certification | ROHS, FCC, CE EMI |
Weight & dimensions

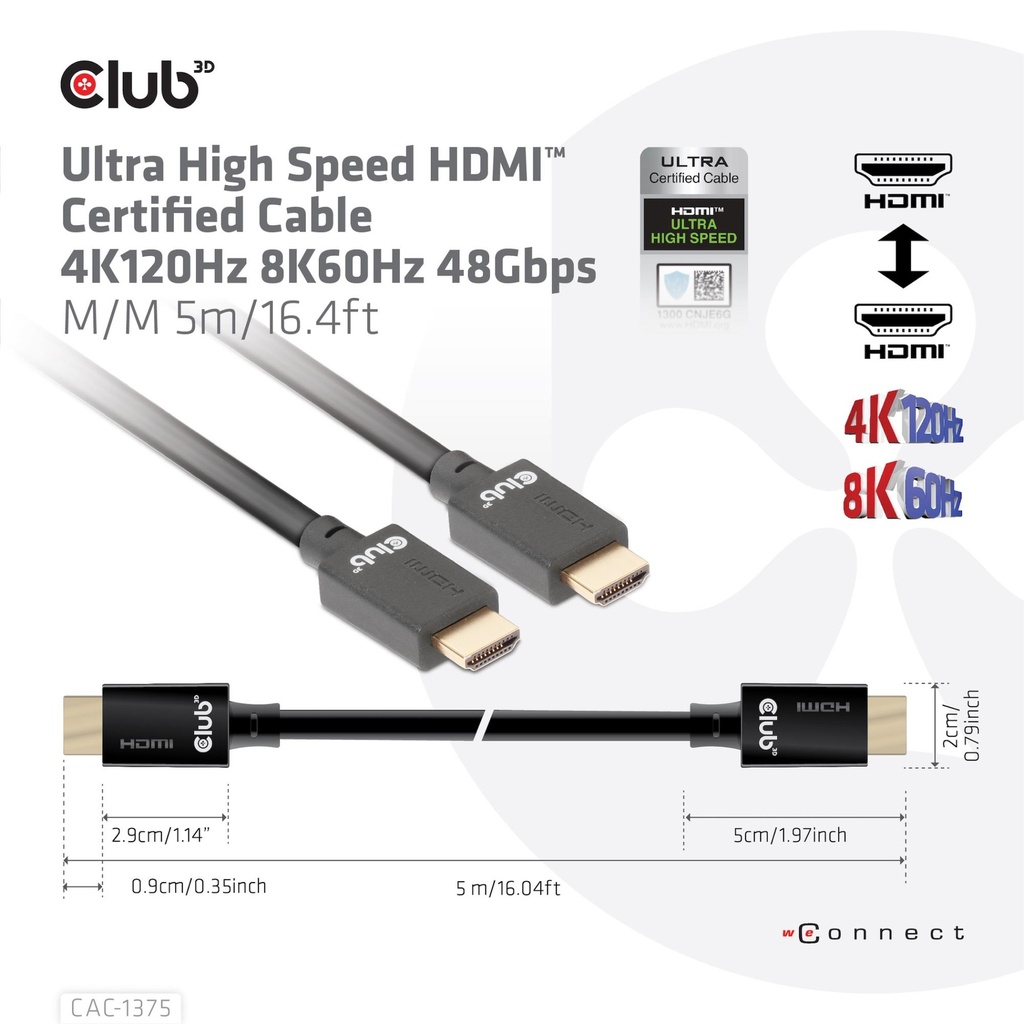

| Connector 1 dimensions (WxDxH) | 20 x 50 x 10 mm |
| Connector 2 dimensions (WxDxH) | 20 x 50 x 10 mm |
| Weight | 391 g |
Packaging data
| Package depth | 75 mm |
| Package height | 210 mm |
| Package type | Box |
| Package weight | 470 g |
| Package width | 210 mm |
| Quantity per pack | 1 pc(s) |
Packaging composition
| Paper/cardboard packaging weight | 70 g |
| Plastic packaging weight | 9 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 8544 4290 |
