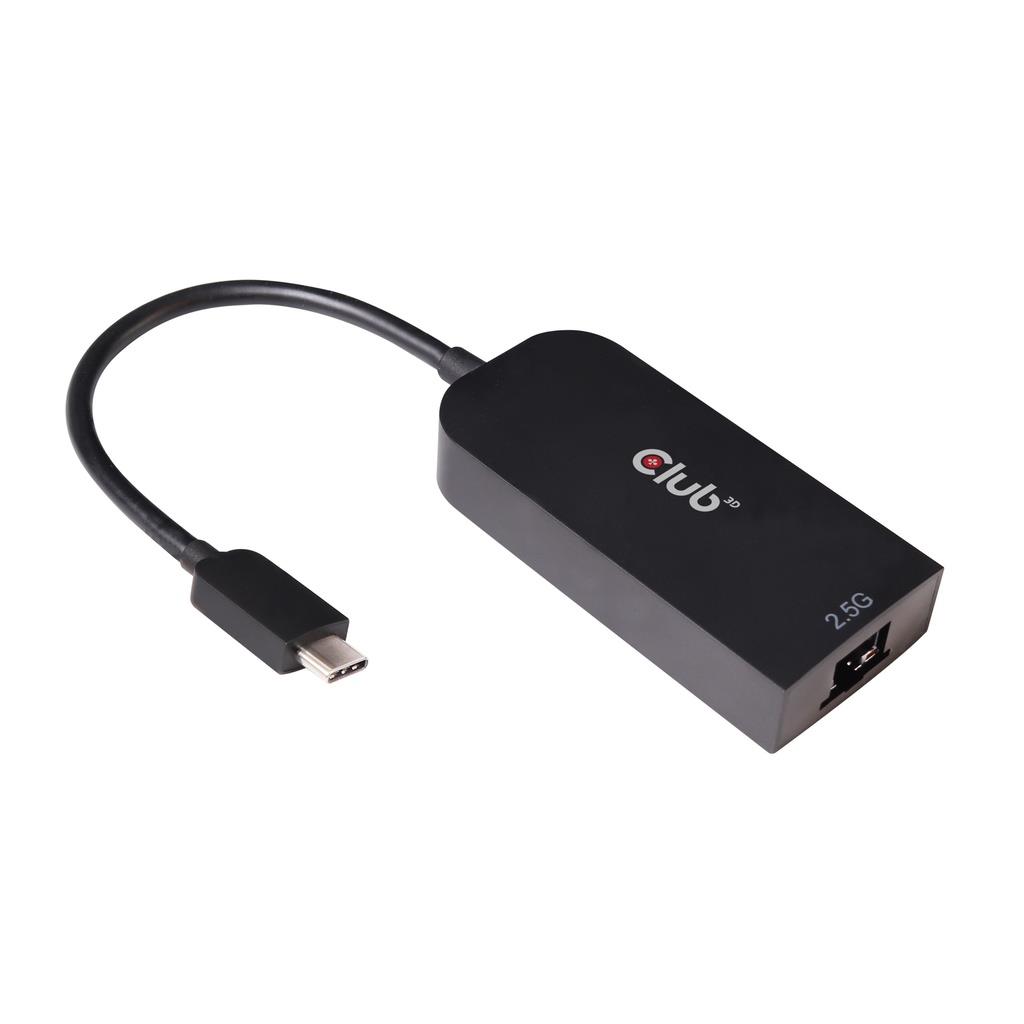

CAC-1520 - The Club 3D USB 3.2 Gen1 Type C to RJ45 2.5Gbps Ethernet Adapter. It enables a Fast Ethernet network connection capability for desktops, notebooks or ultrabooks with a standard USB 3.2 Gen 1 Type C port.
This adapter is the best solution for latest devices without an onboard Ethernet port.
Its the perfect accessory for your travels in addition its USB powered so no need for external power adapter.
- Supports USB 3.2 Gen 1 Type C Port and 2.5Gbps RJ45 output
- Supports 10M/100M/1G/2.5G Bandwidth
- Supports twisted pair crossover detection and auto-correction
- USB Bus power (No external Power Needed)
- Supports USB3.2 Gen1, USB 2.0 and USB 1.1 ( When using lower USB versions the ethernet speed will be affected )
- Supports WOL (Wake-On-Lan) Full Duplex Flow (10M / 100M / 1G / 2.5G Rate) Auto Negotiation
- Supports Windows 8/Windows 10/ Mac OsX 10.6 to 10.13 Note : Driver Software installation is required
- Power Consumption : 4.75V ~ 5.25V
- Normal Operating power : < 80mA 10M < 130mA 100M <300mA 1G <460mA 2.5G
General
| Unit Calculated Weight | 0.08 kg |
| Unit Calculated Volume | 0.0009809 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | CLUB3D USB 3.2 Gen1 Type C to RJ45 2.5Gbps Adapter. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Certification: ROHS, FCC, and CE EMI requirements. Power source type: USB, Power connector: USB Type-C. Width: 35 mm, Depth: 240 mm, Height: 15 mm |
| Unit Box Height | 0.295 |
| Unit Box Length | 0.095 |
| Unit Box Width | 0.035 |
| Model | CAC-1520 |
Ports & interfaces
| Connectivity technology | Wired |
| DC-in jack | No |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Microphone in | No |
Network
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000/2500 Mbit/s |
Performance
| Card reader integrated | No |
| Certification | ROHS, FCC, and CE EMI requirements |
| Product colour | Black |
Power
| Power connector | USB Type-C |
| Power source type | USB |
| Wireless charging | No |
Software
| Windows operating systems supported | Yes |
Weight & dimensions

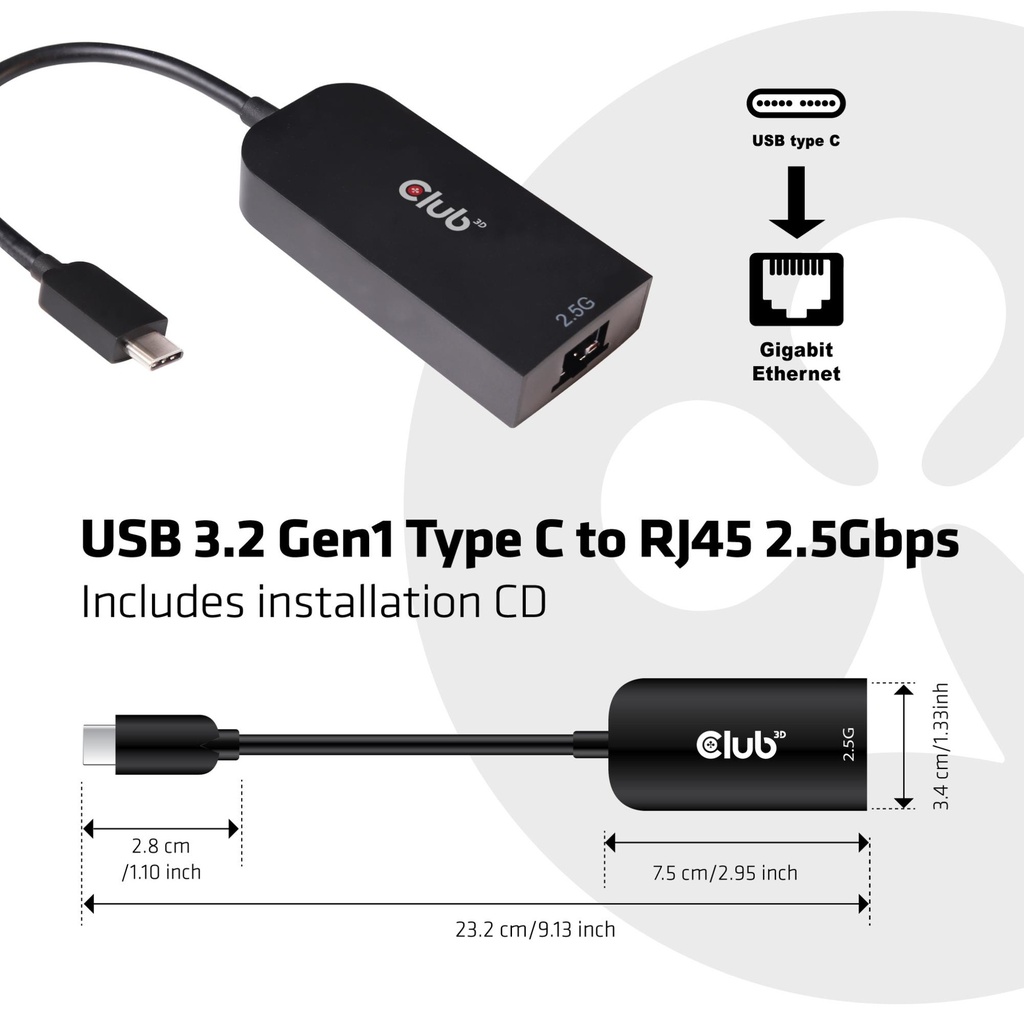

| Depth | 240 mm |
| Height | 15 mm |
| Weight | 34 g |
| Width | 35 mm |
Packaging data
| Package depth | 95 mm |
| Package height | 35 mm |
| Package weight | 86 g |
| Package width | 260 mm |
| Quantity per pack | 1 pc(s) |
Packaging composition
| Paper/cardboard packaging weight | 56 g |
| Plastic packaging weight | 3 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Logistics data
| Harmonized System (HS) code | 8544 4290 |
