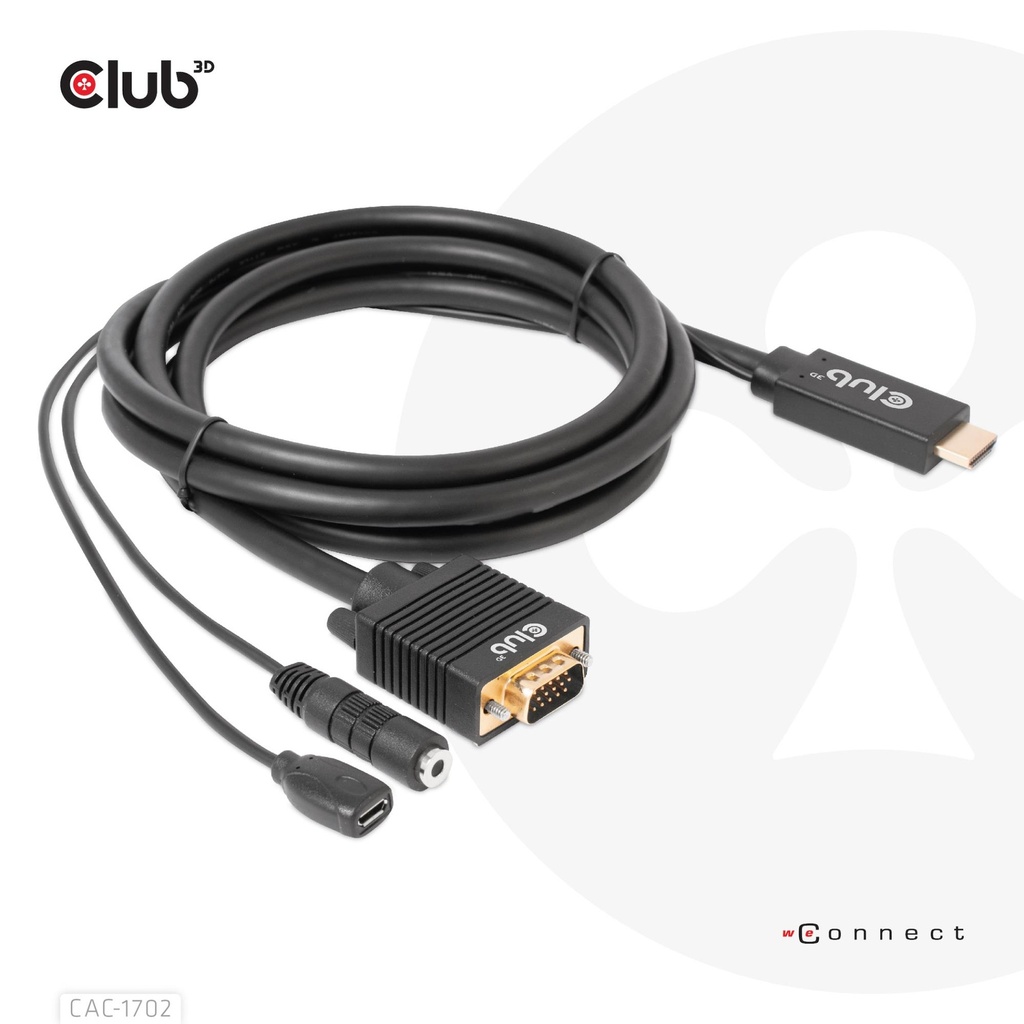

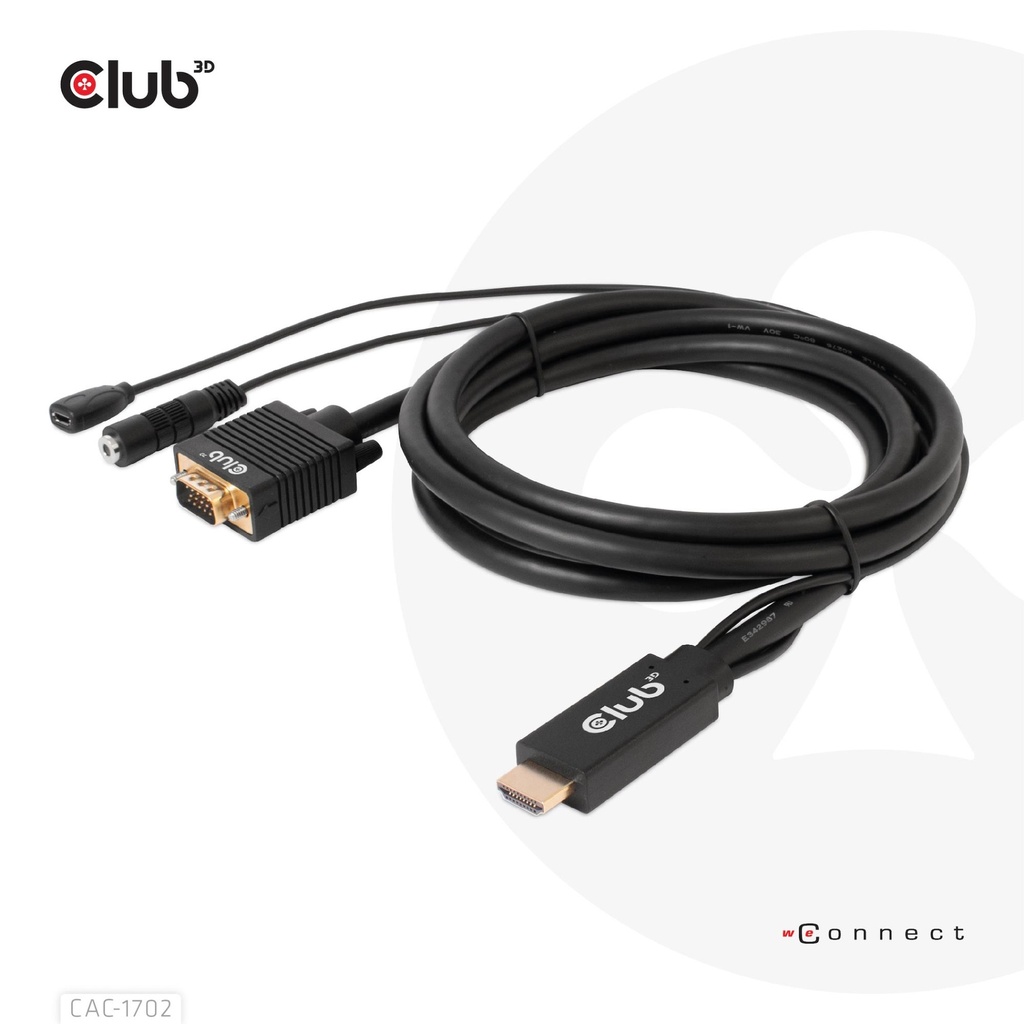

The Club 3D CAC-1712 HDMI™ to VGA Cable M/M 2m/6.56ft 28AWG links any HDMI™-equipped desktop, laptop or adapter to a monitor, display, beamer or projector with a 15-pin VGA Female port. Ideal for at home or work, the cable creates a reliable connection for anything from gaming to video projection and supports up to Full HD 1080p(max. resolution of 1920 x 1080).

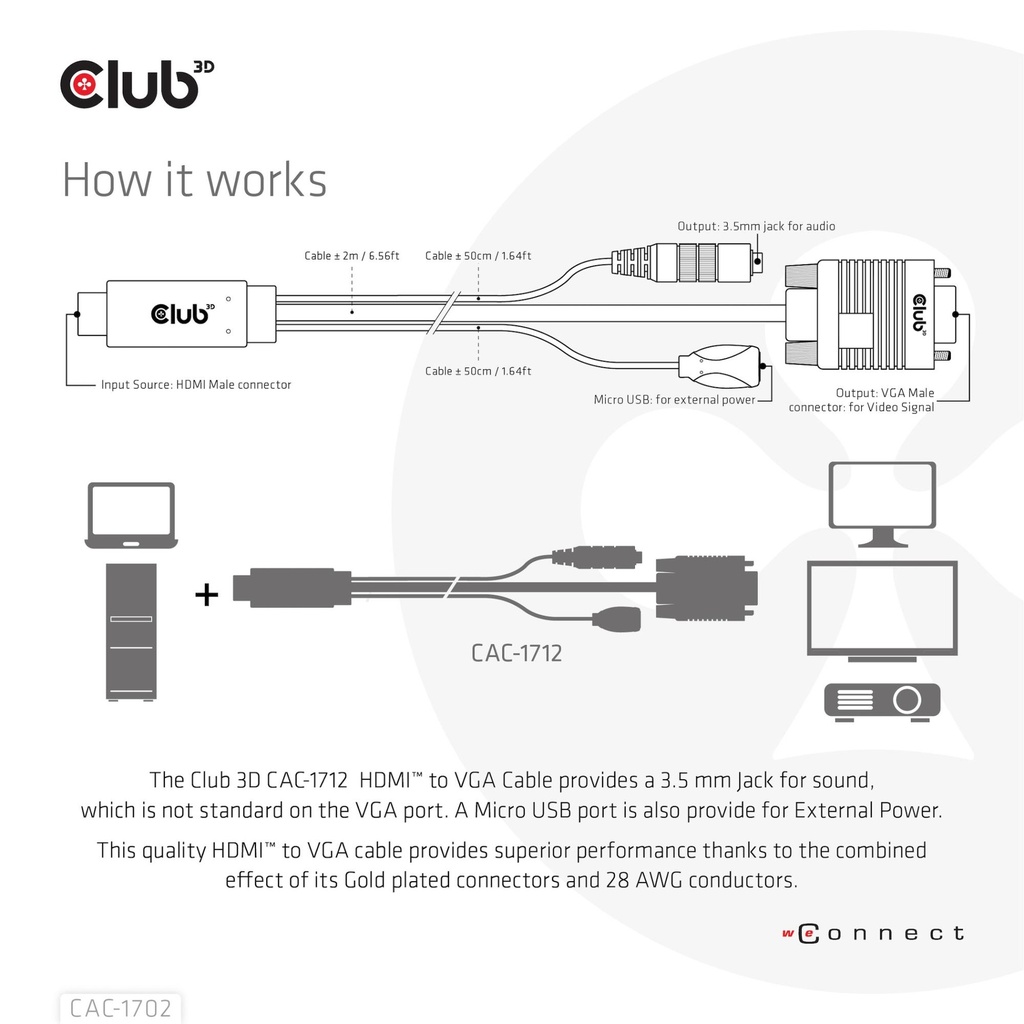

It also provides a 3.5 mm Jack for sound, which is not standard on the VGA port. A Micro USB port is also provide for External Power.

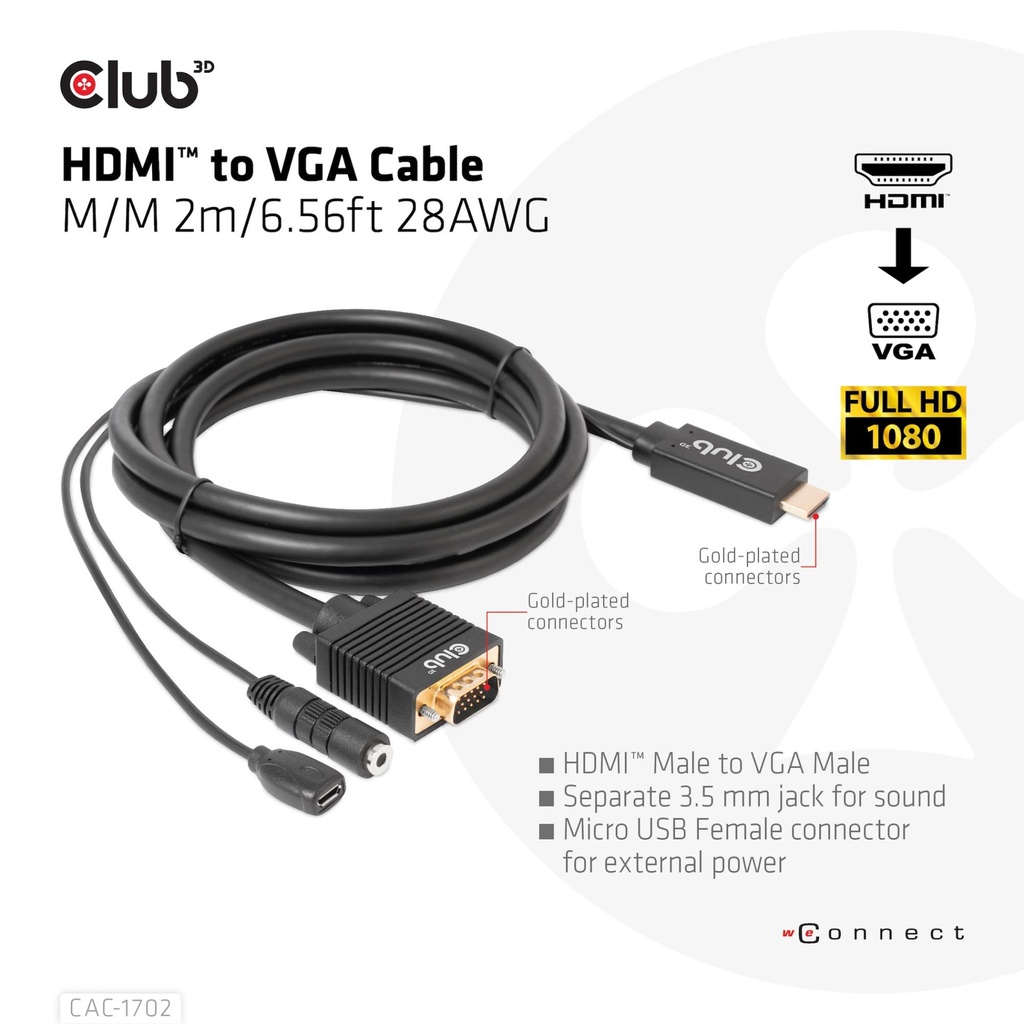

This quality HDMI™ to VGA cable provides superior performance thanks to the combined effect of its Gold plated connectors and 28 AWG conductors. Internal shielding provides reduced crosstalk, suppresses noise, and helps prevent electromagnetic interference (EMI) and radio frequency interference (RFI).
Experience a reliable, high-quality connection with this convenient HDMI™ to VGA 2m/6.56ft cable.
General
| Unit Calculated Weight | 0.26 kg |
| Unit Calculated Volume | 0.001378 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | CLUB3D HDMI to VGA Cable M/M 2m/6.56ft 28AWG. Cable length: 2 m, Connector 1: VGA (D-Sub) + 3.5mm, Connector 2: HDMI + Micro-USB. Certification: ROHS, FCC, CE EMI. Plastic packaging weight: 5 g, Paper/cardboard packaging weight: 63 g. Connector 1 dimensions (WxDxH): 20 x 60 x 11 mm, Connector 2 dimensions (WxDxH): 33 x 44 x 16 mm, Connector 3 dimensions (WxDxH): 13.3 x 25 x 9 mm. Package width: 175 mm, Package depth: 45 mm, Package height: 175 mm |
| Unit Box Height | 0.175 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.045 |
| Model name | CAC-1712 |
Features
| AWG wire size | 28 |
| Cable length | 2 m |
| Cable type | Round cable |

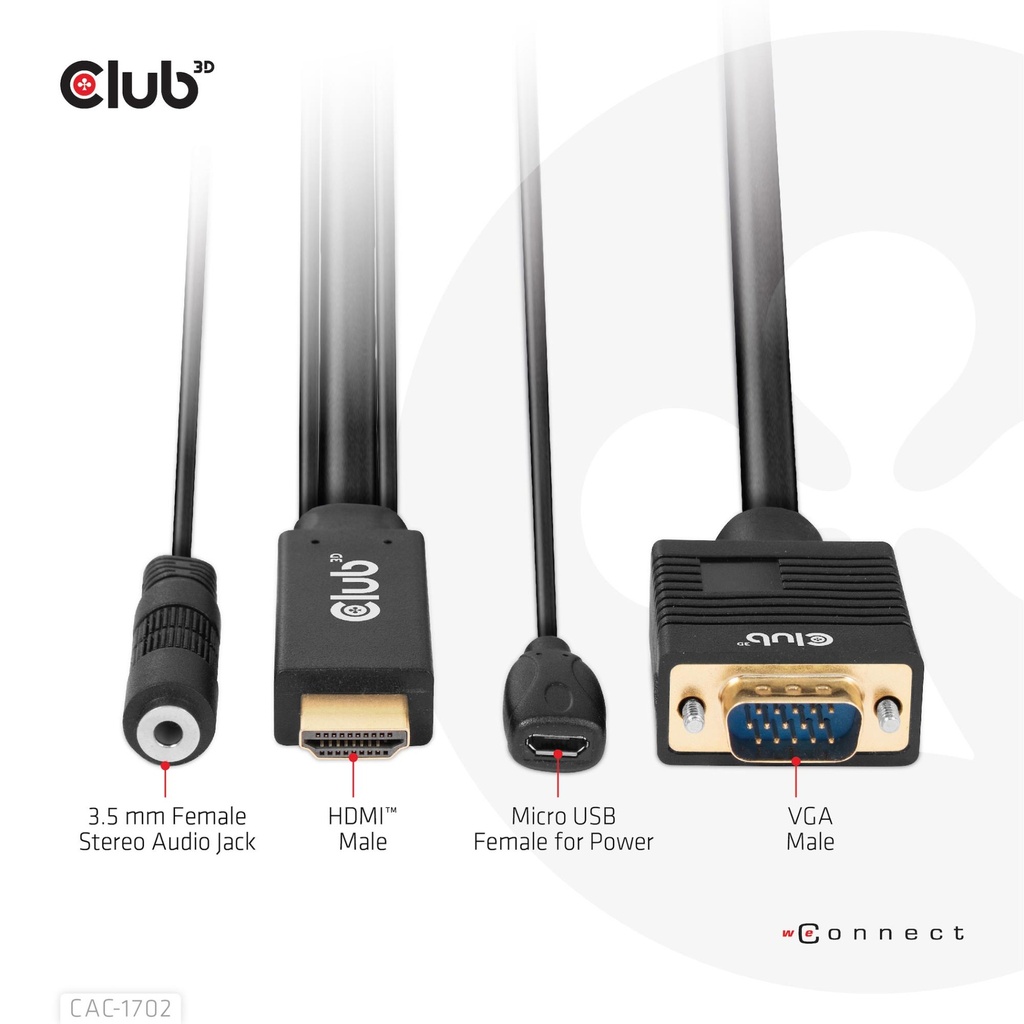

| Connector 1 | VGA (D-Sub) + 3.5mm |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male/Female |
| Connector 2 | HDMI + Micro-USB |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male/Female |
| Mac operating systems supported | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Plug and Play | Yes |
| Product colour | Black |
| Windows operating systems supported | Yes |
Certificates
| Certification | ROHS, FCC, CE EMI |
Packaging composition
| Paper/cardboard packaging weight | 63 g |
| Plastic packaging weight | 5 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Weight & dimensions

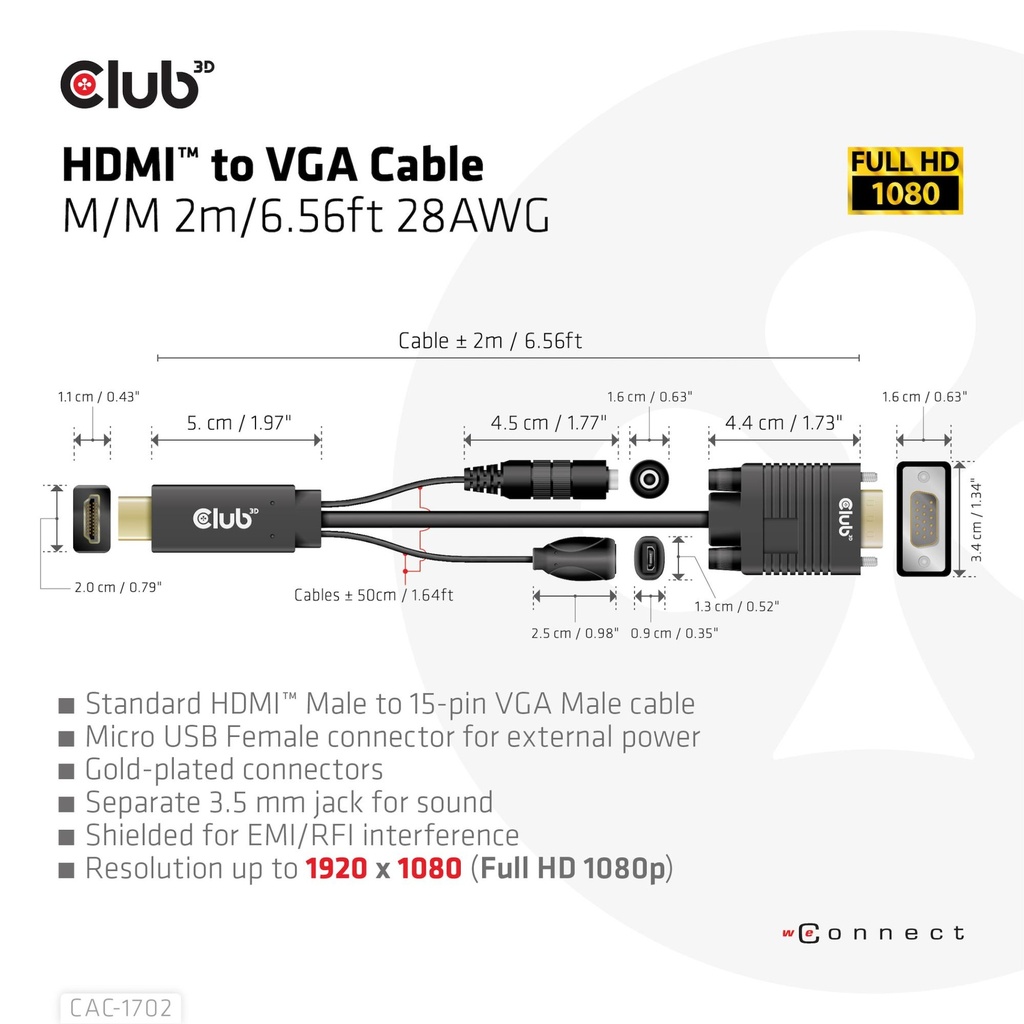

| Connector 1 dimensions (WxDxH) | 20 x 60 x 11 mm |
| Connector 2 dimensions (WxDxH) | 33 x 44 x 16 mm |
| Connector 3 dimensions (WxDxH) | 13.3 x 25 x 9 mm |
| Weight | 210 g |
Packaging data
| Package depth | 45 mm |
| Package height | 175 mm |
| Package type | Box |
| Package weight | 273 g |
| Package width | 175 mm |
Packaging content
| Quantity per pack | 1 pc(s) |
Logistics data
| Harmonized System (HS) code | 8544 4290 |
