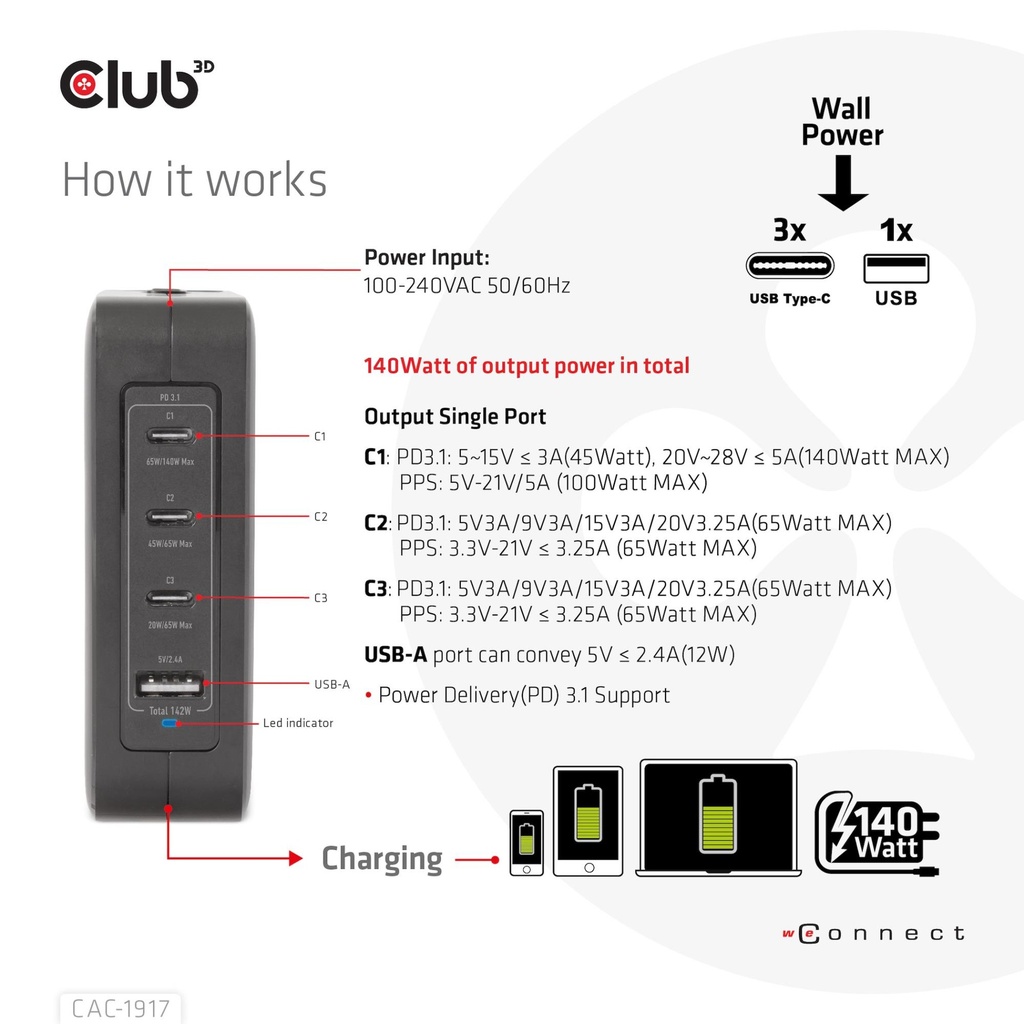

- Internal chip allows an input voltage of 100-240VAC 50/60Hz
- GaN technology
- 140Watt of output power in total(single port usage):
- Output USB Type-C1: PD3.1: 5~15V ≤ 3A(45Watt), 20V~28V ≤ 5A(140Watt MAX)
- PPS: 5V-21V/5A (100Watt MAX)
- Output USB Type-C2: PD3.1: 5V3A/9V3A/15V3A/20V3.25A(65Watt MAX)
- PPS: 3.3V-21V ≤ 3.25A (65Watt MAX)
- Output USB Type-C3: PD3.1: 5V3A/9V3A/15V3A/20V3.25A(65Watt MAX)
- PS: 3.3V-21V ≤ 3.25A (65Watt MAX)
- Output of the USB Type-A port can convey 5V ≤ 2.4A(12W)
- The maximum power output for single USB Type-C port is 140Watt
- Power Delivery(PD) 3.1Support
- Accurate limited current output and over current protection(OCP)
- Overload protection and over voltage protection(OVP)
- Short circuit protection(SCP)
- Over temperature protection and remove the fault condition auto-recovery(OTP)
- Compliant with CE, FCC standards.

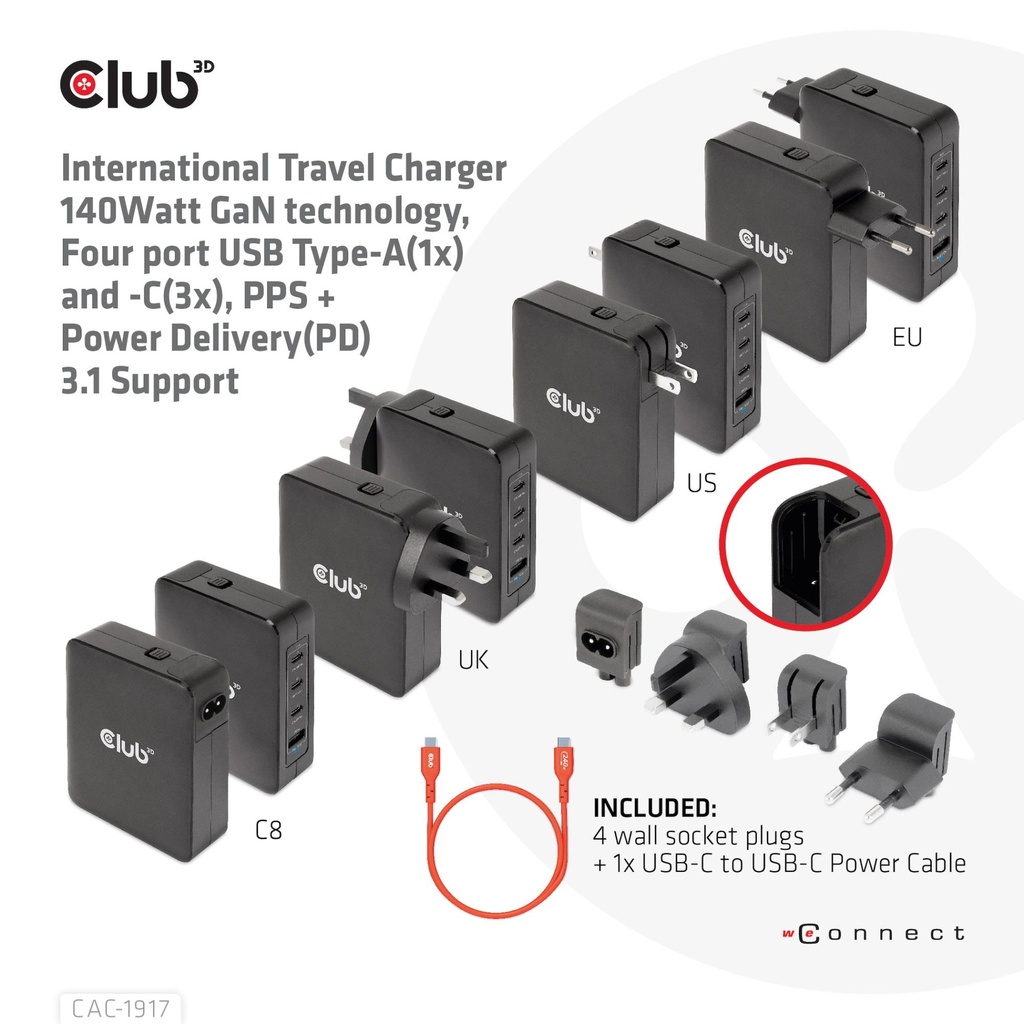

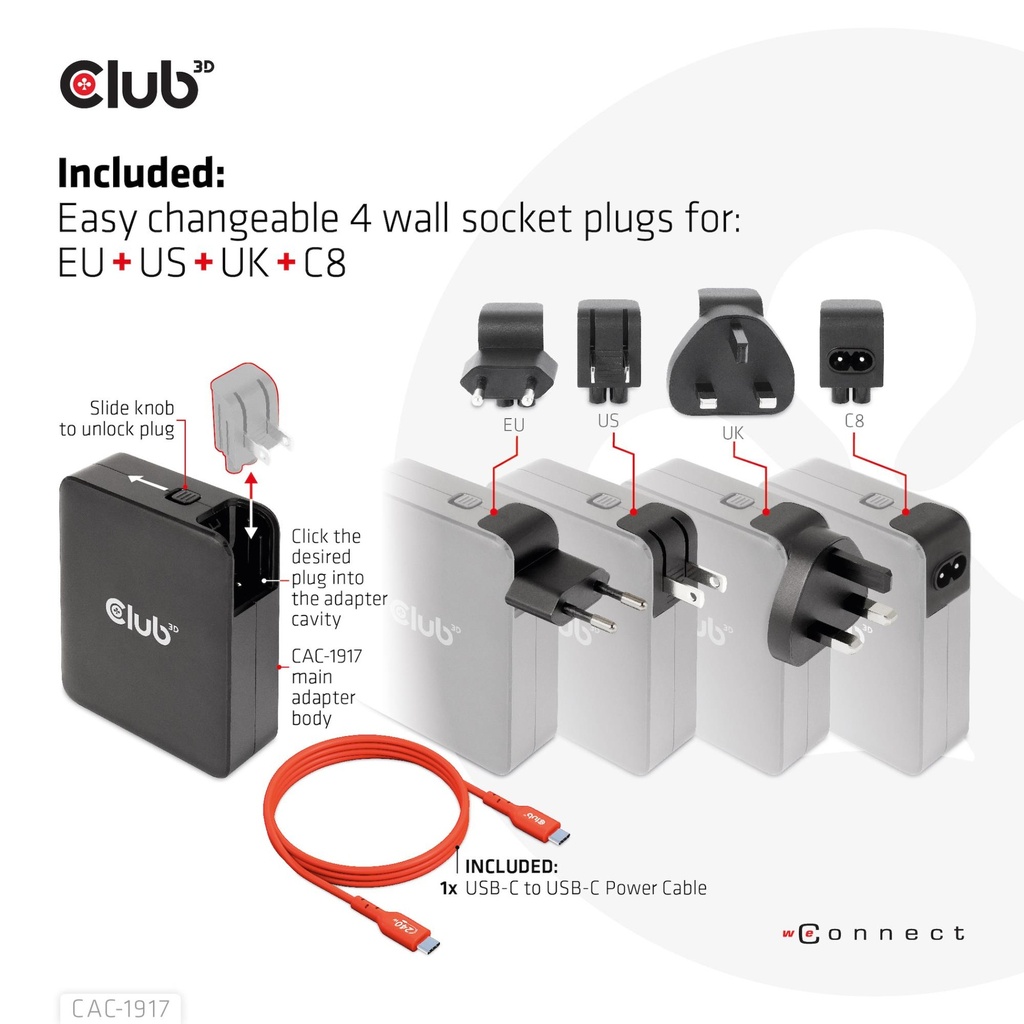

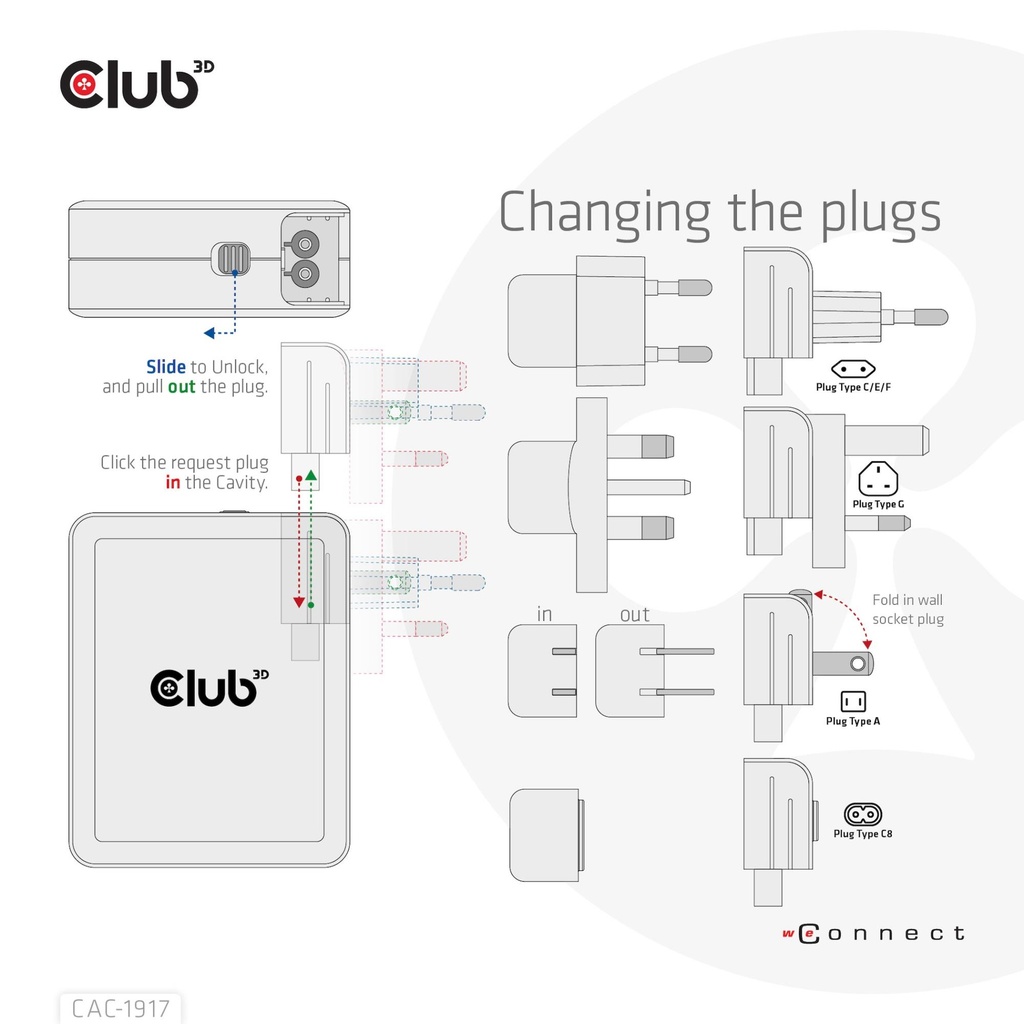

- Mains connector interchangeable
- Portable and convenient to use.
- Specially designed for your USB Type-C supported devices.
General
| Unit Calculated Weight | 0.51 kg |
| Unit Calculated Volume | 0.0007865 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | CLUB3D International Travel Charger 140W GaN technology, Four port USB Type-A(1x) and -C(3x), PPS + Power Delivery(PD) 3.1 Support. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 28 V. USB Type-C ports quantity: 3, Fast charging, Power protection features: Over current, Over voltage, Overheating, Short circuit. Product colour: Black |
| CnCode | 85044060 |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.13 |
| Unit Box Width | 0.11 |
Performance
| Charger compatibility | Universal |
| Charger type | Indoor |
| Fast charging | Yes |
| Fast charging technology | Power Delivery 3.1 |
| Number of simultaneously connected devices (max) | 4 |
| Power protection features | Over current/Over voltage/Overheating/Short circuit |
| Power source type | AC |
| Programmable power supply (PPS) | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 140 W |
| USB Type-C ports quantity | 3 |
| Wireless charging | No |
Design
| Gallium nitride (GaN) transistors | Yes |
| Product colour | Black |
Power
| AC adapter power | 140 W |
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Maximum output voltage | 28 V |
| Maximum power | 140 W |
| Minimum output voltage | 5 V |
| Port 1 output power | 140 W |
| Port 2 output power | 65 W |
| Port 3 output power | 65 W |
| Port 4 output power | 12 W |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC) |
Packaging composition
| Paper/cardboard packaging weight | 38 g |
| Plastic packaging weight | 6 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Logistics data
| Harmonized System (HS) code | 8504 4095 |
