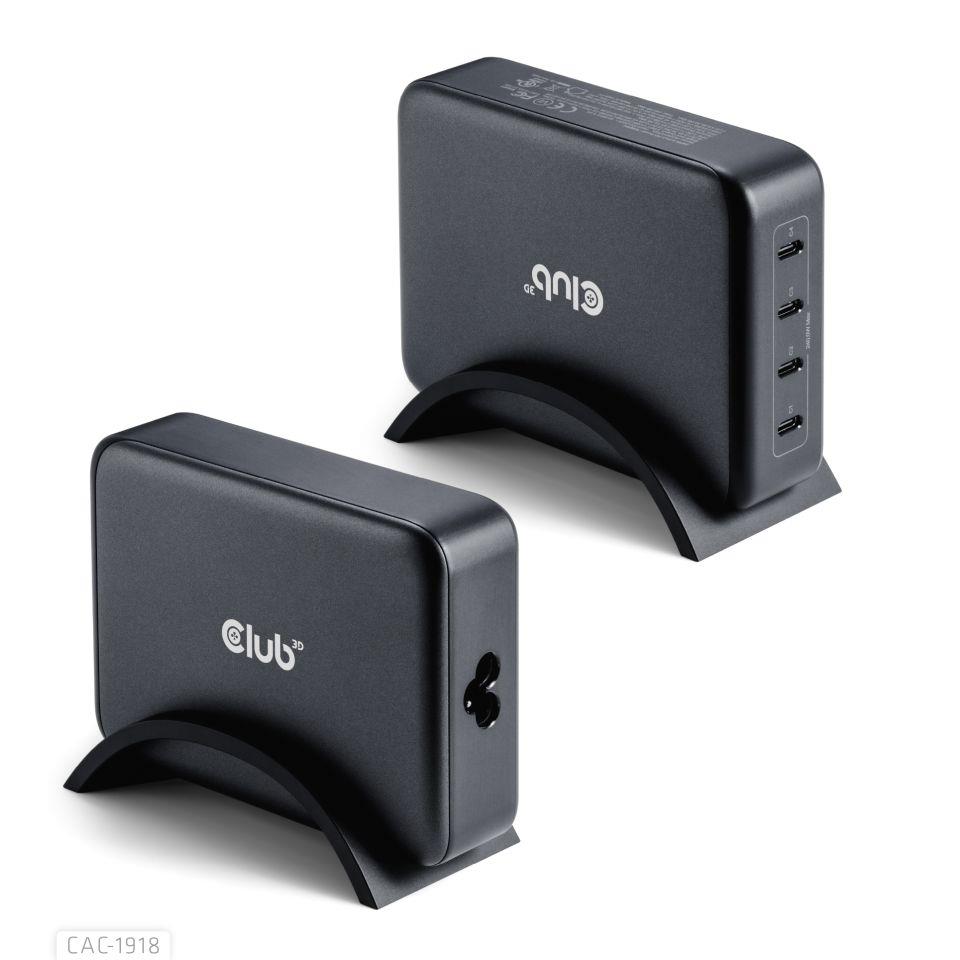

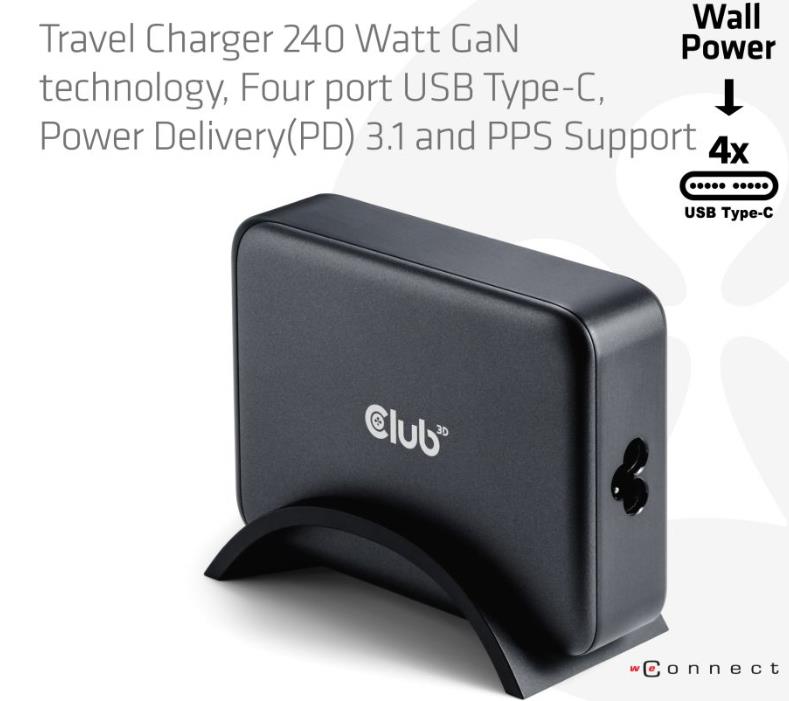

The Club 3D CAC-1918 Travel Charger 240 Watt GaN technology, Four port USB Type-C, Power Delivery(PD) 3.1 and PPS Support is a high-performance and fashionable design travel charger. Versatility: Perfect solution for business travelers and power users needs and multiple ports. This means you only need one charger for all your modern devices, and you don't have to worry about carrying multiple adapters. Portability: Highly portable and easy to carry (535 gr / 18.87 oz) in a backpack or luggage, making it ideal for business travelers who need to stay connected on the go without being weighed down by bulky chargers. Powerful charging: The 240 Watt charger charges multiple devices simultaneously at high speed, while improving the life of your batteries at the same time. Ensuring busy travelers can stay productive on the move without waiting around for hours. Built-in safeguards protect your devices against excessive current, overcharging and overheating(OCP-OTPSCP-OVP). The unit comes with a suporting bridge to position the unit uprigth.
- Accurate limited current output and over current protection(OCP)
- Overload protection and over voltage protection(OVP)
- Short circuit protection (SCP)
- Over temperature protection and remove the fault condition auto-recovery(OTP)
- Compliant with CE, UL, FCC, DOE, CEC, NRCAN standards
- Select precision electrical components, fire line version, and imported fire plastic
- Portable and convenient to use
- Specially designed for your Type-C supported devices
General
| Unit Calculated Weight | 0.76 kg |
| Unit Calculated Volume | 0.001837 cubm |
| Units per Shipping Box | 1 |
| Summary | CLUB3D CAC-1918. Power source type: AC, Charger compatibility: Universal. Input voltage: 100-240 V. USB Type-C ports quantity: 4, Power protection features: Over current, Over voltage, Overheating, Overload, Short circuit. Product colour: Black |
| CnCode | 85044060 |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.175 |
| Model name | CAC-1918 |
Performance
| Charger compatibility | Universal |
| Number of simultaneously connected devices (max) | 4 |
| Power protection features | Over current/Over voltage/Overheating/Overload/Short circuit |
| Power source type | AC |
| Programmable power supply (PPS) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 240 W |
| USB Type-C ports quantity | 4 |
Design
| Gallium nitride (GaN) transistors | Yes |
| Product colour | Black |
Power
| Input frequency | 50/60 Hz |
| Input voltage | 100-240 V |
| Output current (20V) | 5 A |
| Output current (5V) | 5 A |
| Output current (9V) | 3 A |

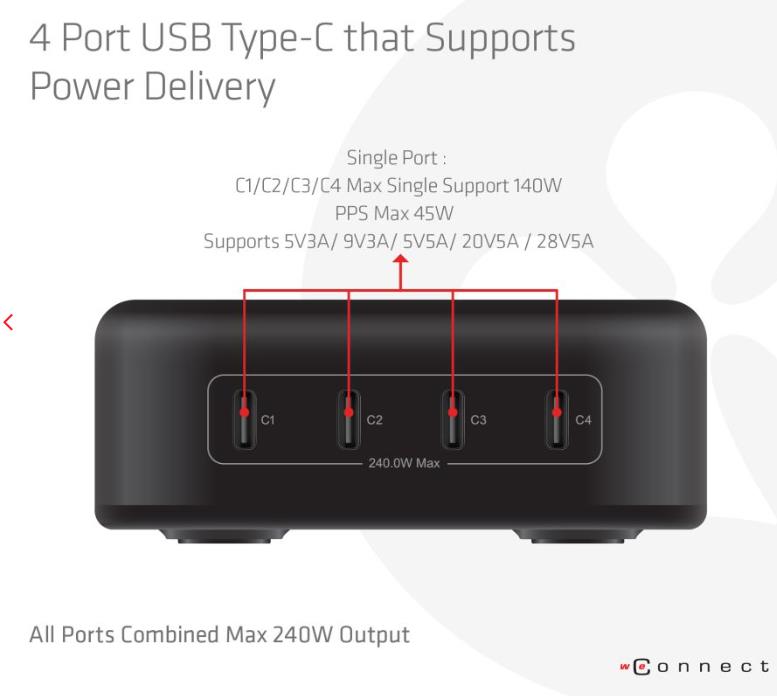

| Port 1 output power | 140 W |
| Port 2 output power | 140 W |
| Port 3 output power | 140 W |
| Port 4 output power | 140 W |

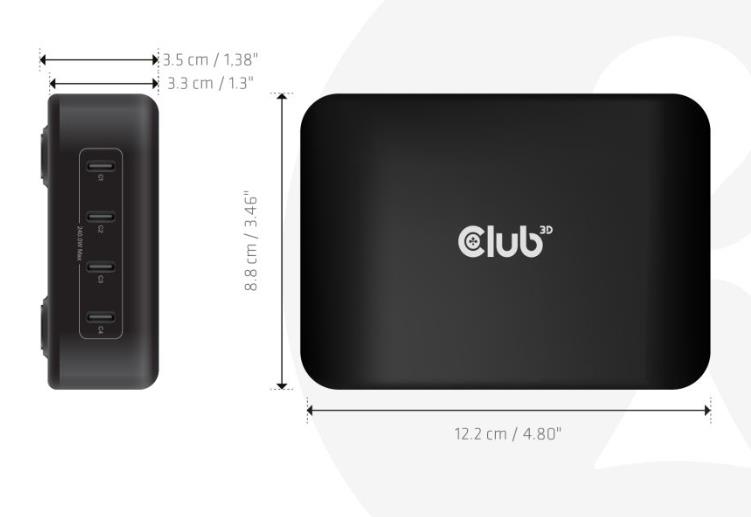

Weight & dimensions
| Depth | 35 mm |
| Height | 88 mm |
| Weight | 535 g |
| Width | 122 mm |
Packaging data
| Package depth | 175 mm |
| Package height | 60 mm |
| Package width | 175 mm |
Packaging content
| Cables included | Power/USB Type-C |
| Quantity per pack | 1 pc(s) |
| Retractable cable | Yes |
Packaging composition
| Paper/cardboard packaging weight | 70 g |
| Plastic packaging weight | 4 g |
| Total paper/cardboard packaging weight | 350 g |
| Total plastic packaging weight | 20 g |
Logistics data
| Harmonized System (HS) code | 8504 4095 |
