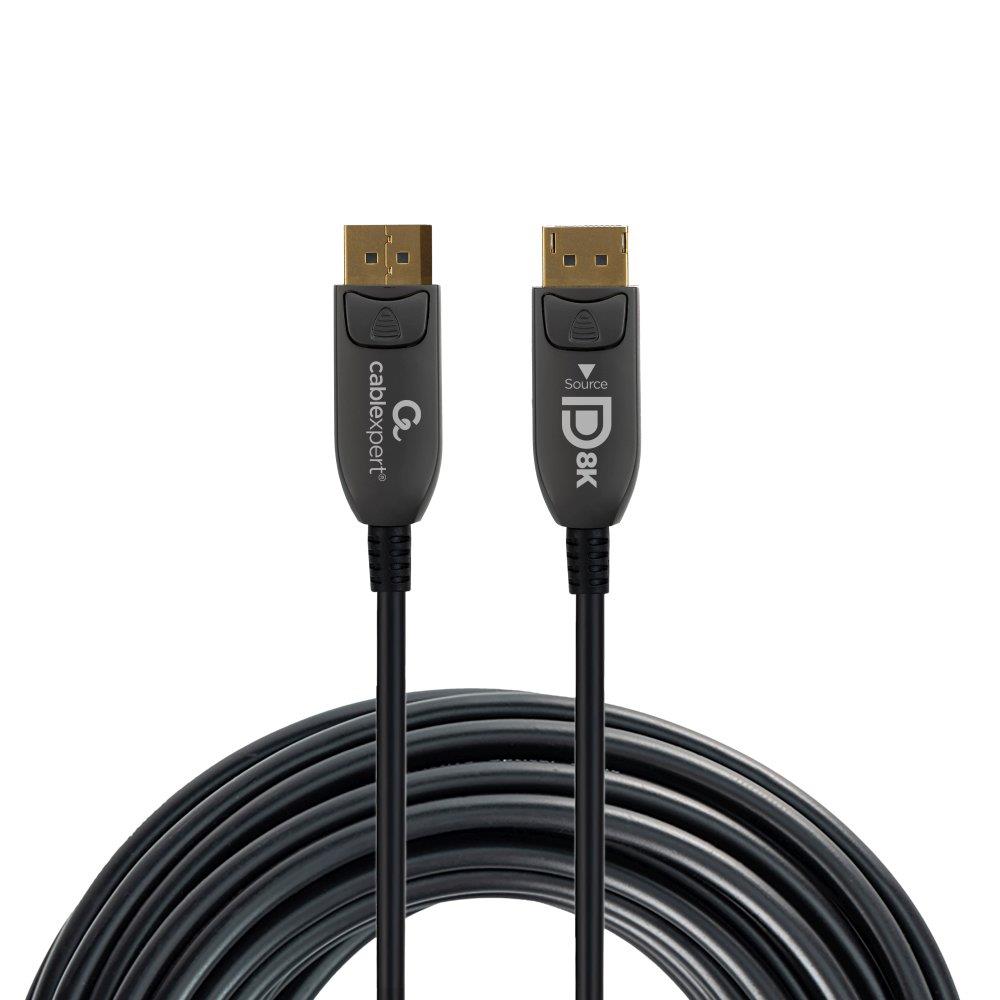

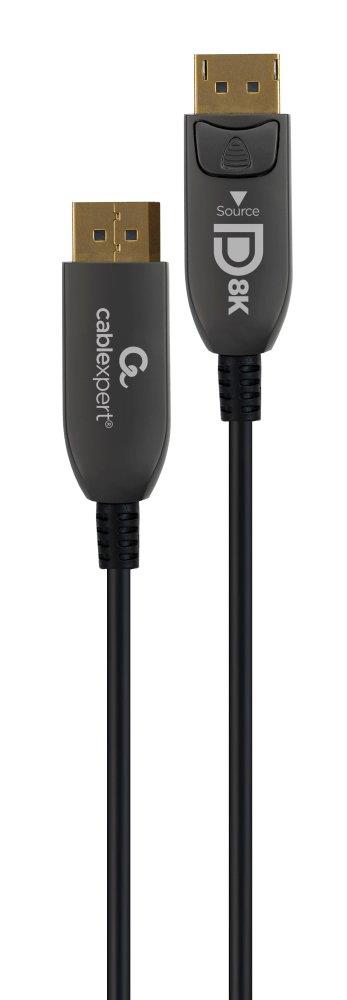

Premium DisplayPort AOC cable
Supports video resolutions up to 8K at 60 Hz
Fiber optic cable is highly resistant to EMI and RFI interference
Premium metal connectors
Gold plated connectors for perfect image quality
Compatible with all devices that support DisplayPort
- Active Optical Cables (AOC) use fiber optic technology to transport the digital video signal. This means that the signal can be carried much further than with a traditional copper cable (up to 100 m), and reduces the risk of EMI/RFI interference. DisplayPort AOC cables also have dedicated copper power wires inside, so no external power supply is required.
- DisplayPort AOC cable uses fiber optic technology - reduces the risk of EMI/RFI in high interference environments
- Durable extra thin premium quality cable with stylish metal connectors
- Smaller cable diameter compared to traditional copper DP cables
- Supports 8K UHD resolutions at 60Hz
General
| Summary | Gembird CC-DP8K-AOC-20M. Cable length: 20 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Cable diameter: 4.5 mm. Package width: 68 mm, Package depth: 220 mm, Package height: 210 mm |
| CnCode | 85444290 |
| Unit Box Height | 0.21 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.07 |
| Name | CABLE DISPLAY PORT 20M AOC/PREM CC-DP8K-AOC-20M GEMBIRD |
Features
| Connector housing material | Metal |
| Cable material | Fiber optic |
| Product colour | Black |
| Maximum refresh rate | 120 Hz |
| Maximum resolution | 7680 x 4320 pixels |
| DisplayPort version | 1.4 |
| Cable length | 20 m |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 1 | DisplayPort |
Weight & dimensions
| Cable diameter | 4.5 mm |
Packaging data
| Package type | Hanging box |
| Package weight | 1023 g |
| Package height | 210 mm |
| Package depth | 220 mm |
| Package width | 68 mm |
ELKO Verified Logistics Data
| Unit Height | 21 cm |
| Unit Depth | 22 cm |
| Unit Width | 7 cm |
| Units per Pallet | 0 |
| Units per Shipping Box | 10 |
| Product Net Weight | 0.62 kg |
| Unit Calculated Weight | 0.64 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 23 cm |
| Shipping Box Depth | 43.5 cm |
| Shipping Box Height | 36.5 cm |
| Shipping Box Weight | 6.4 kg |
| Unit Calculated Volume | 0.003652 cubm |
