2nd-Gen Native Vertical Shooting
The newly designed gimbal horizontal plate eliminates the need for additional accessories. Cinematographers can easily switch to vertical shooting.
Approx. 2.4x Battery Runtime, All-Scenario Solutions
Extend runtime up to 29 hours with the RS BG70 High-Capacity Battery Grip. And choose from various handheld configurations with RS SDK protocol
Supports Dual Focus & Zoom Motors With Remote Control
Get precision focus and zoom simultaneously by installing two Focus Pro Motors. Pair with the Focus Pro Hand Unit and High-Bright Remote Monitor and get refined remote gimbal and focus control.
LiDAR Focusing: 76,800 Ranging Points Within 20 m
Solo cinematographers can now experience more accurate, distant, and intelligent LiDAR autofocus. The next-gen ActiveTrack Pro can firmly lock on to a moving subject.
LiDAR & Transmission Interconnectivity
With the Focus Pro LiDAR to DJI Transmission Cable Hub, RS 4 Pro can power LiDAR and the DJI Video Transmitter simultaneously, achieve LiDAR Waveform, and convenient control.
4.5kg (10lbs) Payload Capacity With a 20% Increase in Motor Torque
The carbon fiber axis arms are capable of accommodating mainstream mirrorless/cinema camera and lens setups. The gimbal provides greater power redundancy once balanced.
General
| Unit Calculated Weight | 3.7 kg |
| Product Net Weight | 1.224 kg |
| Unit Calculated Volume | 0.02085 cubm |
| Units per Shipping Box | 3 |
| Battery weight | 265 g |
| Battery | Lithium-Ion rechargeable |
| Summary | DJI RS 4 Pro. Type: Hand camera stabilizer, Material: Carbon fibre, Product colour: Black. Controllable pan range: 0 - 360°, Controllable tilt range: -112 - 214°, Controllable roll range: -95 - 240°. Battery technology: Lithium Polymer (LiPo), Battery capacity: 1950 mAh, Operating time: 13 h. Weight: 1.22 kg, Width: 223 mm, Depth: 416 mm. Cables included: USB |
| Unit Box Height | 0.29 |
| Unit Box Length | 0.32 |
| Unit Box Width | 0.145 |
Features
| Angle of rotation | 360 ° |
| Compatible products | Sony: A9, A9 II, A6600, A6400, A7R V, A7R IV, A7R III, A7M4, A7M III, A7S III, FX3, A1, ZV-1, ZV-E1, ZV-E10, A7C, A7C II, A6000, A6100, A6300, A6500, A75 II, A7M II, A75, A7R II, RX100 VII, A6700 Canon: EOS-1D X II, EOS R10, EOS R7, EOS R6, EOS R6 II, EO |
| Easy setup | Yes |
| Foldable | Yes |
| Material | Carbon fibre |
| Maximum weight capacity | 4.5 kg |
| Motorized | Yes |
| Mounting | 1/4" |
| Pan range | 0 - 360 ° |
| Product colour | Black |
| Rotating | Yes |
| Tilt angle range | 0 - 360 ° |
| Type | Hand camera stabilizer |
Performance
| Controllable pan range | 0 - 360 ° |
| Controllable roll range | -95 - 240 ° |
| Controllable tilt range | -112 - 214 ° |
Ports & interfaces
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| USB charging port | Yes |
Power
| Battery capacity | 1950 mAh |
| Battery technology | Lithium Polymer (LiPo) |
| Built-in battery | Yes |
| Charging time | 1.5 h |
| Operating time | 13 h |
Operational conditions
| Operating temperature (T-T) | -20 - 45 °C |
Weight & dimensions
| Depth | 416 mm |
| Dimensions folded (WxDxH) | 283 x 271 x 75 mm |
| Height | 202 mm |
| Weight | 1224 g |
| Width | 223 mm |

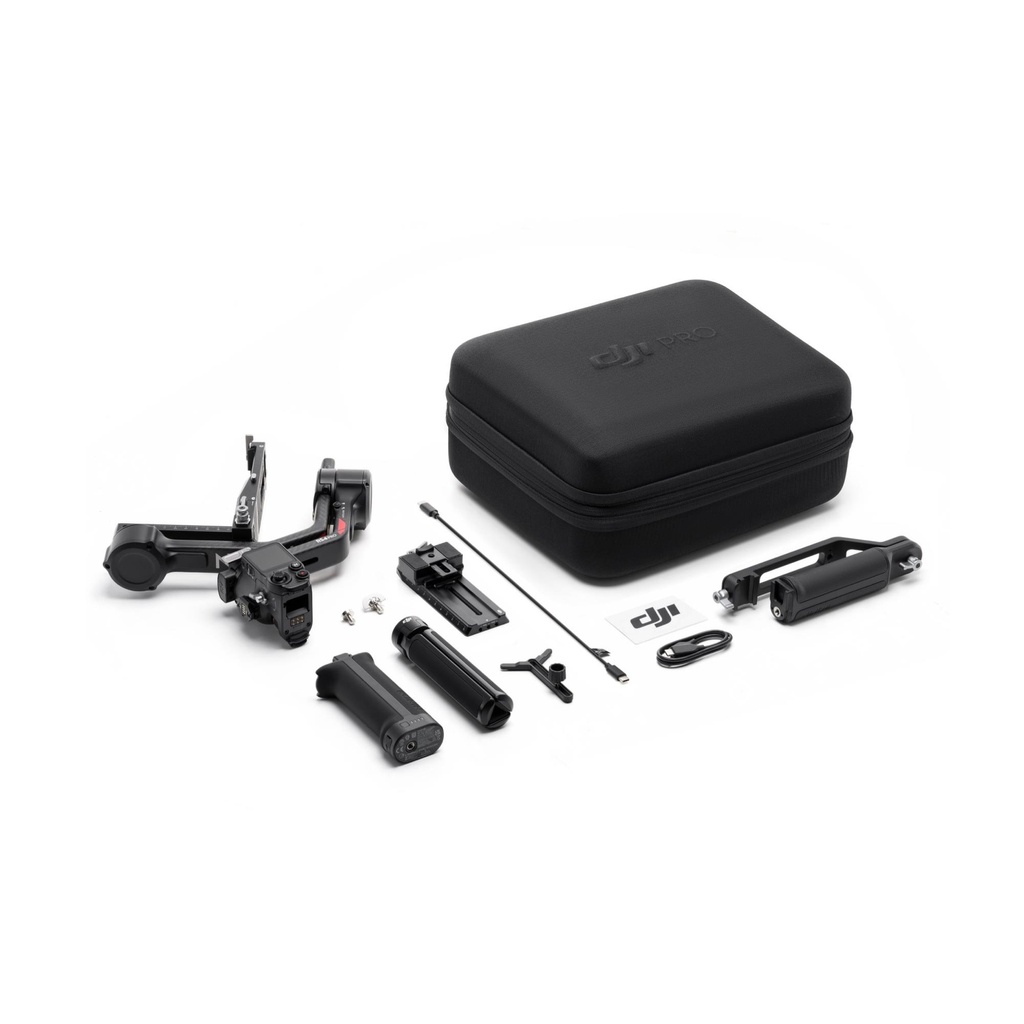

Packaging content
| Cables included | USB |
| Carrying case | Yes |
| Manual | Yes |
