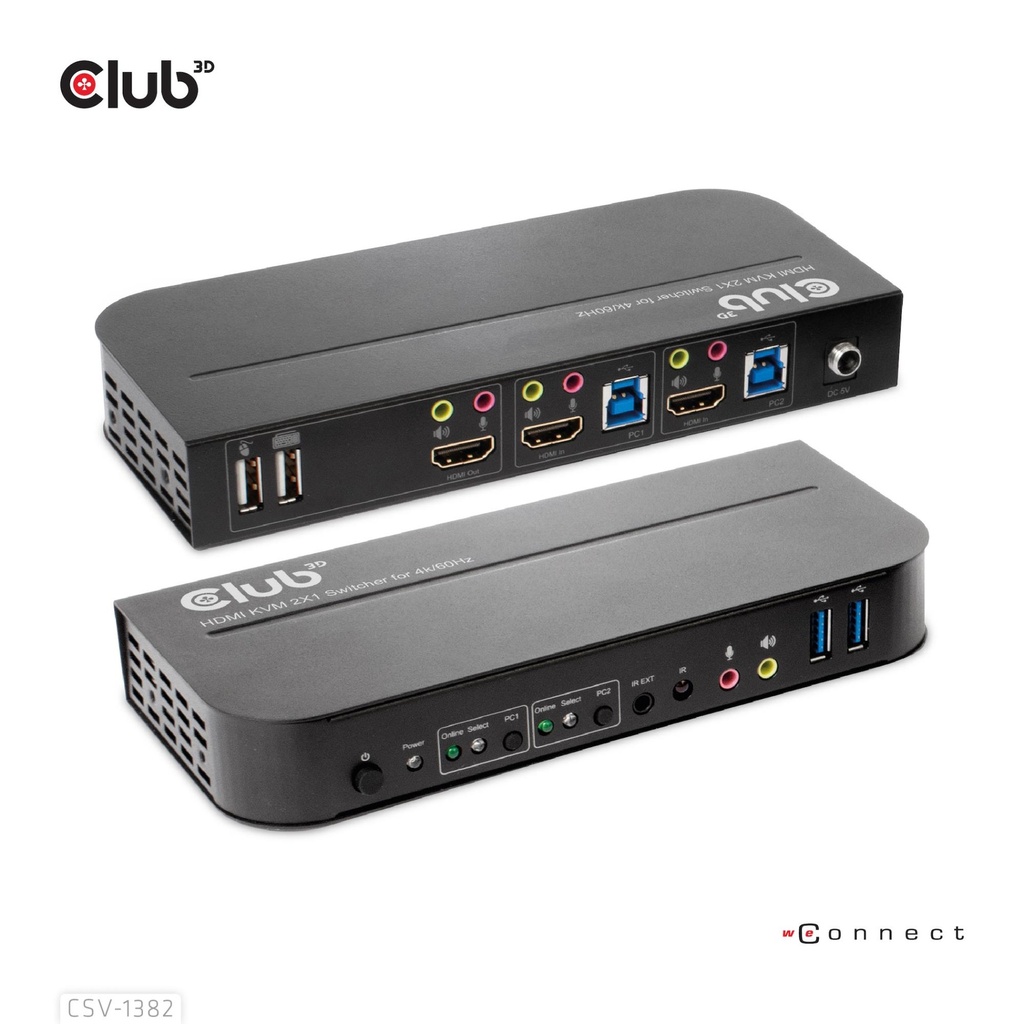

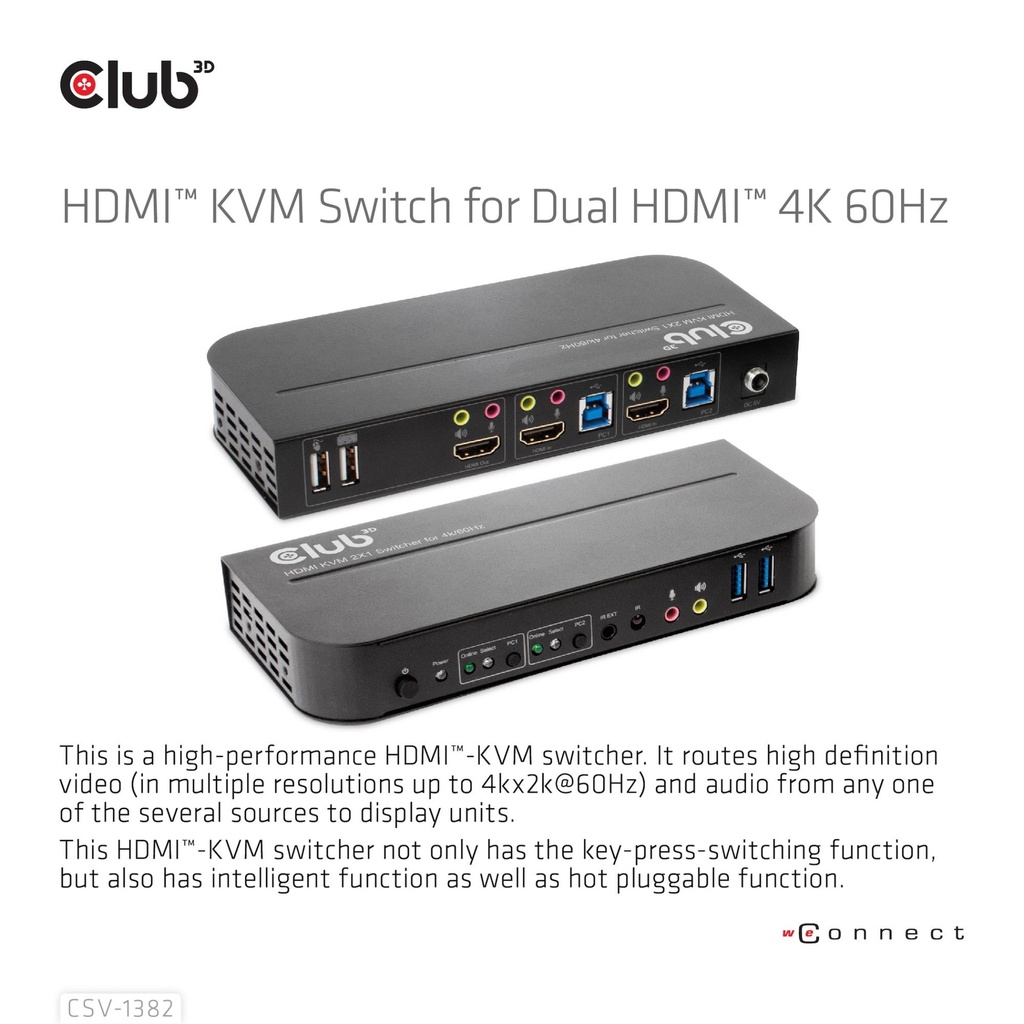

The CSV-1382 is a high performance HDMI™ KVM (Keyboard Video and Mouse) switcher. It routes high definition videos up to 4096x2160 at 60Hz resolution and audio from any HDMI™ source to any HDMI™ supported display. This HDMI™ KVM switcher not only has the key press switching function, but also has an intelligent function as well as hot pluggable function.
- Support resolution up to 4Kx2K@60Hz
- Support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
- Support KVM function
- Support a HDMI™ display and a set of Keyboard and Mouse to control two PCs with HDMI™ ports
- Support 6Gbps per channel (18Gbps all channels) bandwidth
- Support 12bit per channel (36bit all channels) deep color
- Support HDCP 2.2/1.4
- Support 3D
- Support HDR
- Support infrared remote control function
- Support for switching LED indications
General
| Unit Calculated Weight | 0.8 kg |
| Unit Calculated Volume | 0.002691 cubm |
| Units per Pallet | 0 |
| Summary | CLUB3D HDMI KVM SWITCH FOR DUAL HDMI 4K 60Hz. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 12 W. Width: 178 mm, Depth: 75 mm, Height: 26 mm |
| Unit Box Height | 0.18 |
| Unit Box Length | 0.23 |
| Unit Box Width | 0.065 |
| Model name | HDMI KVM SWITCH FOR DUAL HDMI 4K 60Hz |
| Model | CSV-1382 |

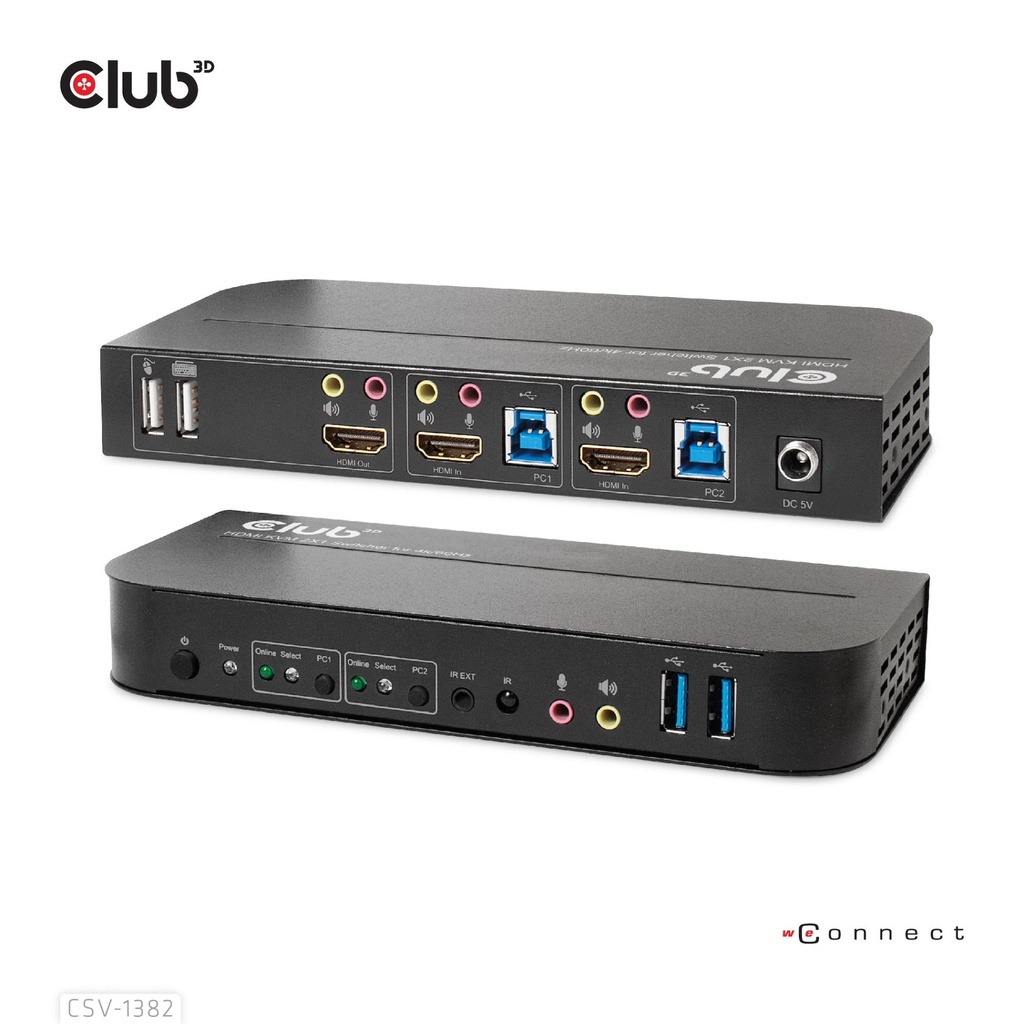

Ports & interfaces
| Audio connections | Yes |
| Console ports | 3.5mm headphone/3.5mm mic/HDMI/USB B |
| DC-in jack | Yes |
| HDMI ports quantity | 3 |
| Headphone outputs | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 2 |
| Number of microphone inputs | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Video port type | HDMI |
Performance
| Data transfer rate (max) | 18 Gbit/s |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| High Dynamic Range (HDR) supported | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Plug and Play | Yes |
| Video bandwidth | 60 Hz |
Design
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | No |
Display
| Built-in display | No |
Power
| External power adapter | Yes |
| Input voltage | 5 V |
| Power consumption (typical) | 12 W |
| Power source | DC |
System requirements
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -10 - 80 °C |
Weight & dimensions
| Depth | 75 mm |
| Height | 26 mm |
| Weight | 365 g |
| Width | 178 mm |
Packaging data
| Package depth | 65 mm |
| Package height | 210 mm |
| Package type | Box |
| Package weight | 783 g |
| Package width | 230 mm |
| Paper/cardboard packaging weight | 147 g |
| Plastic packaging weight | 6 g |
| Total paper/cardboard packaging weight | 294 g |
| Total plastic packaging weight | 12 g |

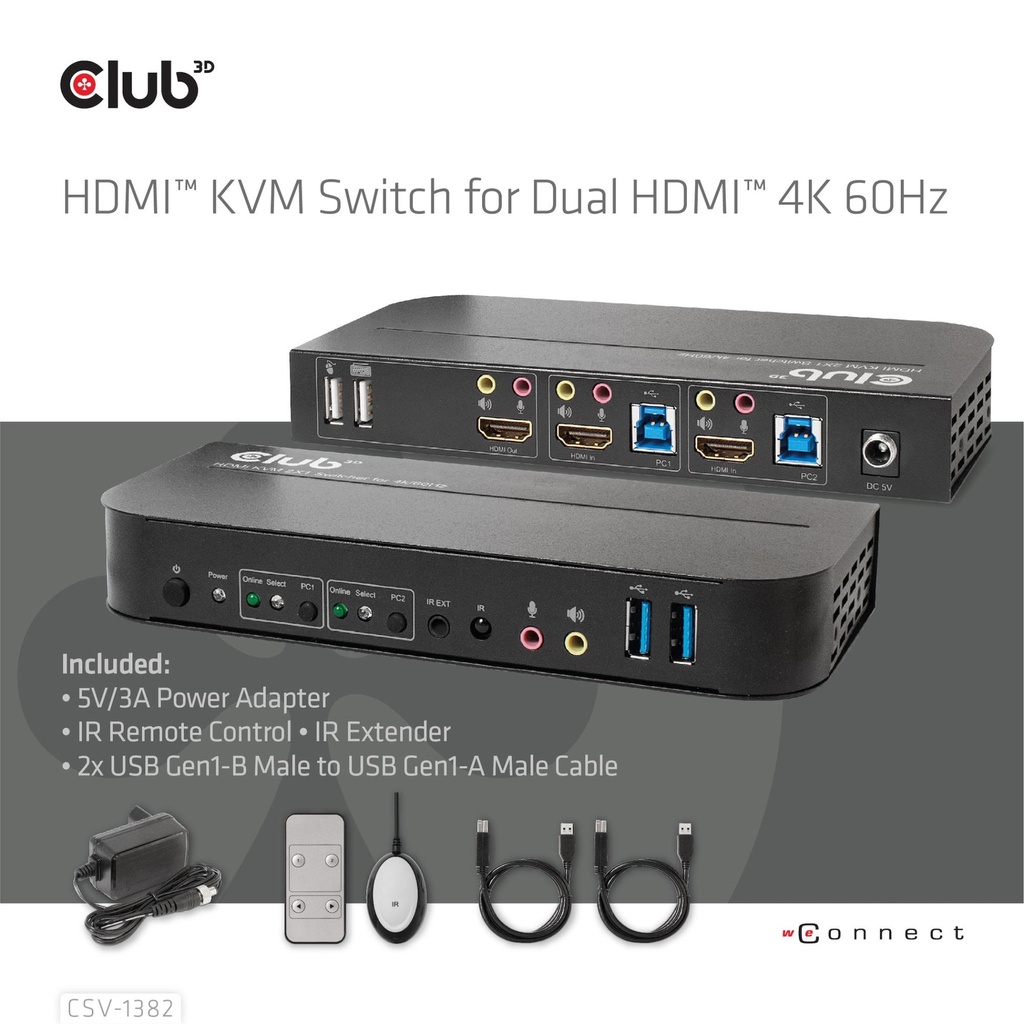

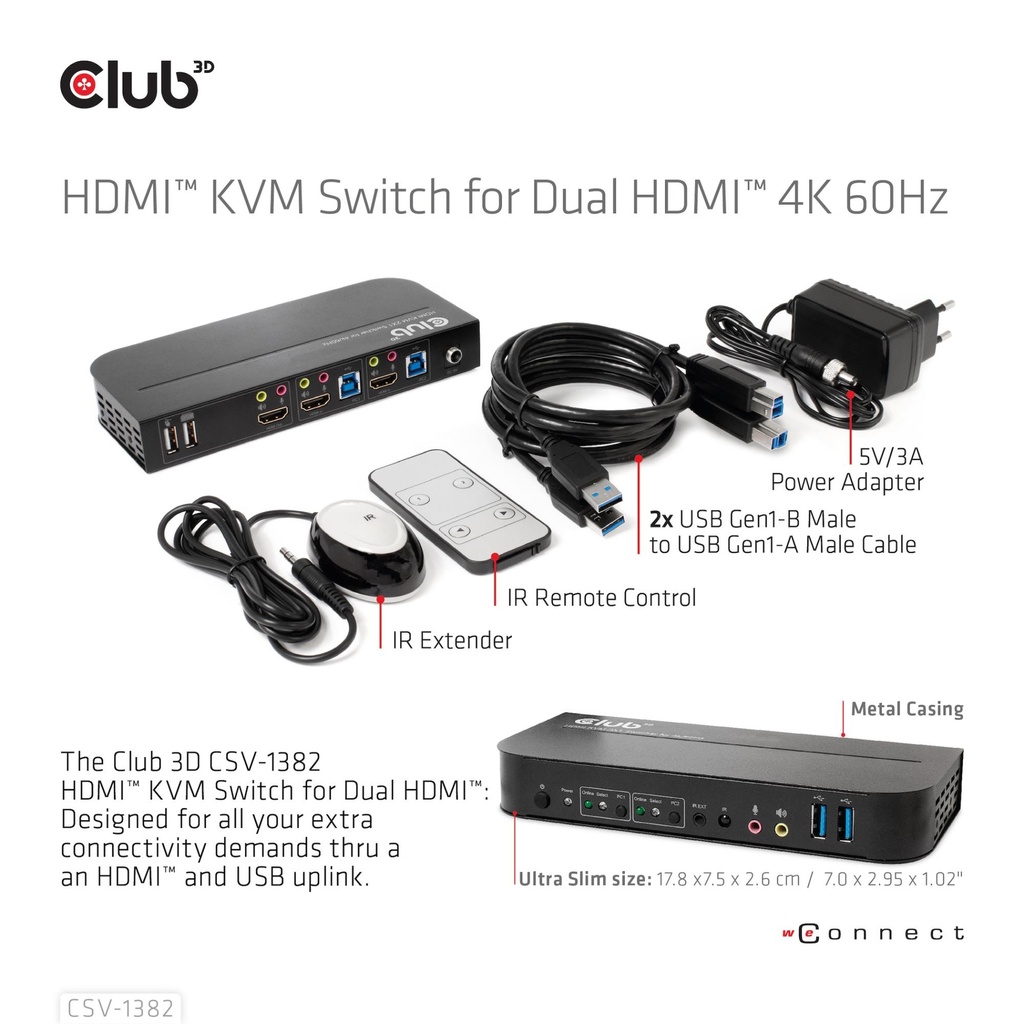

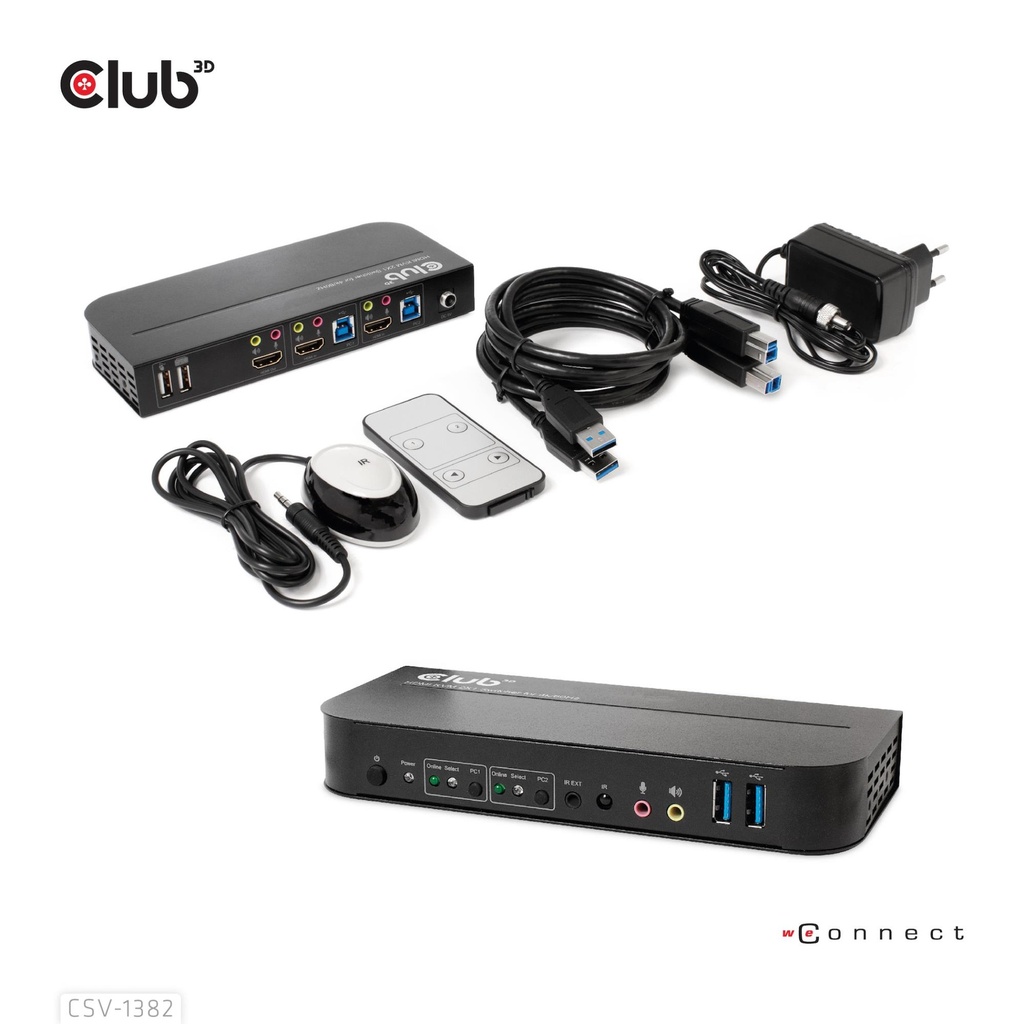

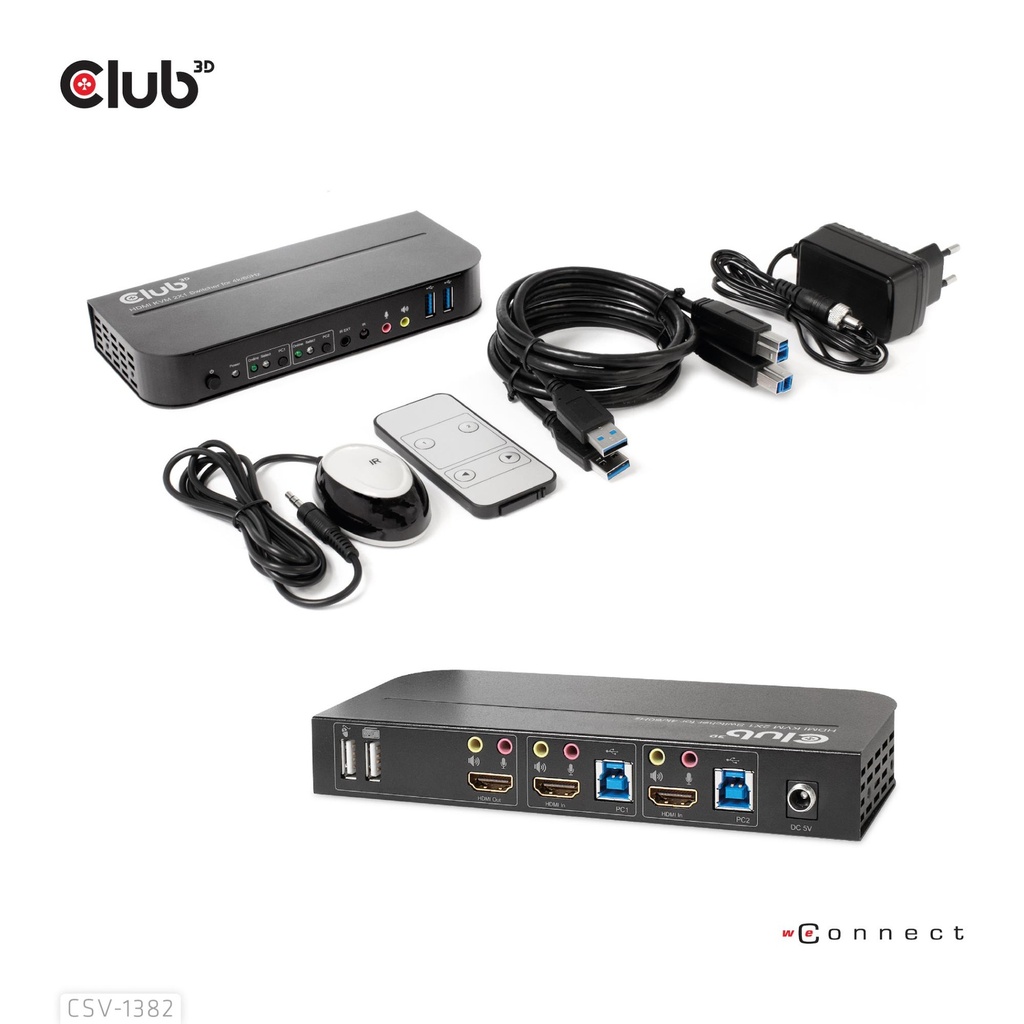

Packaging content
| AC adapter included | Yes |
| Cables included | USB Type-A to USB Type-B |
| Quick installation guide | Yes |
| Remote control included | Yes |
Logistics data
| Harmonized System (HS) code | 8473 3020 |
