Description:

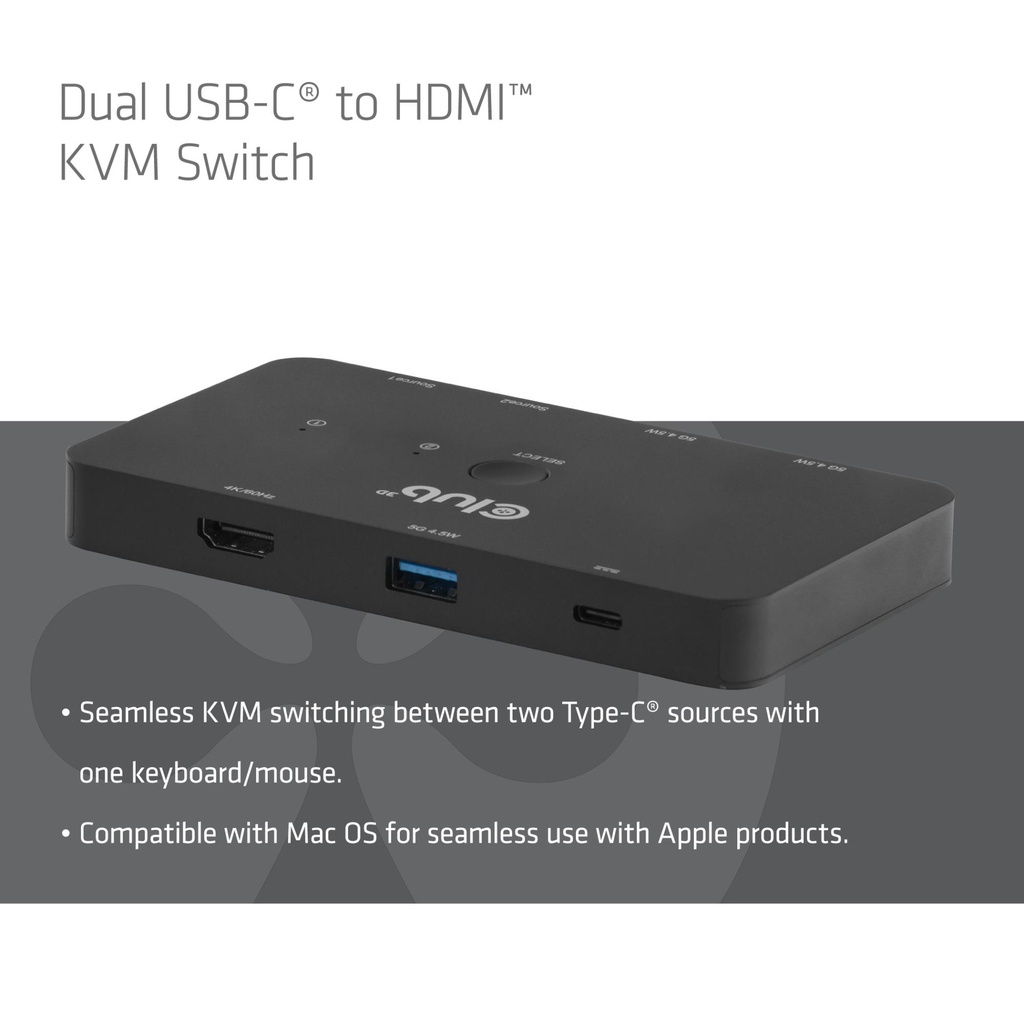

• SEAMLESS KVM SWITCHING: Switch between two Type-C® sources
to control with one keyboard/mouse on a 4K/60Hz HDMI™ display
• APPLE PRODUCT OPTIMIZATION Compatible with Mac OS, reversible
Type-C, and high-res output for seamless use with Macs, iPads, and
other Apple devices.
• DUAL DEVICE CHARGING: Charges two devices simultaneously via
100W PD, with up to 65W for one and 20W for the other—ideal for
laptops or tablets without extra adapters.
• FLEXIBLE POWER: Runs without PD adapter by pulling power from
sources, or uses optional 100W PD for up to 85W host charging.
- Features:

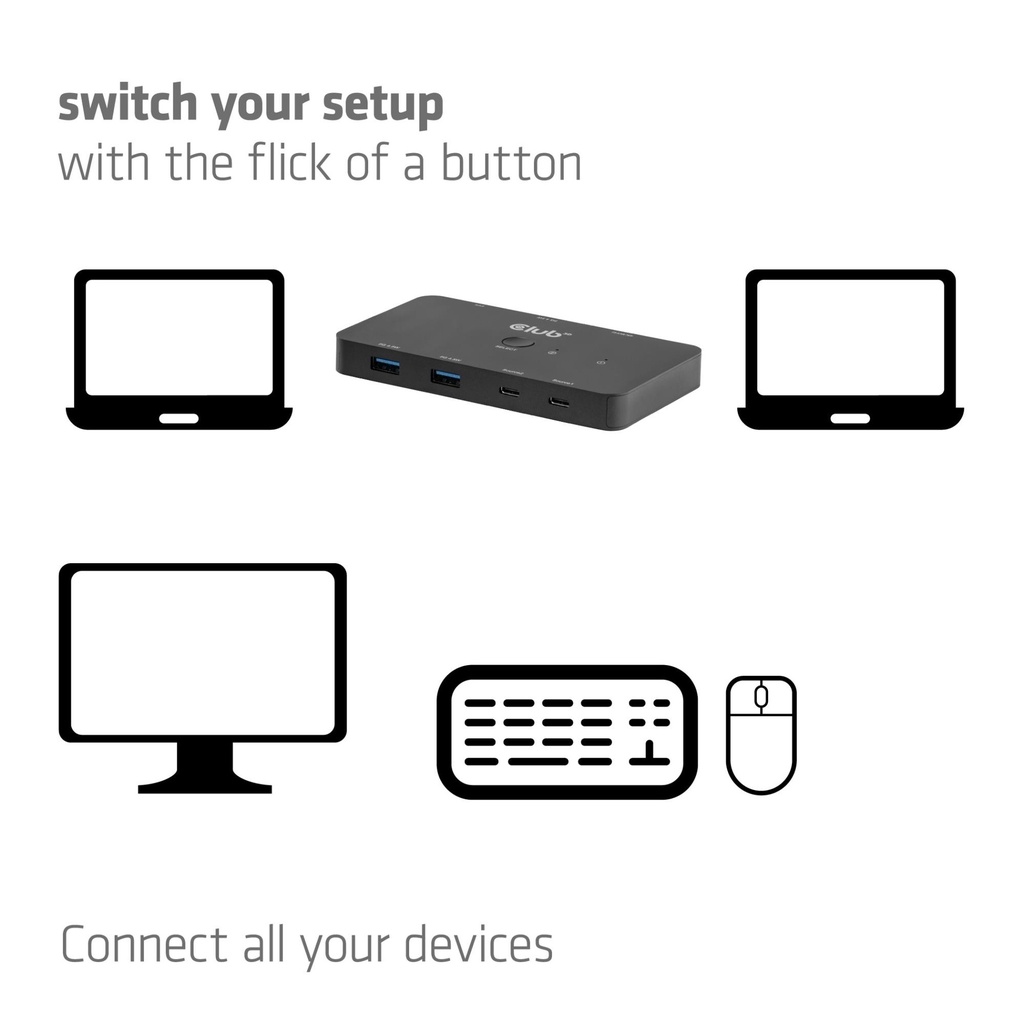

- • Support KVM function - one keyboard and mouse to control two PCs.
- • Press the key to switch sources, with an LED indicator showing which
- one is currently in use.
- • Two Type-C® sources to one HDMI™ with 4K60Hz.

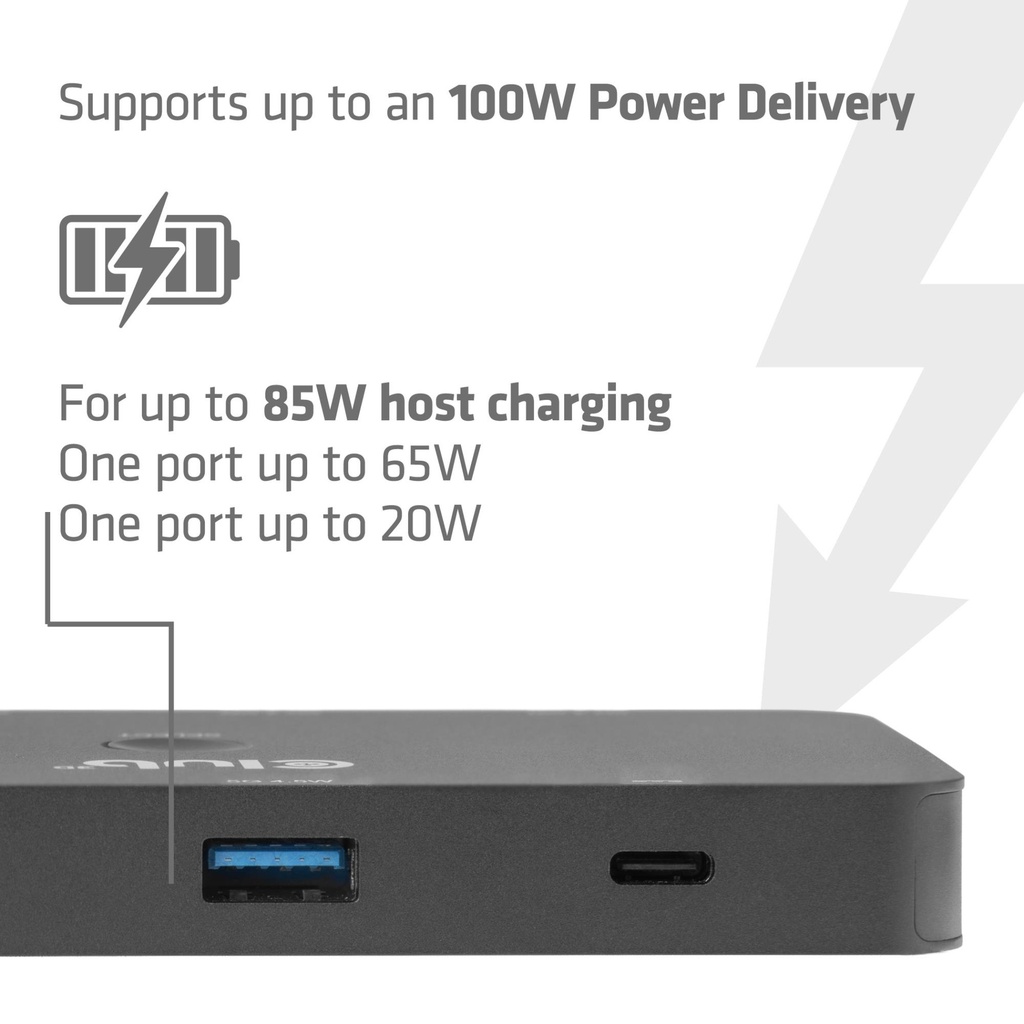

- • Support PD Charging with max 100W (20V/5A).
- • When 2 inputs ports are connected at the same time, Source 1
- supports 65W for PC1, Source 2 supports 20W for PC2.
- • Three 5Gbps USB-A ports, each supports up to 4.5W charging, with
- total 12W shared power
General
| Unit Calculated Weight | 0.19 kg |
| Unit Calculated Volume | 0.001174 cubm |
| Units per Pallet | 0 |
| Summary | CLUB3D Dual USB-C® to HDMI™ KVM Switch. Video port type: HDMI, Console ports: USB C. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Black. USB Power Delivery up to: 65 W. Width: 125 mm, Depth: 70 mm, Height: 14 mm |
| Unit Box Height | 0.18 |
| Unit Box Length | 0.145 |
| Unit Box Width | 0.045 |
| Model name | Dual USB-C® to HDMI™ KVM Switch |
| Model | CSV-2512 |

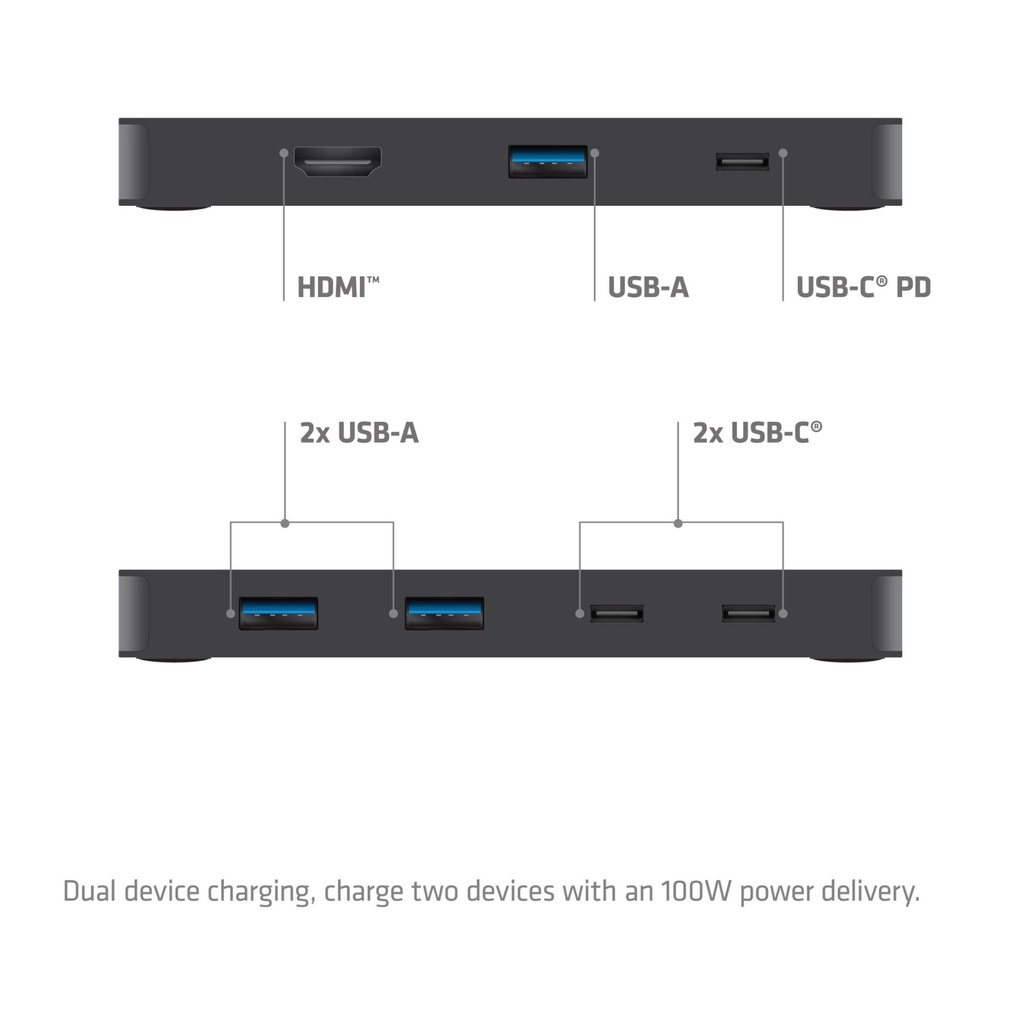

Ports & interfaces
| Console ports | USB C |
| HDMI ports quantity | 1 |
| Keyboard port type | No |
| Mouse port type | No |
| Number of computers controlled | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Video port type | HDMI |
Performance
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
Design
| Product colour | Black |
Display
| Built-in display | No |
Power
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |

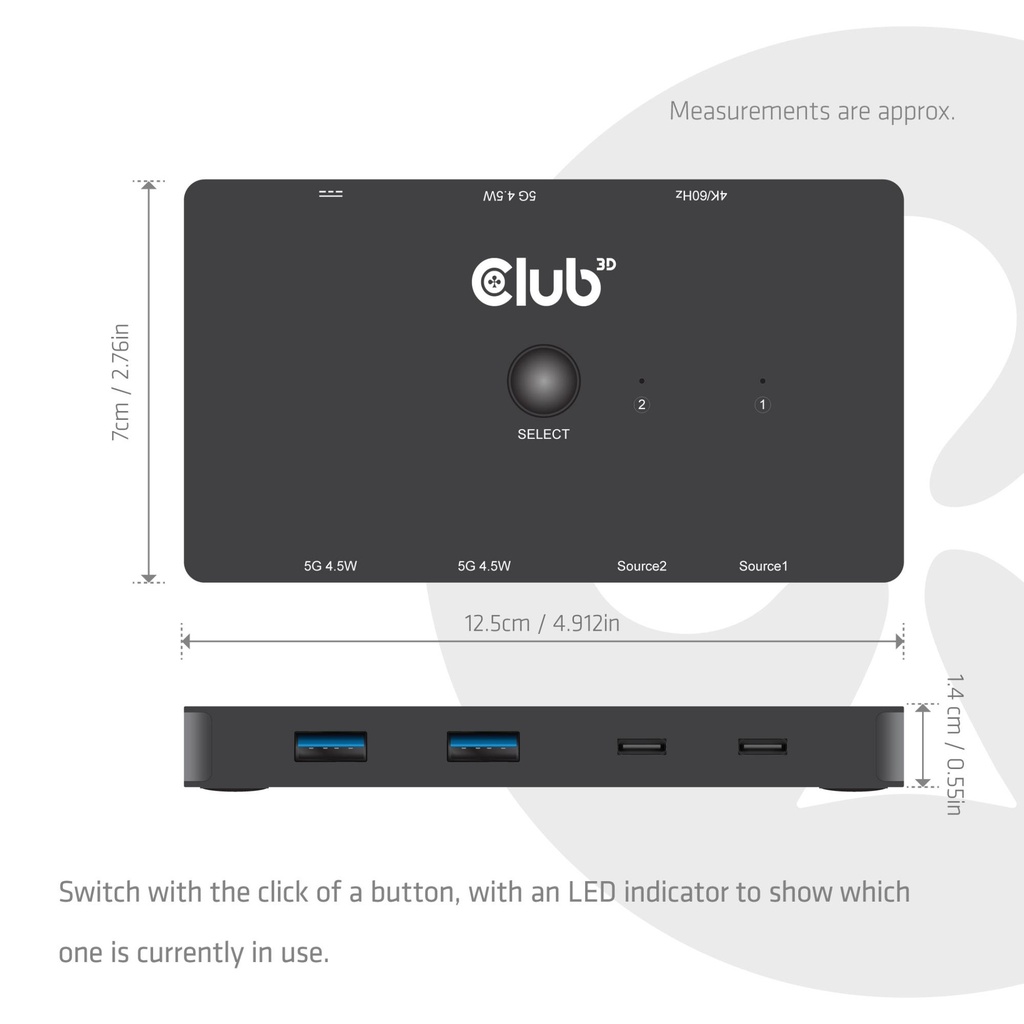

Weight & dimensions
| Depth | 70 mm |
| Height | 14 mm |
| Weight | 136 g |
| Width | 125 mm |
Packaging data
| Package depth | 145 mm |
| Package height | 45 mm |
| Package type | Box |
| Package weight | 183 g |
| Package width | 145 mm |
| Paper/cardboard packaging weight | 45 g |
| Plastic packaging weight | 2 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
Logistics data
| Harmonized System (HS) code | 8473 3020 |
