- Desk mounting (clamp or grommet)
- For screens 13"-34"
- Max load: 8 kg

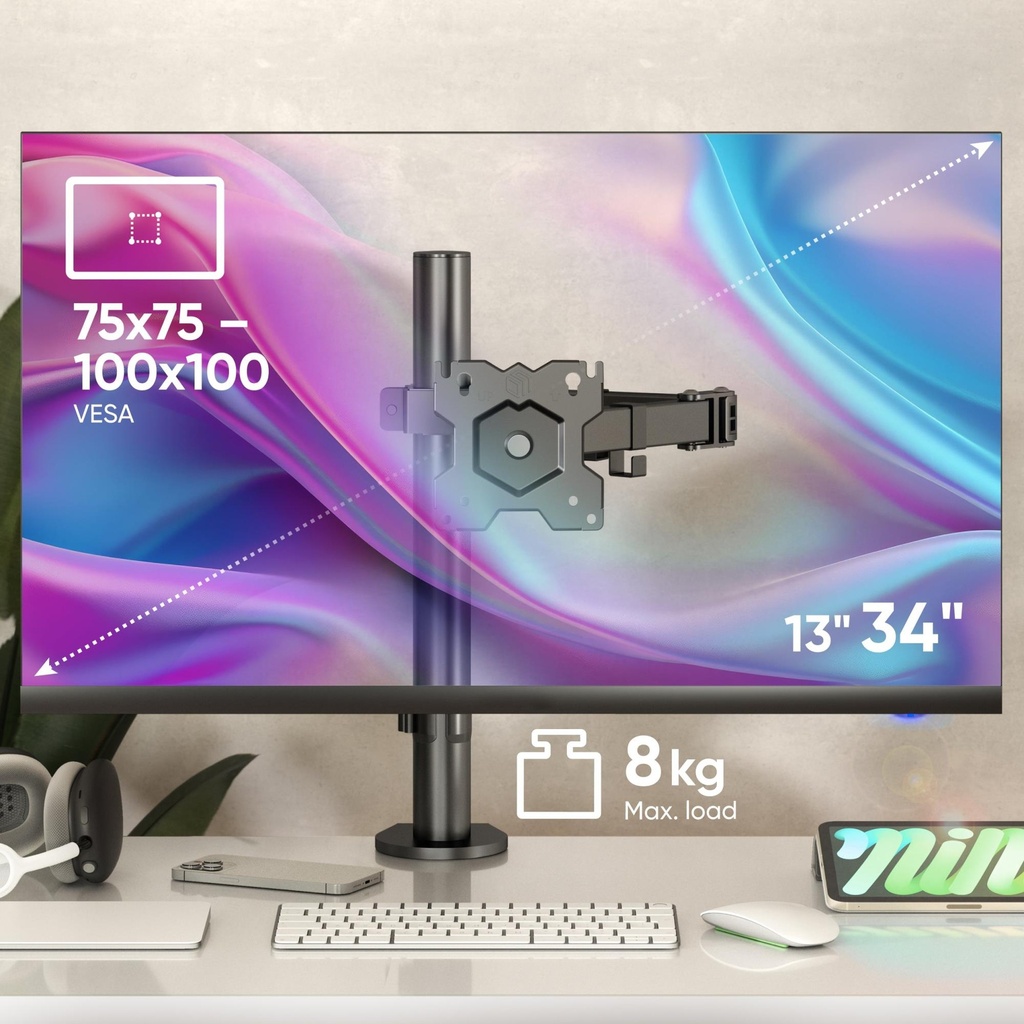

- VESA: 75x75, 100x100 mm

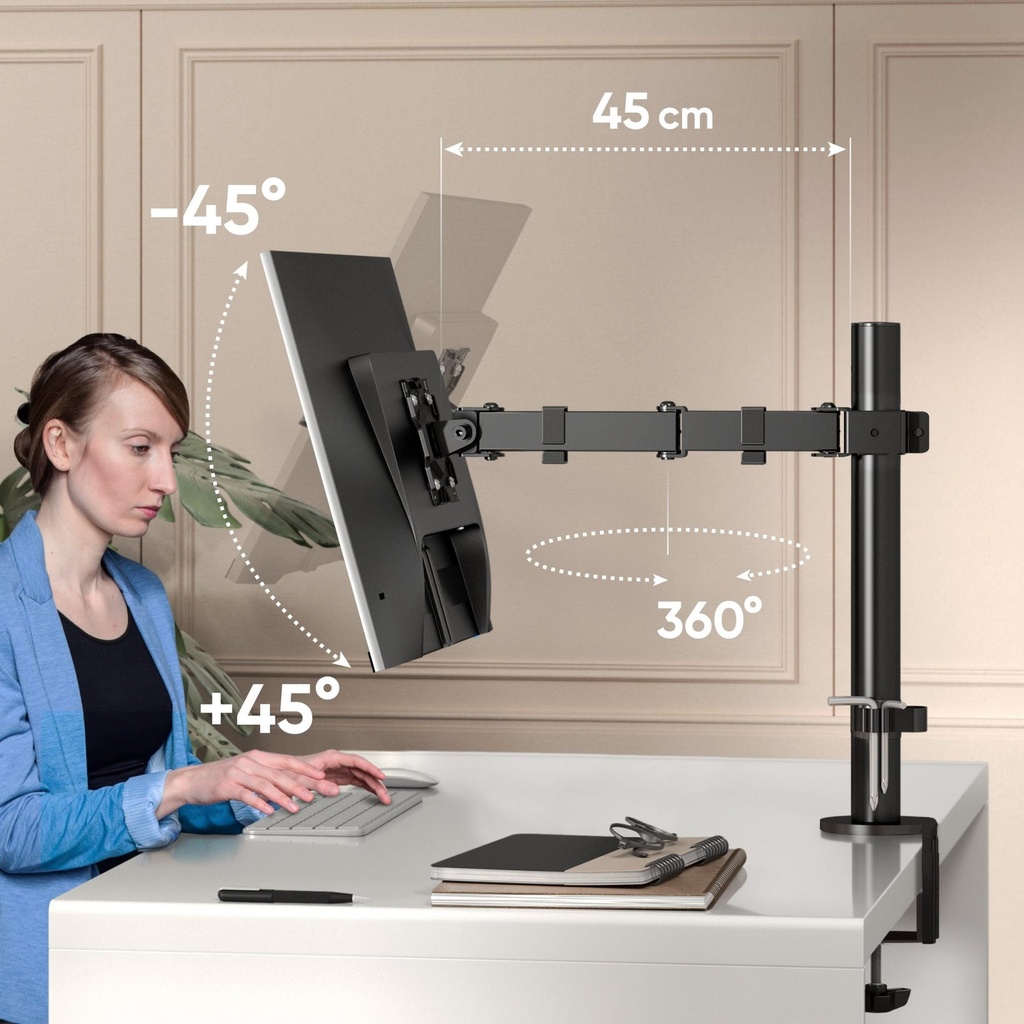

- Tilt: -45° ~ +45°

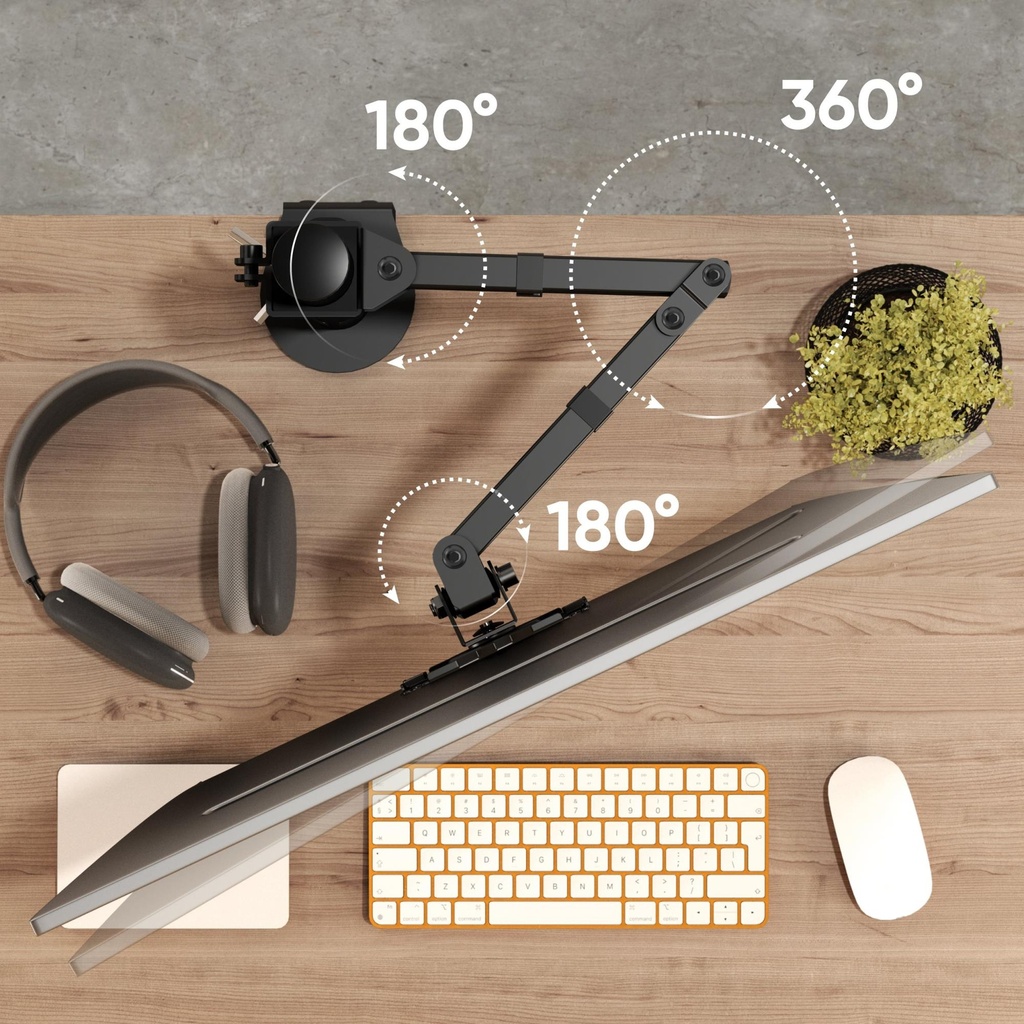

- Swivel: 360°
- Extension: 450 mm
- Vertical adjustment: 435 mm

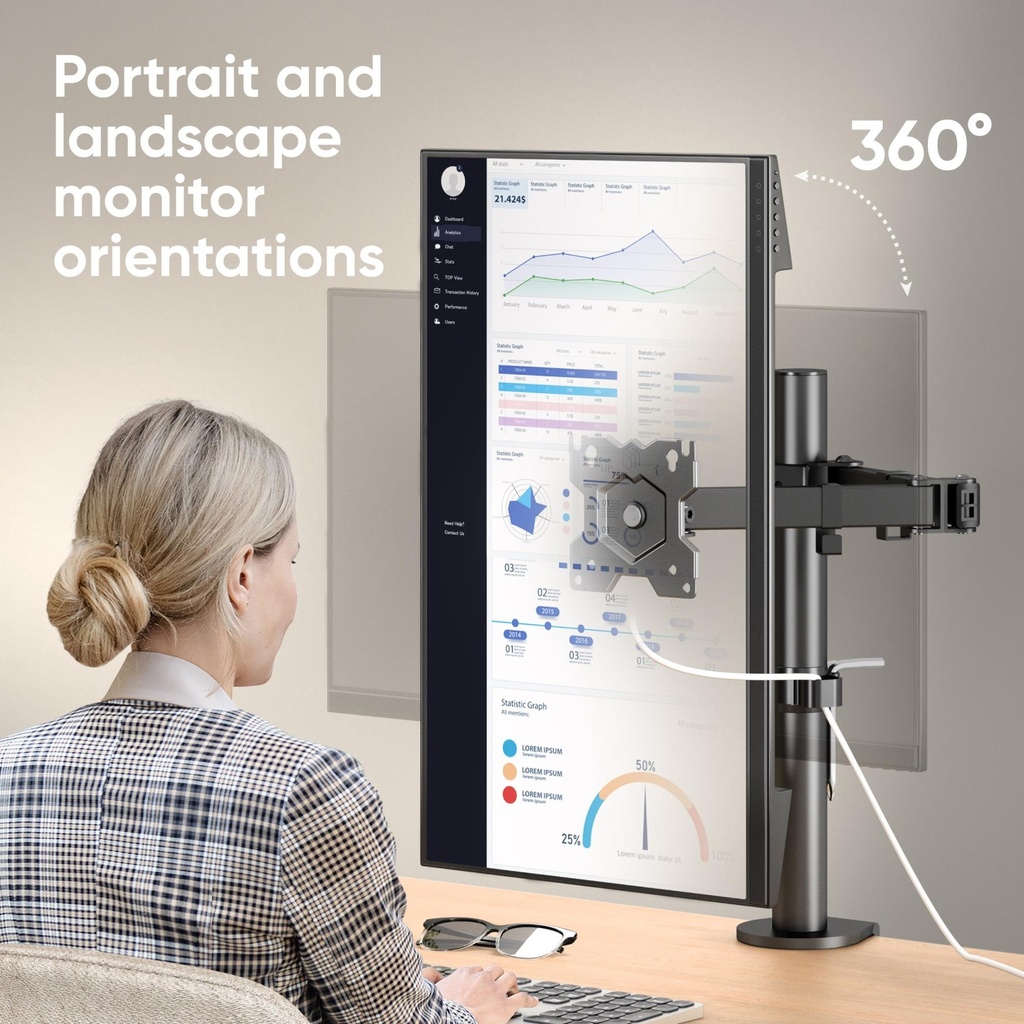

- Portrait/Landscape orientation
- Material: Steel
General
| Unit Calculated Weight | 3.58 kg |
| Unit Calculated Volume | 0.0137 cubm |
| Units per Shipping Box | 4 |
| Units per Pallet | 0 |
| Summary | ONKRON D121E-B. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 33 cm (13"), Maximum screen size: 86.4 cm (34"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -45 - 45°. Product colour: Black |
| Unit Box Height | 0.25 |
| Unit Box Length | 0.442 |
| Unit Box Width | 0.113 |
| Model | D121E |
Mounting

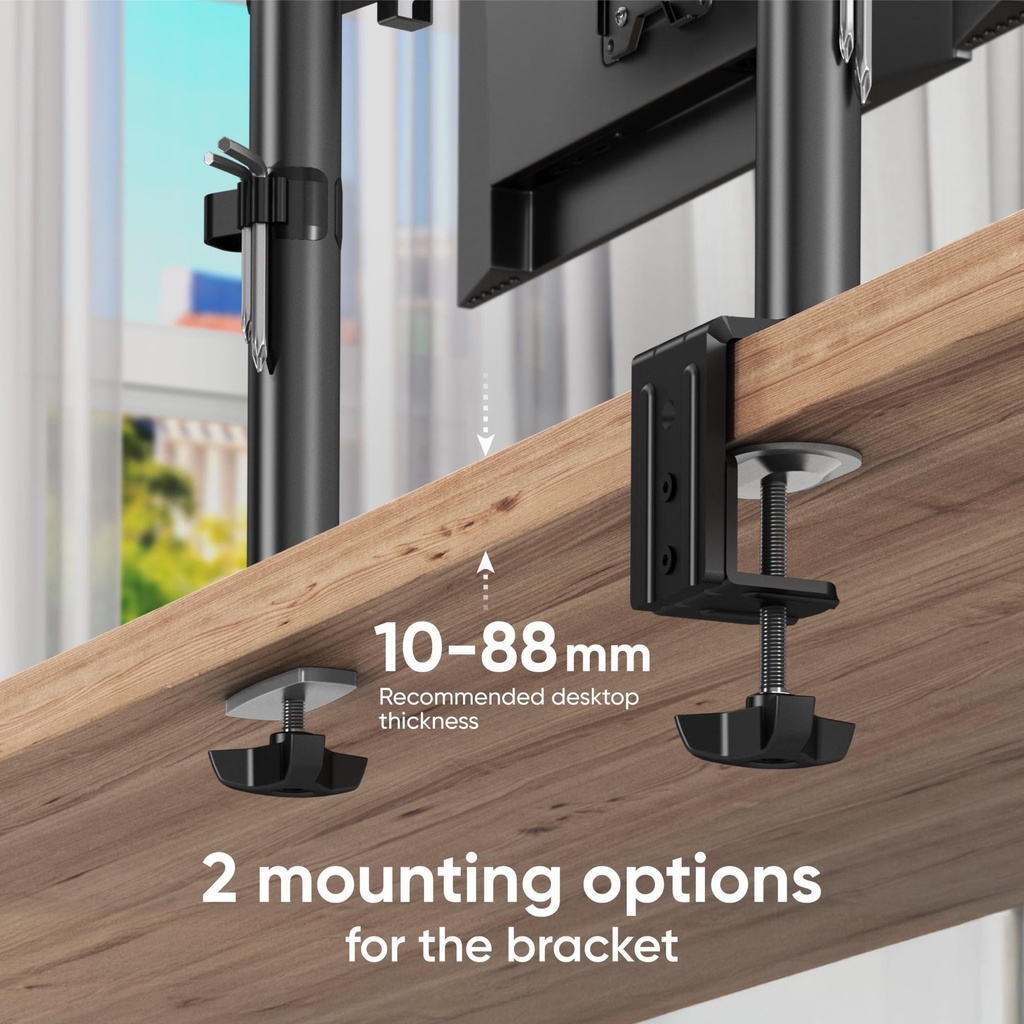

| Desk thickness (max) | 88 mm |
| Desk thickness (min) | 10 mm |
| Maximum screen size | 34 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 13 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Adjustable depth | Yes |

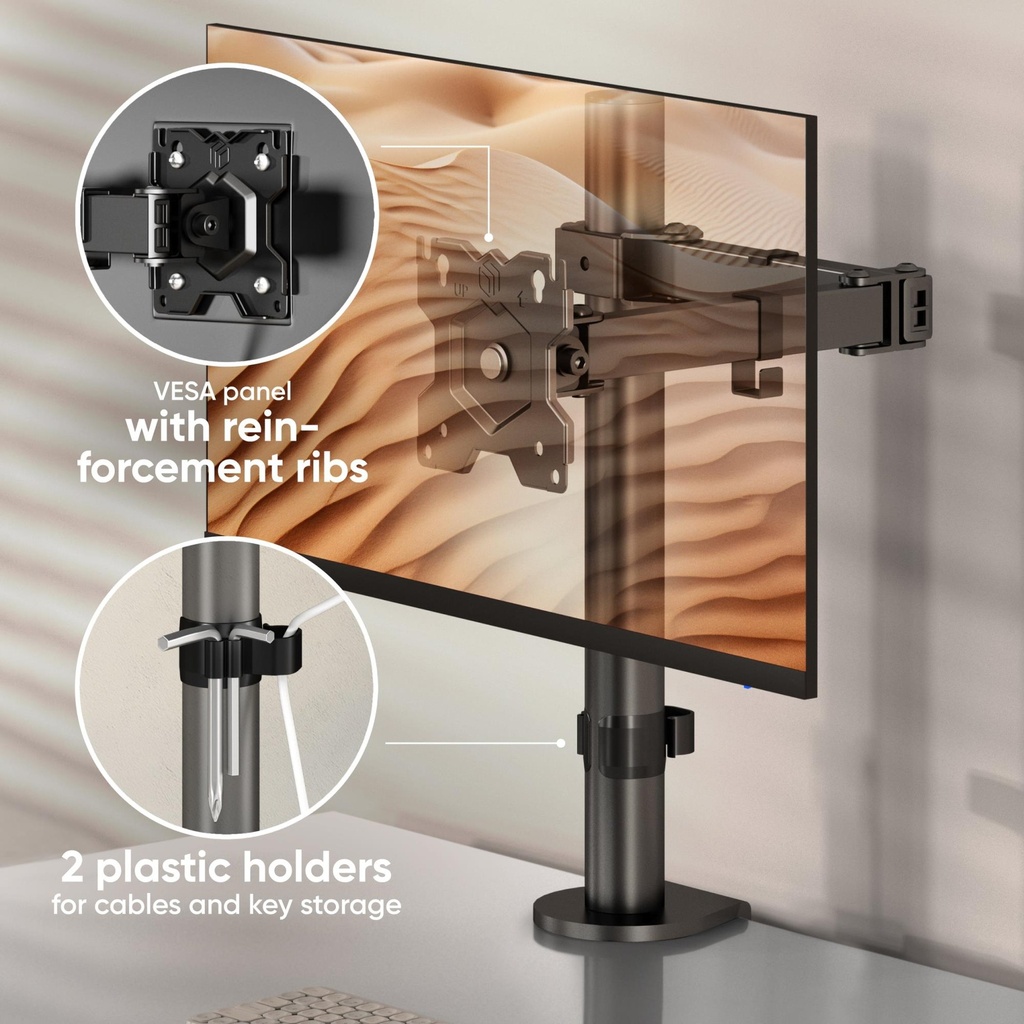

| Cable management | Yes |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Swivel angle | 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45 ° |
Design
| Housing material | Steel |
| Orientation | Landscape/Portrait |
| Product colour | Black |
Weight & dimensions
| Depth | 117 mm |
| Height | 548 mm |
| Width | 509 mm |
Packaging data
| Package depth | 250 mm |
| Package height | 115 mm |
| Package weight | 3270 g |
| Package width | 440 mm |
| Quantity per pack | 1 pc(s) |
Packaging content
| Mounting kit | Yes |
