EXPERIENCE WIFI LIKE NEVER BEFORE
Deco M5 uses new technology to cover your entire home in powerful WiFi. With multiple units working together seamlessly, Deco M5 creates a home network like nothing you've ever experienced.

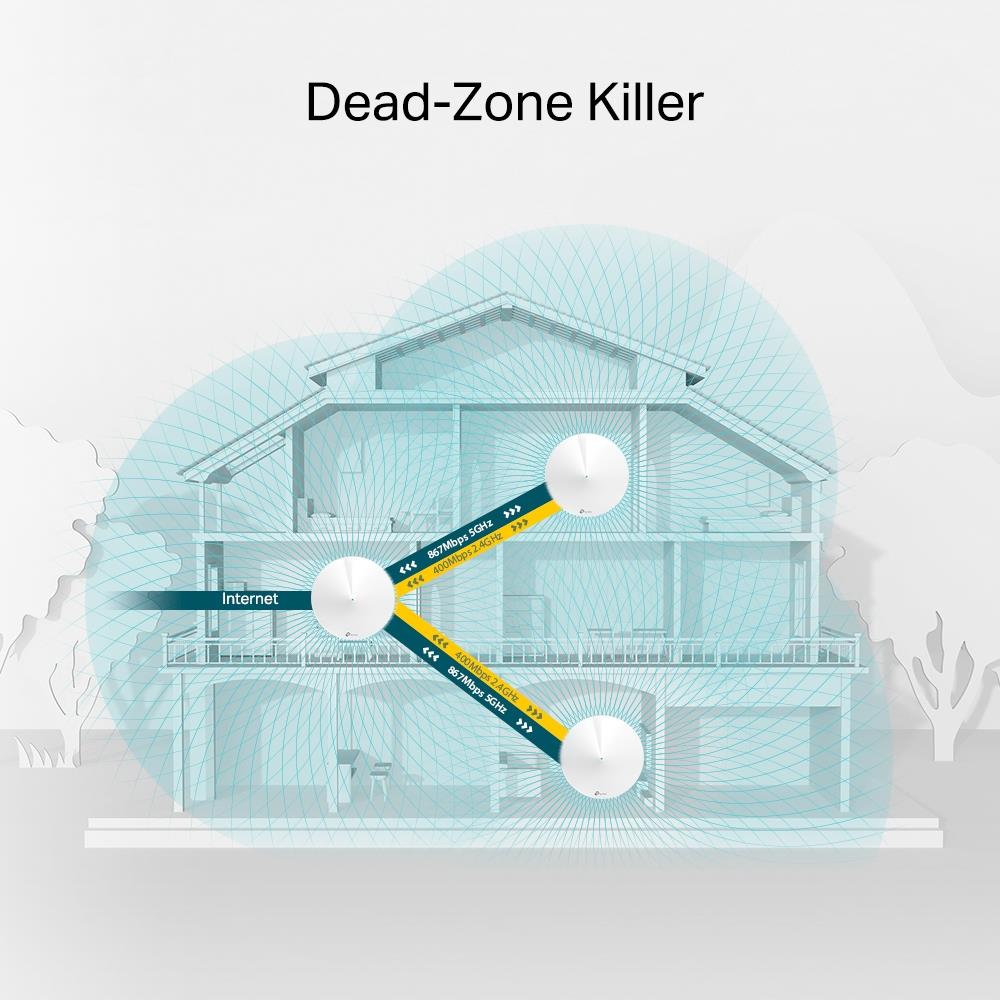

No More Dead Zones
Deco M5 delivers WiFi up to 5,500 sq. ft. to cover homes of all sizes and shapes, from the corner bedroom to the backyard.
High-Speed WiFi
Every Deco unit acts like a router to keep your Wi-Fi running fast, and a Deco M5 system can keep 100-plus devices connected at once.
One Network, One Name
With Deco M5, you can walk from room to room with your smartphone or tablet and stay connected on a single Wi-Fi network.
A MORE SECURE WIFI SYSTEM
Deco M5 protects your personal data and every connected device from online threats like viruses and malware. The system also makes it easy to customize WiFi access for guests and family.
- Advanced WPA2 Security
- Antivirus Powered by HomeCare
- Robust Family WiFi Controls
WIFI MADE EASY
Hands-Off WiFi
Deco M5 adjusts automatically to give you the best connections when you add devices or walk around the house.
Voice Control
When paired with Alexa, you can control Deco M5 with simple voice commands.
App-Based Setup
Set up in minutes through the Deco app, and never fear—Deco M5 works with any modem or ISP.
Easy Management
In just a few taps, monitor and manage your WiFi settings at home or away with the Deco app.
- Covers up to 5,500 sq. ft
- Fast dual band WiFi
- One WiFi name for the entire home
- Connects 100-plus devices
- Works with Amazon Alexa Voice Assistant
General
| Unit Calculated Weight | 2.02 kg |
| Unit Calculated Volume | 0.008064 cubm |
| Units per Shipping Box | 1 |
| Summary | TP-Link AC1300 Deco Whole Home Mesh Wi-Fi System, 3-Pack. Product colour: White, Antenna type: Internal, Product type: Mesh system. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1300 Mbit/s. Firewall security: SPI Firewall, Mobile operating systems supported: Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2,..., Parental control features: Content filter, Custom profiles, Time controls, Time rewards, Weekly/monthly reports. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, AC adapter output voltage: 12 V. Compliance certificates: CE, RoHS, Certification: FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC |
| Unit Box Height | 0.24 |
| Unit Box Length | 0.32 |
| Unit Box Width | 0.105 |
| Model | DECO M5 |
Design
| Antenna type | Internal |
| Antennas quantity | 4 |
| LED indicators | Yes |
| Product colour | White |
| Product type | Mesh system |
| Reset button | Yes |
Wireless LAN features
| Dynamic DNS (DDNS) | Yes |
| Dynamic IP | Yes |
| Guest access | Yes |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Security algorithms | WPA2-PSK/WPA-PSK |
| Static IP | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 400 Mbit/s |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
Features
| BeamForming | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Built-in processor | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Firewall security | SPI Firewall |
| Mobile operating systems supported | Android 4.4/Android 5.0/Android 5.1/Android 6.0/Android 7.0/Android 7.1/Android 7.1.2/Android 8.0/Android 9.0/iOS 10.0/iOS 11.0/iOS 11.4/iOS 12/iOS 13/iOS 9.0/iOS 9.1/iOS 9.2/iOS 9.3 |
| Parental control | Yes |
| Parental control features | Content filter,Custom profiles,Time controls,Time rewards,Weekly/monthly reports |
| Port forwarding | Yes |
| Processor cores | 4 |
| Quality of Service (QoS) support | Yes |
| Universal Plug and Play (UPnP) | Yes |
Ports & interfaces
| DC-in jack | Yes |

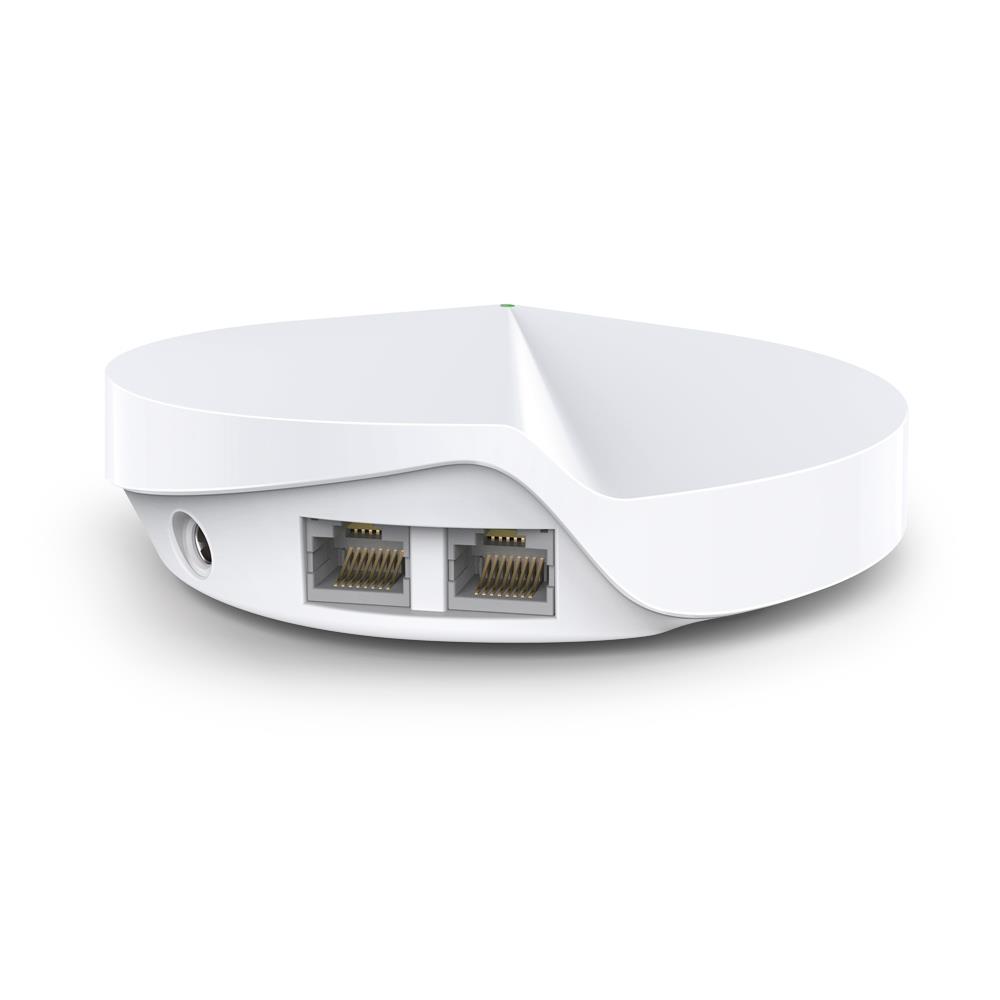

| Ethernet LAN (RJ-45) ports | 2 |
Power
| AC adapter output current | 1.2 A |
| AC adapter output voltage | 12 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
Certificates
| Certification | FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC |
| Compliance certificates | CE/RoHS |
Sustainability
| Sustainability compliance | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 120 mm |
| Height | 38 mm |
| Width | 120 mm |
Packaging content
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Number of products included | 3 pc(s) |
| Number of units included | 3 pc(s) |
Packaging data
| Package depth | 241 mm |
| Package height | 105 mm |
| Package weight | 1230 g |
| Package width | 319 mm |
