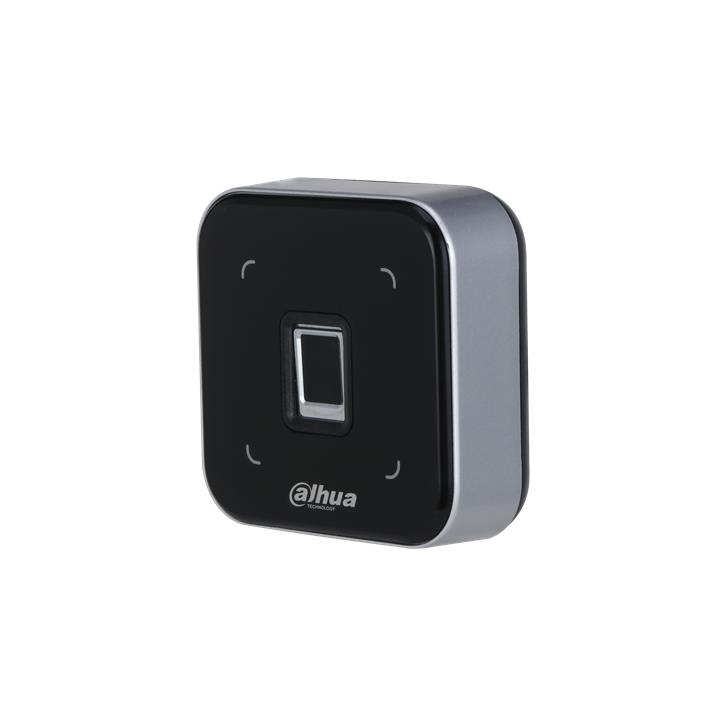

Access Reader
> PC material, acrylic panel and IP65, suitable for indoor and outdoor use
> Support contactless recognition of IC card (Mifare card)
> Support card/fingerprint unlock
> Support RS-485 communication protocol
> Support buzzer and indicator prompt
> Support anti-tampering alarm
> The built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment
> All connection ports have overcurrent and overvoltage protection
General
| Model | ASR2102A |
| Read format | Fingerprint |
| Operating temperature range | –20°C to +65°C |
| Unit Box Height | 0.092 |
| Unit Box Length | 0.111 |
| Unit Box Width | 0.098 |
| Power supply requirements | 12V 0.5A DC |
| Dimensions | 70 mm × 70 mm × 26 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001001 cubm |
| Product Net Weight | 0.14 kg |
| Unit Calculated Weight | 0.18 kg |
