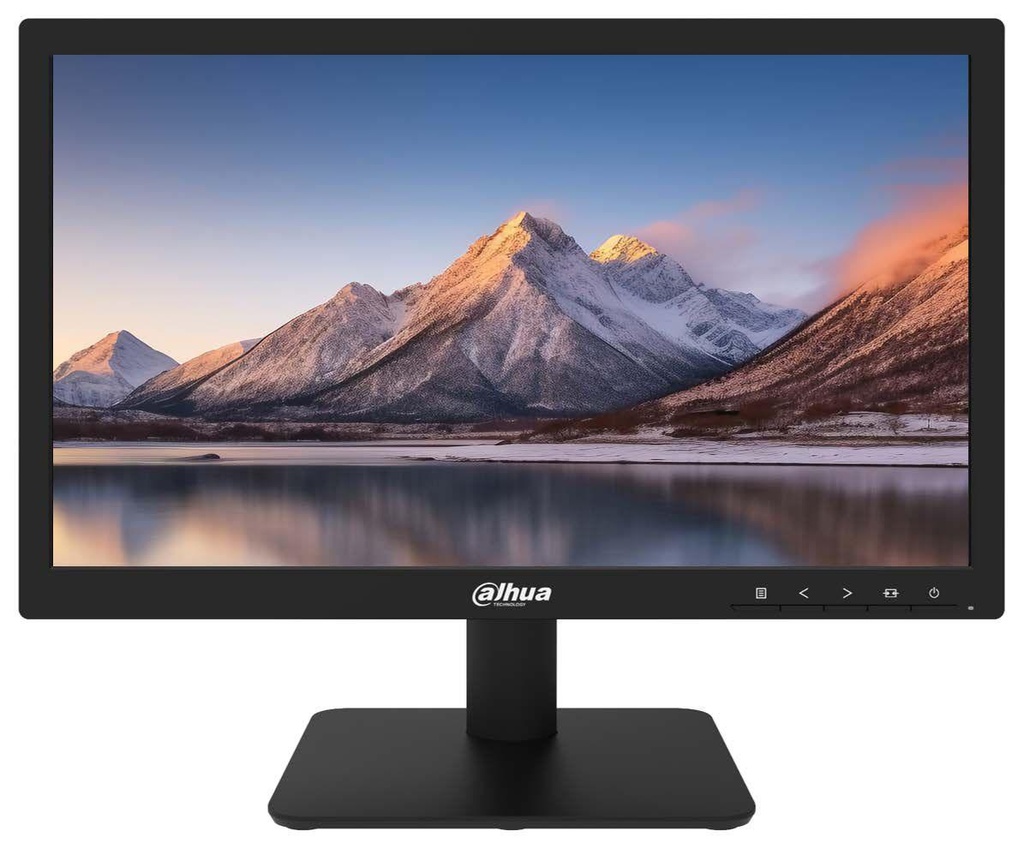

DAHUA DHI-LM19-L200N 19.5" Business Panel TN 1600X900 16:9 75Hz 5 ms Colour Black DHI-LM19-L200N
General
| Included Accessories | Power adapter, base, HDMI cable, user's manual (QR code), QSG, legal and regulatory information |
| Summary | Dahua Technology DHI-LM19-L200N. Display diagonal: 49.5 cm (19.5"), Display resolution: 1600 x 900 pixels, HD type: HD+, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 90°, Viewing angle, vertical: 65°. VESA mounting. Product colour: Black |
| Unit Box Height | 0.355 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.125 |
| Model name | DHI-LM19-L200N |
| Model | DHI-LM19-L200N |
Display
| Colour depth | 8 bit |
| Contrast ratio (typical) | 600:1 |
| Display brightness (peak) | 250 cd/m² |
| Display diagonal | 19.5 " |
| Display resolution | 1600 x 900 pixels |
| Display technology | LCD |
| HD type | HD+ |
| LED backlight | Yes |
| Maximum refresh rate | 75 Hz |
| Native aspect ratio | 16:9 |
| Panel type | TN |
| Response time | 5 ms |
| Screen shape | Flat |
| Touchscreen | No |
| Viewing angle, horizontal | 90 ° |
| Viewing angle, vertical | 65 ° |
Performance
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
Multimedia
| Built-in camera | No |
Design
| Product colour | Black |
Ports & interfaces
| Built-in USB hub | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Ergonomics
| Height adjustment | No |
| Panel mounting interface | 100 x 100 mm |
| Tilt adjustment | Yes |
| VESA mounting | Yes |
Power
| AC adapter output voltage | 12 V |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | E |
| Input current | 2 A |
| Power consumption (max) | 16 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 15.5 W |
| Power supply type | External |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Depth (without stand) | 48.3 mm |
| Height (without stand) | 283.5 mm |
| Weight (with stand) | 2100 g |
| Width (without stand) | 464.8 mm |
Packaging data
| Package depth | 124 mm |
| Package height | 355 mm |
| Package weight | 3100 g |
| Package width | 530 mm |
Packaging content
| Cables included | HDMI |
| Manual | Yes |
| Power adapter included | Yes |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/1977921/fiches?language=EN |
| Energy efficiency class | E |
| EPREL Registration Number | 1977921 |
| EPREL Version Number | 1 |
ELKO Logistics Data
| Product Net Weight | 2.1 kg |
| Unit Calculated Weight | 3 kg |
| Units per Shipping Box | 1 |
ELKO Internal Logistics Data
| Shipping Box Depth | 53 cm |
| Shipping Box Height | 35.5 cm |
| Shipping Box Weight | 3 kg |
| Shipping Box Width | 12.5 cm |
| Unit Calculated Volume | 0.02352 cubm |
