- Light and cost-effective plastic housing
- Ultra-narrow bezel , elegant appearance, metal base
- 178°H/178°V extra-wide viewing angle for overall viewing performance
- High fidelity digital processing for a brilliant and vivid video
- Support multiple signal inputs such as HDMI, VGA
- Physical button control mode
- Low energy consumption, long service life
- Anti-blue light design,eye-protective
General
| Unit Calculated Weight | 3.1 kg |
| Product Net Weight | 2 kg |
| Unit Calculated Volume | 0.02109 cubm |

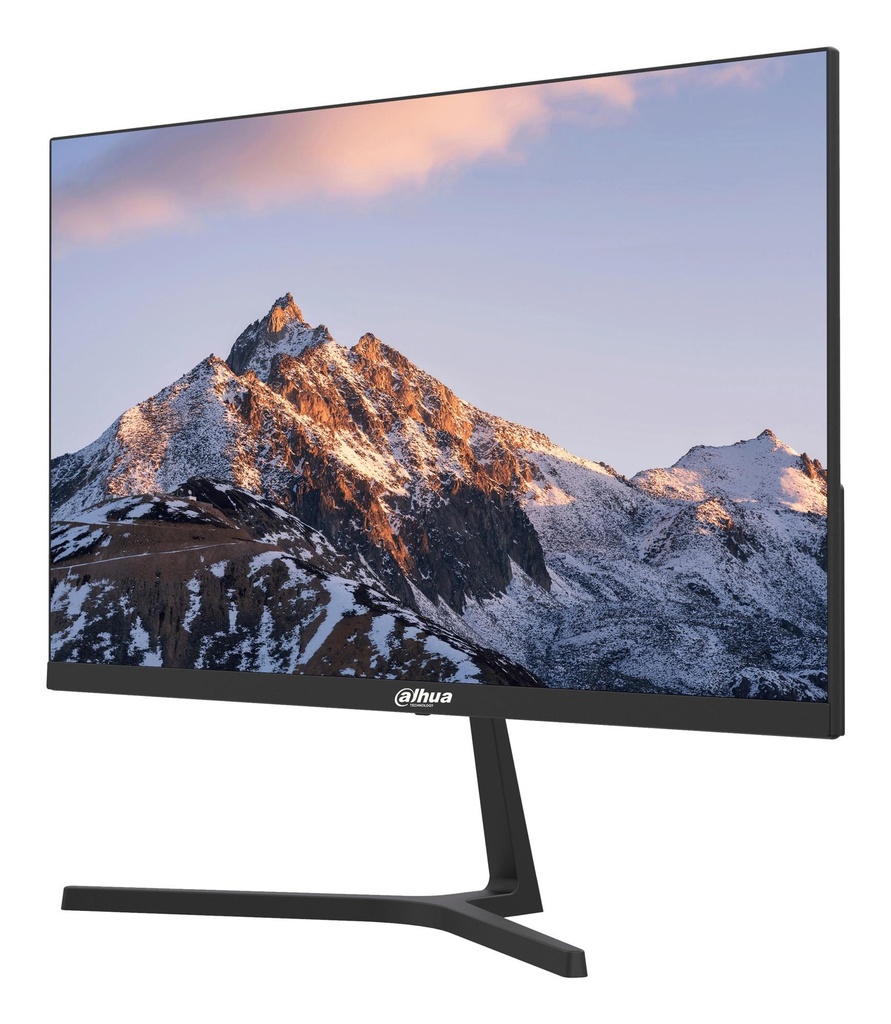

| Summary | Dahua Technology LM22-B200S. Display diagonal: 54.5 cm (21.4"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Product colour: Black |
| CnCode | 85285210 |
| Unit Box Height | 0.37 |
| Unit Box Length | 0.6 |
| Unit Box Width | 0.095 |
| Model name | LM22-B200S |
| Model | DHI-LM22-B200S |
Display
| Backlight type | LED |
| Contrast ratio (typical) | 3000:1 |
| Display brightness (typical) | 250 cd/m² |
| Display diagonal | 21.45 " |
| Display number of colours | 16.7 million colours |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Maximum refresh rate | 100 Hz |
| Native aspect ratio | 16:9 |
| Panel type | VA |
| Response time | 5 ms |
| Screen shape | Flat |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Multimedia
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 1 W |
Design
| Market positioning | Home |
| Product colour | Black |
Ports & interfaces
| Built-in USB hub | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Power
| AC adapter output voltage | 12 V |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | E |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 22 W |
| Power supply type | External |
Operational conditions
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Bezel width (bottom) | 15.2 mm |
| Bezel width (side) | 3.3 mm |
| Bezel width (top) | 3.3 mm |
| Depth (without stand) | 39.5 mm |
| Height (without stand) | 284 mm |
| Weight (without stand) | 2180 g |
| Width (without stand) | 492.7 mm |
Packaging data
| Package depth | 366 mm |
| Package height | 99 mm |
| Package weight | 3120 g |
| Package width | 598 mm |
Packaging content
| Cables included | HDMI |
| Power adapter included | Yes |
| Stand included | Yes |
Other features
| Certification | CE/FCC |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/1329704/fiches?language=EN |
| Energy efficiency class | E |
| EPREL Registration Number | 1329704 |
| EPREL Version Number | 2 |
