- Suitable for continuous 24/7 operation
- Ultra-thin body with metal housing
- Micro bezel design, elegant appearance, ultra-light base
- 6.5ms fast response time with no image blurring or ghosting
- 178°H/178°V extra-wide viewing angle for overall viewing performance
- Support multiple signal inputs including HDMI and VGA
- Low energy consumption, long service life
General
| Unit Calculated Weight | 3.6 kg |
| Product Net Weight | 2.1 kg |
| Unit Calculated Volume | 0.02236 cubm |

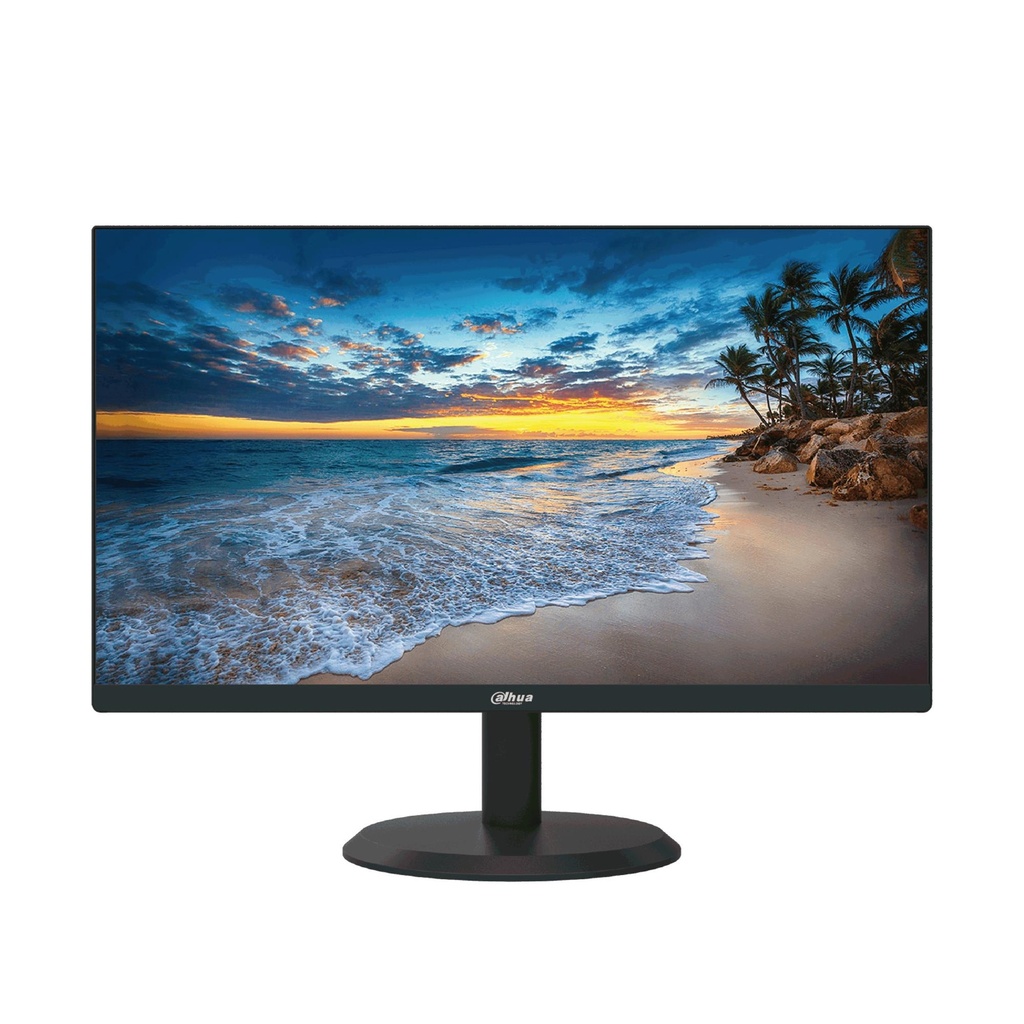

| Summary | Dahua Technology LM22-H200. Display diagonal: 54.5 cm (21.4"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 6.5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black |
| Unit Box Height | 0.363 |
| Unit Box Length | 0.555 |
| Unit Box Width | 0.111 |
| Model name | DHI-LM22-H200 |
| Model | DHI-LM22-H200 |
Display
| Backlight type | W-LED |
| Contrast ratio (typical) | 1000:1 |
| Display brightness (typical) | 250 cd/m² |
| Display diagonal | 21.45 " |
| Display number of colours | 16.7 million colours |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| HD type | Full HD |
| Maximum refresh rate | 60 Hz |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Screen shape | Flat |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Multimedia
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 3 W |
Design
| Market positioning | Home |
| Product colour | Black |
Ports & interfaces
| Audio input | Yes |
| Built-in USB hub | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| Headphone out | No |
| VGA (D-Sub) ports quantity | 1 |
Ergonomics
| Panel mounting interface | 75 x 75 mm |
| VESA mounting | Yes |
Power
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Energy efficiency class (SDR) | F |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 619532 |
| Input current | 2 A |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 24 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Depth (with stand) | 200 mm |
| Depth (without stand) | 38 mm |
| Height (with stand) | 369.4 mm |
| Height (without stand) | 285.1 mm |
| Weight (without stand) | 3300 g |
| Width (with stand) | 491.7 mm |
| Width (without stand) | 491.7 mm |
Packaging data
| Package depth | 548 mm |
| Package height | 108 mm |
| Package width | 355 mm |
Packaging content
| Cables included | AC/HDMI |
| Stand included | Yes |
Other features
| Certification | CE, FCC |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/619532/fiches?language=EN |
| Energy efficiency class | E |
| EPREL Registration Number | 619532 |
| EPREL Version Number | 7 |
