- The 2560 × 1440 resolution produces clearer and more vivid images
- IPS panel for wide viewing angles with 3-sided frameless design
- 178° (H) / 178° (V) extra-wide viewing angle for overall viewing performance
- 5 ms fast response time with no image blurring or ghosting
- Low blue light technology can support a comfortable viewing experience
General
| Unit Calculated Weight | 4.15 kg |
| Product Net Weight | 3.1 kg |
| Unit Calculated Volume | 0.02928 cubm |
| Units per Pallet | 0 |

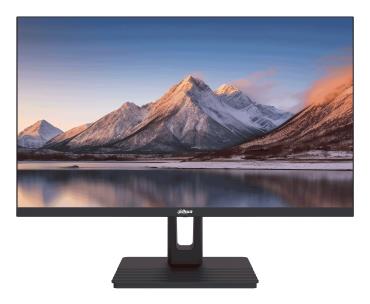

| Summary | Dahua Technology LM24-C301B. Display diagonal: 60.5 cm (23.8"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black |
| Unit Box Height | 0.4 |
| Unit Box Length | 0.61 |
| Unit Box Width | 0.12 |
Display
| Backlight type | Edge LED |
| Colour depth | 8 bit |
| Colour gamut standard | NTSC |
| Contrast ratio (typical) | 1200:1 |
| Display brightness (typical) | 300 cd/m² |
| Display diagonal | 23.8 " |
| Display diagonal (metric) | 61 cm |
| Display resolution | 2560 x 1440 pixels |
| Display technology | LED |
| Haze rate | 25 % |
| HD type | Quad HD |
| LED backlight | Yes |
| Maximum refresh rate | 100 Hz |
| Native aspect ratio | 16:9 |
| NTSC coverage (typical) | 85 % |
| Panel type | IPS |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 2560 x 1440 |
| Supported video modes | 1440p |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Performance
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| NVIDIA G-SYNC | No |
Multimedia
| Built-in camera | No |
| Built-in speaker(s) | No |
Design
| Detachable stand | Yes |
| Feet colour | Black |
| Frameless design | Yes |
| Front bezel colour | Black |
| Illuminated stand | No |
| Market positioning | Office |
| Product colour | Black |
Ports & interfaces
| Built-in USB hub | No |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone connectivity | 3.5 mm |
| Headphone out | Yes |
Network
| Bluetooth | No |
| Wi-Fi | No |
Ergonomics
| Panel mounting interface | 75 x 75 mm |
| Plug and Play | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 15 ° |
| VESA mounting | Yes |
| Wall mountable | Yes |
Power
| AC adapter output voltage | 12 V |
| Energy consumption (SDR) per 1000 hours | 21 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | F |
| Energy efficiency scale | A to G |
| Power consumption (max) | 24 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 24 W |
| Power supply type | External |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Bezel width (bottom) | 15.9 mm |
| Bezel width (side) | 3.1 mm |
| Bezel width (top) | 3.1 mm |
| Depth (with stand) | 190 mm |
| Depth (without stand) | 41.3 mm |
| Height (with stand) | 418.6 mm |
| Height (without stand) | 320.4 mm |
| Weight (without stand) | 3100 g |
| Width (with stand) | 539.2 mm |
| Width (without stand) | 539.2 mm |
Packaging data
| Package depth | 111 mm |
| Package height | 405 mm |
| Package weight | 4000 g |
| Package width | 612 mm |
Packaging content
| Cables included | HDMI |
| Manual | Yes |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Stand included | Yes |
Other features
| Automatic brightness control | No |
| Compliance certificates | Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD) |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2059227/fiches?language=EN |
| Energy efficiency class | F |
| EPREL Registration Number | 2059227 |
| EPREL Version Number | 2 |
