- Wide color gamut, 85% NTSC. It meets the designer's demand of image texture
- 178°H/178°V extra-wide viewing angle for all-round viewing performance
- Adaptive sync can effectively solve picture lagging and tearing problems
- 0.5 ms fast response time with no image blurring or ghosting (with OD)
General
| Unit Calculated Weight | 4.05 kg |
| Product Net Weight | 2.93 kg |
| Unit Calculated Volume | 0.03466 cubm |
| Units per Pallet | 0 |

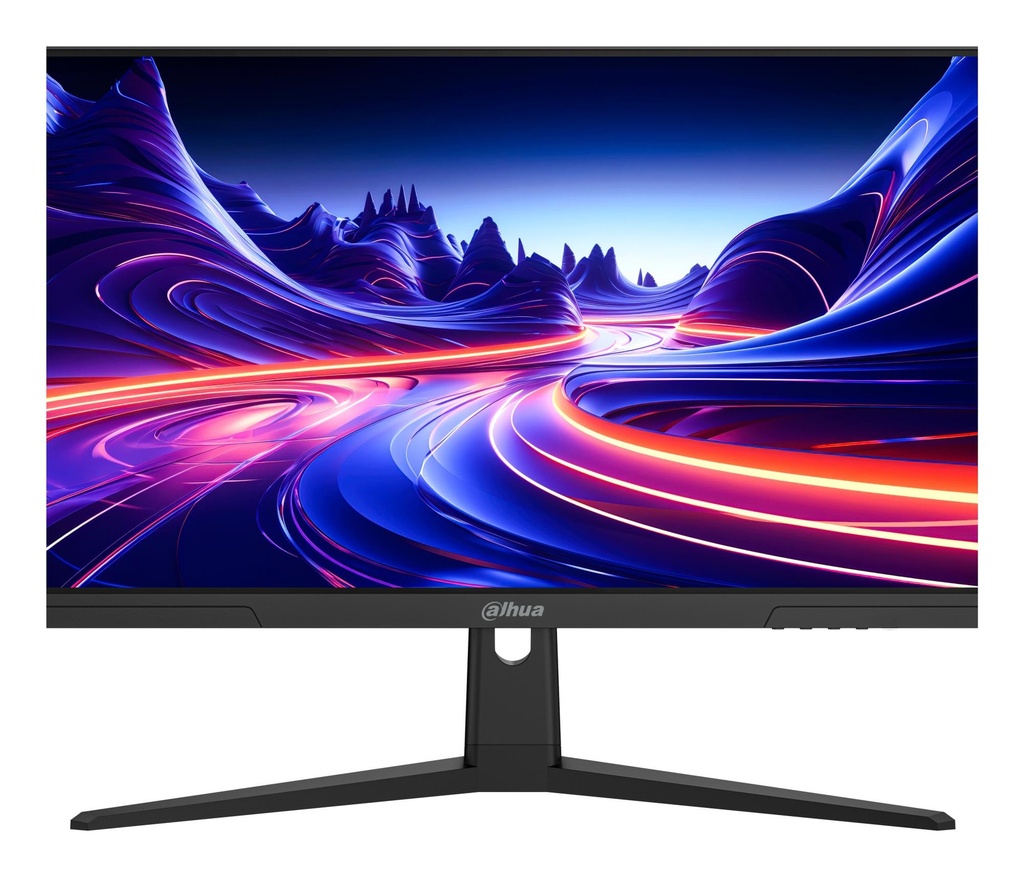

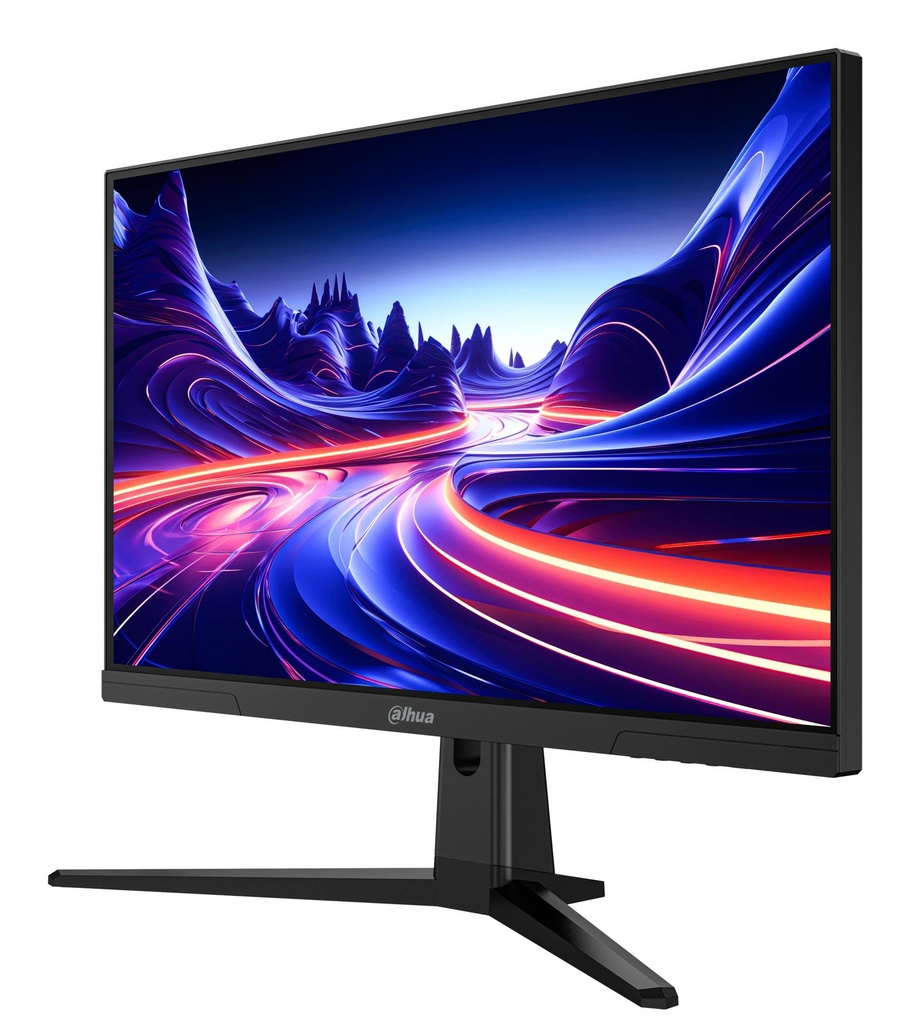

| Summary | Dahua Technology LM25-E231BN. Display diagonal: 62.2 cm (24.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 0.5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black |
| CnCode | 85285210 |
| Unit Box Height | 0.43 |
| Unit Box Length | 0.62 |
| Unit Box Width | 0.13 |
| Model name | LM25-E231BN |
| Model | DHI-LM25-E231BN |
Display
| Backlight type | Edge LED |
| Colour depth | 8 bit |
| Colour gamut standard | NTSC |
| Contrast ratio (typical) | 1000:1 |
| Display brightness (typical) | 350 cd/m² |
| Display diagonal | 24.5 " |
| Display diagonal (metric) | 62 cm |
| Display number of colours | 16.7 million colours |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| Haze rate | 25 % |
| HD type | Full HD |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| LED backlight | Yes |
| Maximum refresh rate | 200 Hz |
| Native aspect ratio | 16:9 |
| NTSC coverage (typical) | 85 % |
| Panel type | IPS |
| Pixel density | 89.91 ppi |
| Pixel pitch | 0.0944 x 0.2802 mm |
| Response time | 0.5 ms |
| Response time (MPRT) | 1 ms |
| Screen shape | Flat |
| Surface hardness | 3H |
| Touchscreen | No |
| Viewable size, horizontal | 543.744 mm |
| Viewable size, vertical | 302.616 mm |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Performance
| Low Blue Light technology | Yes |
Multimedia
| Built-in camera | No |
| Built-in speaker(s) | No |
Design
| Detachable stand | Yes |
| Feet colour | Black |
| Frameless design | Yes |
| Front bezel colour | Black |
| Market positioning | Gaming |
| Product colour | Black |
Ports & interfaces
| Audio output | Yes |
| Built-in USB hub | No |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
Ergonomics
| Height adjustment | No |
| LED indicators | Yes |

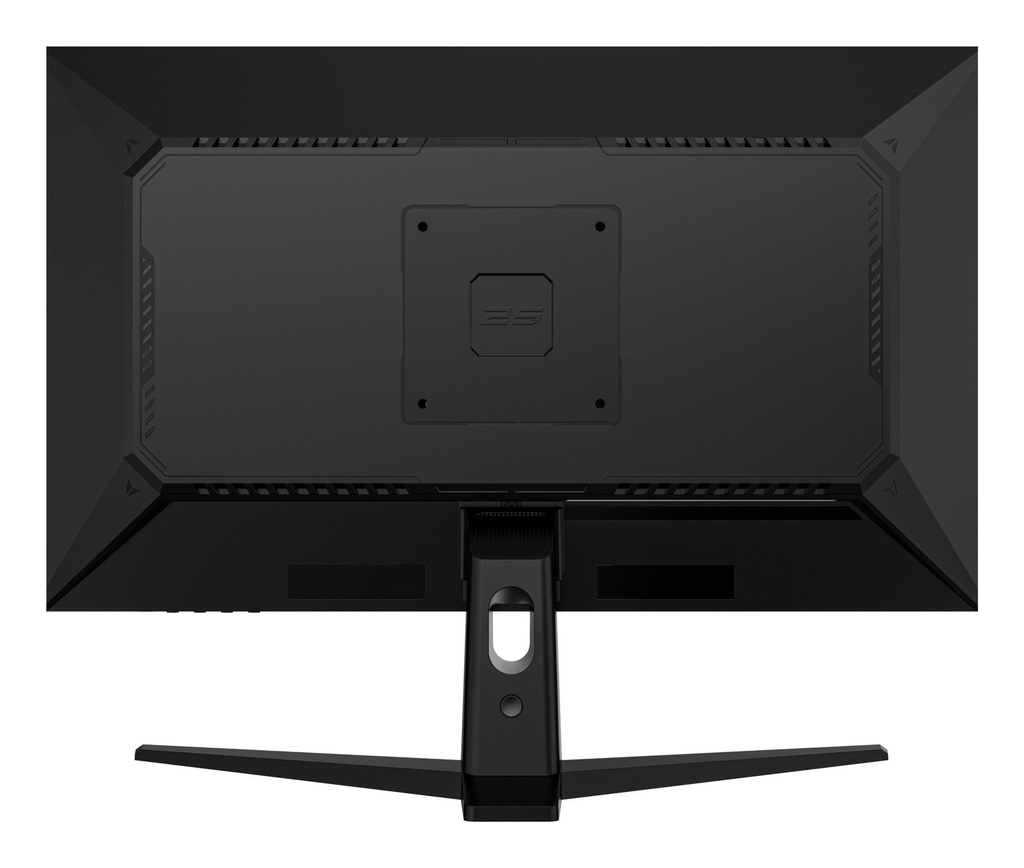

| Panel mounting interface | 100 x 100 mm |
| Plug and Play | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20 ° |
| VESA mounting | Yes |
| Wall mountable | Yes |
Power
| AC adapter output voltage | 12 V |
| Current rating | 3 A |
| Energy consumption (HDR) per 1000 hours | 23.4 kWh |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | E |
| Energy efficiency scale | A to G |
| Power consumption (max) | 23.8 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 19 W |
| Power supply type | External |
Operational conditions
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Bezel width (bottom) | 19.61 mm |
| Bezel width (side) | 6.98 mm |
| Bezel width (top) | 6.98 mm |
| Depth (without stand) | 58 mm |
| Height (without stand) | 330.6 mm |
| Weight (without stand) | 2930 g |
| Width (without stand) | 557.7 mm |
Packaging data
| Package depth | 134 mm |
| Package height | 431 mm |
| Package type | Box |
| Package weight | 4000 g |
| Package width | 620 mm |
Packaging content
| Cables included | DisplayPort |
| Manual | Yes |
| Power adapter included | Yes |
| Stand included | Yes |
Other features
| Compliance certificates | CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD) |
| Mean time between failures (MTBF) | 30000 h |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2307432/fiches?language=EN |
| Energy efficiency class | E |
| EPREL Registration Number | 2307432 |
| EPREL Version Number | 1 |
