- IPS panel for wide viewing angles with 3-sided frameless design
- Wide color gamut, 99% sRGB, 85% NTSC, 88% DCI-P3 82% Adobe RGB. It meets the designer's demand of image texture
- 178°H/178°V extra-wide viewing angle for all-round viewing performance
- Adaptive sync can effectively solve picture lagging and tearing problems
- 5ms fast response time with no image blurring or ghosting
General
| Unit Calculated Weight | 8.05 kg |
| Product Net Weight | 5.37 kg |
| Unit Calculated Volume | 0.067392 cubm |

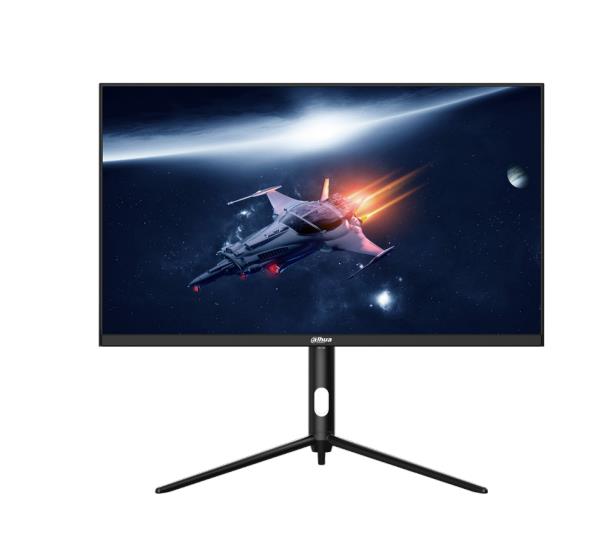

| Summary | Dahua Technology DHI-LM27-E331A. Display diagonal: 68.6 cm (27"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting, Height adjustment. Product colour: Black |
| Unit Box Height | 0.48 |
| Unit Box Length | 0.78 |
| Unit Box Width | 0.18 |
| Model name | DHI-LM27-E331A |
| Model | DHI-LM27-E331A |
Display
| Backlight type | Edge LED |
| Colour gamut | 99 % |
| Colour gamut standard | sRGB |
| Contrast ratio (dynamic) | 1000:1 |
| Display brightness (typical) | 350 cd/m² |
| Display diagonal | 27 " |
| Display resolution | 2560 x 1440 pixels |
| Display technology | LED |
| HD type | Quad HD |
| Maximum refresh rate | 165 Hz |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| Response time | 5 ms |
| Screen shape | Flat |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Multimedia
| Built-in camera | No |
Design
| Market positioning | Home |
| Product colour | Black |
Ports & interfaces
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| USB Type-A downstream ports quantity | 1 |
Ergonomics
| Adjustable height (max) | 120 mm |
| Height adjustment | Yes |
| Panel mounting interface | 75 x 75 mm |
| Pivot | Yes |
| Pivot angle | 0 - 180 ° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20 ° |
| VESA mounting | Yes |
Power
| Energy consumption (SDR) per 1000 hours | 25 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | F |
| Power consumption (max) | 145 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 37 W |
| Power supply type | External |
Operational conditions
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Depth (with stand) | 365.5 mm |
| Height (with stand) | 63.7 mm |
| Weight (with stand) | 6240 g |
| Width (with stand) | 619 mm |
Packaging content
| Cables included | AC/DisplayPort |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/1820694/fiches?language=EN |
| Energy efficiency class | F |
| EPREL Registration Number | 1820694 |
| EPREL Version Number | 1 |
