- With DQHD resolution, the 32:9 ultra-wide screen offers a broader field of view, making it easy to display game maps and business reports.
- > Designed with a 1800R curvature, the device provides an unparalleled immersive experience with depth in its visuals.
- > With a wide color gamut of 99% sRGB and 85% NTSC, as well as an average color accuracy of ΔE < 2, the device ensures that visuals are accurately displayed in rich colors.
- > Equipped with a USB-C port, it easily connects to laptops, smartphones, tablets, and other mobile devices, allowing seamless screen sharing on a large display, while enhancing your web browsing and entertainment experience. It also supports up to 65 W power output for charging mobile devices.
- > The RJ-45 port supports network signal transmission, allowing the device to be connected to laptops that do not have Ethernet ports.
- > Supports Picture-by-Picture (PBP), allowing two signals from channels to be processed and displayed on the screen simultaneously, enabling you to conveniently watch movies, play games, and enjoy other forms of entertainment at the same time.
- > Easily switches to blue light mode to help reduce eye strain and make your viewing experience more comfortable.
- > The ergonomic stand can be adjusted horizontally and tilted forward and backward, providing you with a comfortable entertainment experience.
General
| Unit Calculated Weight | 16.6 kg |
| Product Net Weight | 11.5 kg |
| Unit Calculated Volume | 0.1747 cubm |
| Units per Pallet | 0 |

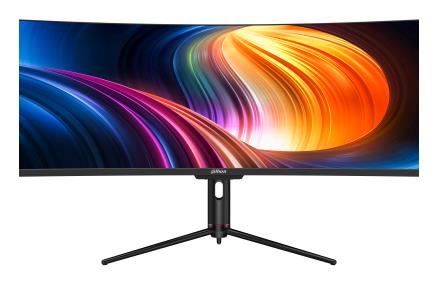

| Summary | Dahua Technology LM49-EW410CA. Display diagonal: 124.5 cm (49"), Display resolution: 5120 x 1440 pixels, HD type: Dual QHD, Display technology: LCD, Native aspect ratio: 32:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting, Height adjustment. Product colour: Black |
| Unit Box Height | 0.48 |
| Unit Box Length | 1.3 |
| Unit Box Width | 0.28 |
| Model name | LM49-EW410CA |
| Model | DHI-LM49-EW410CA |
Display
| Backlight type | Edge LED |
| Colour depth | 8 bit |
| Colour gamut standard | NTSC/sRGB |
| Contrast ratio (typical) | 3000:1 |
| Display brightness (peak) | 400 cd/m² |
| Display diagonal | 49 " |
| Display diagonal (metric) | 124 cm |
| Display resolution | 5120 x 1440 pixels |
| Display technology | LCD |
| HD type | Dual QHD |
| High Dynamic Range (HDR) supported | Yes |
| LED backlight | Yes |
| Maximum refresh rate | 120 Hz |
| Native aspect ratio | 32:9 |
| NTSC coverage (typical) | 85 % |
| Panel type | VA |
| Pixel density | 108.54 ppi |
| Pixel pitch | 0.2382 x 0.2382 mm |
| Response time (MPRT) | 1 ms |
| Screen curvature rating | 1800R |
| Screen shape | Curved |
| sRGB coverage (typical) | 99 % |
| Supported graphics resolutions | 5120 x 1440 |
| Supported video modes | 1440p |
| Surface treatment | Haze 25%, 3H |
| Touchscreen | No |
| Viewable size, horizontal | 1191.936 mm |
| Viewable size, vertical | 335.232 mm |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Performance
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
Multimedia
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 6 W |
Design
| Feet colour | Black |
| Market positioning | Gaming |
| Product colour | Black |
| Refurbished | No |
Ports & interfaces
| Audio output | Yes |
| Built-in USB hub | No |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Ergonomics
| Adjustable height (max) | 95 mm |
| Height adjustment | Yes |
| Panel mounting interface | 75 x 75 mm |
| Plug and Play | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 15 ° |
| VESA mounting | Yes |
| Wall mountable | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (HDR) per 1000 hours | 63 kWh |
| Energy consumption (SDR) per 1000 hours | 42 kWh |
| Energy efficiency class (HDR) | G |
| Energy efficiency class (SDR) | F |
| Energy efficiency scale | A to G |
| Power consumption (max) | 180 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 72 W |
| Power supply type | Internal |
Operational conditions
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Depth (with stand) | 160.2 mm |
| Height (with stand) | 375.6 mm |
| Weight (with stand) | 11500 g |
| Width (with stand) | 1198.5 mm |
Packaging data
| Package depth | 284 mm |
| Package height | 486 mm |
| Package weight | 15600 g |
| Package width | 1305 mm |
Packaging content
| Cables included | DisplayPort/Power/USB Type-C |
| Quick start guide | Yes |
| Stand included | Yes |
Other features
| Compliance certificates | CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD) |
| Display viewable area (HxV) | 1191.9 x 335.2 mm |
| E-manual | Yes |
| Picture-by-Picture (PbP) | Yes |
| QA_test. | 42 |
| RJ-45 ports quantity | 1 |
Energy Efficiency
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2187117/fiches?language=EN |
| Energy efficiency class | F |
| EPREL Registration Number | 2187117 |
| EPREL Version Number | 2 |
