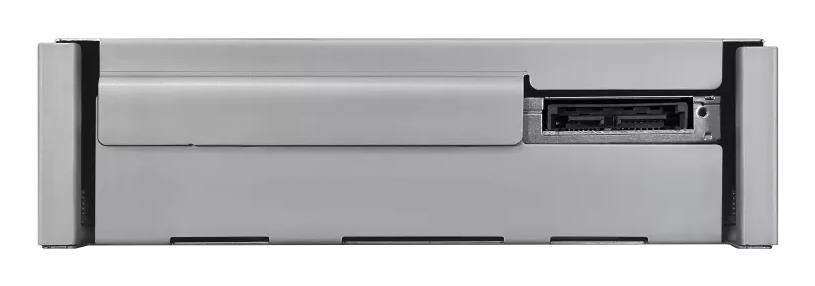

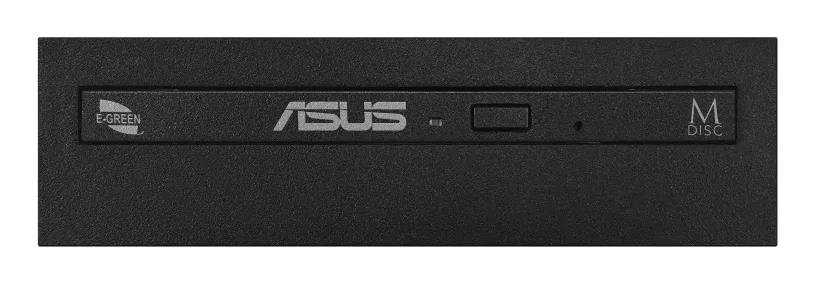

DRW-08D6MT is an 8X HH DVD Writer with a compact 140 × 148 × 41 mm (L/W/H) design, which is 30 mm shorter than DRW-24D5MT (170 × 148 × 41 mm), providing more room for airflow and compatibility in the chassis.
General
| Unit Calculated Weight | 0.513 kg |
| Unit Calculated Volume | 0.002708 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | ASUS DRW-08D6MT (OEM). Product colour: Black, Disc loading type: Tray, Mounting: Horizontal. Purpose: Desktop, Optical drive type: DVD±RW, Interface: Serial ATA. CD write speed: 24x, DVD+R write speed: 4x, CD-R write speed: 24x. CD read speed: 24x, CD-R read speed: 24x, CD-RW read speed: 24x. DVD drive average random access time: 160 ms, CD-ROM drive average random access time: 140 ms |
| Unit Box Height | 0.045 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.15 |
Design
| Disc loading type | Tray |
| Internal | Yes |
| Mounting | Horizontal |
| Product colour | Black |
Performance
| Disc types supported | CD-R/CD-ROM/CD-RW/DVD-R/DVD-R DL/DVD-RAM/DVD-ROM/DVD-RW |
| Interface | Serial ATA |
| Optical disc diameter | 120/80 mm |
| Optical drive type | DVD±RW |
| Purpose | Desktop |
Writing speed
| CD write speed | 24 x |
| CD-R write speed | 24 x |
| CD-RW write speed | 24 x |
| DVD+R Double Layer write speed | 6 x |
| DVD+R write speed | 4 x |
| DVD+RW write speed | 8 x |
| DVD-R Double Layer write speed | 6 x |
| DVD-RAM write speed | 5 x |
| DVD-RW write speed | 6 x |
Reading speed
| Audio CD read speed | 10 x |
| CD read speed | 24 x |
| CD-R read speed | 24 x |
| CD-ROM read speed | 24 x |
| CD-RW read speed | 24 x |
| DVD+R Double Layer read speed | 8 x |
| DVD+R M-DISC read speed | 8 x |
| DVD+R read speed | 8 x |
| DVD+RW read speed | 8 x |
| DVD-R Double Layer read speed | 8 x |
| DVD-R read speed | 8 x |
| DVD-RAM read speed | 5 x |
| DVD-ROM Double Layer read speed | 8 x |
| DVD-ROM read speed | 8 x |
| DVD-RW read speed | 8 x |
| DVD-Video read speed | 4 x |
Access time
| CD-ROM drive average random access time | 140 ms |
| DVD drive average random access time | 160 ms |
Record modes
| Disc-at-once (DAO) | Yes |
| Incremental recording | Yes |
| Multi session | Yes |
| Over-burn writing | Yes |
| Packet writing | Yes |
| Random write | Yes |
| Restricted overwrite | Yes |
| Sequential writing | Yes |
| Session-at-once (SAO) | Yes |
| Track-at-once (TAO) | Yes |
Operational conditions
| Operating relative humidity (H-H) | 15 - 80 % |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Depth | 140 mm |
| Height | 41 mm |
| Weight | 410 g |
| Width | 148 mm |
Packaging content
| Cables included | SATA |
| Quantity per pack | 1 pc(s) |
