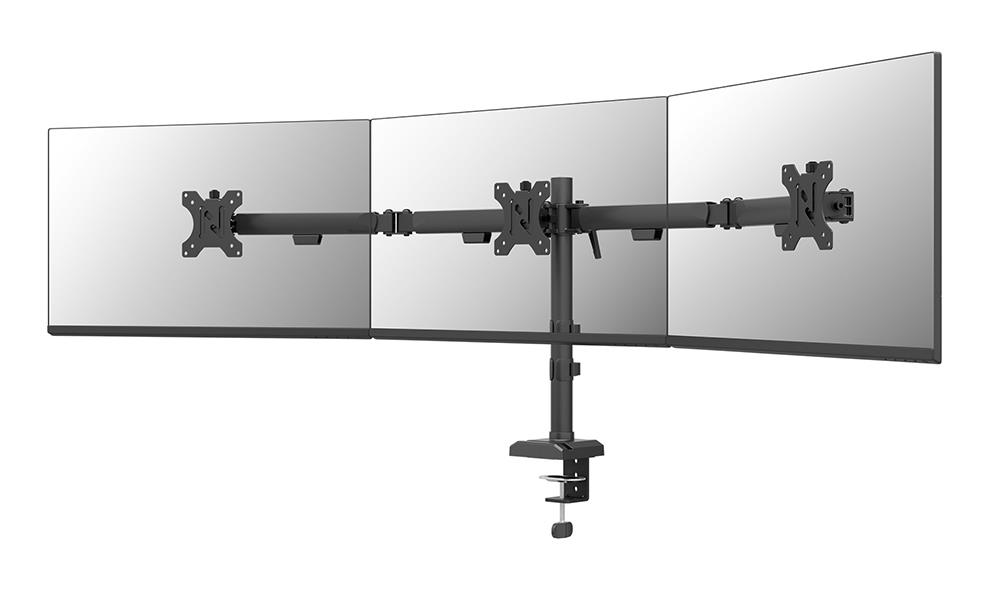

The Neomounts DS60-600BL3 NERO monitor arm is the perfect choice for those looking for a sturdy and versatile solution for three monitors up to 27" with a weight capacity of 6 kg per screen. This full motion monitor arm offers maximum flexibility thanks to its versatile tilt (90°), rotate (360°) and swivel (180°) technology, enabling you to always find the optimal viewing angle for an ergonomic working posture.
The NERO desk mount features manual height and depth adjustment, allowing you to adjust your workspace completely to your liking. In addition, the clever 180° stop mechanism prevents the mount from making contact with the wall or separation panel when installed near it. The welded base guarantees optimal stability and sturdiness. The practical cable management system ensures neat routing of cables. In addition, the base of the DS60-600BL3 provides a convenient space to place a phone, for a tidy desk.

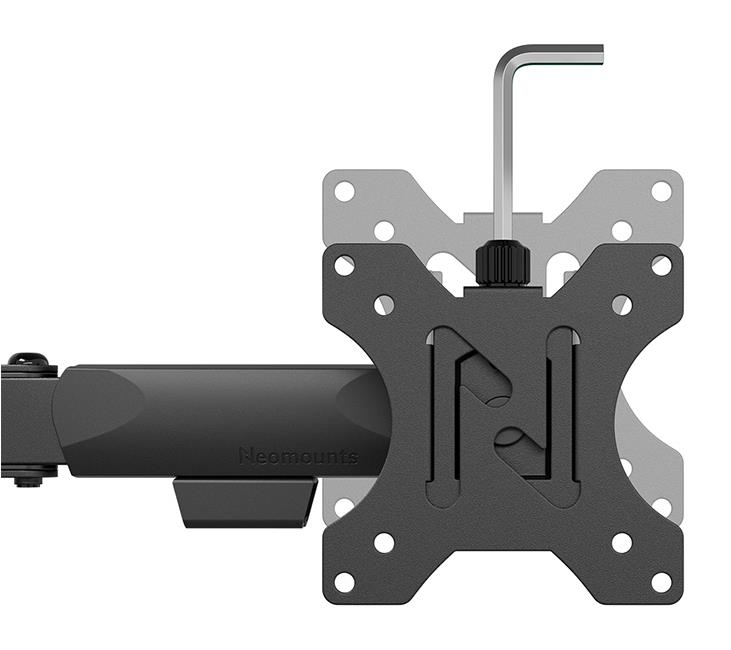

The DS60-600BL3 is suitable for screens that meet pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. For a seamless connection of the screens, the micro-adjustment function can be used.

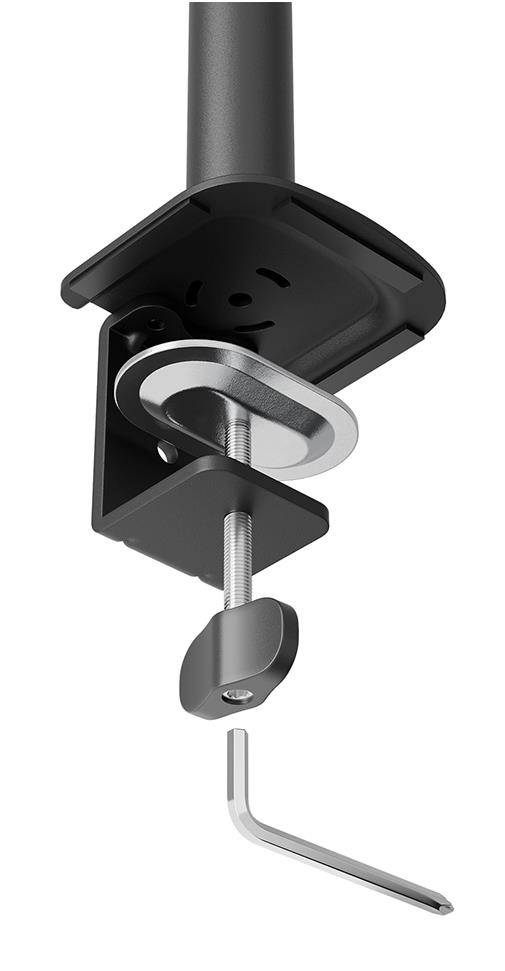

Installation of the NERO is quick and easy. The Easy-release system makes it easy to attach or detach the screen. Additionally, fixing the clamp to the desk only takes a few actions and, in addition to manual installation, can also be installed using an Allen key or drill for even faster installation. The NERO monitor arm's quick-span lever also allows for easy adjustment of the arm's height without additional tools.
With sustainability in mind, the packaging of the NERO monitor arms is 100% plastic-free and made entirely of recyclable cardboard and paper.
General
| Unit Calculated Weight | 6.4 kg |
| Unit Calculated Volume | 0.02431 cubm |
| Units per Shipping Box | 2 |
| Summary | Neomounts DS60-600BL3 Monitor arm 10-27" - Quick-fix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 6 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black |
| Unit Box Height | 0.125 |
| Unit Box Length | 0.505 |
| Unit Box Width | 0.323 |
| Model | DS60-600BL3 |
Mounting
| Clamp mount desk thickness (max) | 50 mm |
| Desk thickness (max) | 50 mm |
| Desk thickness (min) | 10 mm |
| Distance to the wall (max) | 601 mm |
| Distance to the wall (min) | 137 mm |
| Grommet mount desk thickness (max) | 50 mm |
| Maximum screen size | 27 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 6 kg |
| Maximum weight capacity (per display) | 6 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 3 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Adjustable depth | Yes |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Depth adjustment range | 137 - 601 mm |
| Height adjustment | Yes |
| Height adjustment range | 140 - 400 mm |
| Pivot angle | -180 - 180 ° |
| Rotating | Yes |
| Swivel angle range | -90 - 90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45 ° |
| Width adjustment | 655 mm |
Design
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 137 mm |
| Height | 450 mm |
| Weight | 4810 g |
| Width | 1424 mm |
Packaging data
| Package depth | 124 mm |
| Package height | 505 mm |
| Package weight | 5300 g |
| Package width | 322 mm |
Other features
| Warranty period | 5 year(s) |
| Width adjustment range | 0 - 655 mm |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 11200 g |
| Master (outer) case height | 280 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case net weight | 10600 g |
| Master (outer) case width | 520 mm |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 48 pc(s) |
