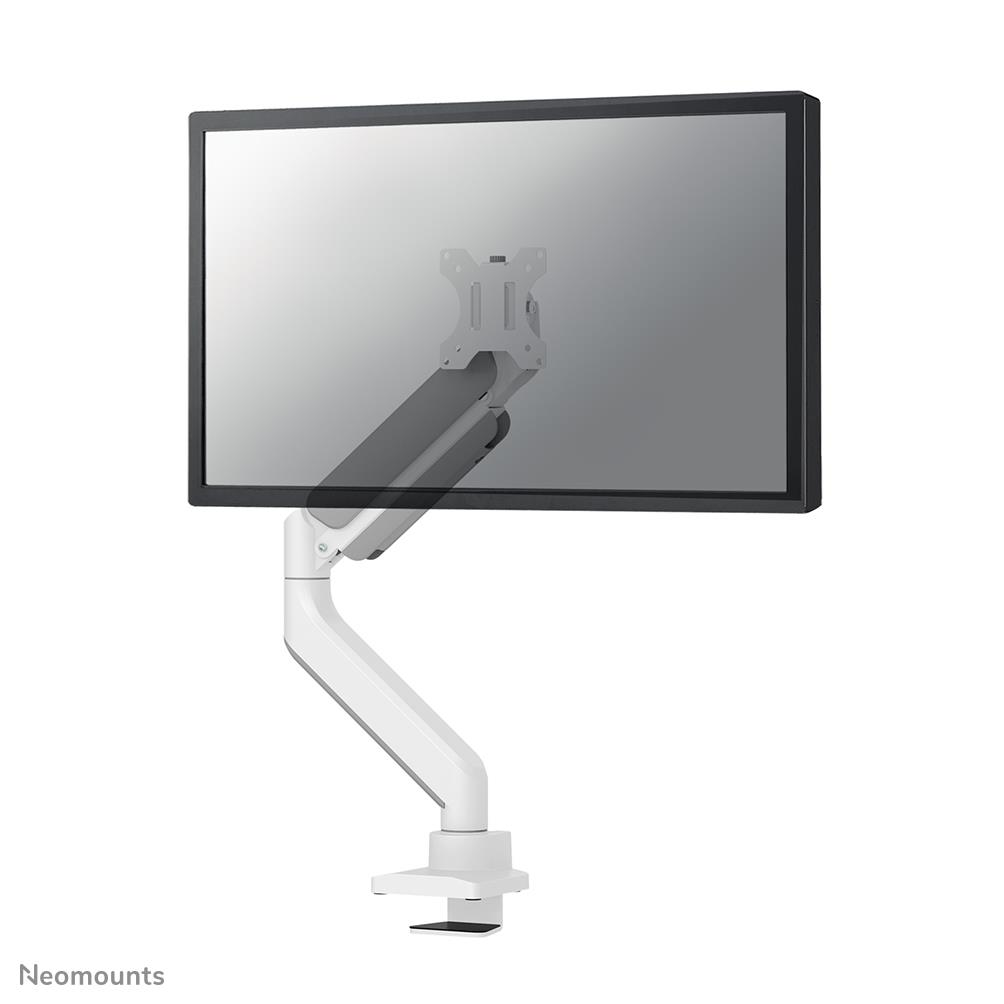

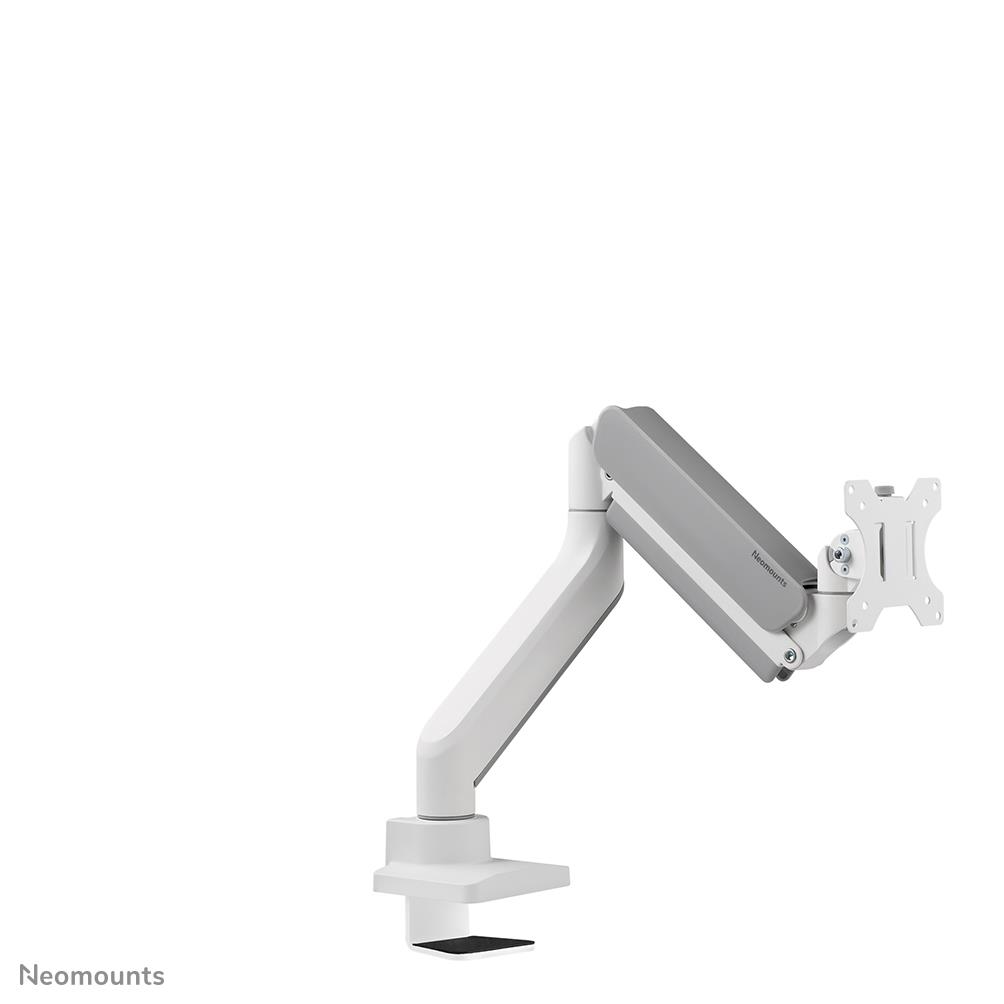

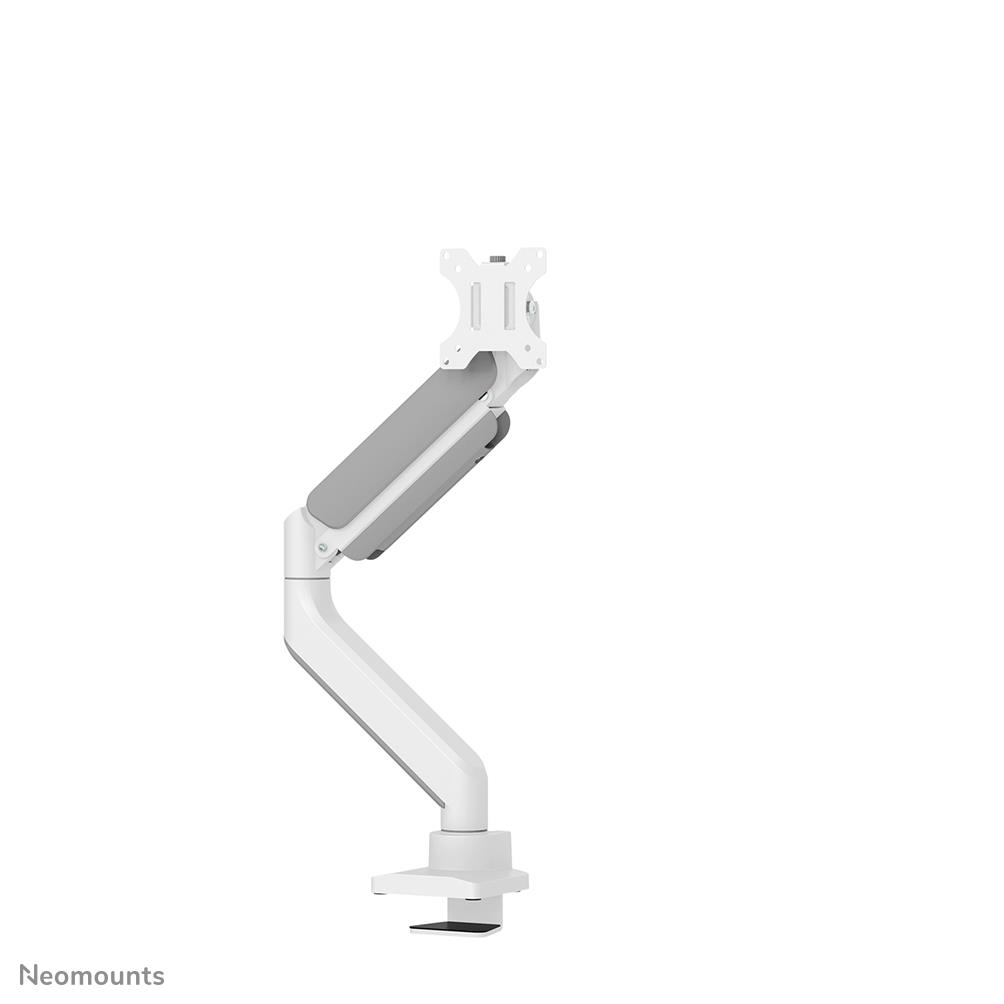

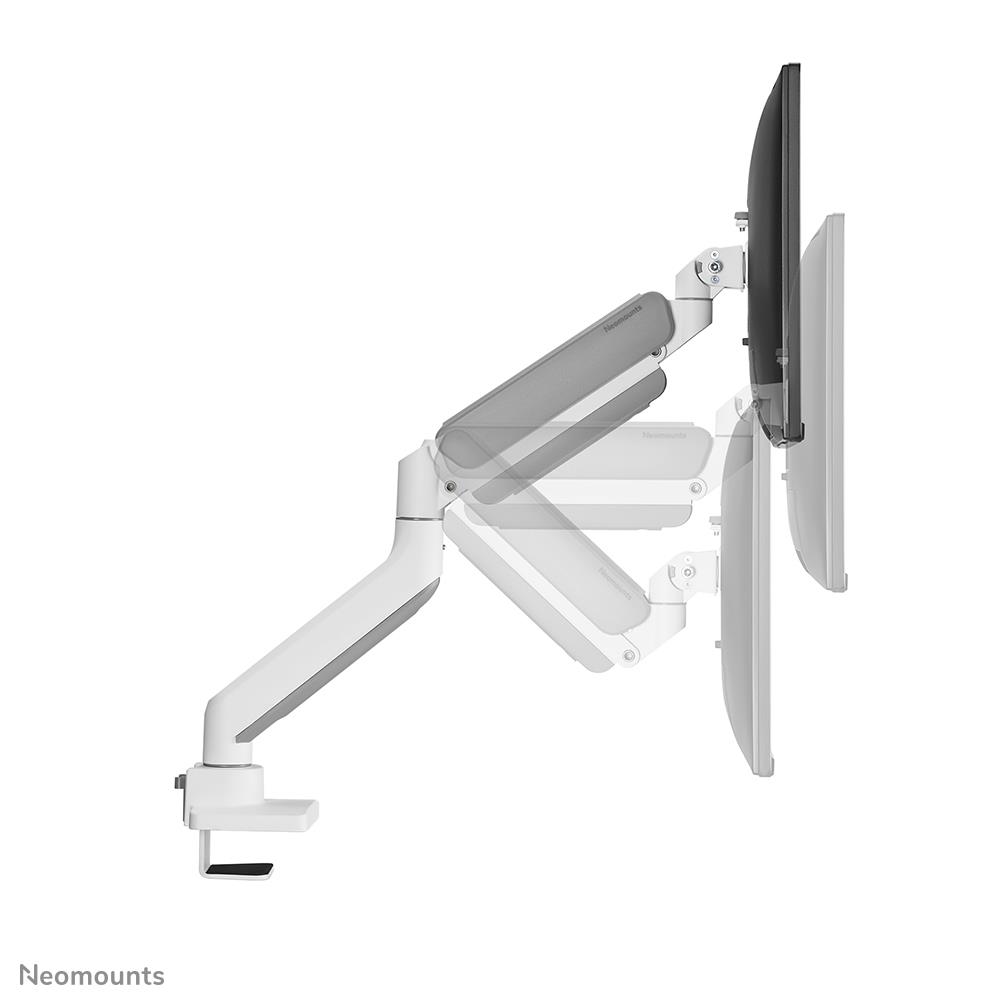

The Neomounts DS70-450WH1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.

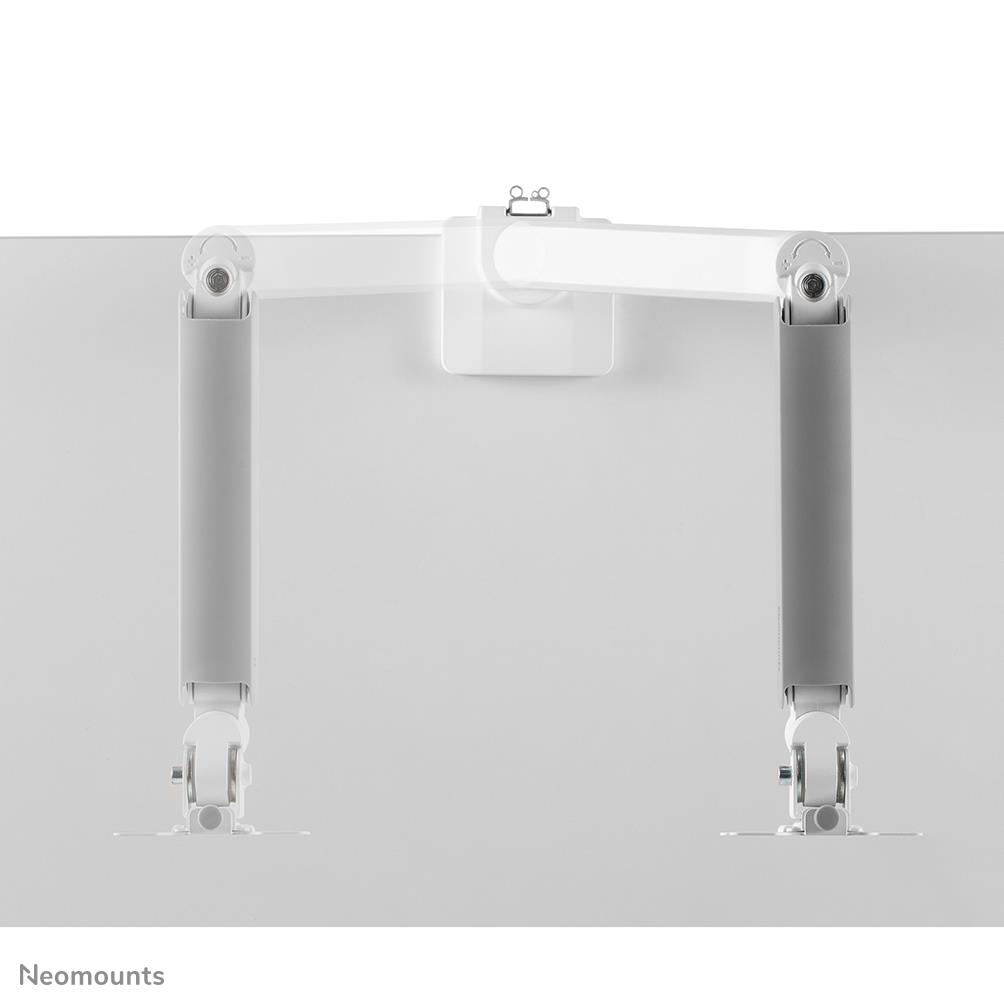

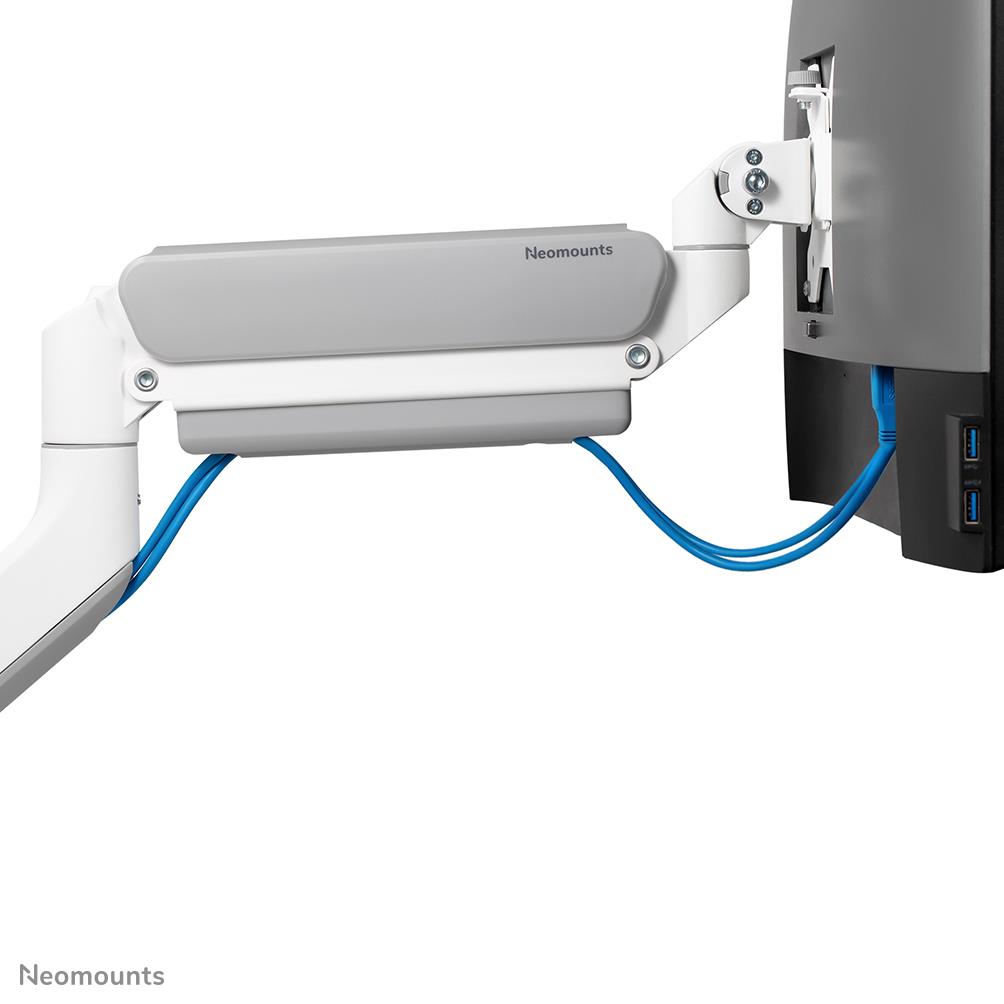

The DS70-450WH1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

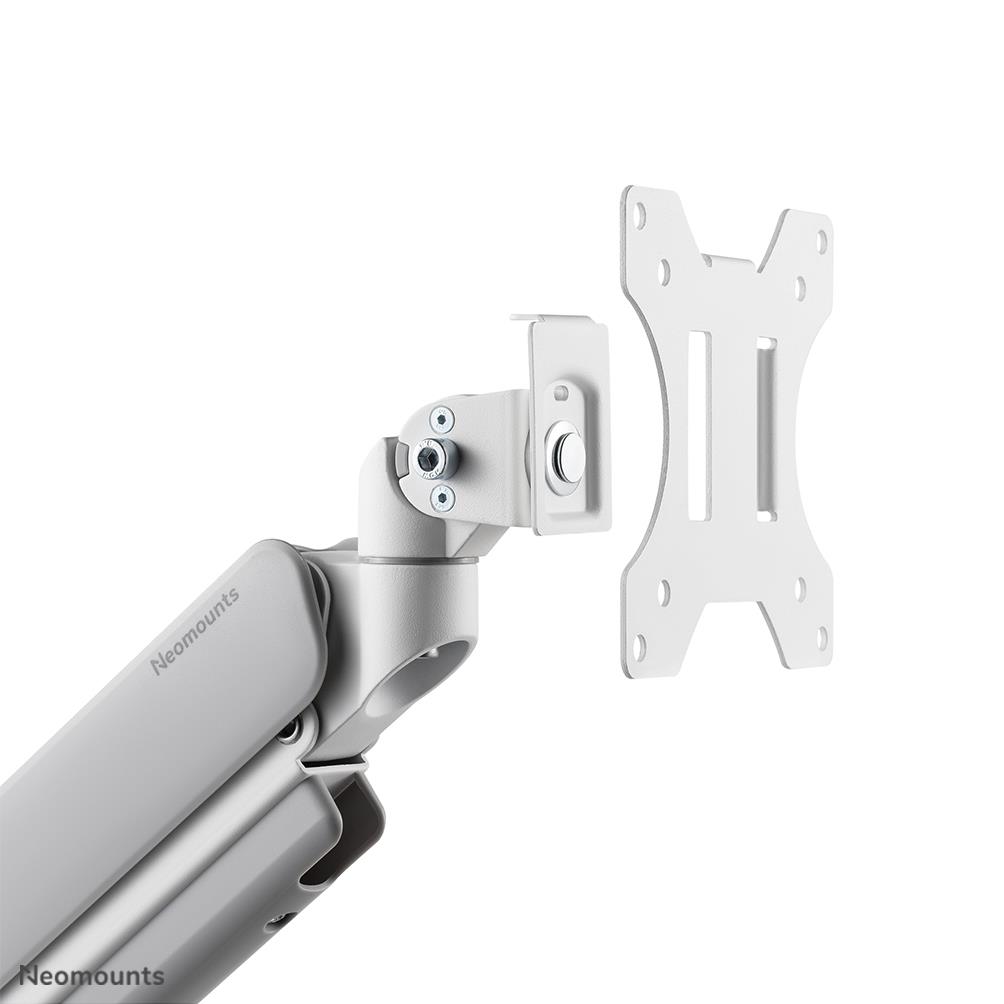

The DS70-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
General
| Unit Calculated Weight | 4.9 kg |
| Unit Calculated Volume | 0.01603 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts DS70-450WH1 Monitor arm 17-42" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 15 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 106.7 cm (42"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: White |
| CnCode | 83021000 |
| Unit Box Height | 0.285 |
| Unit Box Length | 0.45 |
| Unit Box Width | 0.125 |
| Model | DS70-450WH1 |
Mounting
| Desk thickness (max) | 45 mm |
| Desk thickness (min) | 10 mm |
| Distance to the wall (max) | 568 mm |
| Distance to the wall (min) | 108 mm |
| Maximum screen size | 42 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 15 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 11 kg |
| Maximum weight capacity (per display) | 15 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Adjustable depth | Yes |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Depth adjustment range | 54 - 511 mm |
| Height adjustment | Yes |
| Height adjustment range | 261 - 555 mm |
| Height adjustment type | Gas spring |
| Pivot angle | -180 - 180 ° |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | -90 - 90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45 ° |
| Width adjustment | 920 mm |
Design
| Housing material | Steel |
| Product colour | White |
Weight & dimensions
| Depth | 568 mm |
| Height | 653 mm |
| Weight | 3980 g |
| Width | 120 mm |
Packaging data
| Package depth | 127 mm |
| Package height | 445 mm |
| Package net weight | 5100 g |
| Package weight | 5100 g |
| Package width | 280 mm |
Packaging content
| Mounting kit | Yes |
Other features
| Minimum weight | 1 kg |
| Warranty period | 5 year(s) |
| Width adjustment range | 0 - 920 mm |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 20500 g |
| Master (outer) case height | 580 mm |
| Master (outer) case length | 275 mm |
| Master (outer) case net weight | 18400 g |
| Master (outer) case width | 460 mm |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 64 pc(s) |
