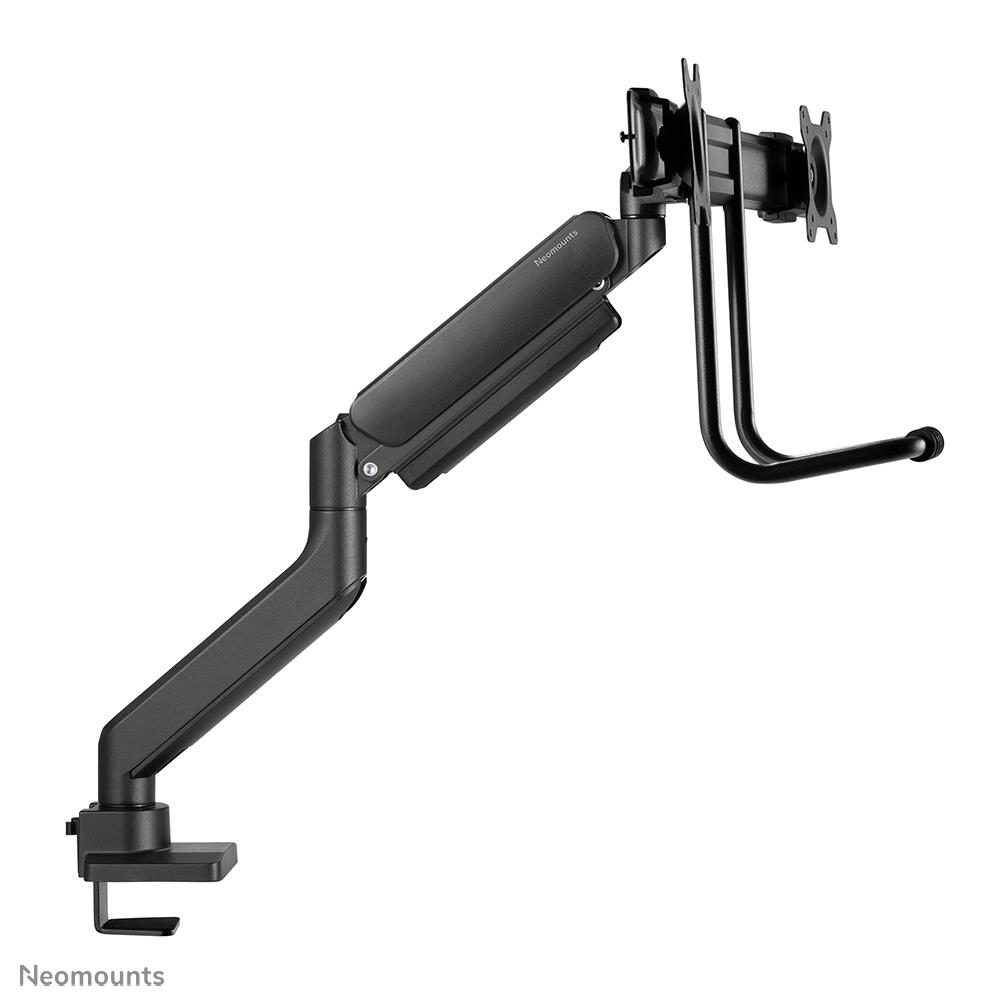

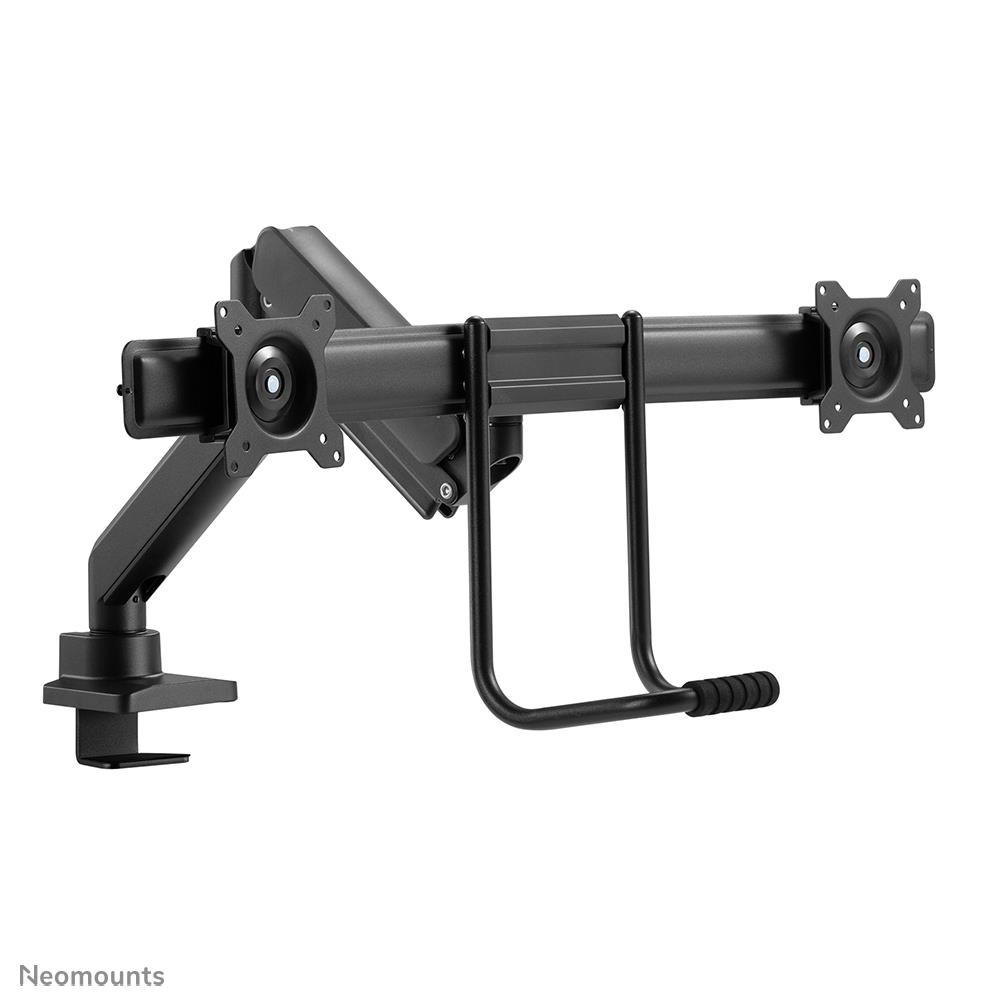

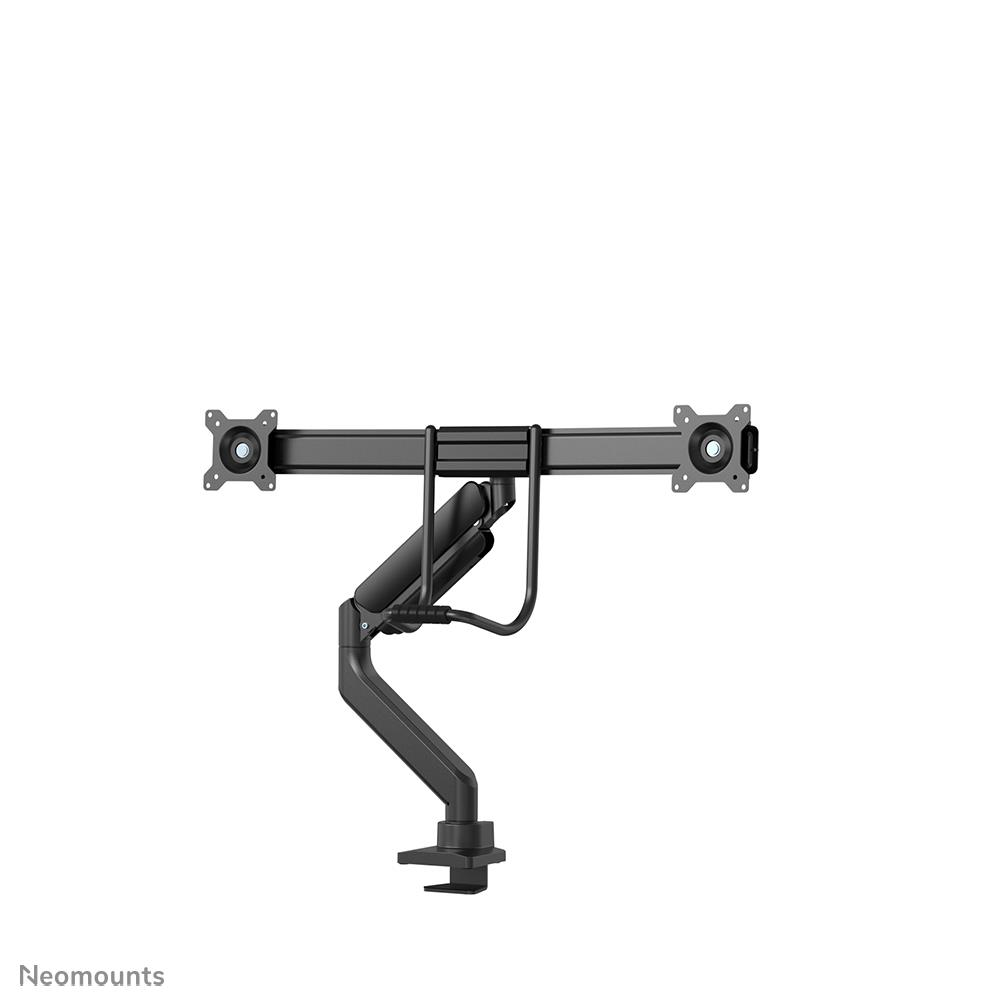

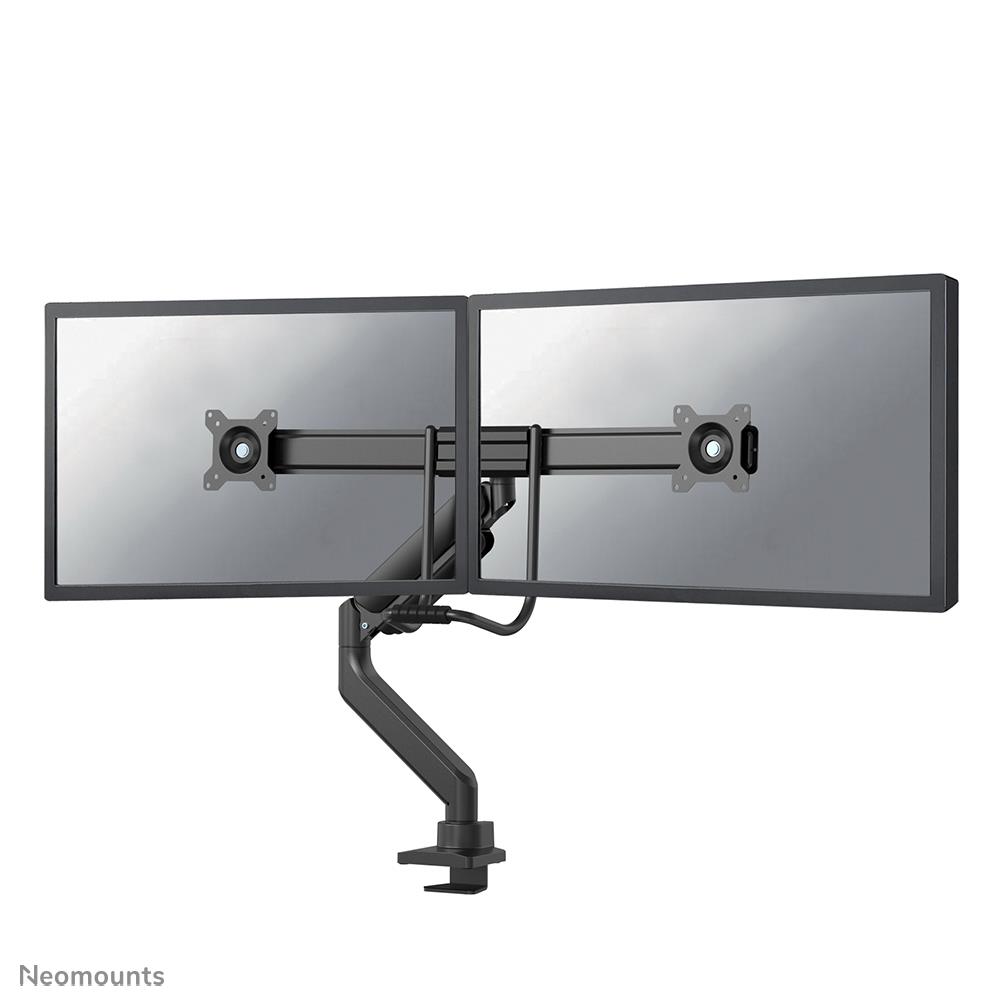

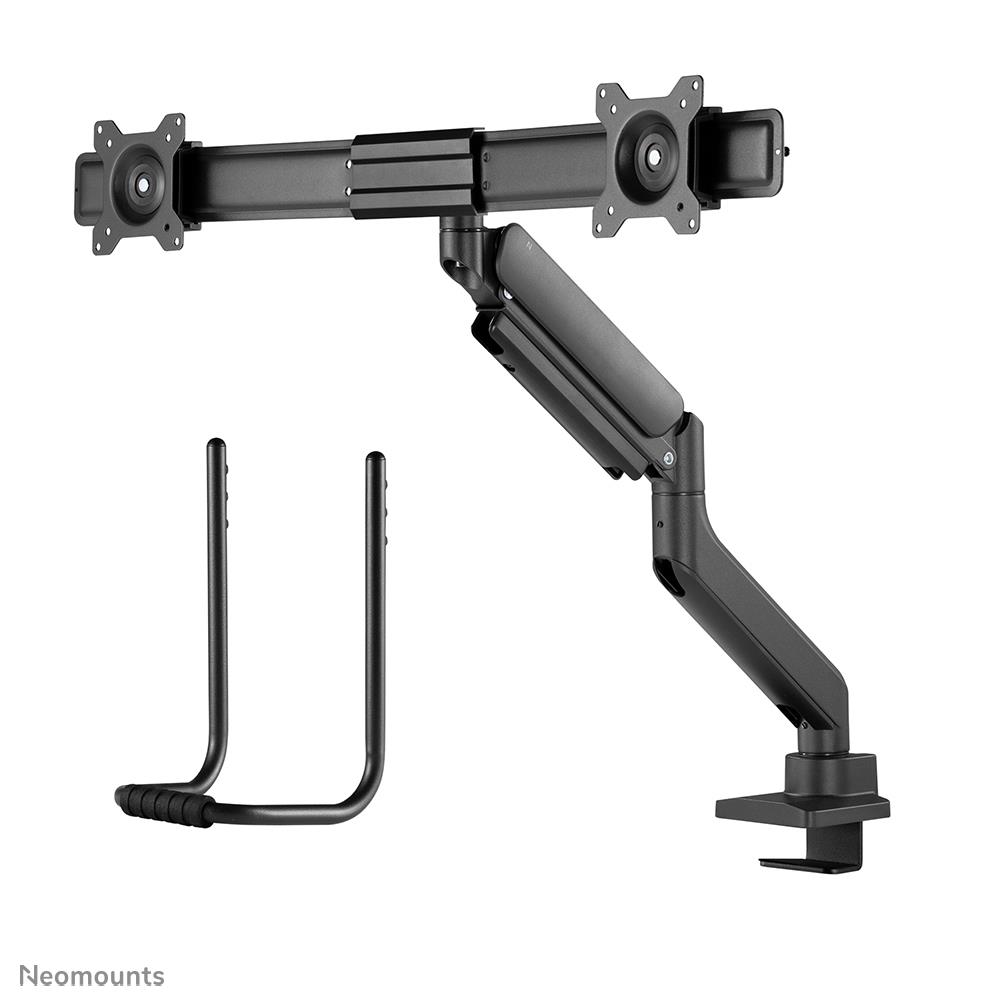

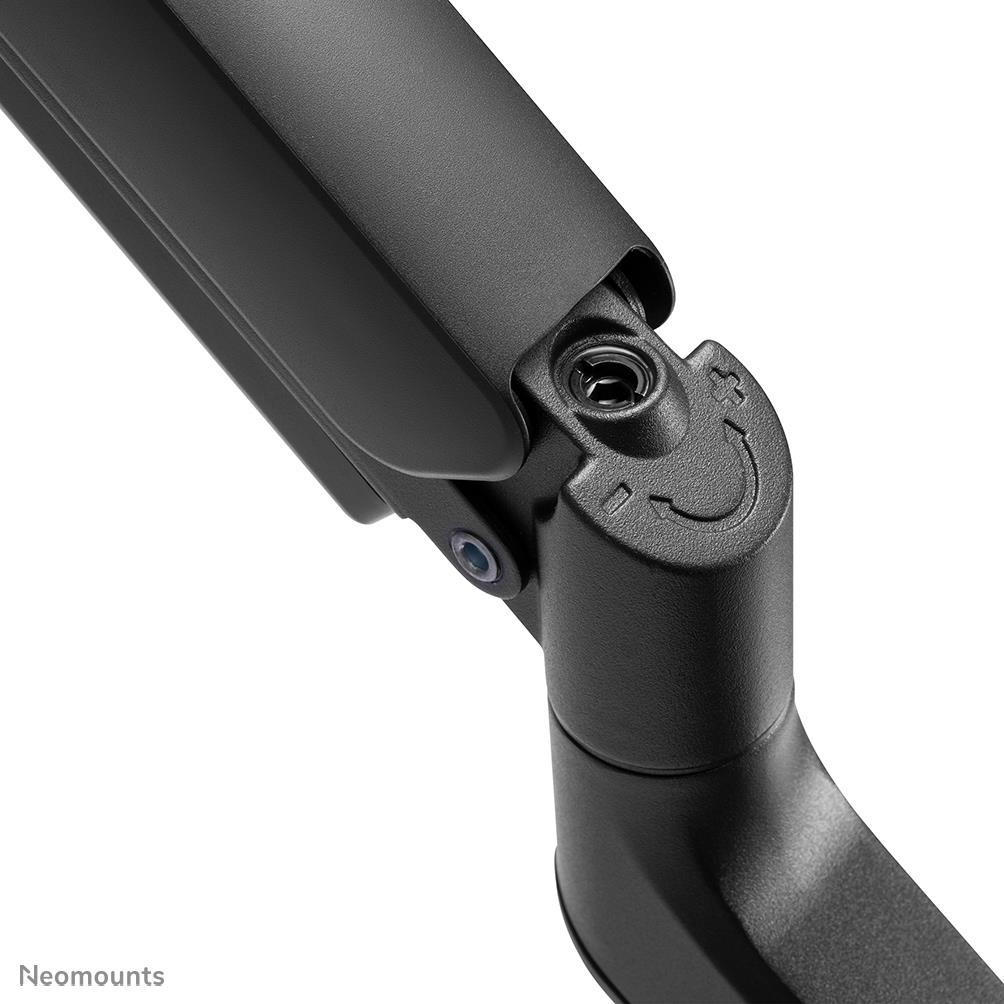

The Neomounts DS75-450BL2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (29,1-56 cm) and depth adjustment (14,3-55,3 cm), to create the perfect working position.

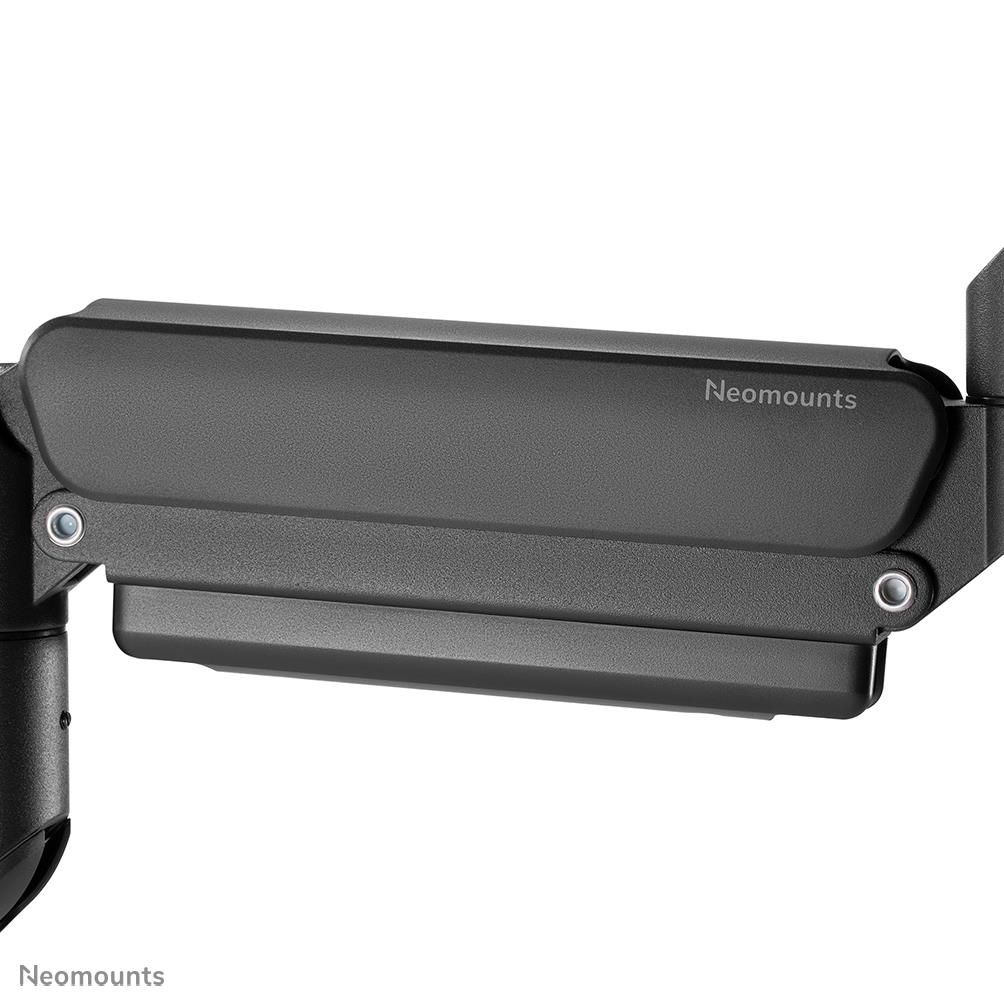

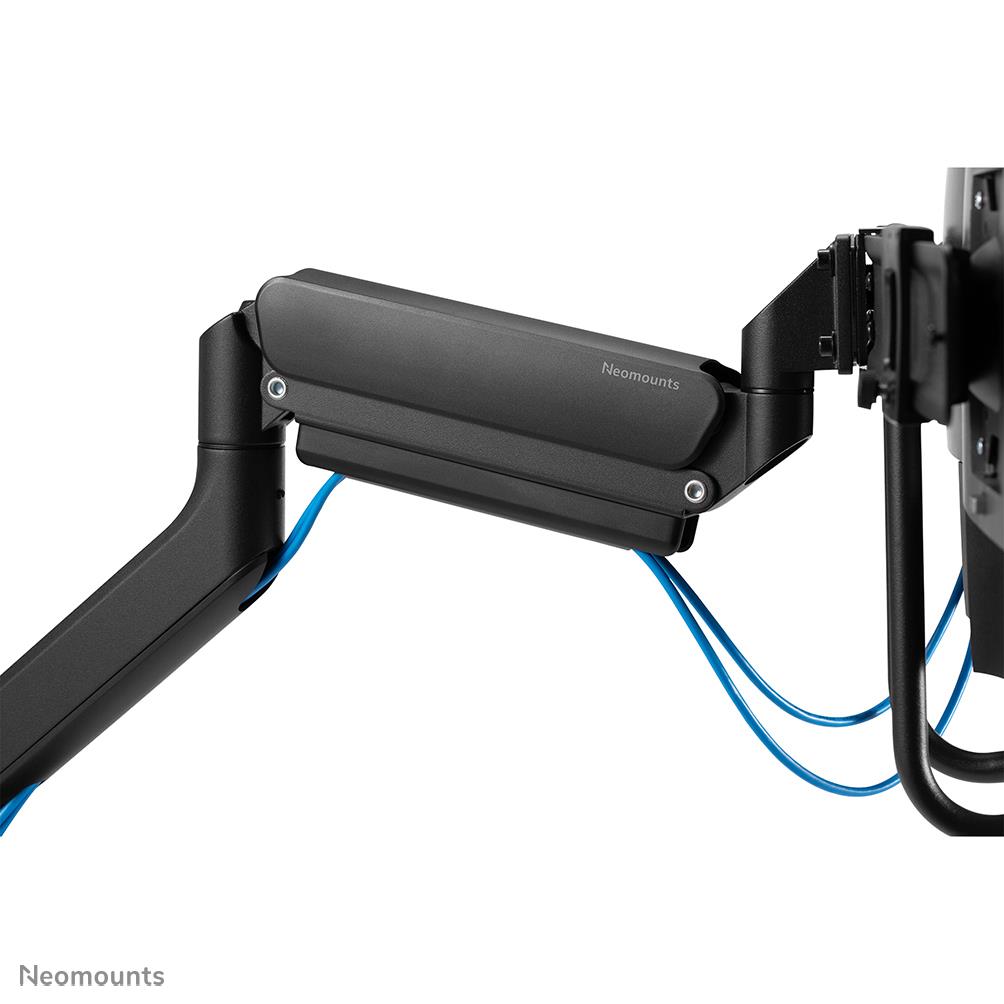

The DS75-450BL2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS75-450BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
General
| Unit Calculated Weight | 7.55 kg |
| Unit Calculated Volume | 0.02267 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts DS75-450BL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -10 - 10°. Product colour: Black |
| Unit Box Height | 0.325 |
| Unit Box Length | 0.45 |
| Unit Box Width | 0.155 |
| Model | DS75-450BL2 |
Mounting
| Desk thickness (max) | 45 mm |
| Desk thickness (min) | 10 mm |
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Adjustable depth | Yes |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Depth adjustment range | 143 - 553 mm |
| Height adjustment | Yes |
| Height adjustment range | 291 - 560 mm |
| Height adjustment type | Gas spring |
| Pivot angle | -180 - 180 ° |
| Rotating | Yes |
| Swivel angle | 20 ° |
| Swivel angle range | -90 - 90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 10 ° |
| Width adjustment | 990 mm |
Design
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 115 mm |
| Height | 646 mm |
| Weight | 6400 g |
| Width | 761 mm |
Packaging data
| Package depth | 152 mm |
| Package height | 445 mm |
| Package net weight | 7900 g |
| Package weight | 7900 g |
| Package width | 320 mm |
Packaging content
| Mounting kit | Yes |
Other features
| Minimum weight | 1 kg |
| Warranty period | 5 year(s) |
| Width adjustment range | 0 - 990 mm |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 15900 g |
| Master (outer) case height | 460 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case net weight | 14300 g |
| Master (outer) case width | 335 mm |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 40 pc(s) |
