Throughput
Increase network performance with 10GbE connectivity
Flexibility
Easy integration to existing deployments
Compatibility
Designed for maximum performance and reliability in Synology systems
General
| Unit Calculated Weight | 0.208 kg |
| Unit Calculated Volume | 0.000858 cubm |
| Units per Shipping Box | 1 |

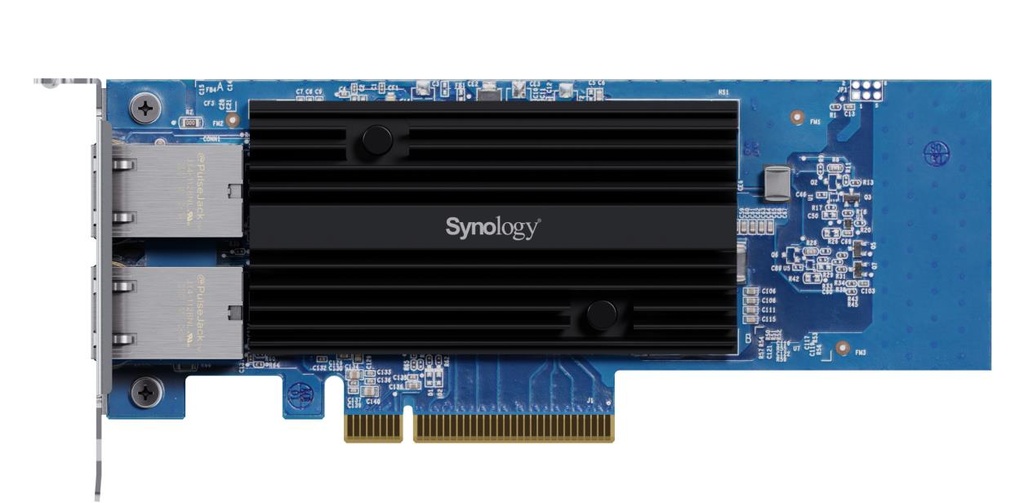

| Summary | Synology E10G30-T2. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Blue, Multicolour |
| Unit Box Height | 0.03 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.13 |
| Model name | E10G30-T2 |
| Model | E10G30-T2 |
Ports & interfaces
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 2 |
| Host interface | PCI Express |
| Interface | Ethernet |
| PCI Card form factor | Full-height (low-profile) |
| PCI version | 3.0 |
Network
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet interface type | 10 Gigabit Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100/1000/10000 Mbit/s |
| Full duplex | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3ab/IEEE 802.3an/IEEE 802.3x |
Design
| Component for | Server/workstation |
| Internal | Yes |
| Product colour | Blue/Multicolour |
Operational conditions
| Operating relative humidity (H-H) | 8 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Depth | 14.7 mm |
| Height | 68.9 mm |
| Width | 167.7 mm |
