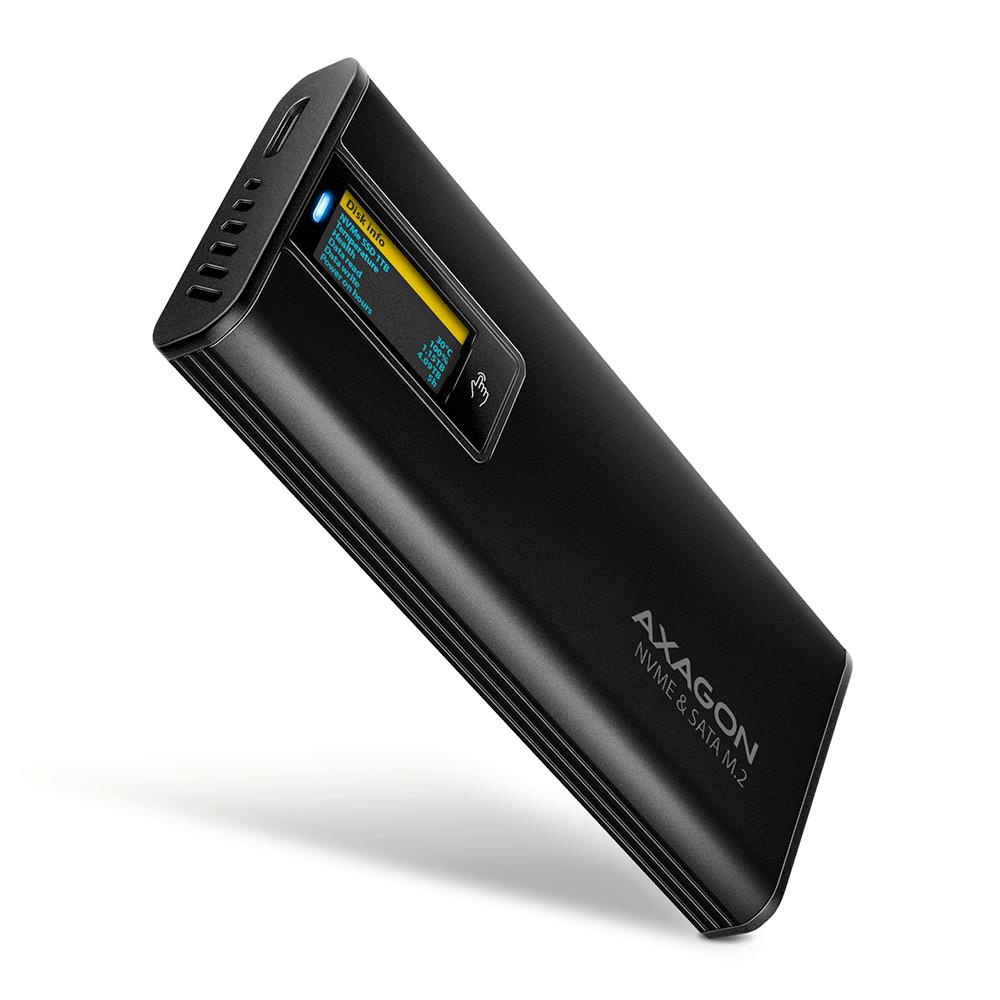

EEM2-SD2B USB-C 10Gbps - M.2 NVMe & SATA SSD DISPLAY box
External USB-C 10Gbps metal box with info display for M.2 NVMe & SATA SSDs. Screwless. Black.

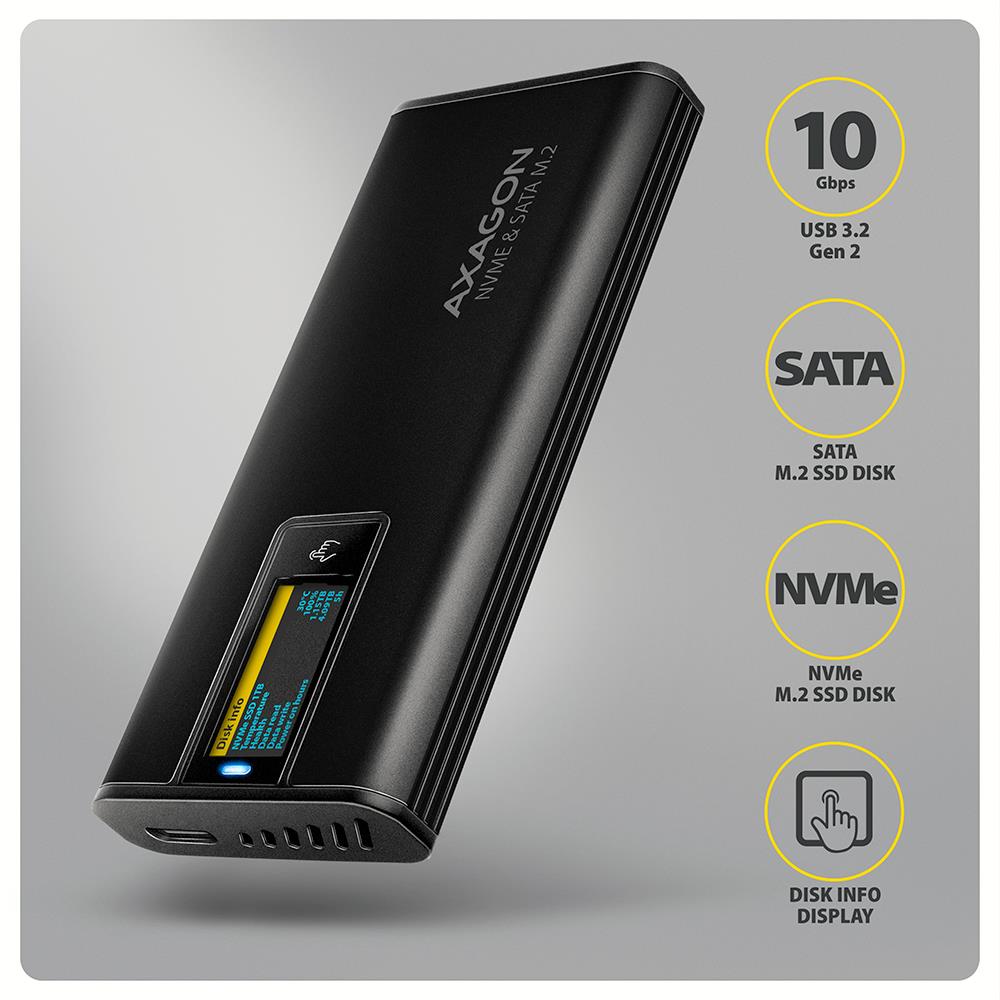

Input:
• USB 10Gbps (USB 3.2 Gen 2), USB-C female connector.
• Compatible with USB 5Gbps, USB 20Gbps, USB4, and Thunderbolt 3/4/5.

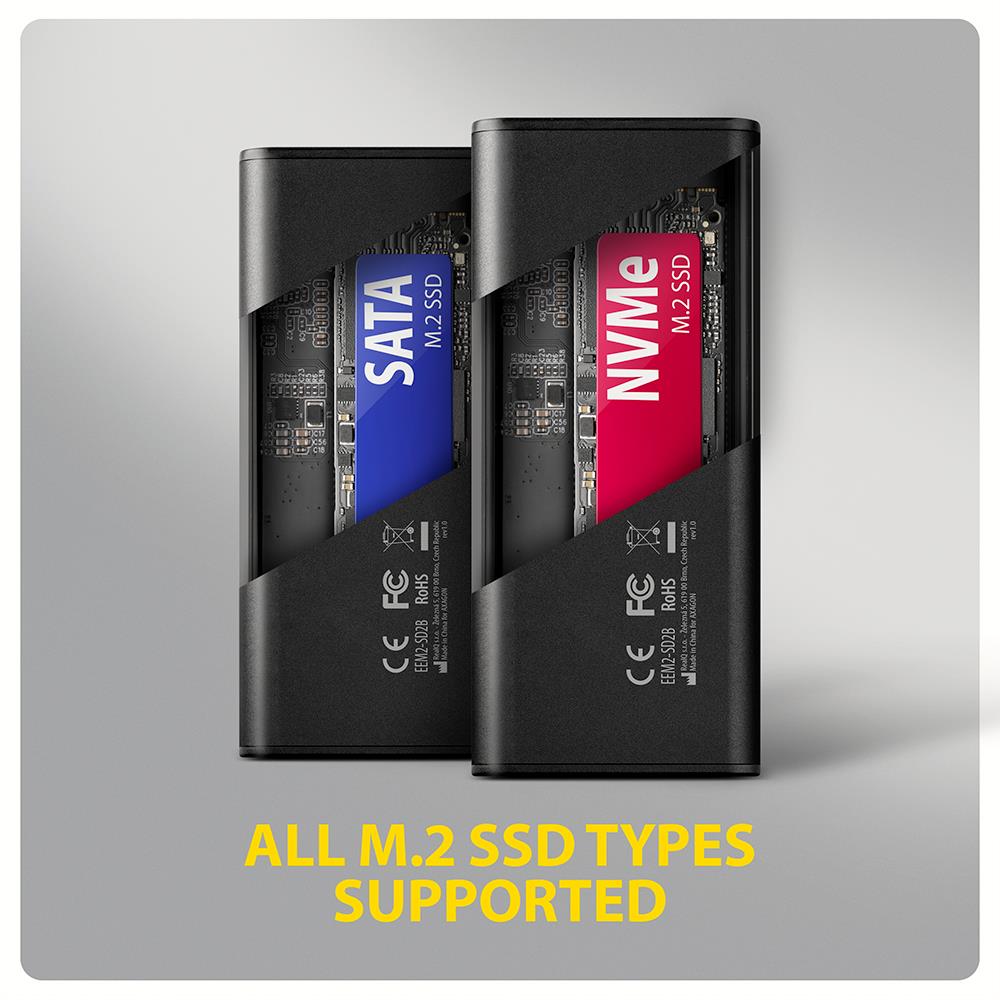

Supported Devices:
• NVMe M.2 SSDs,
• SATA M.2 SSDs,
• designed for M key or B+M key card formats,
• NGFF 75-pin M key slot for M.2 drives.

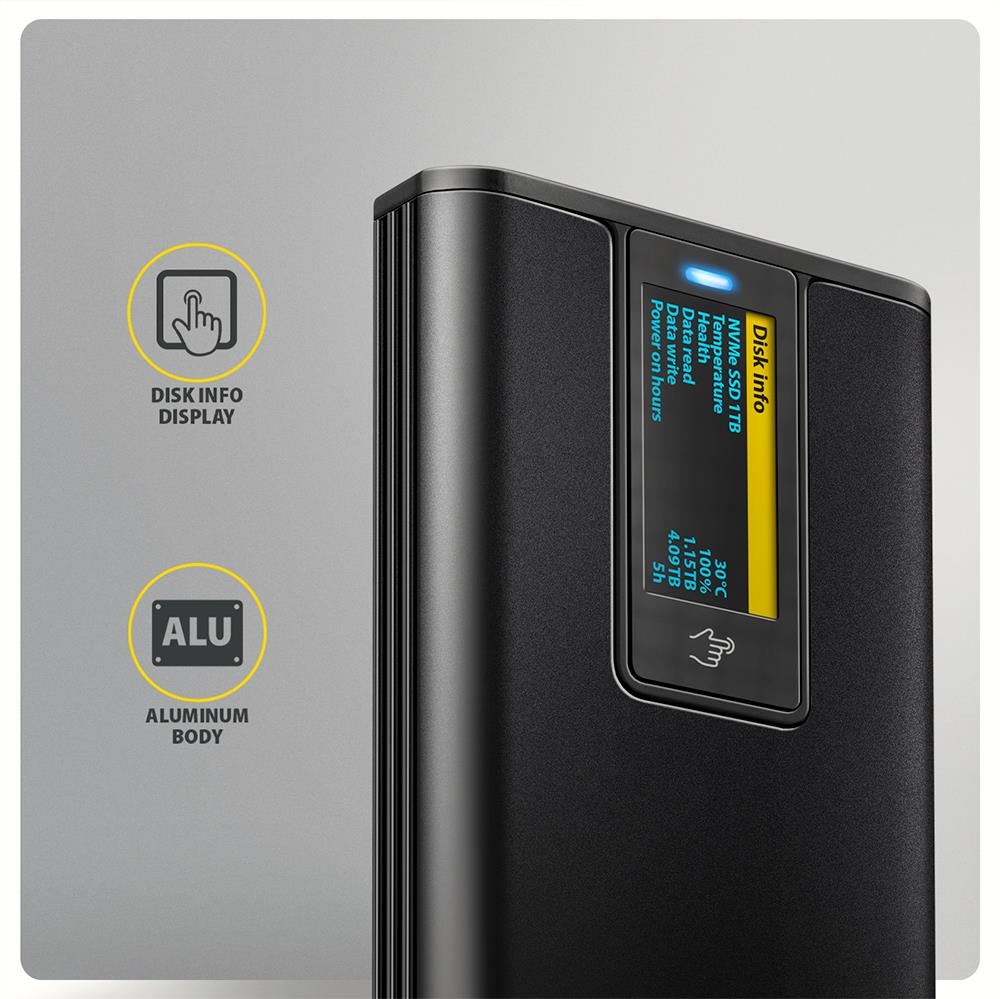

LED display shows:
• Recognizing - disk recognition (displayed when the box is connected to a device)
• Partition - displays the file system, size, and system name of the disk
• Idle - inactivity (information about the disk - used interface and disk size, speed of the connected bus, partitioning standard of the disk)
• Disk info - displays information about the disk (manufacturer label of the disk, actual disk temperature, health, amount of written / read data, total running time of the disk, number of disk removals without using safe removal)
• Monitor - real-time disk temperature using a graph
• Rd/Wr - data transfer (during data transfer, it is possible to switch between sections)
• Sleep - disk sleep mode
General
| Model | EEM2-SD2B |
| CnCode | 84733080 |
| Unit Box Height | 0.025 |
| Colour | Black |
| Unit Box Length | 0.175 |
| Dimensions | 96 x 42 x 12 mm |
| Unit Box Width | 0.085 |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0003719 cubm |
| Product Net Weight | 0.046 kg |
| Unit Calculated Weight | 0.1 kg |
