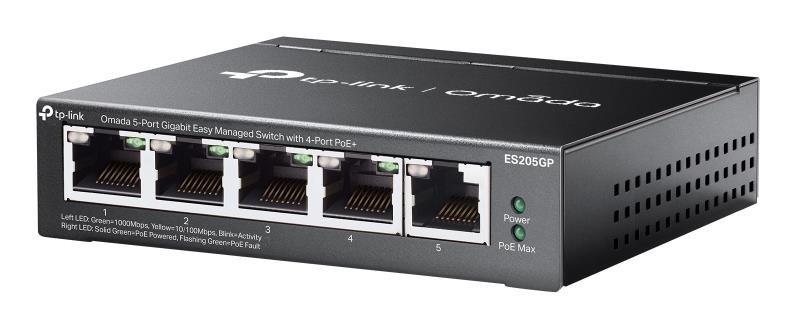

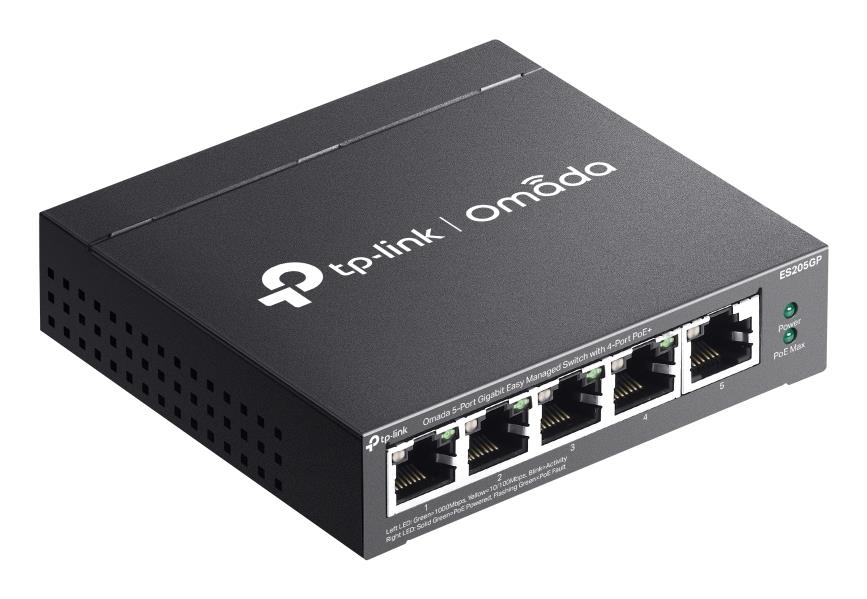

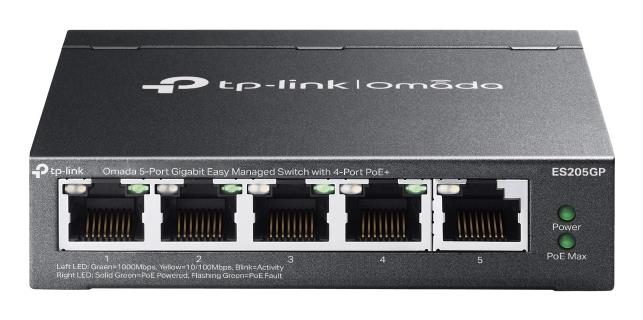

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
- 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
General
| Unit Calculated Weight | 0.858 kg |
| Unit Calculated Volume | 0.003959 cubm |
| Units per Shipping Box | 12 |
| Units per Pallet | 0 |
| Summary | TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable |
| Unit Box Height | 0.127 |
| Unit Box Length | 0.195 |
| Unit Box Width | 0.12 |
| Model name | TP-LINK OMADA ES205GP |
| Series | OMADA |
| Model | ES205GP |
Management features
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3at/IEEE 802.3x |
| Port mirroring | Yes |
| Virtual LAN features | MTU VLAN/Port-based VLAN/Tagged VLAN |
| VLAN support | Yes |
Optical fiber
| Transmission distance (max) | 0.25 km |
Data transmission
| Forwarding rate | 7.4 Mpps |
| Jumbo frames | 15 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Packet buffer memory | 4 MB |
| Store-and-forward | Yes |
| Switching capacity | 10 Gbit/s |
Security
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
Design
| LED indicators | Yes |
| Product colour | Black |
| Reset button | Yes |

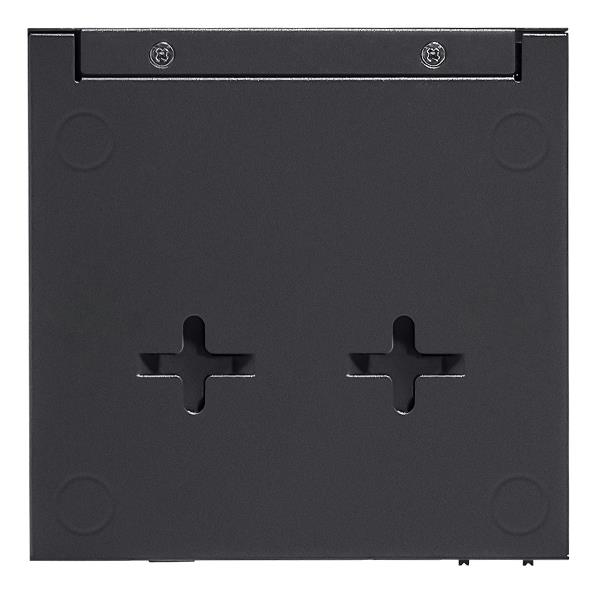

| Wall mountable | Yes |
Performance
| Fanless | Yes |
Power

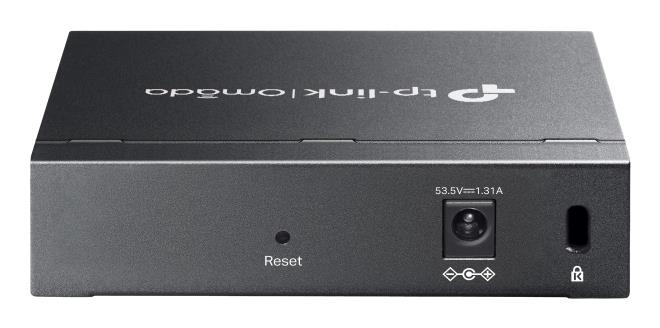

| DC input voltage | 53.5 V |
| Power source | AC/DC |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 65 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 98 mm |
| Height | 25 mm |
| Width | 100 mm |
Packaging content
| User guide | Yes |
Packaging data
| Package type | Box |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
