Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- 24× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
General
| Unit Calculated Weight | 1.964 kg |
| Unit Calculated Volume | 0.006528 cubm |
| Units per Shipping Box | 1 |

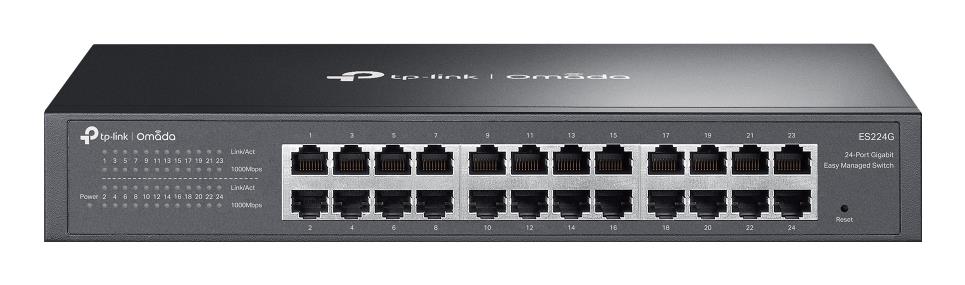

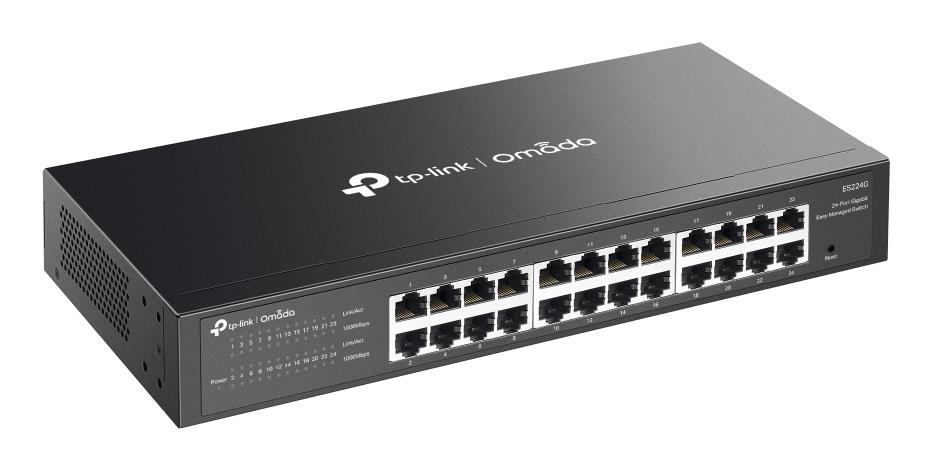

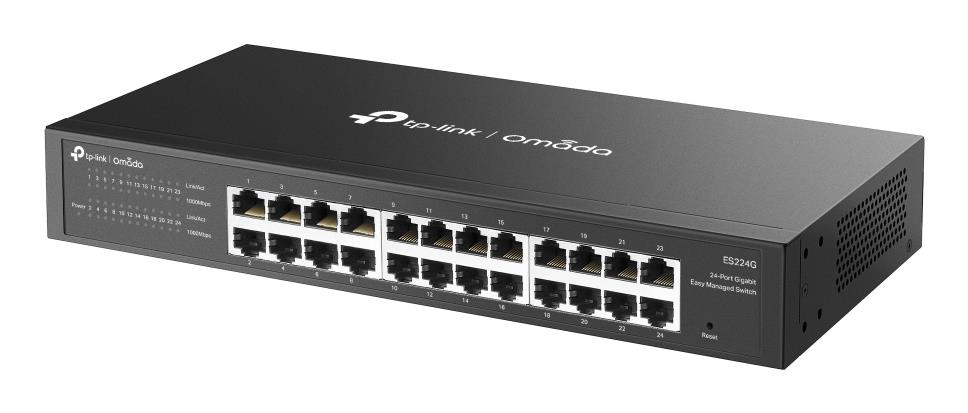

| Summary | TP-Link Omada ES224G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Rack mounting |
| Unit Box Height | 0.24 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.08 |
| Series | ES224G |
| Model | Omada |
Management features
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Unified static configuration | Yes |
| Web-based management | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
Network
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Fast leave | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Number of VLANs | 32 |
| Port mirroring | Yes |
| Virtual LAN features | MTU VLAN/Port-based VLAN |
| VLAN support | Yes |
Data transmission
| Forwarding rate | 35.7 Mpps |
| Jumbo frames | 15000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Packet buffer memory | 4 MB |
| Store-and-forward | Yes |
| Switching capacity | 48 Gbit/s |
Security
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
Multicast features
| Multicast support | Yes |
Design
| Product colour | Black |
| Rack mounting | Yes |
Performance
| Fanless | Yes |
| Firmware upgradeable | Yes |

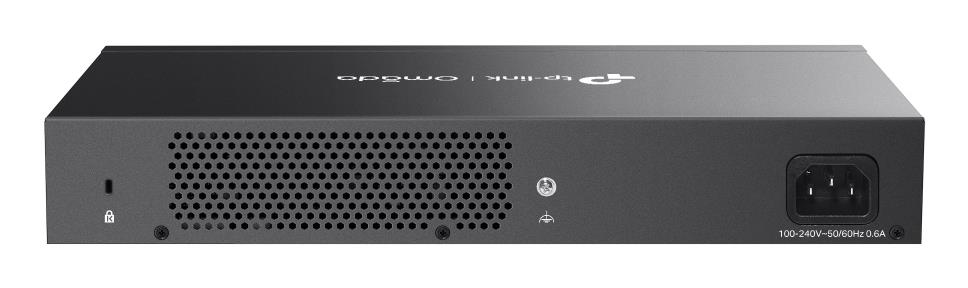

Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| Power supply included | Yes |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 140 mm |
| Height | 44 mm |
| Width | 294 mm |
Packaging content
| Cables included | AC |
| Rack mount kit | No |
| User guide | Yes |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
