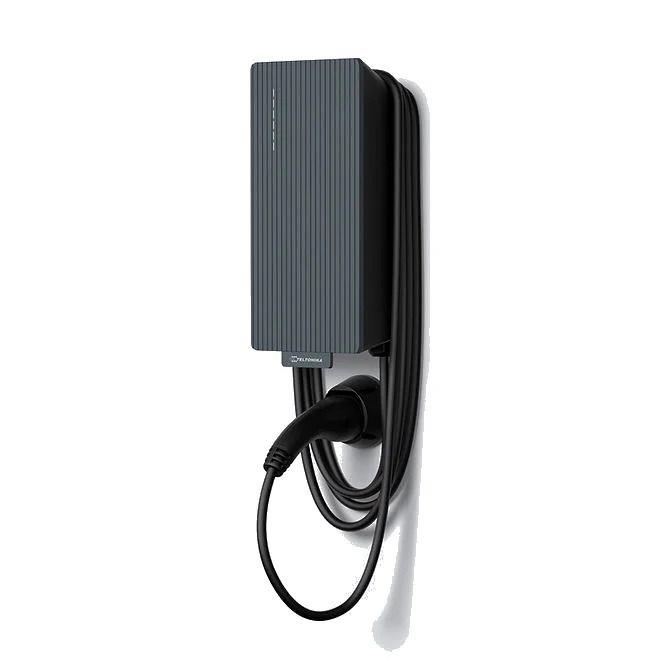

EV CHARGER 11KW EVC2 3PH/EVC2001120S0 TELTONIKA

Kainos tik partneriams Prisijungti B2B

TELTONIKA

Garantija: 12 mėn.

Pristatymas į terminalą: DPD

Pridėti į norų sąrašą

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Gamintojas: TELTONIKA

11kW (16A / 3-phase) 5 m cable.

Connectivity: Wi-fi, Ethernet, Bluetooth, 4G LTE

Rain or shine our charger will work every time. Made in EU with a rigorous quality control at every manufacturing step. 36-month standard warranty, extendable up to 60 months. IP 56 dust and water resistant. IK10 impact protection. Operating temperature ranges from -30 °C to +50 °C.
Cable entry is possible both from the back of the device – for a more elegant, seamless look on the wall – or from the bottom, ensuring an even more secure and weather-resistant fit. This flexibility allows for easier installation in different environments while maintaining a clean appearance and strong protection against external factors such as moisture, dust, and impact.
Front plate need to order seperatelly.
Cable holder need to order seperatelly.

General

Summary	Main features DIMENSIONS Width 190mm, Height 401mm, Depth 125mm OUTPUT OPTIONS Type 2 cable 5m FRONT PLATE OPTIONS Not included Cable holder not included CONTROL TYPES Android app – Bluetooth and Local Wifi, iOS app – Bluetooth OCPP 1.6 – Ethernet, wifi, 4G POWER OPTIONS 11kw three phase Detailed specifications CERTIFICATIONS CE, RCM & UKCA compliant Codes and standards: 2014/35/EU, 2014/53/EU, IEC 61851-1, IEC 61851-21-2, IEC 62955 Environment - 2011/65/EU, REACH, RoHS, EUR1 CHARGER CONNECTIVITY WiFi 2.4 Ghz b/g/n connection Bluetooth low energy 5.0 NFC card reader ISO 14443A Ethernet (RJ45) 4G/LTE (CAT 1) INPUT CABLING Cable entry diameter — Up to 25mm Wiring cable cross section in connectors — Up to 10mm2 Cable entry from option from bottom Cable entry from option from back PROTECTION Input and output voltage and current monitoring Overvoltage category — OVC III Protection against electric shock Residual current detection 6 mA DC (IEC 62955) Ground fault detection Degree of dust and water protection — IP56 Impact resistance — IK10 Fire class — UL94 RATED FREQUENCY 50/60 Hz NETWORK/GROUNDING TYPES TN and TT VOLTAGE Three phase: 400 V (±10%) OPERATING SPECIFICATIONS Humidity to 95% RH non condensing Operating temperature: -30ºC - +50ºC Storage temperature: -40ºC - +60ºC TEMPERATURE SENSORS In all main components LED INDICATOR LIGHTS Showing charging sequence and warnings/errors BUILT IN ENERGY METERING Accuracy deviation <1% LOAD BALANCING Static load balancing Dynamic load balancing Automatic phase balancing Multi-device load balance Multi-level load balance Solar energy modes Zero potential contact Multi sensor support
Unit Box Height	0.26
Unit Box Length	0.545
Unit Box Width	0.395
Name	EV CHARGER 11KW EVC2 3PH/EVC2001120S0 TELTONIKA
