Atlas Double is a two-armed mount that holds your windows to the world screens exactly where you want them. Seriously – its arms move in all strategic directions (that’s why we sometimes affectionately call it “Our metal yogi”). Plus, our mount has a lifting capacity of 2 x 8 kg (2 screens with diagonal measurement of 13-27 inches), so you can go crazy even with heavier monitors. Because why not?

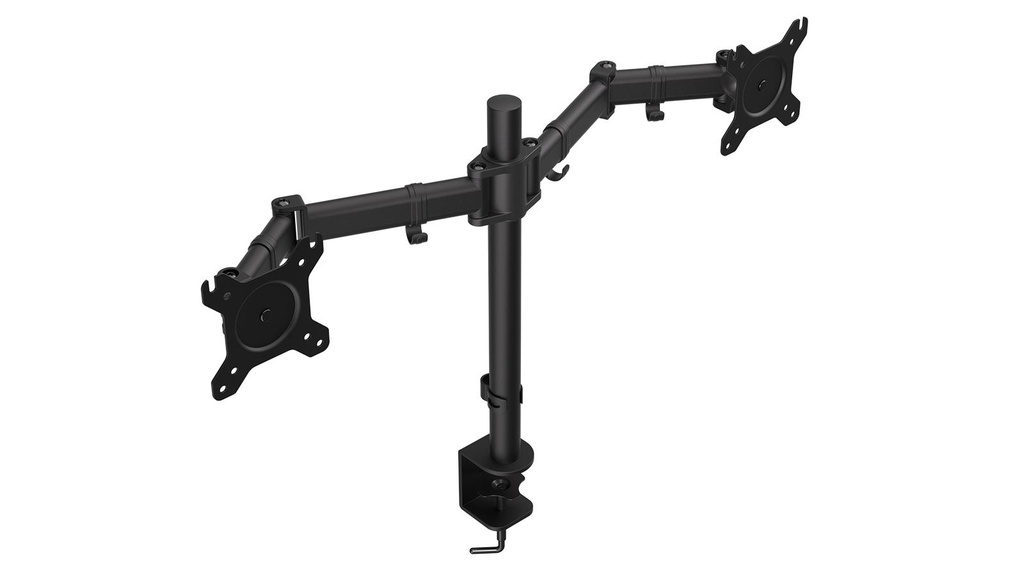

Atlas Double
The Atlas Double holds your windows to the world screens like the best strongman. Not only does this metal tough guy carry up to 8 kg on each hand, but it lifts screens from 13” to 27" – to create the perfect setup for work and play.
The Atlas Double is compatible with 75 x 75 mm and 100 x 100 mm VESA standards. You can also easily adjust the height of the screens, rotate them left or right (from -90° to +90°), and tilt them up or down (from -35° to +35°). Mounting the whole thing takes just a few seconds – just screw the clamp onto the desk and you're done. You’re ready to go do your own thing.
General
| Unit Calculated Weight | 3.62 kg |
| Unit Calculated Volume | 0.01321 cubm |
| Units per Shipping Box | 3 |
| Summary | ENDORFY Atlas Double. Mounting: Clamp, Maximum weight capacity: 16 kg, Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -35 - 90°. Product colour: Black |
| Unit Box Height | 0.085 |
| Unit Box Length | 0.54 |
| Unit Box Width | 0.24 |
| Model | EY8F003 |
Mounting
| Clamp mount desk thickness (max) | 60 mm |
| Desk thickness (max) | 60 mm |
| Maximum screen size | 27 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 16 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |
| Height adjustment | Yes |
| Swivel angle | 90 ° |
| Swivel angle range | -90 - 90 ° |
| Swivelling | Yes |
| Tilt angle range | -35 - 90 ° |
Design
| Housing material | Metal |
| Orientation | Landscape |
| Product colour | Black |
Weight & dimensions
| Depth | 93 mm |
| Height | 806 mm |
| Width | 418 mm |
Other features
| Warranty period | 2 year(s) |
