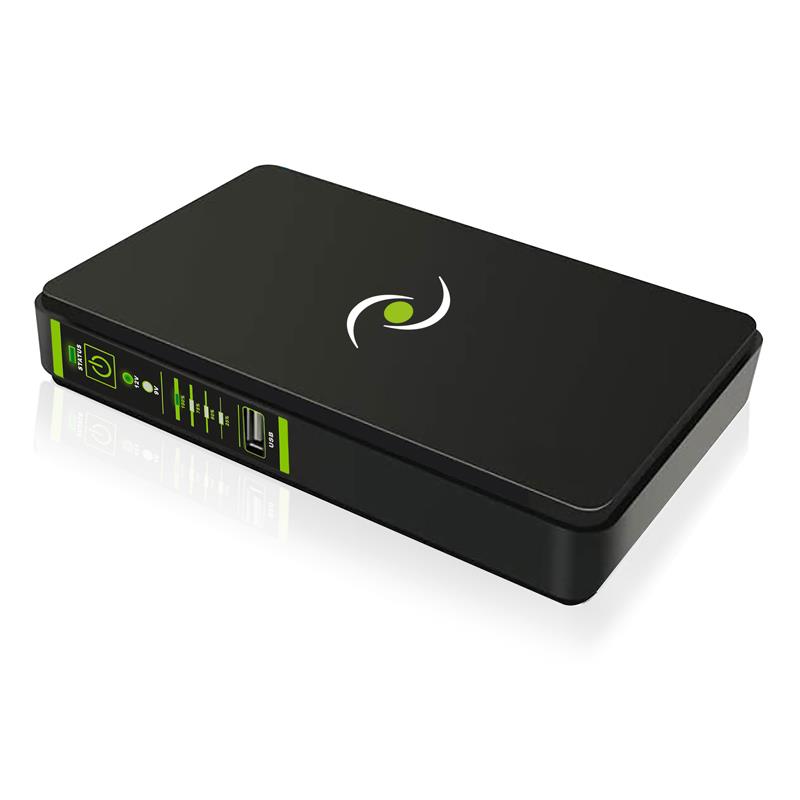

UPS ERA PLUS DC 9VDC / 12VDC - POE 24VDC / 48VDC - USB 5VDC TOGETHER ON, 8,800 mAh batteries, It has Black-Out, overvoltage and undervoltage protection. DC technology. Dimensions 16x2,8x10,5cm, weight 0,5 kg. Equipped with On-Off button with integrated multifunction LED for signaling the operating status. Designed to protect devices such as WIFI, Modem / router, VOIP, Cameras and recharge of devices such as Tablet, SmartPhone, Bluetooth headphones, Smartwatch and etc. Totally silent.
- Complete protection from black outs and voltage surges (overvoltages and undervoltages)

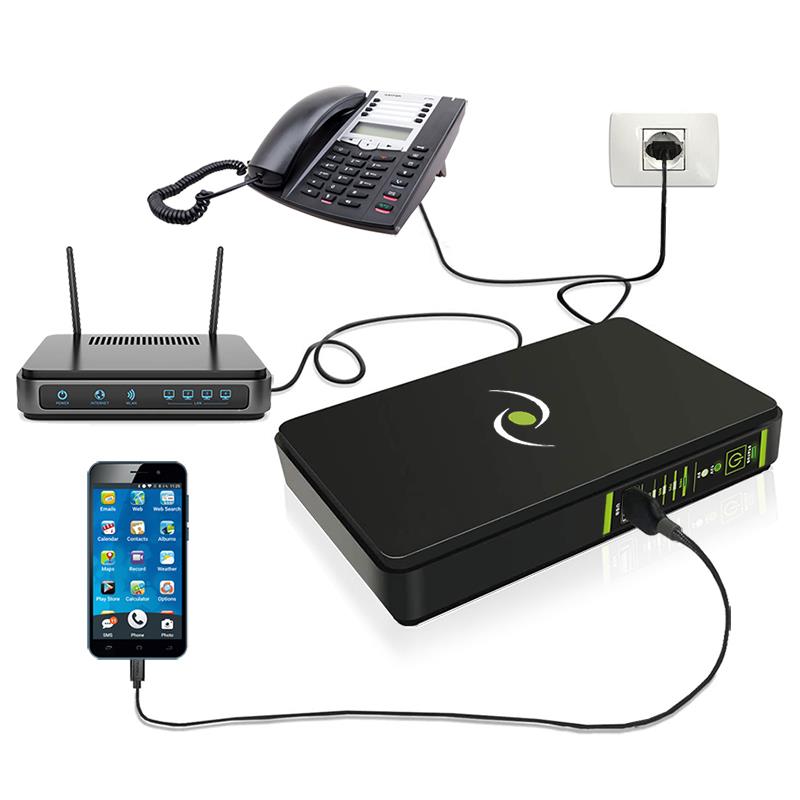

- Designed to protect devices such as WIFI, Modem / router, VOIP, Cameras and etc
- Charging of devices such as Tablet, SmartPhone, Bluetooth headphones , Smartwatch and etc

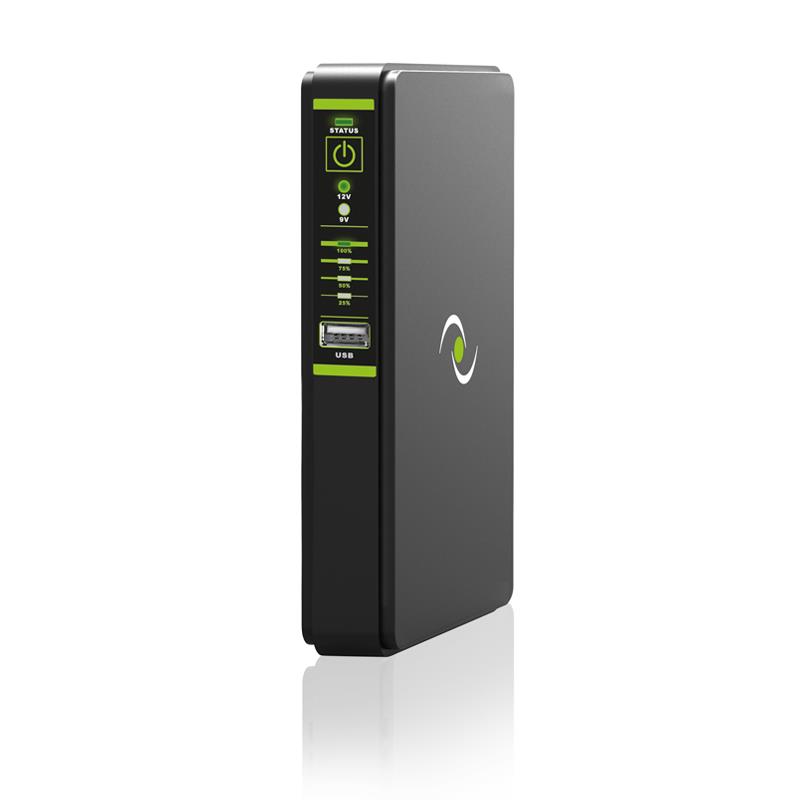

- Equipped with On-Off button with multifunction LED
- Lithium batteries from 8.800 mAh
- POE function to add power on the LAN cable

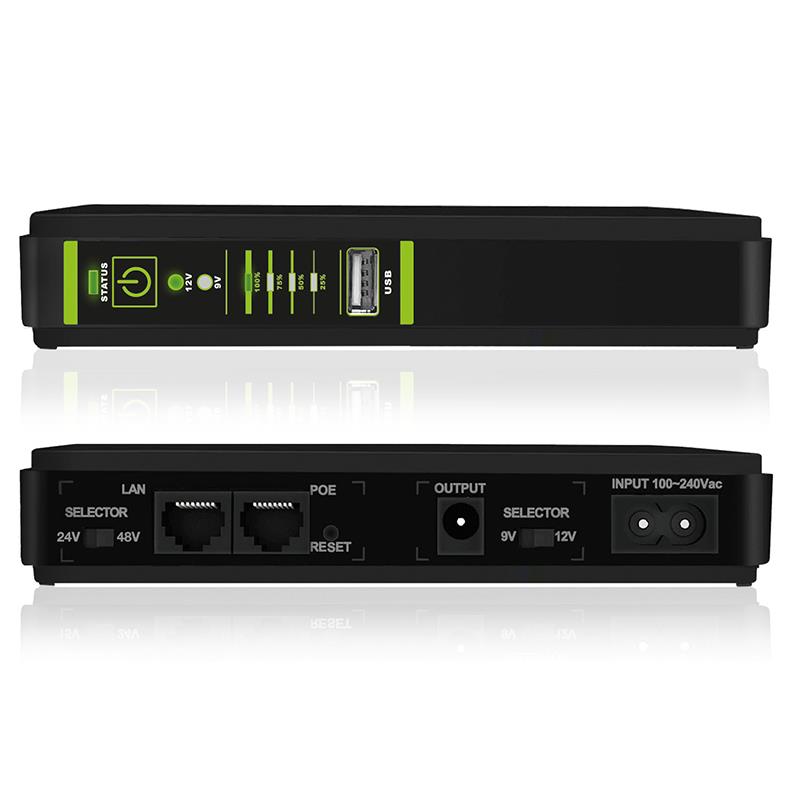

- Output connections: DC 5.5x2, 5 mm - RJ45 - USB
- Wide compatibility thanks to the 10 Tips included in the package
General
| Unit Calculated Weight | 0.652 kg |
| Unit Calculated Volume | 0.002142 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Summary | Tecnoware FGCERAPLDC252. UPS topology: Standby (Offline), Output power: 18 W, Input operation voltage (min): 110 V. Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 8800 Ah, Typical backup time at full load: 240 min. Product colour: Black, International Protection (IP) code: IP20. Width: 160 mm, Depth: 105 mm, Height: 28 mm. Package width: 170 mm, Package depth: 140 mm, Package height: 35 mm |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.205 |
| Unit Box Width | 0.17 |
| Model | FGCERAPLDC252 |
Features
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 240 V |
| Input operation voltage (min) | 110 V |
| Noise level | 40 dB |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output operation voltage (min) | 5 V |
| Output power | 18 W |
| UPS topology | Standby (Offline) |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
Battery
| Battery capacity | 8800 Ah |
| Battery technology | Lithium-Ion (Li-Ion) |
| Typical backup time at full load | 240 min |
Design
| International Protection (IP) code | IP20 |
| LED indicators | Yes |
| Product colour | Black |
Operational conditions
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 0 - 55 °C |
Weight & dimensions
| Depth | 105 mm |
| Height | 28 mm |
| Weight | 500 g |
| Width | 160 mm |
Packaging data
| Package depth | 140 mm |
| Package height | 35 mm |
| Package width | 170 mm |
