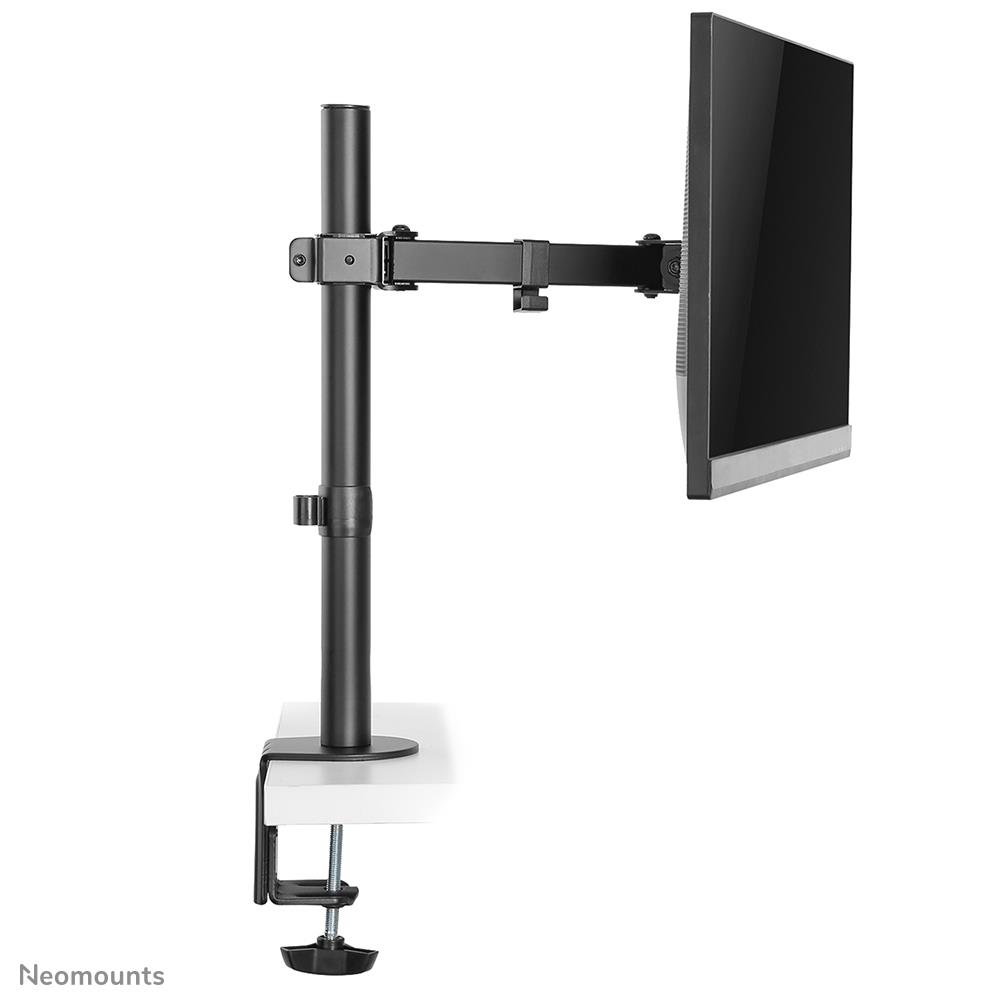

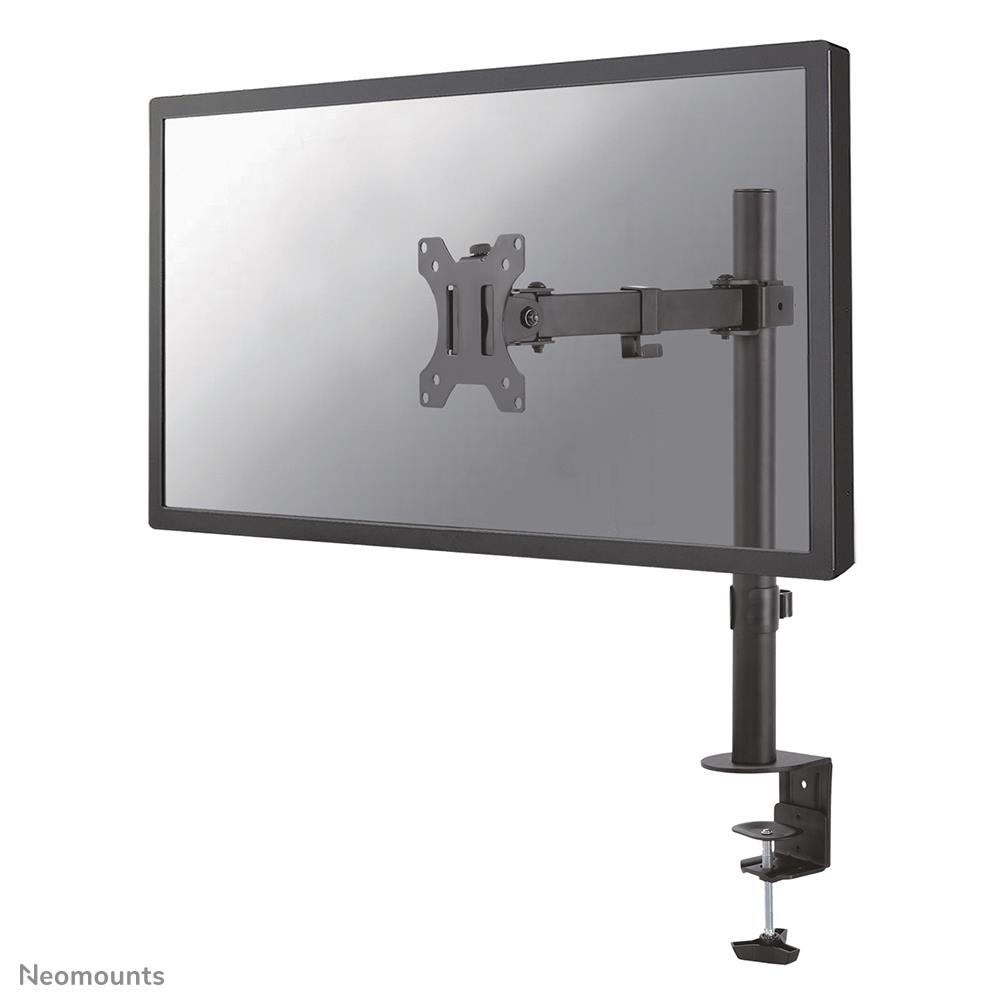

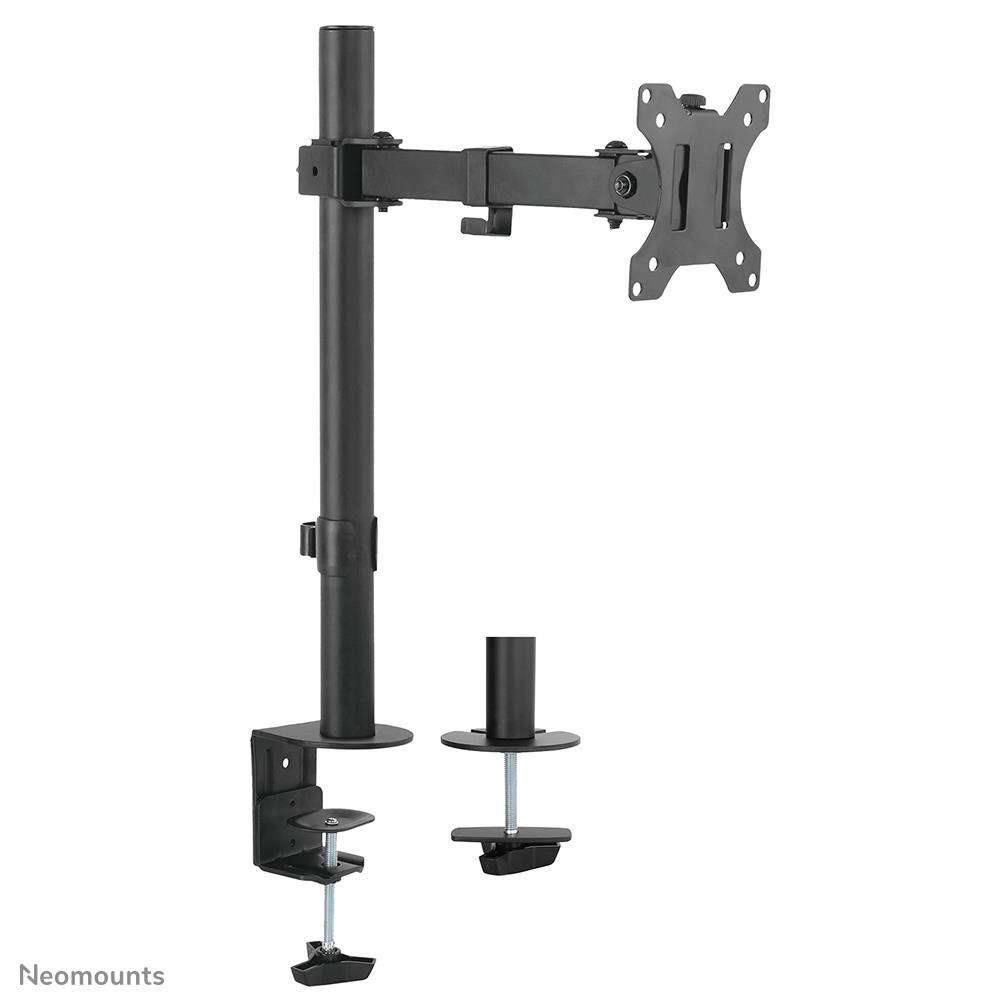

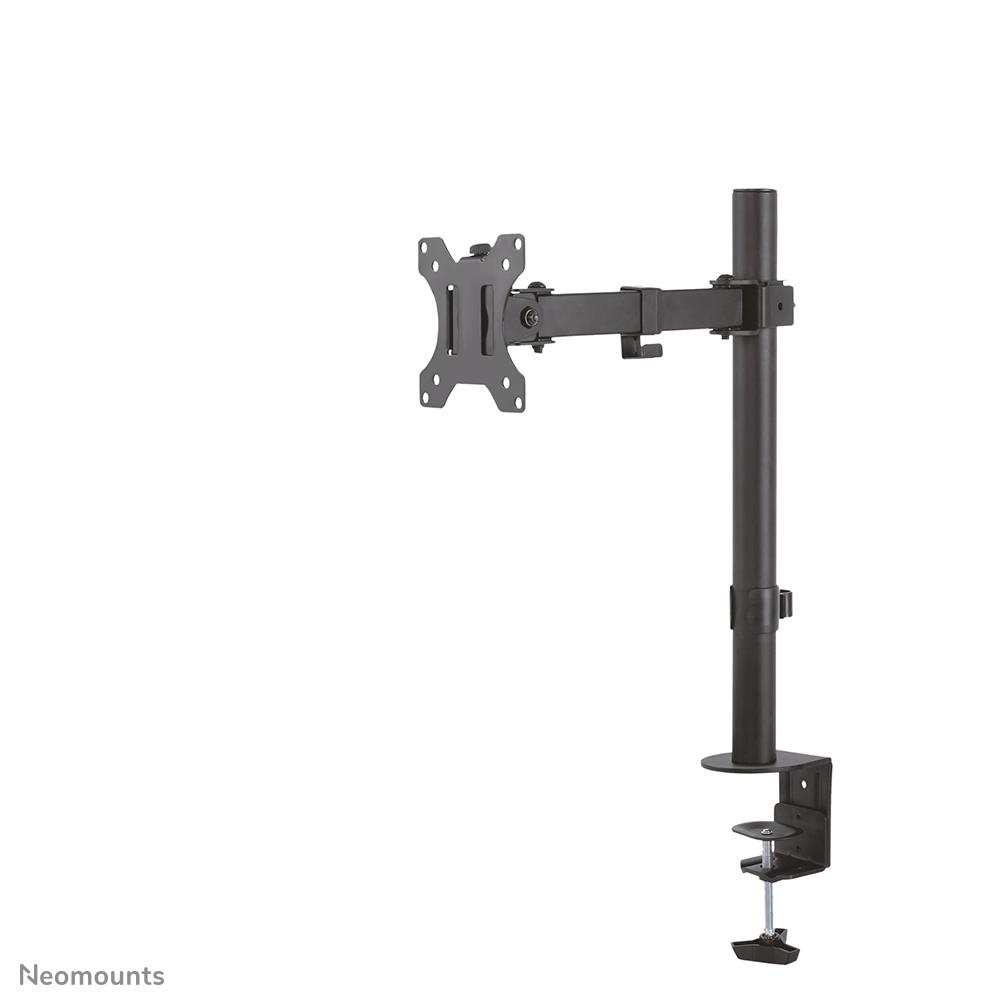

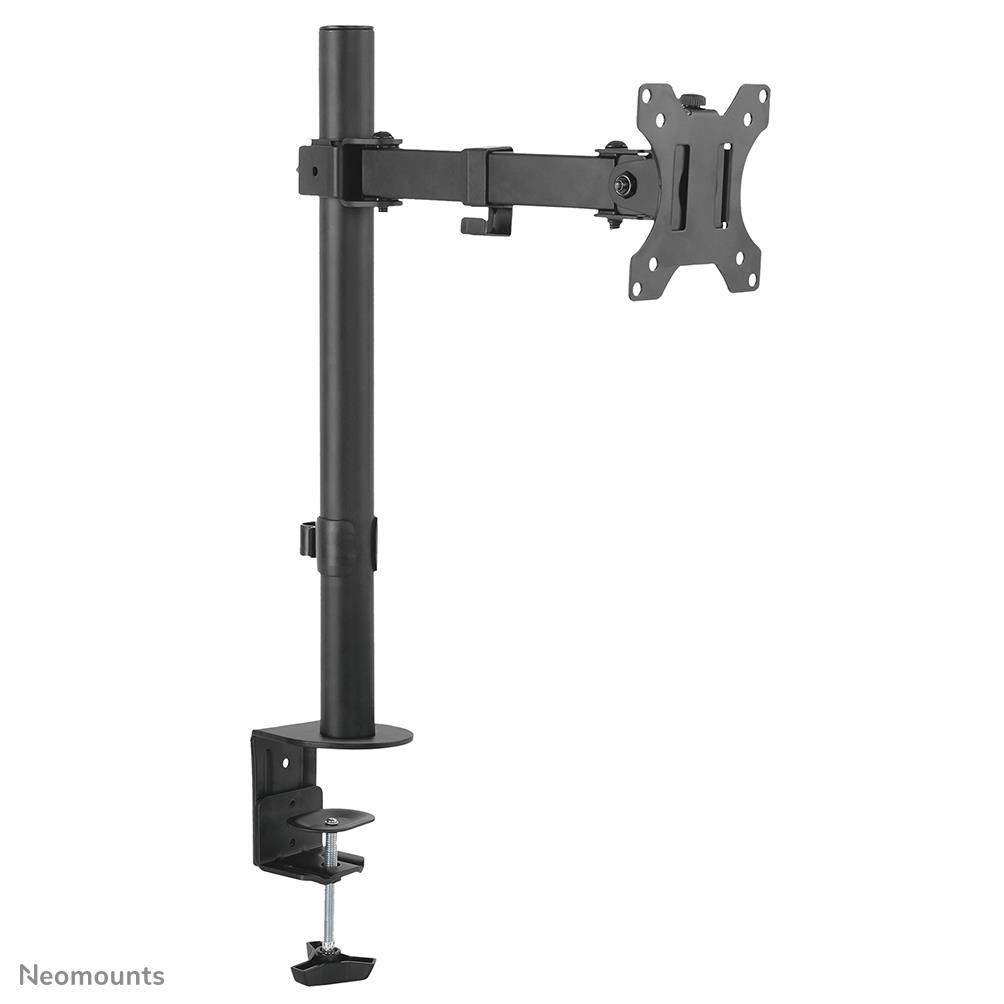

The Neomounts desk mount, model FPMA-D540BLACK is a tilt-, swivel and rotatable desk mount for monitors up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

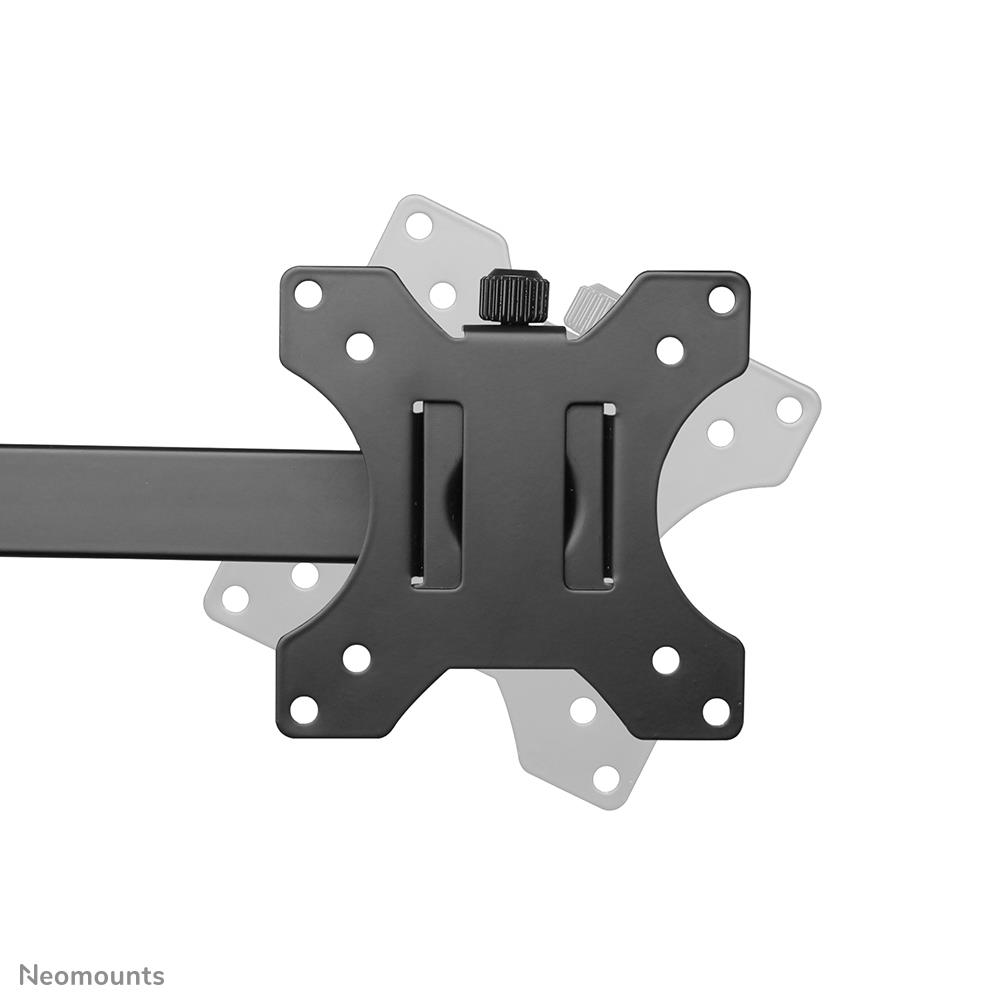

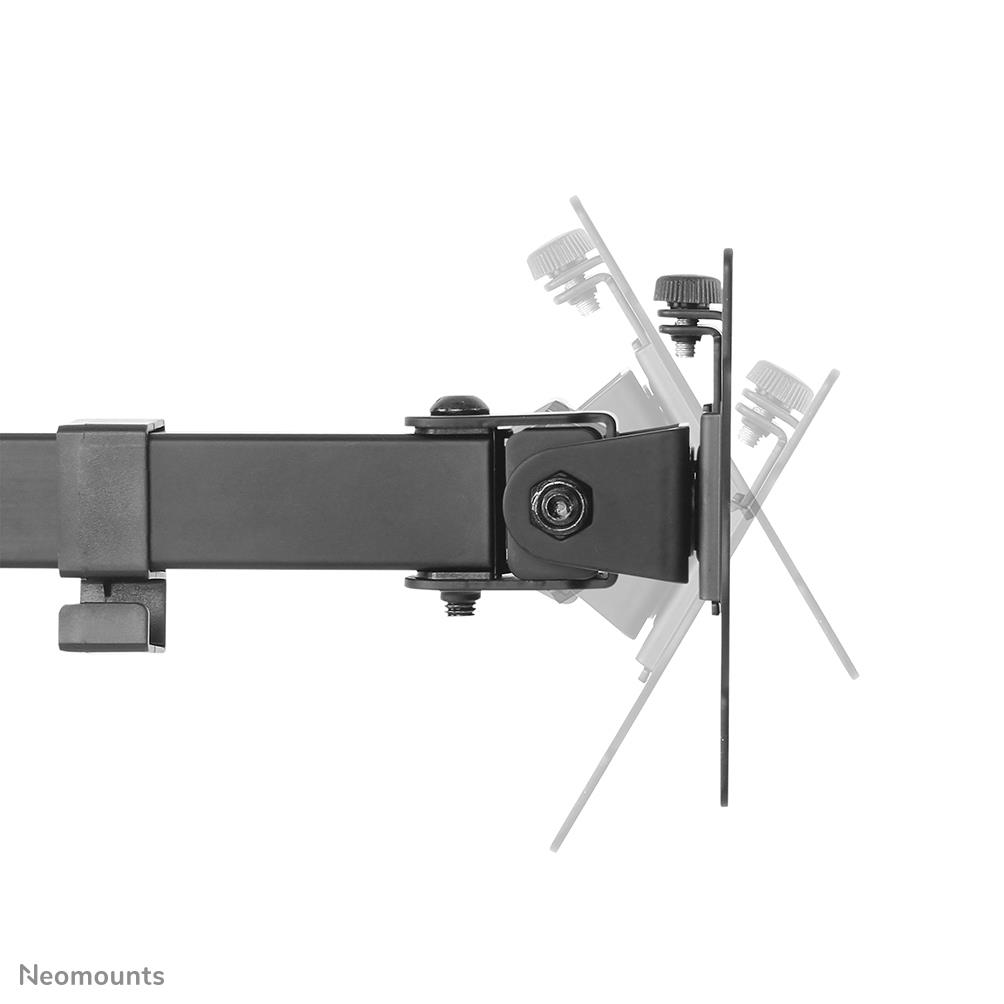

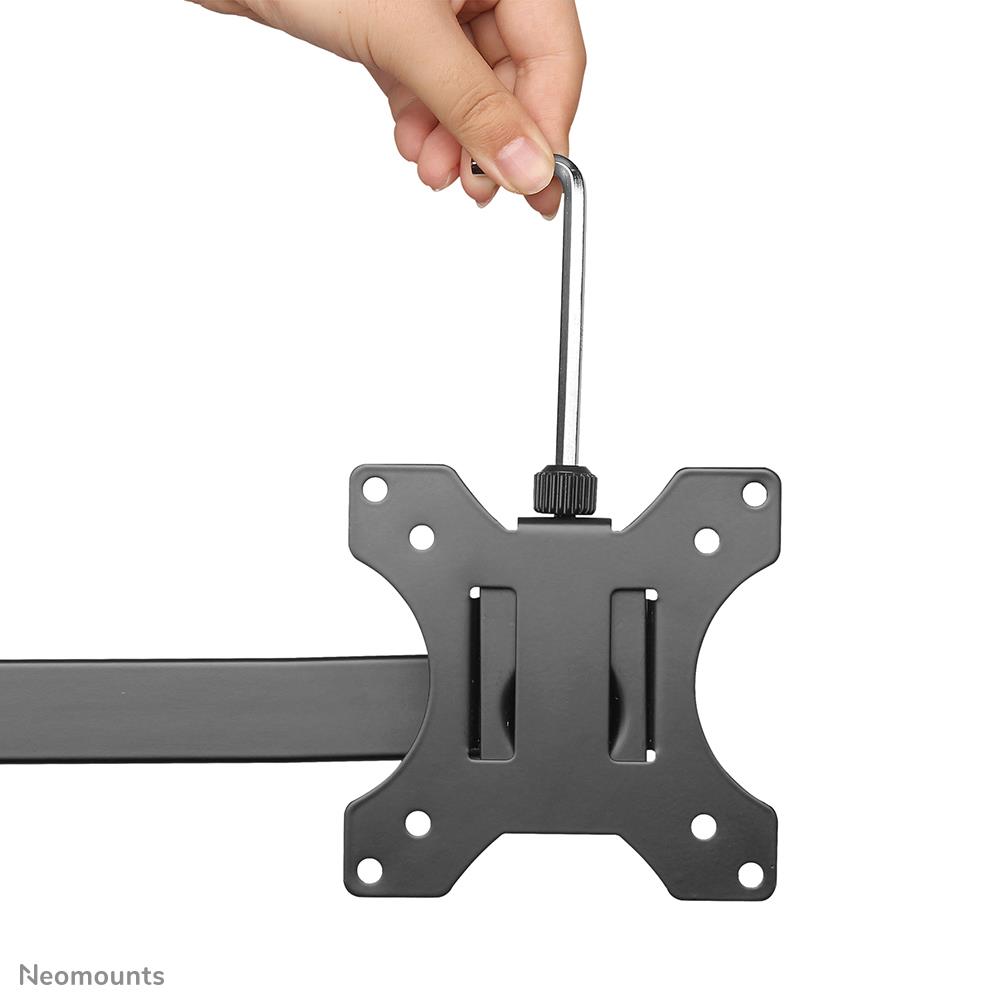

Neomounts' versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 2,1 to 42,2 centimeters. The depth is adjustable from 0 to 26,6 centimeters. An innovative cable management routes cables from mount to flat screen. Additionally, the mount features a Quick-release VESA, that allows you to attach the monitor in a wink of an eye.
Neomounts FPMA-D540BLACK has two pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
General
| Unit Calculated Weight | 3.26 kg |
| Unit Calculated Volume | 0.006468 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts FPMA-D540BLACK Monitor arm 13-32". Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 33 cm (13"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.49 |
| Unit Box Width | 0.11 |
Mounting
| Depth (min) | 0 mm |
| Desk thickness (max) | 88 mm |
| Desk thickness (min) | 10 mm |
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 13 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Adjustable depth | Yes |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Depth adjustment range | 0 - 266 mm |
| Height adjustment | Yes |
| Height adjustment range | 21 - 422 mm |
| Height adjustment type | Manual |
| Pivot angle | -180 - 180 ° |
| Rotating | Yes |
| Swivel angle range | -90 - 90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 346 mm |
| Height | 623 mm |
| Weight | 3030 g |
| Width | 114 mm |
Packaging data
| Package depth | 120 mm |
| Package height | 110 mm |
| Package net weight | 3400 g |
| Package weight | 3400 g |
| Package width | 489 mm |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 21300 g |
| Master (outer) case height | 350 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case net weight | 18200 g |
| Master (outer) case width | 505 mm |
| Products per master (outer) case | 6 pc(s) |
| Products per pallet (EU) | 144 pc(s) |
