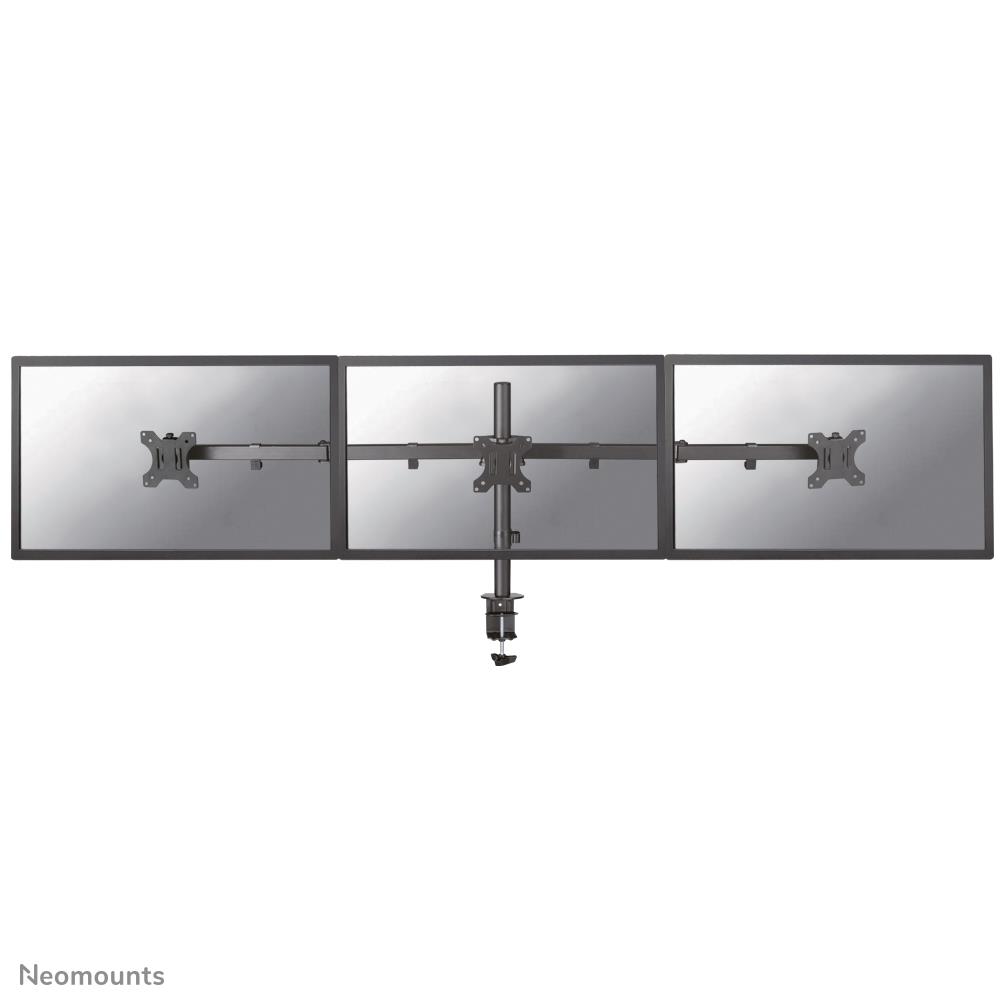

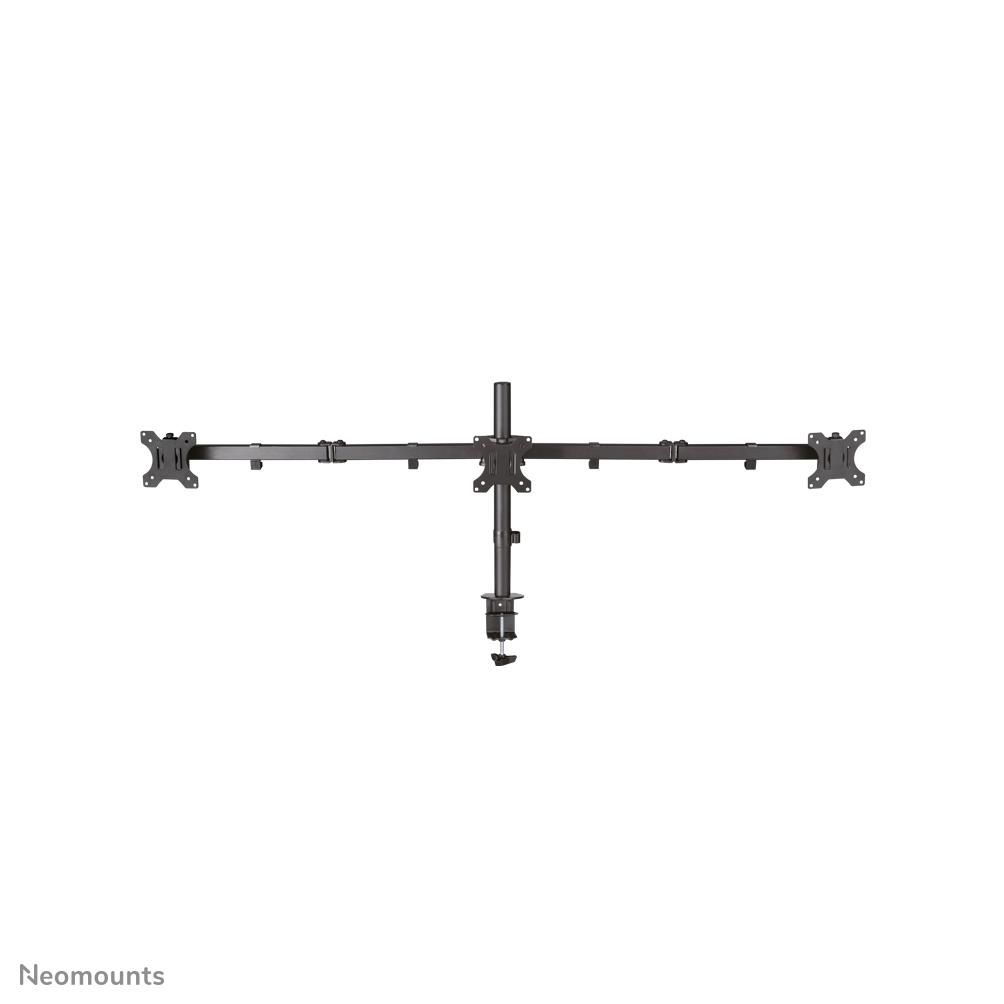

The Neomounts desk mount, model FPMA-D550D3BLACK is a tilt-, swivel and rotatable desk mount for 3 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

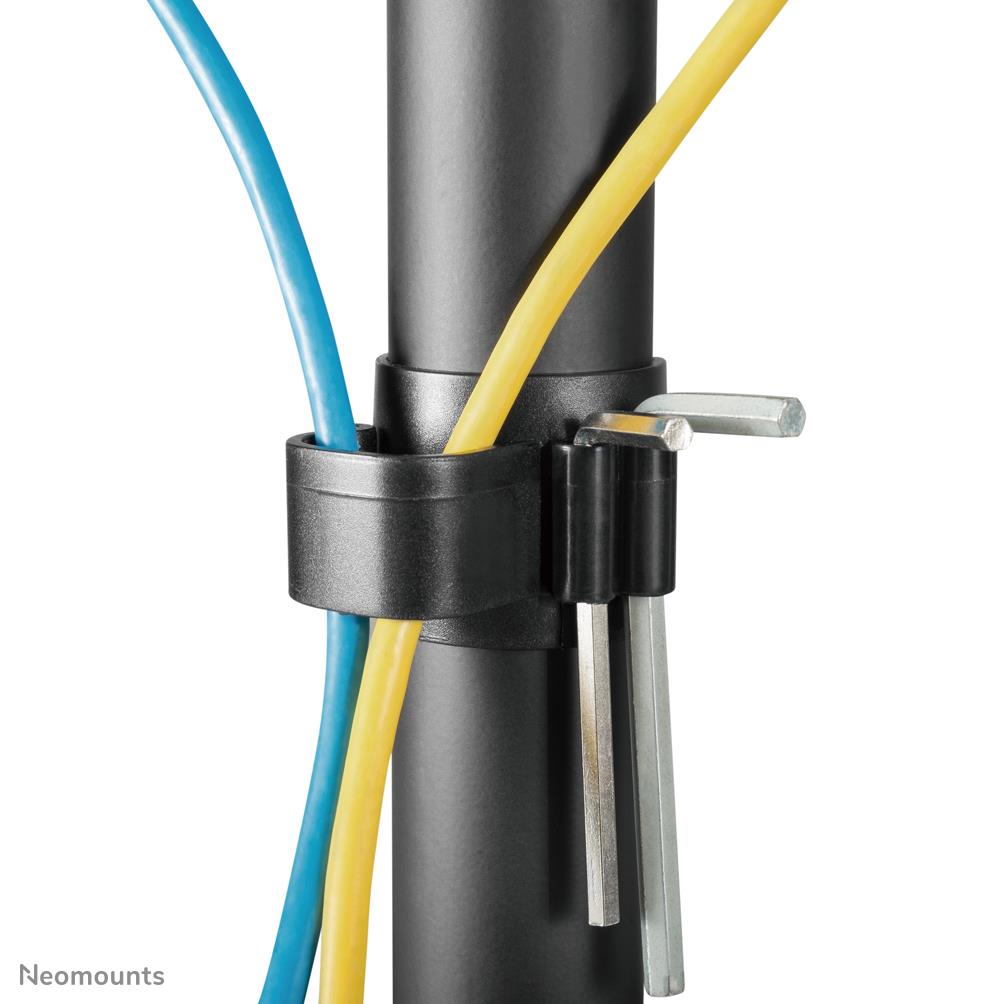

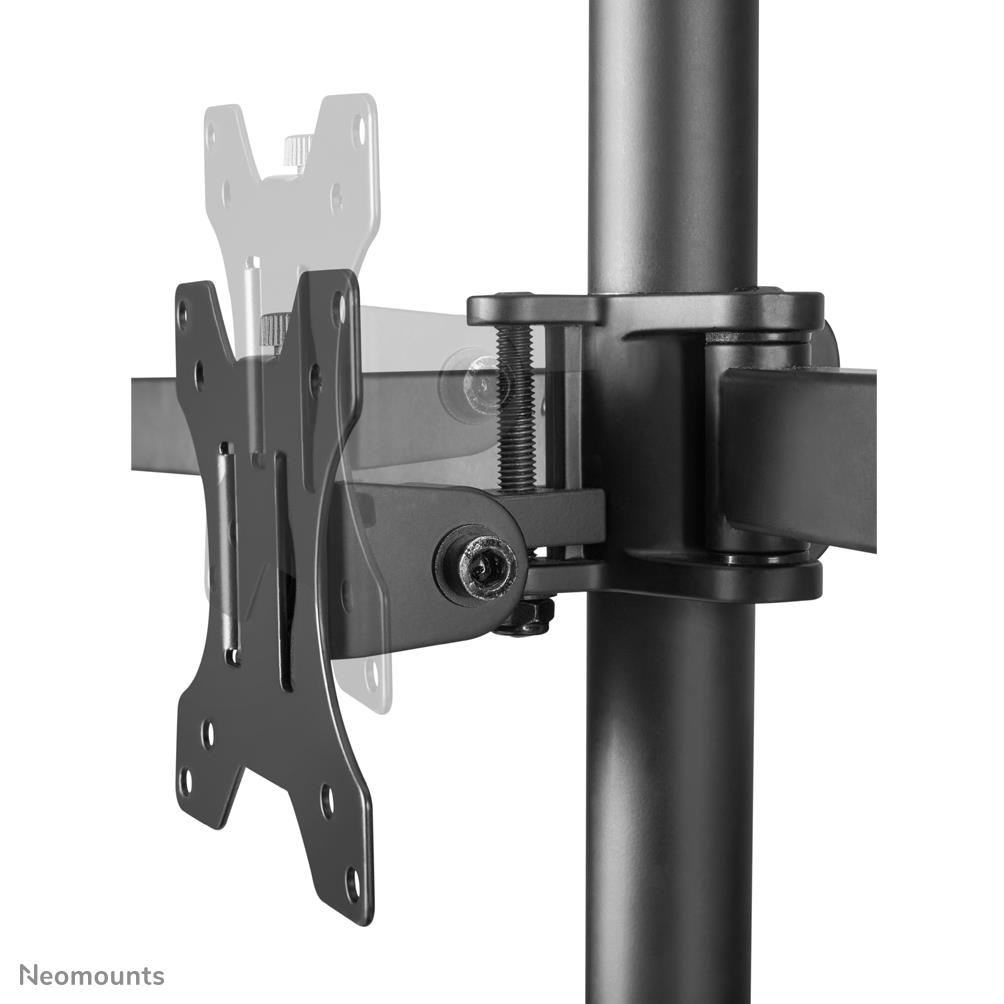

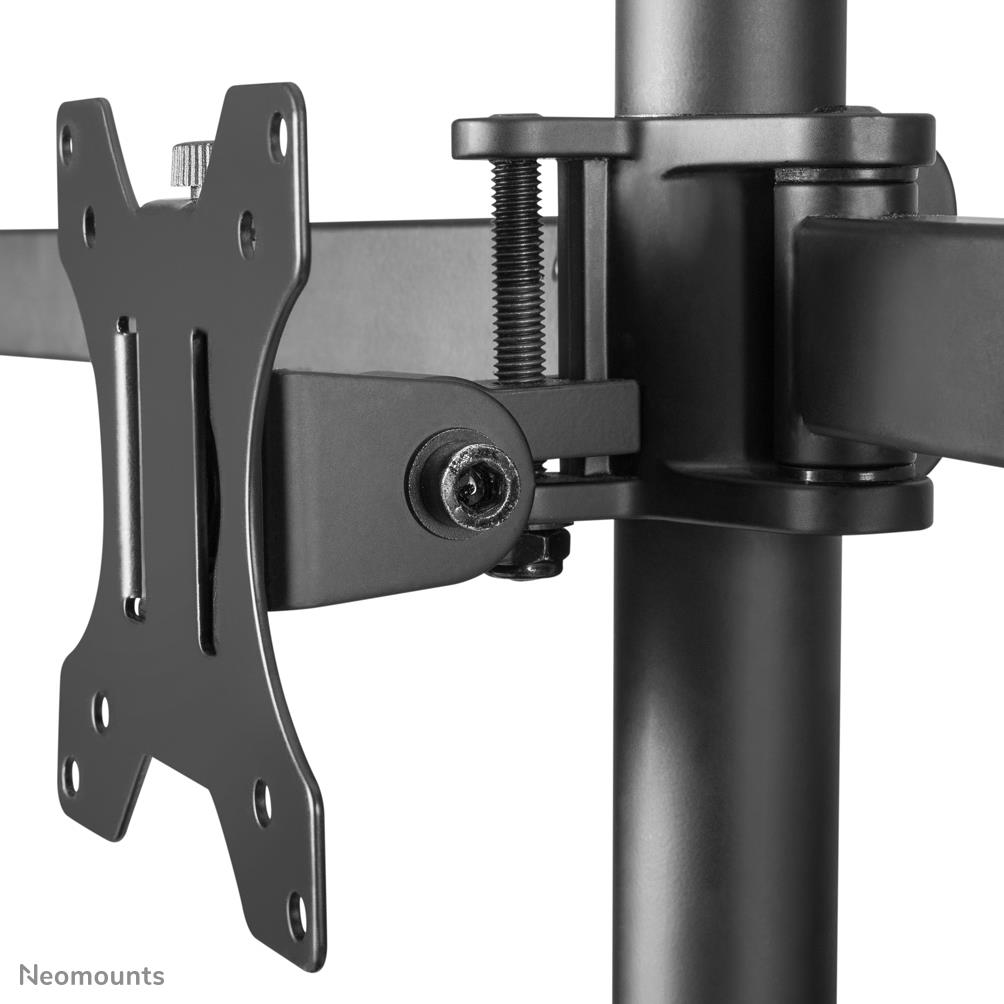

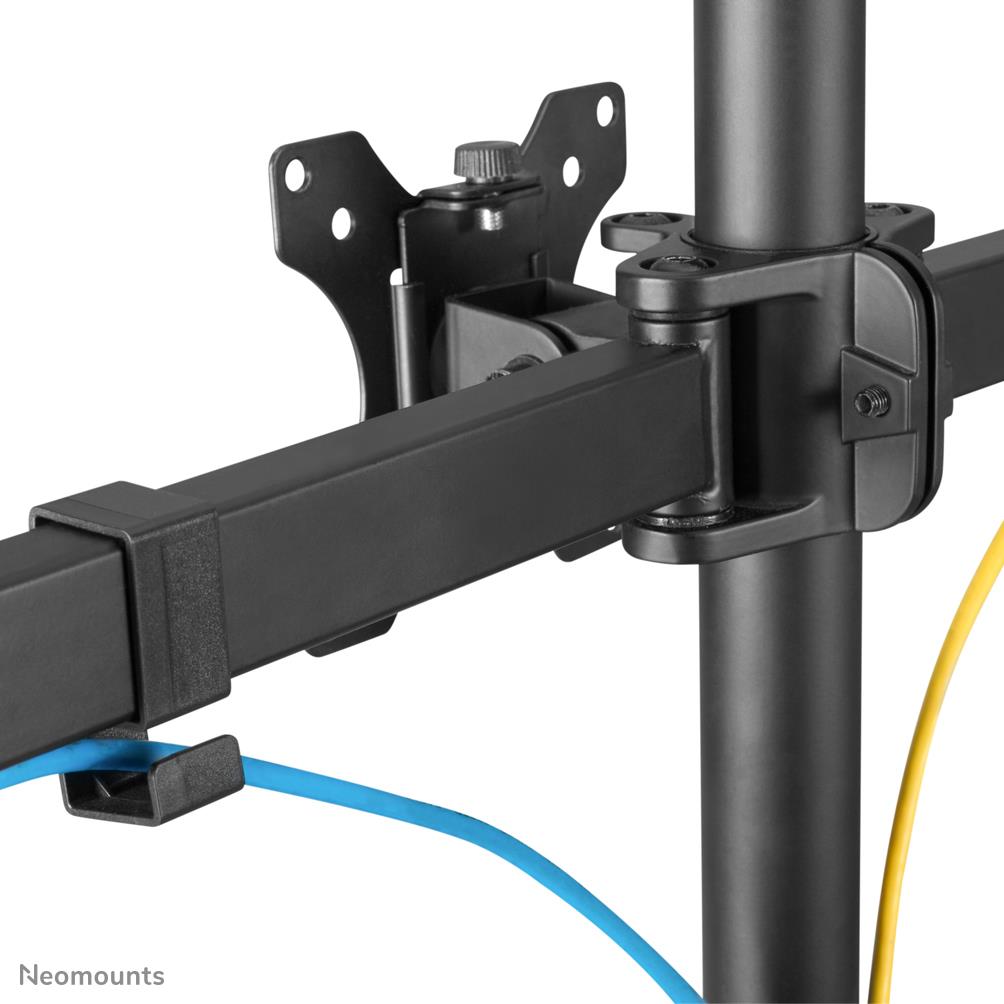

Neomounts versatile tilt (+45°/-45°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 44 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D550D3BLACK has four pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 6 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

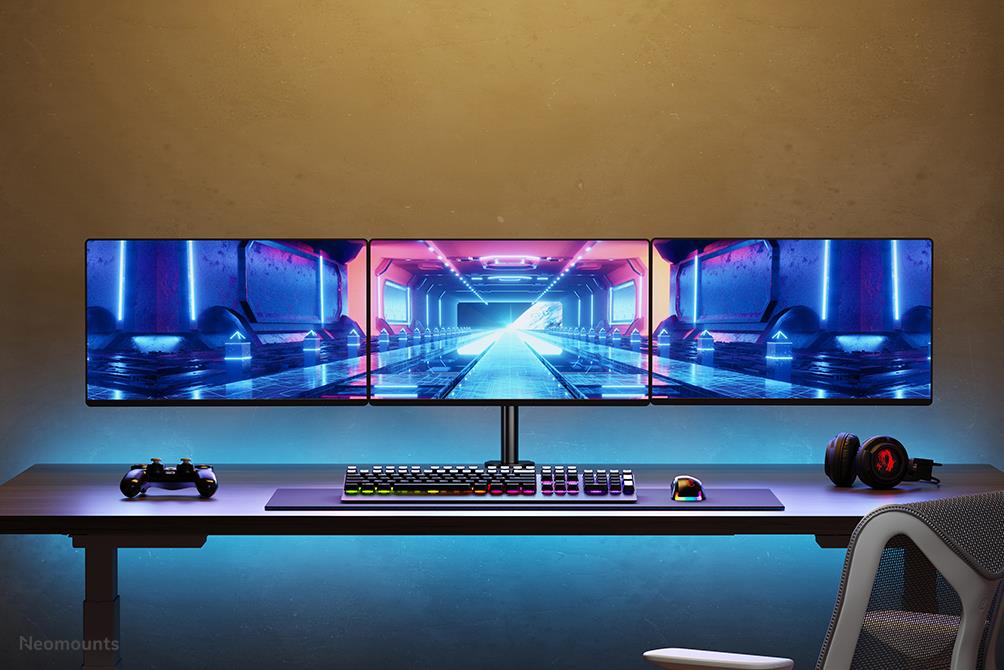

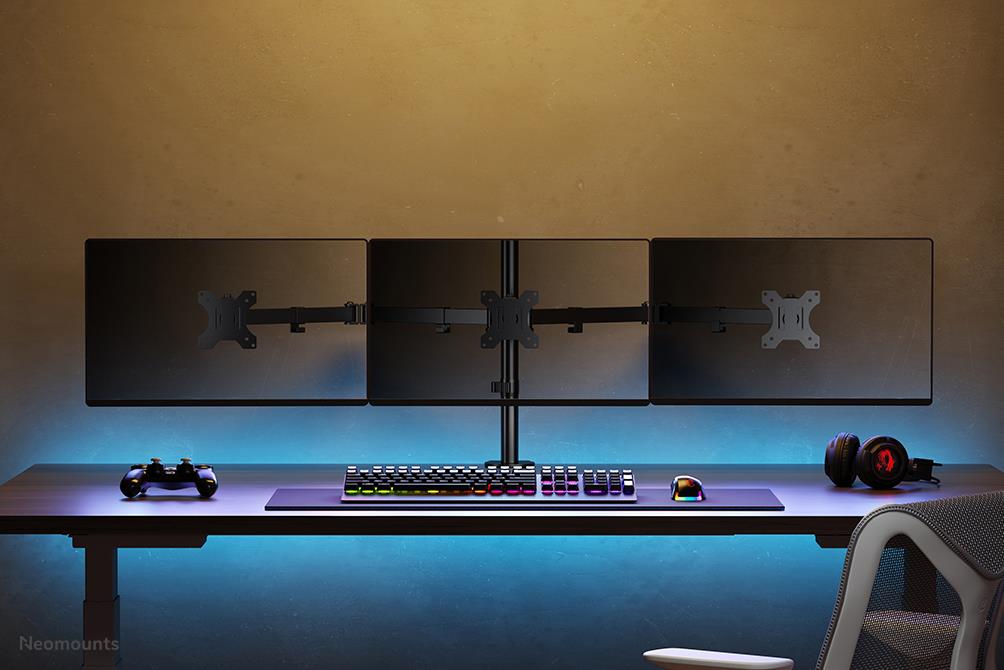

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
General
| Unit Calculated Weight | 6.6 kg |
| Unit Calculated Volume | 0.01633 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts FPMA-D550D3BLACK Monitor arm 10-27". Mounting: Clamp/Grommet, Maximum weight capacity: 6 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 180°, Tilt angle range: 0 - 90°. Product colour: Black |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.45 |
| Unit Box Width | 0.33 |
Mounting
| Desk thickness (max) | 88 mm |
| Desk thickness (min) | 10 mm |
| Maximum screen size | 27 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 6 kg |
| Maximum weight capacity (per display) | 6 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 3 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |
| Depth adjustment range | 40 - 460 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 440 mm |
| Height adjustment type | Manual |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 90 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Height | 440 mm |
| Weight | 5480 g |
Packaging data
| Package depth | 102 mm |
| Package height | 465 mm |
| Package weight | 3000 g |
| Package width | 310 mm |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 4500 g |
| Master (outer) case height | 105 mm |
| Master (outer) case length | 319 mm |
| Master (outer) case net weight | 3000 g |
| Master (outer) case width | 449 mm |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 60 pc(s) |
