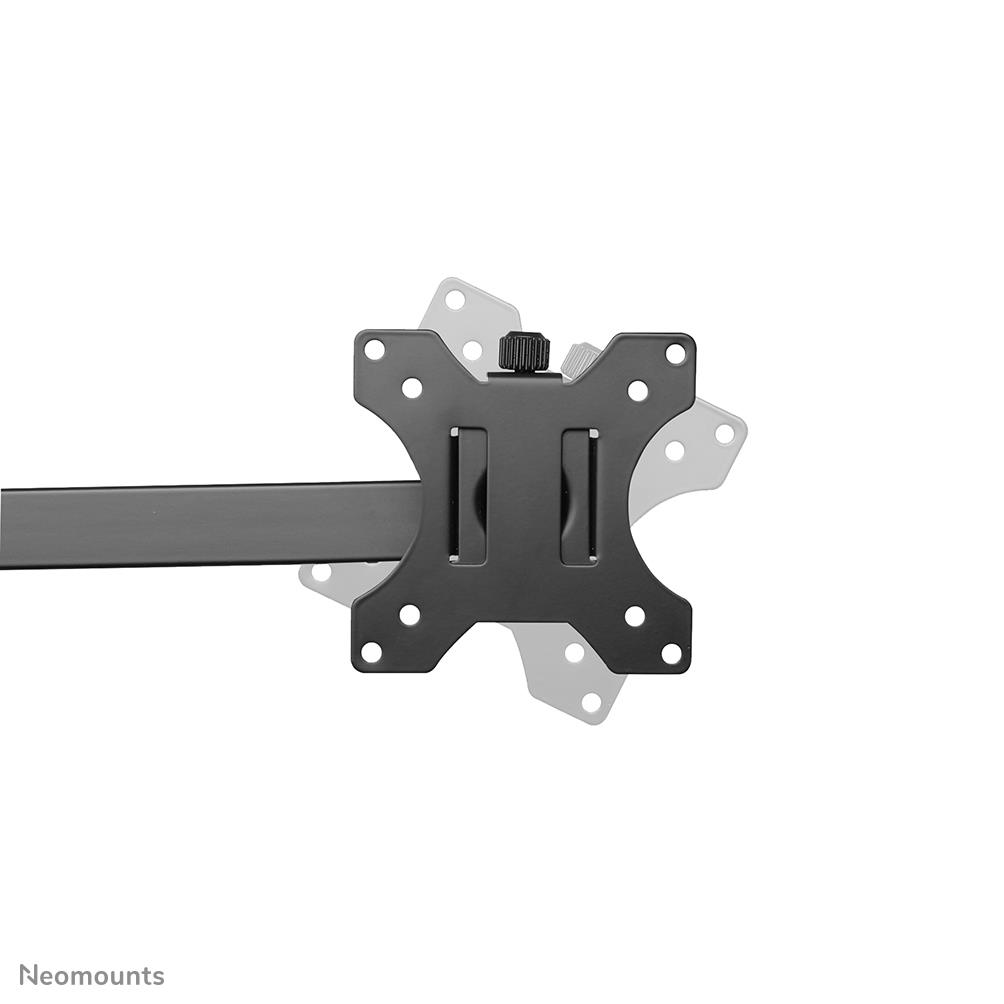

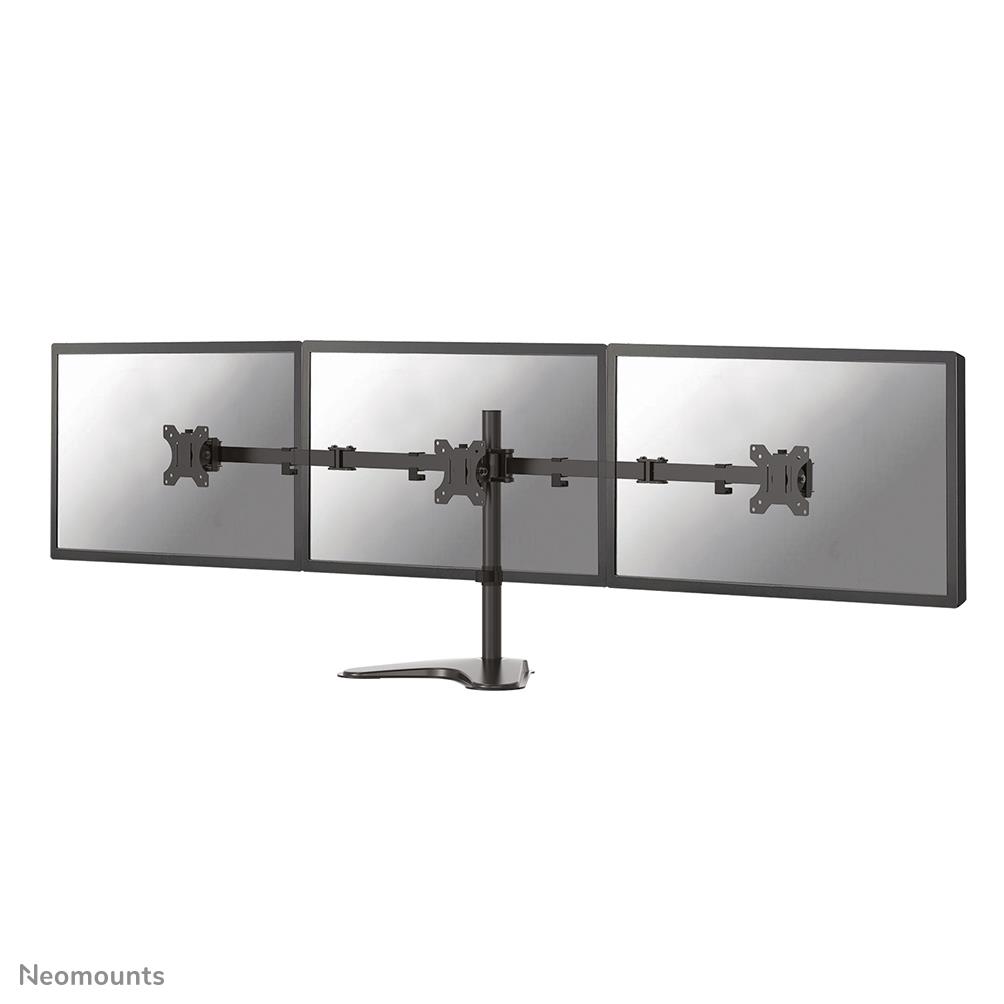

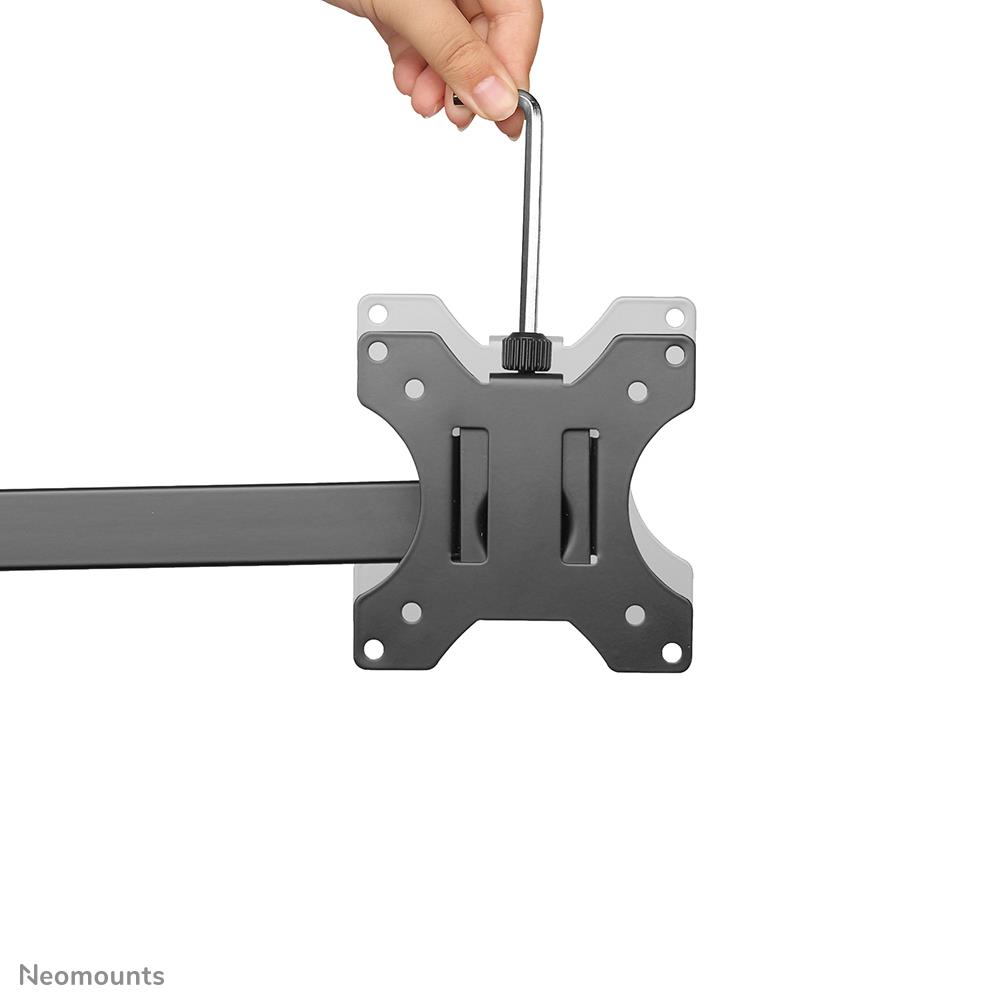

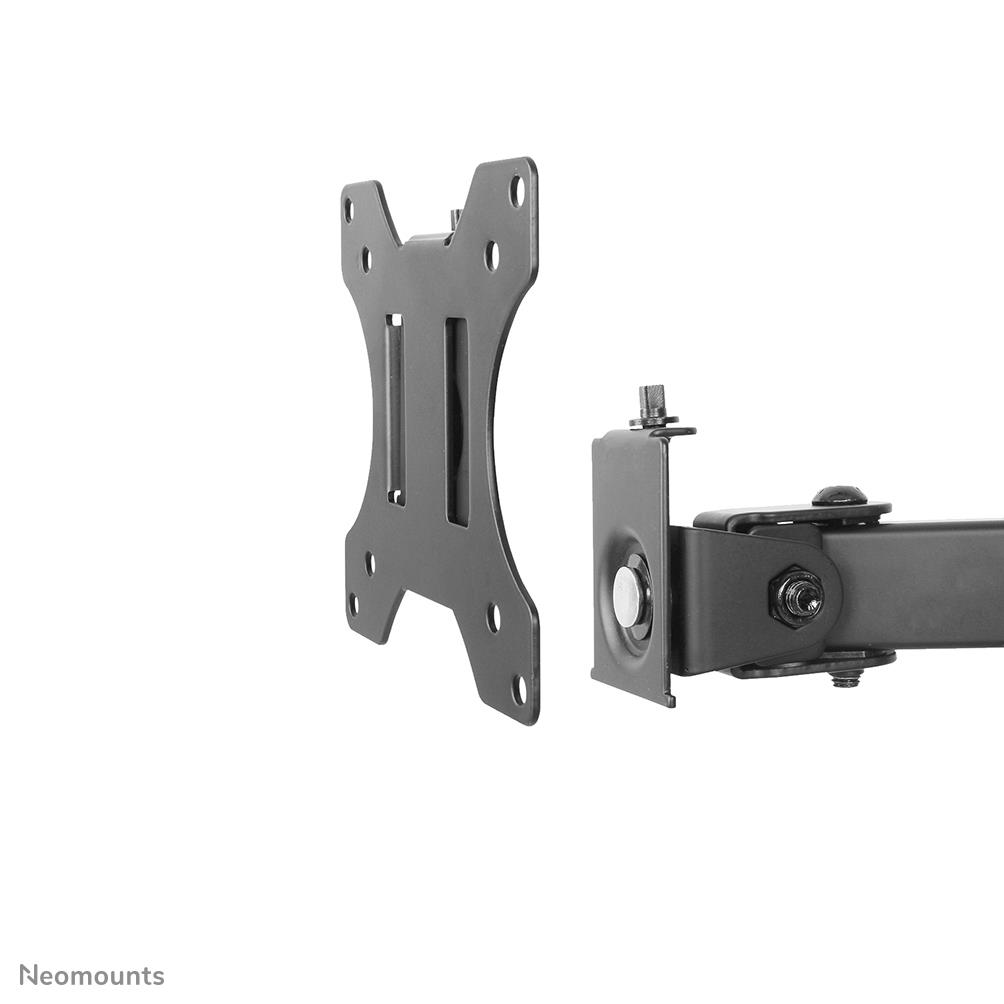

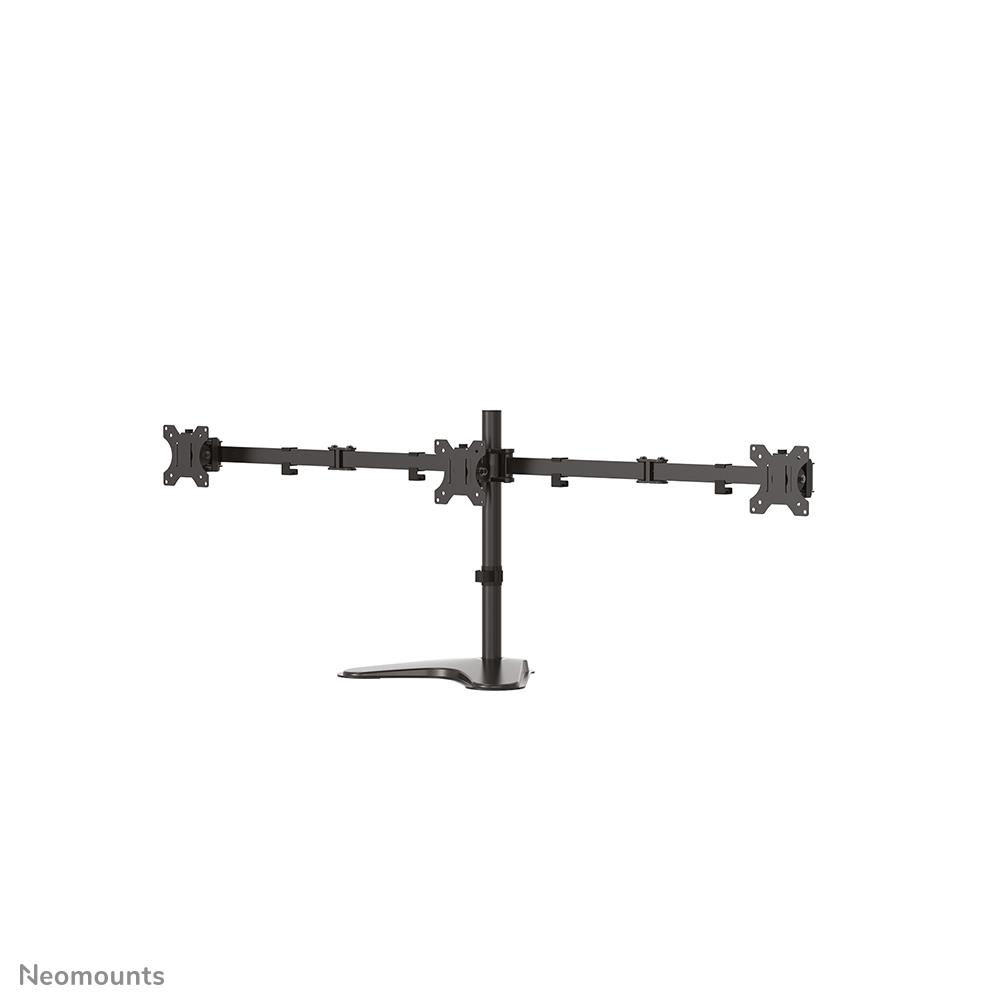

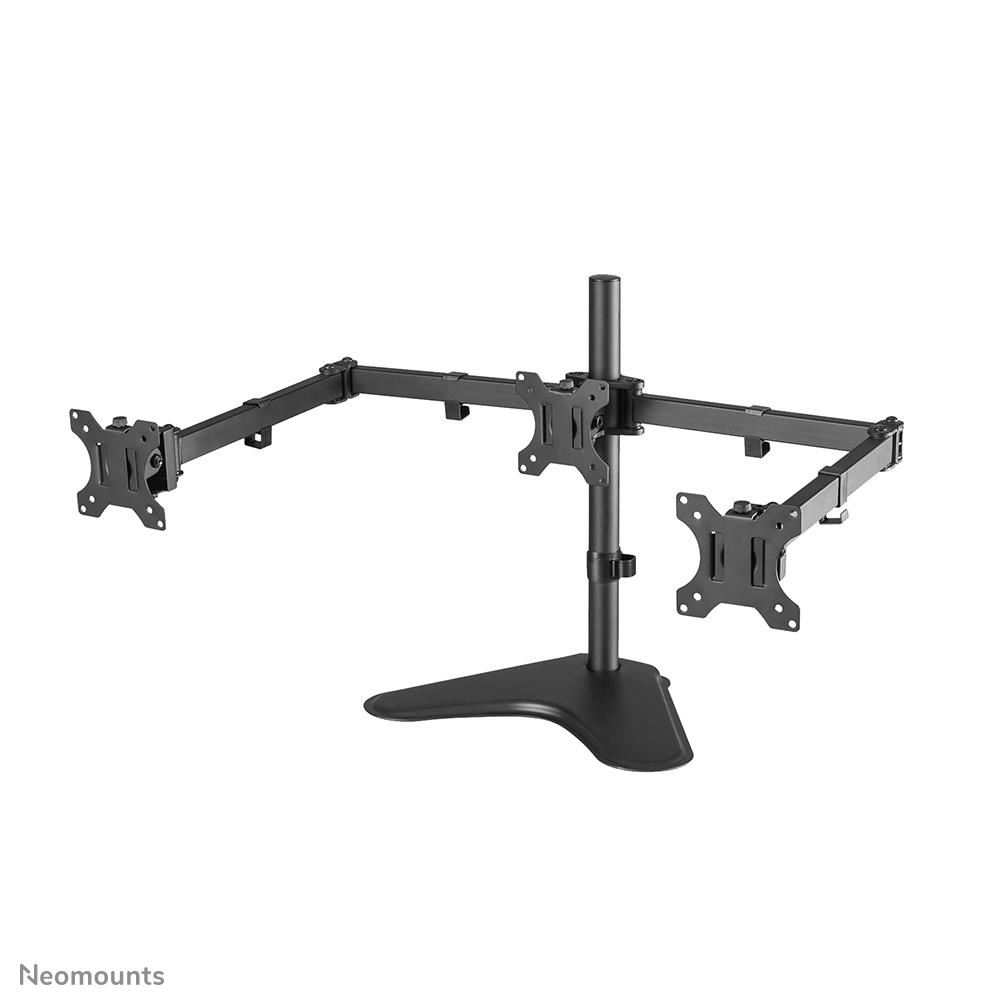

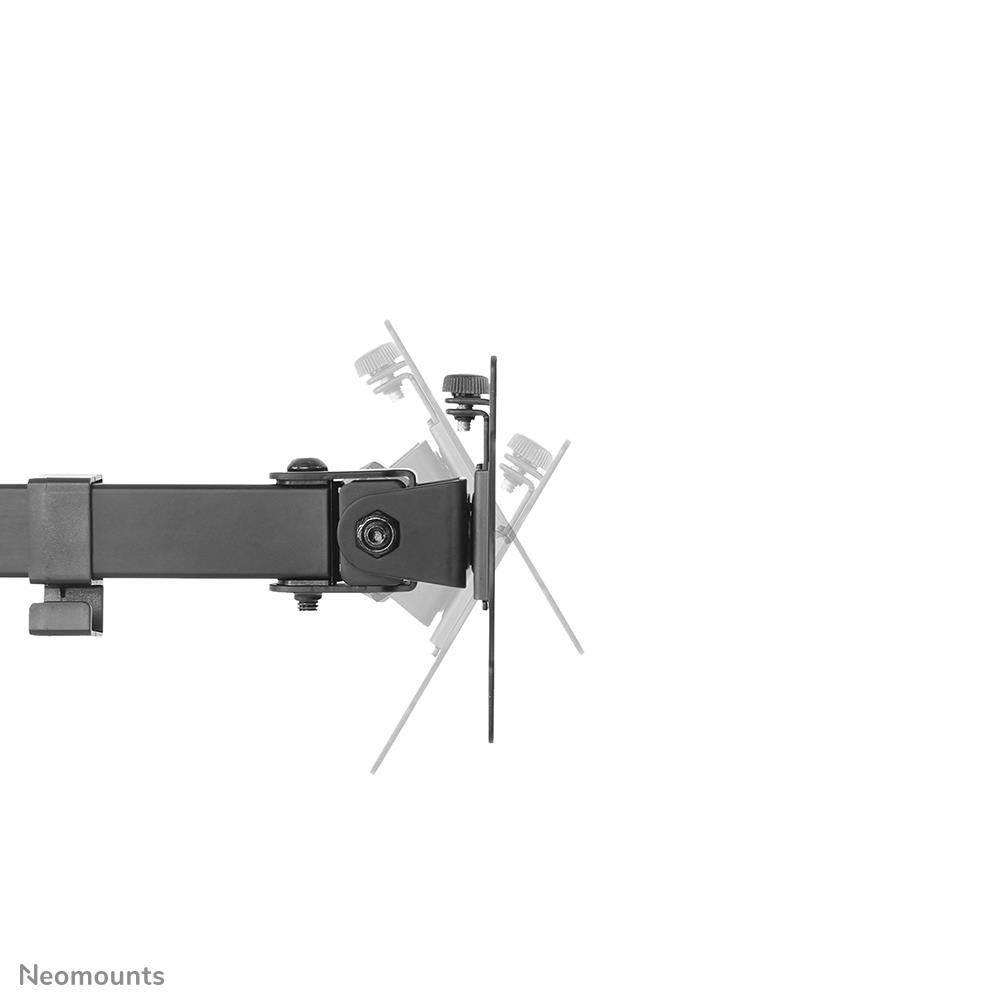

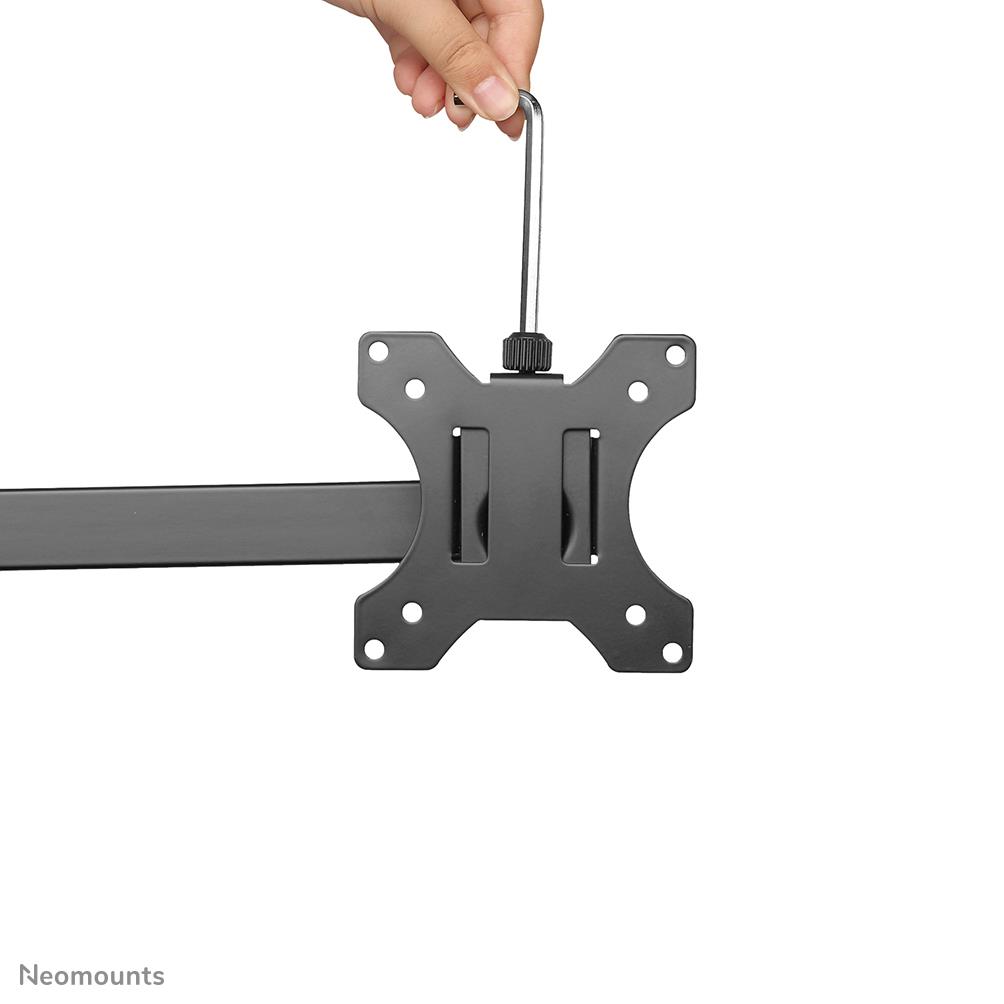

The Neomounts FPMA-D550DD3BLACK is a full motion desk stand for three flat screens up to 27" with a maximum weight capacity of 6 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Additionally, the mount features height adjustment (0-43,2 cm), to create the perfect work situation. The smart cable management clips ensure orderly routing of the cables. Additionally, the mount features an Easy-release VESA, that allows you to (de)attach the monitors in a wink of an eye.
The FPMA-D550DD3BLACK is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Deviant hole patterns can be covered using one of Neomounts VESA adapter plates.
General
| Unit Calculated Weight | 6.5 kg |
| Unit Calculated Volume | 0.02106 cubm |
| Units per Shipping Box | 3 |
| Units per Pallet | 0 |
| Summary | Neomounts FPMA-D550DD3BLACK Monitor stand 13-27". Mounting: Freestanding, Maximum weight capacity: 6 kg, Minimum screen size: 33 cm (13"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 180°, Tilt angle range: -45 - 45°. Product colour: Black |
| CnCode | 83021000 |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.47 |
| Unit Box Width | 0.32 |
Mounting
| Maximum screen size | 27 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 6 kg |
| Maximum weight capacity (per display) | 6 kg |
| Minimum screen size | 13 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Freestanding |
| Mounting type | Desk |
| Number of displays supported | 3 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Height adjustment | Yes |
| Height adjustment range | 0 - 432 mm |
| Height adjustment type | Manual |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 280 mm |
| Height | 465 mm |
| Weight | 5700 g |
| Width | 1430 mm |
Packaging data
| Package depth | 465 mm |
| Package height | 128 mm |
| Package net weight | 6600 g |
| Package weight | 6600 g |
| Package width | 310 mm |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 20700 g |
| Master (outer) case height | 410 mm |
| Master (outer) case length | 480 mm |
| Master (outer) case net weight | 17100 g |
| Master (outer) case width | 325 mm |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 60 pc(s) |
