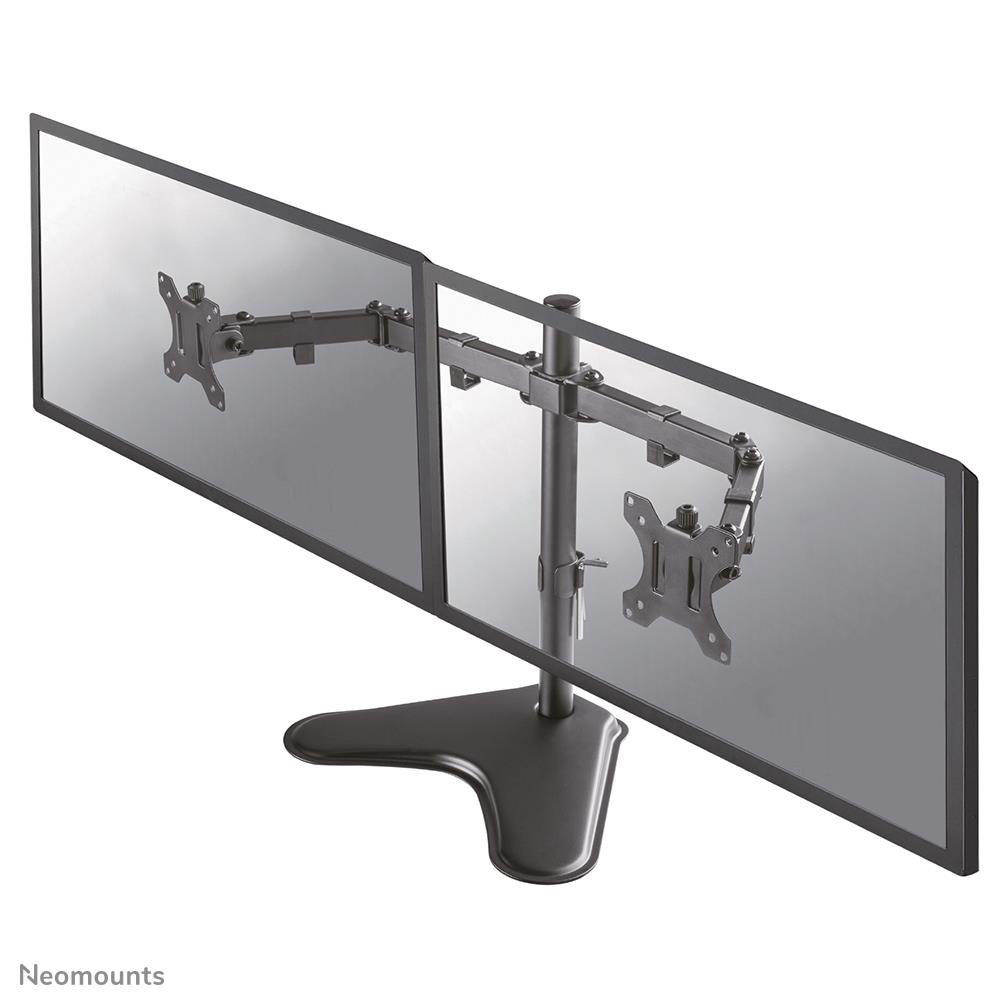

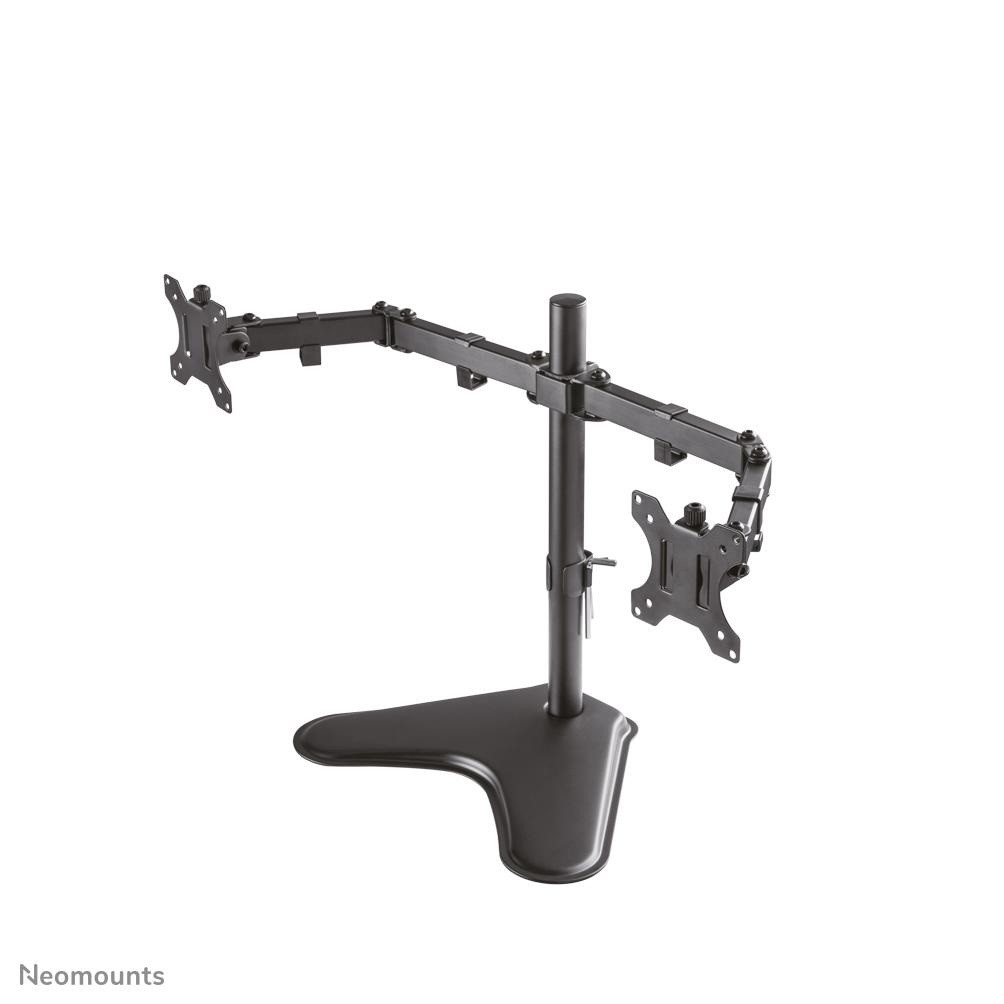

The Neomounts desk mount, model FPMA-D550DDBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk stand.

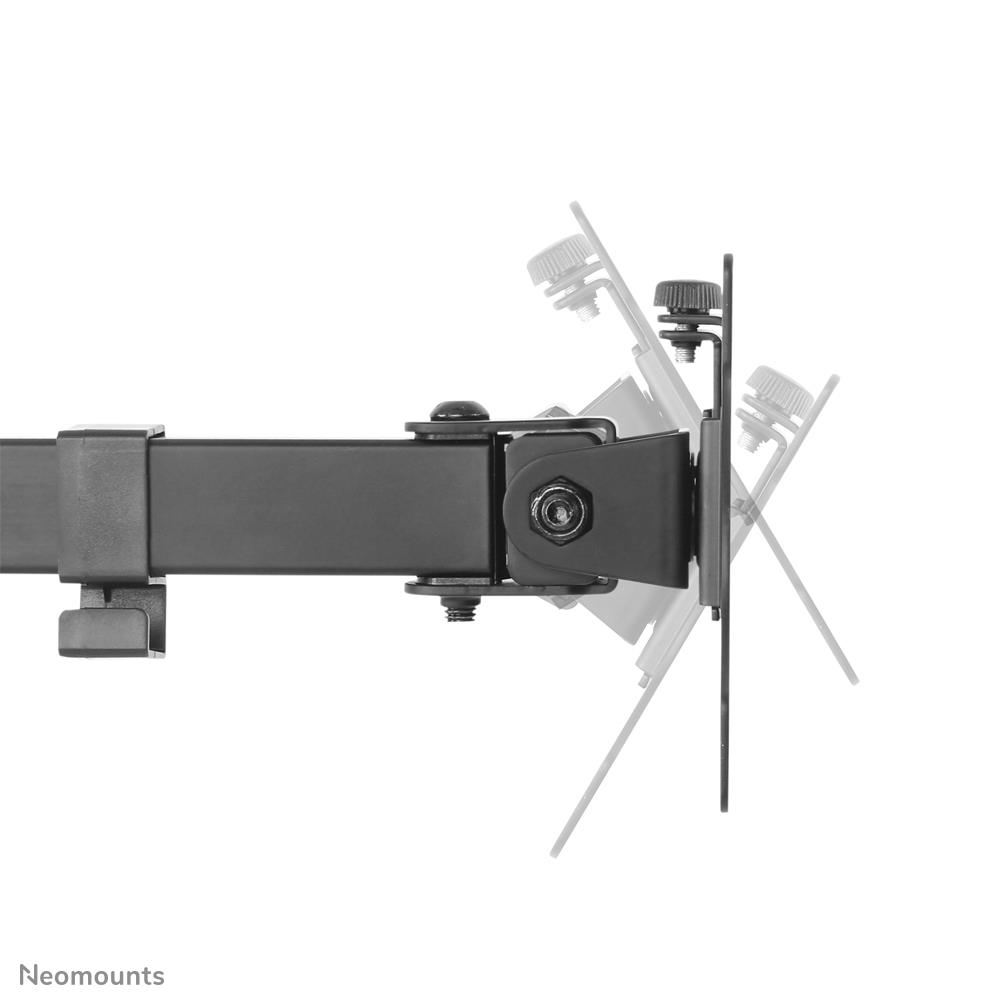

Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 46 centimetres. Depth adjustable from 4 to 40 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

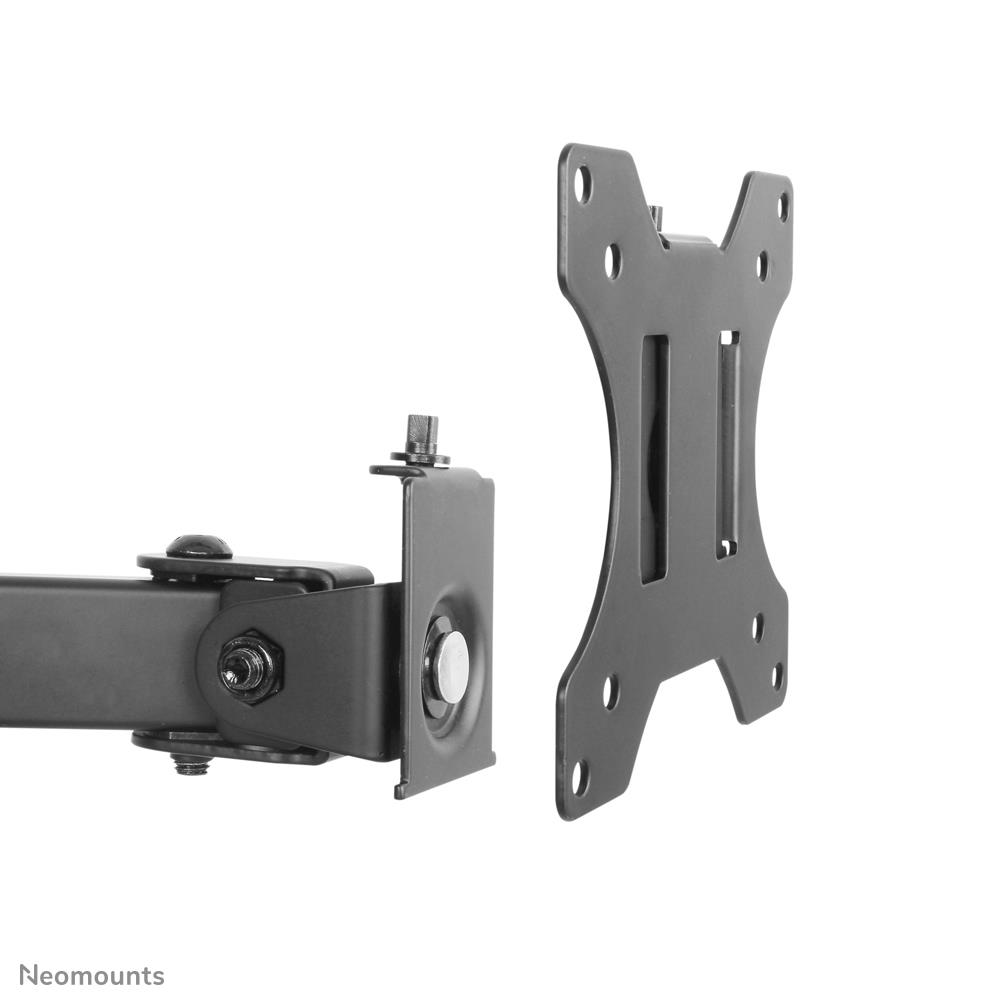

Neomounts FPMA-D550DDBLACK has three pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

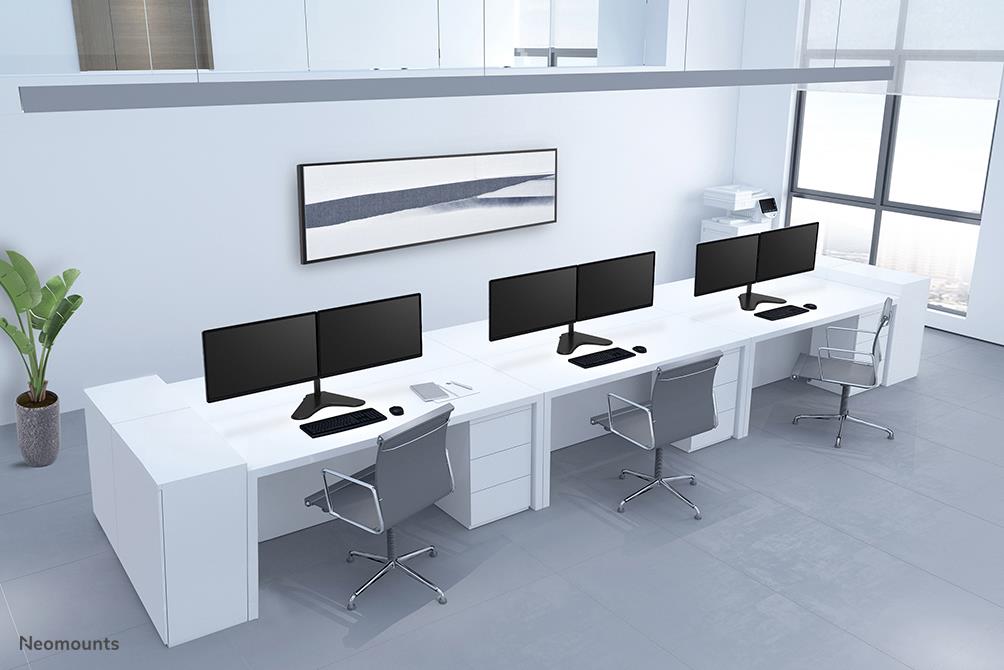

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
General
| Unit Calculated Weight | 4.95 kg |
| Unit Calculated Volume | 0.01405 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Neomounts FPMA-D550DDBLACK Monitor stand 10-32". Mounting: Freestanding, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 180°, Tilt angle range: 0 - 90°. Product colour: Black |
| Unit Box Height | 0.105 |
| Unit Box Length | 0.49 |
| Unit Box Width | 0.295 |
Mounting
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Freestanding |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Depth adjustment range | 40 - 400 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 460 mm |
| Height adjustment type | Manual |
| Number of pivot points | 3 |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 90 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Height | 548 mm |
| Weight | 4000 g |
Packaging data
| Package depth | 105 mm |
| Package height | 489 mm |
| Package net weight | 5000 g |
| Package weight | 5200 g |
| Package width | 289 mm |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 15600 g |
| Master (outer) case height | 120 mm |
| Master (outer) case length | 448 mm |
| Master (outer) case net weight | 15600 g |
| Master (outer) case width | 300 mm |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 60 pc(s) |
