The Neomounts desk mount, model FPMA-D550NOTEBOOK is a tilt-, swivel and rotatable desk mount for flat screens up to 32" notebooks up to 15,6". This mount is a great choice for space saving placement on desks using a desk clamp or grommet.

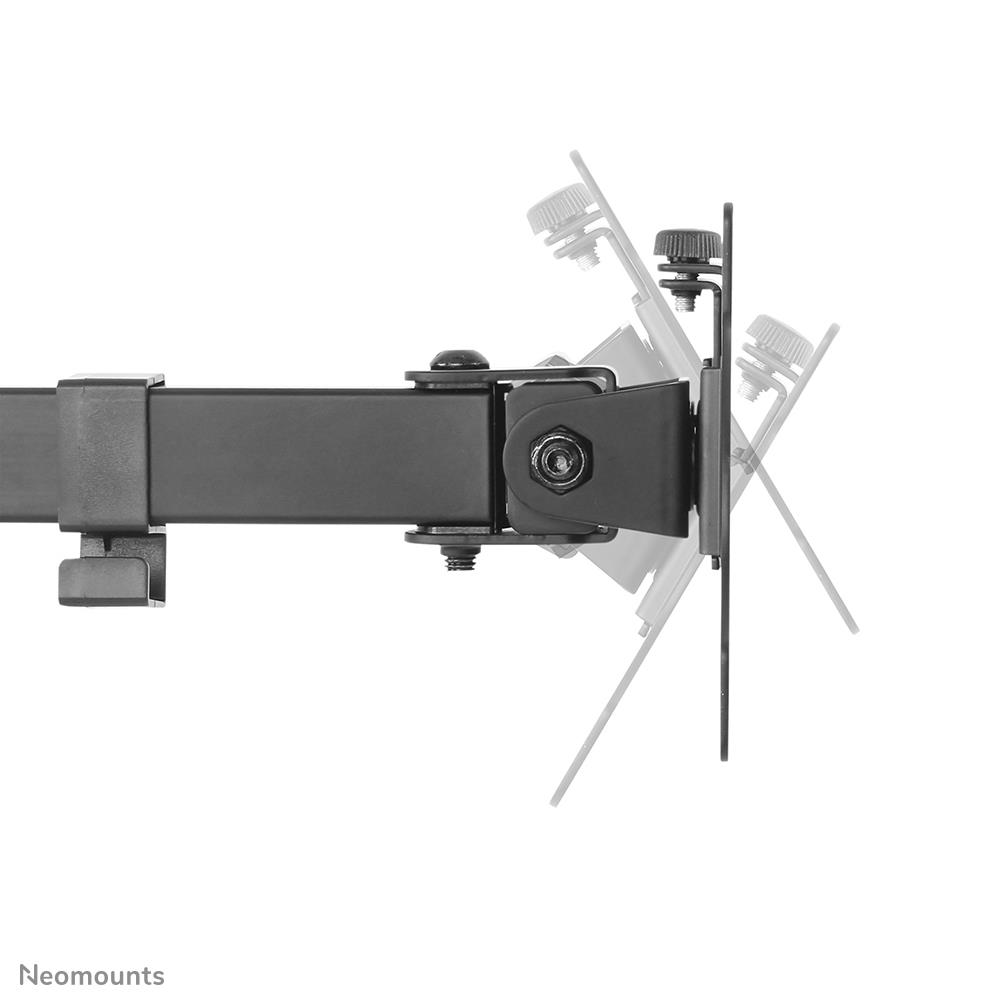

Neomounts' unique tilt (+45°/-45°), swivel (180°) and rotate (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 44 centimetres. Depth adjustable from 4 to 52 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D550NOTEBOOK has three pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg for the screen and 4,5 kg for the notebook. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
General
| Unit Calculated Weight | 6.2 kg |
| Unit Calculated Volume | 0.01835 cubm |
| Units per Shipping Box | 3 |
| Units per Pallet | 0 |
| Summary | Neomounts FPMA-D550NOTEBOOK Monitor arm with laptop holder 10-32". Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 180°, Tilt angle range: 0 - 90°. Product colour: Black |
| CnCode | 83021000 |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.45 |
| Unit Box Width | 0.31 |
Mounting
| Desk thickness (max) | 88 mm |
| Desk thickness (min) | 10 mm |
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Depth adjustment range | 40 - 520 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 440 mm |
| Height adjustment type | Manual |
| Number of pivot points | 3 |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 90 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 520 mm |
| Height | 548 mm |
| Weight | 5670 g |
Packaging data
| Package depth | 116 mm |
| Package height | 465 mm |
| Package weight | 6300 g |
| Package width | 295 mm |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 6300 g |
| Master (outer) case height | 480 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case net weight | 5200 g |
| Master (outer) case width | 310 mm |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 55 pc(s) |
