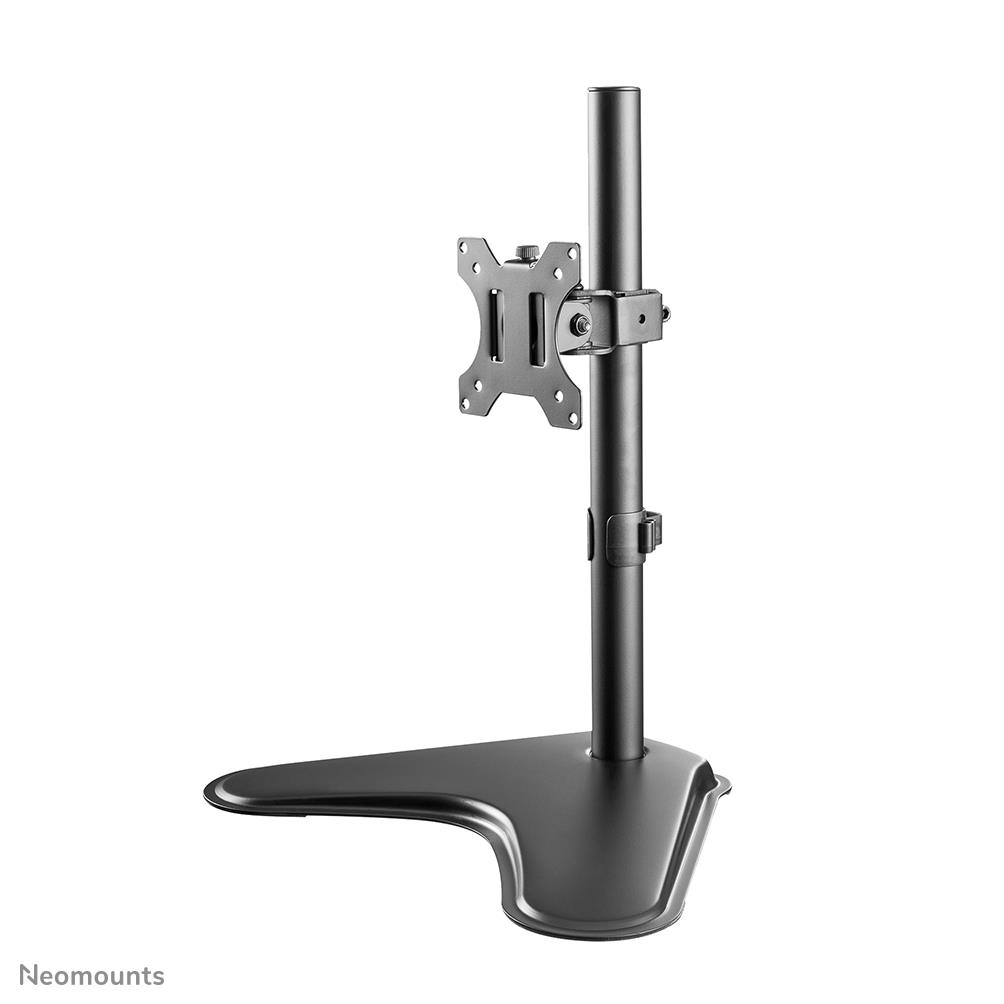

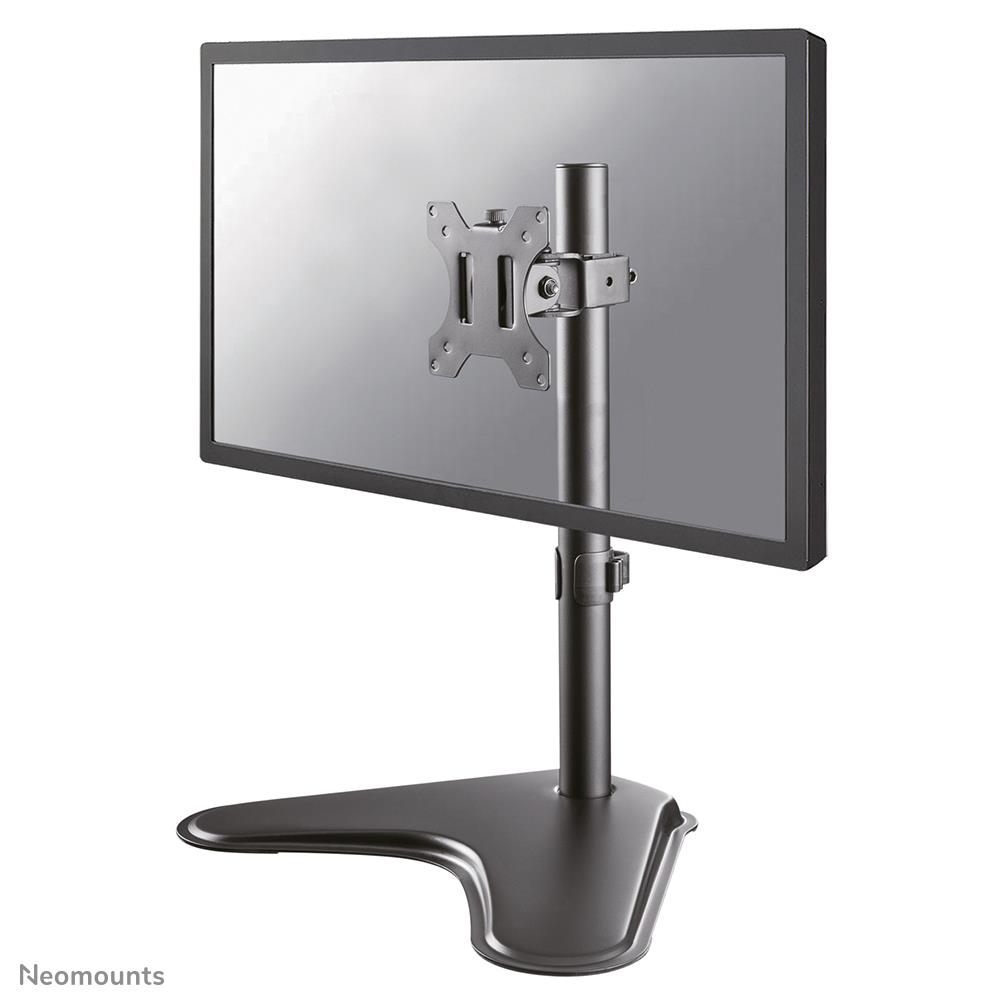

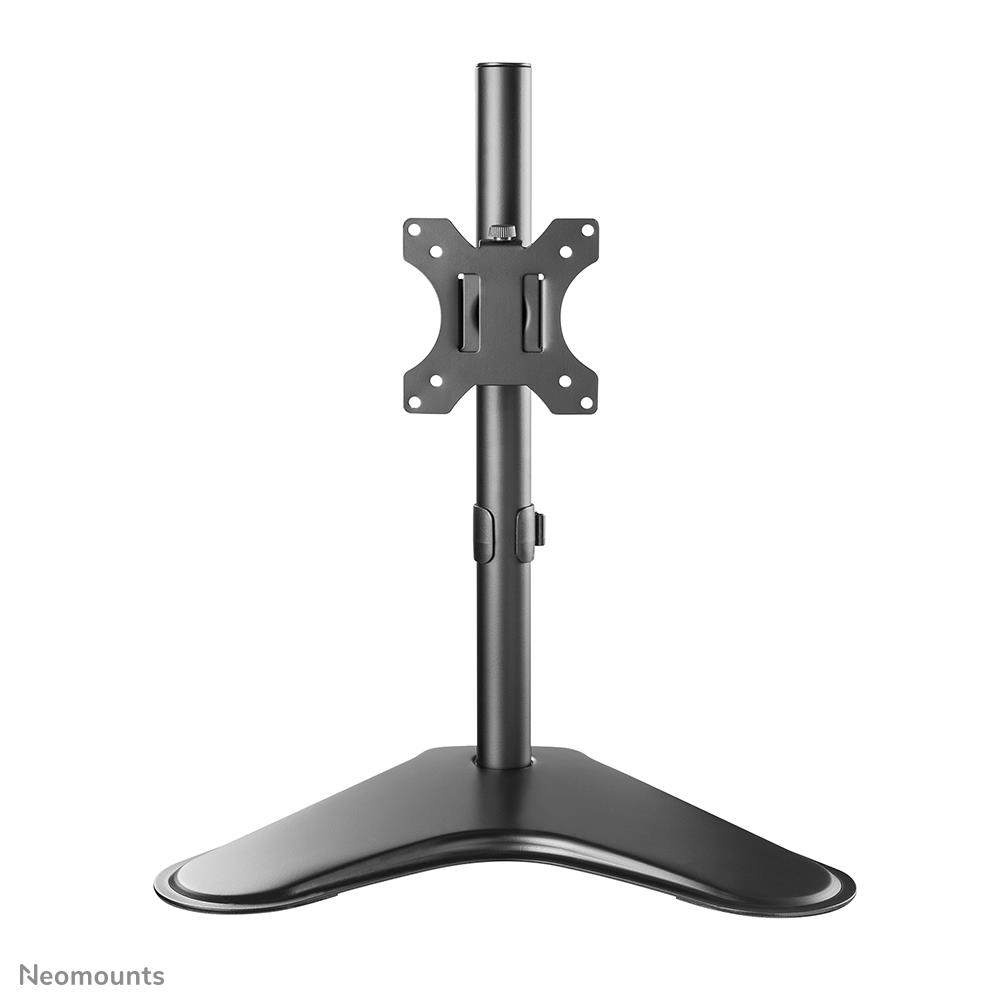

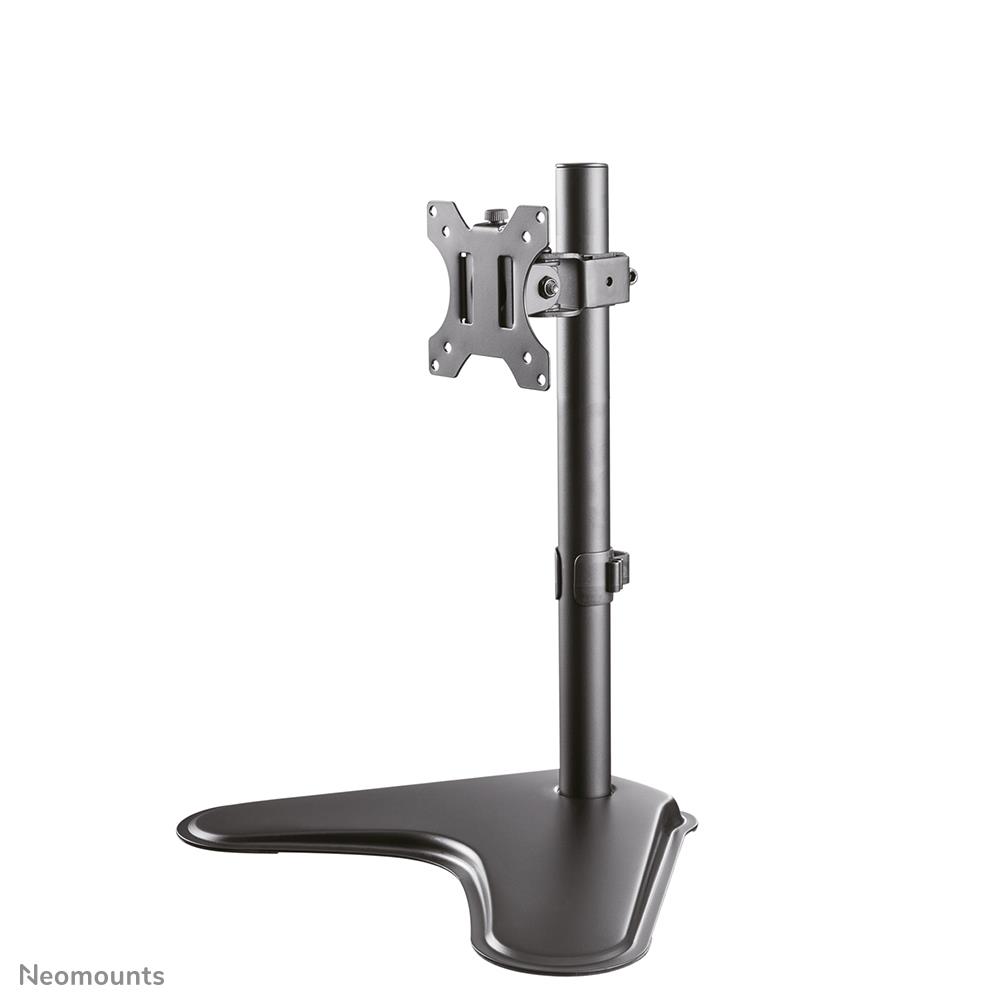

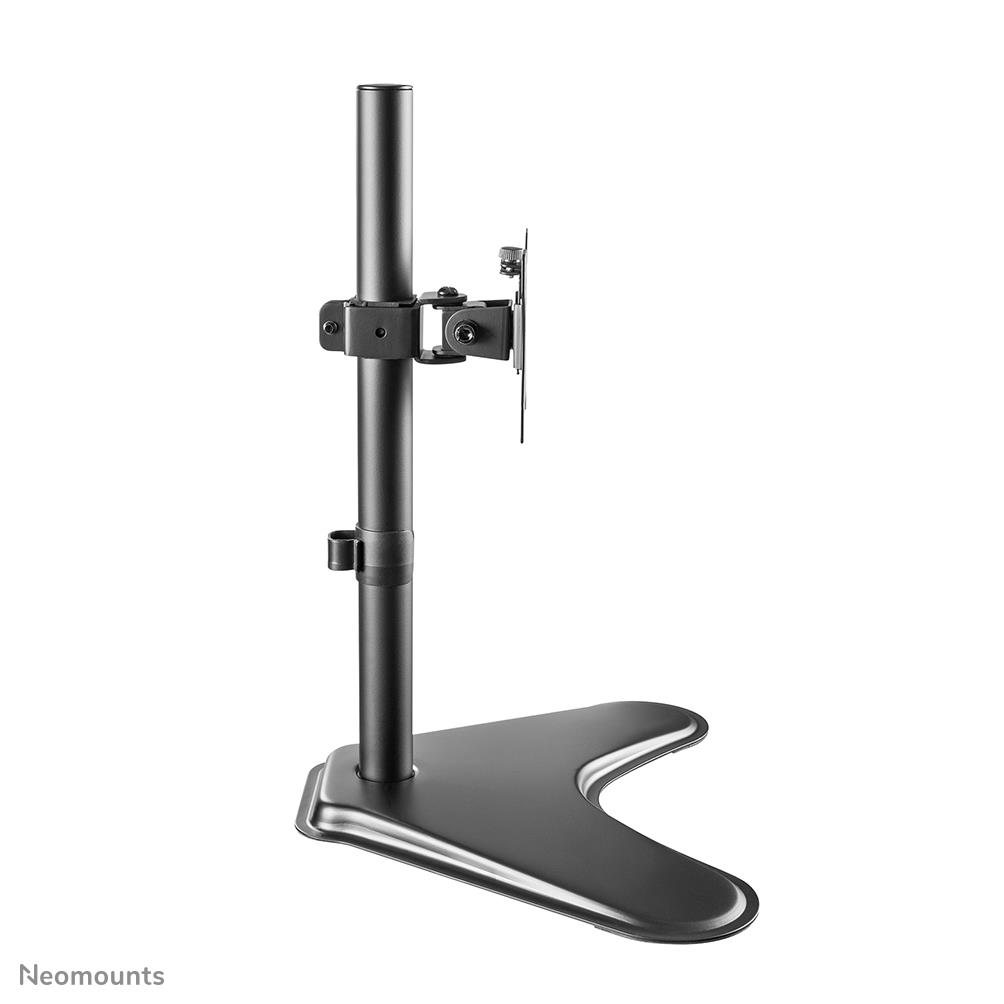

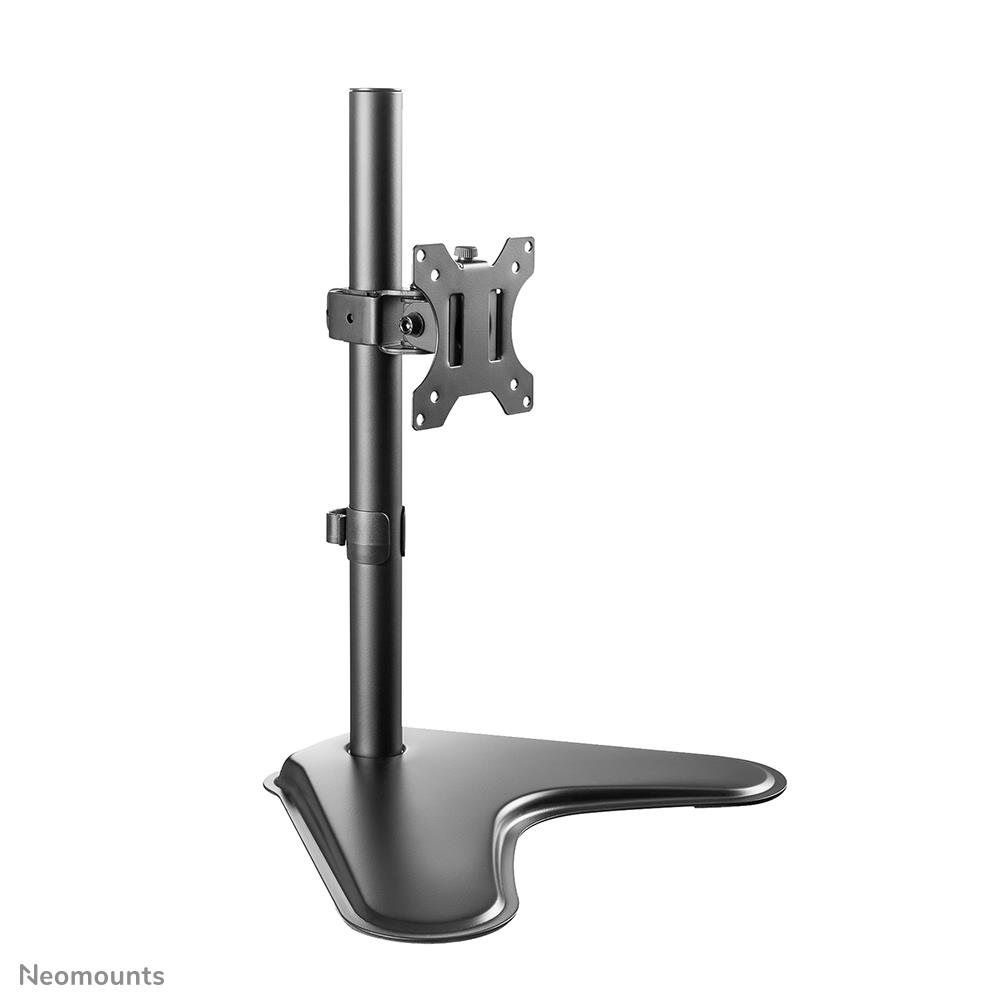

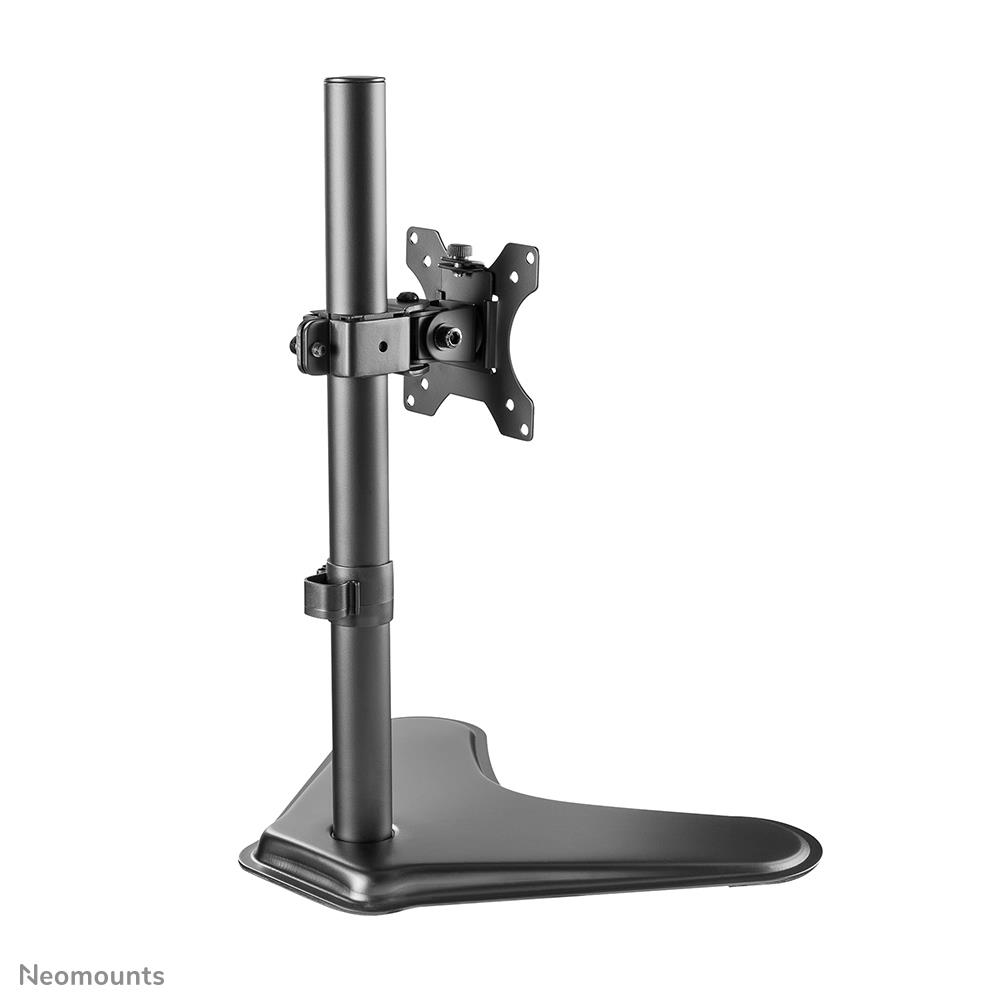

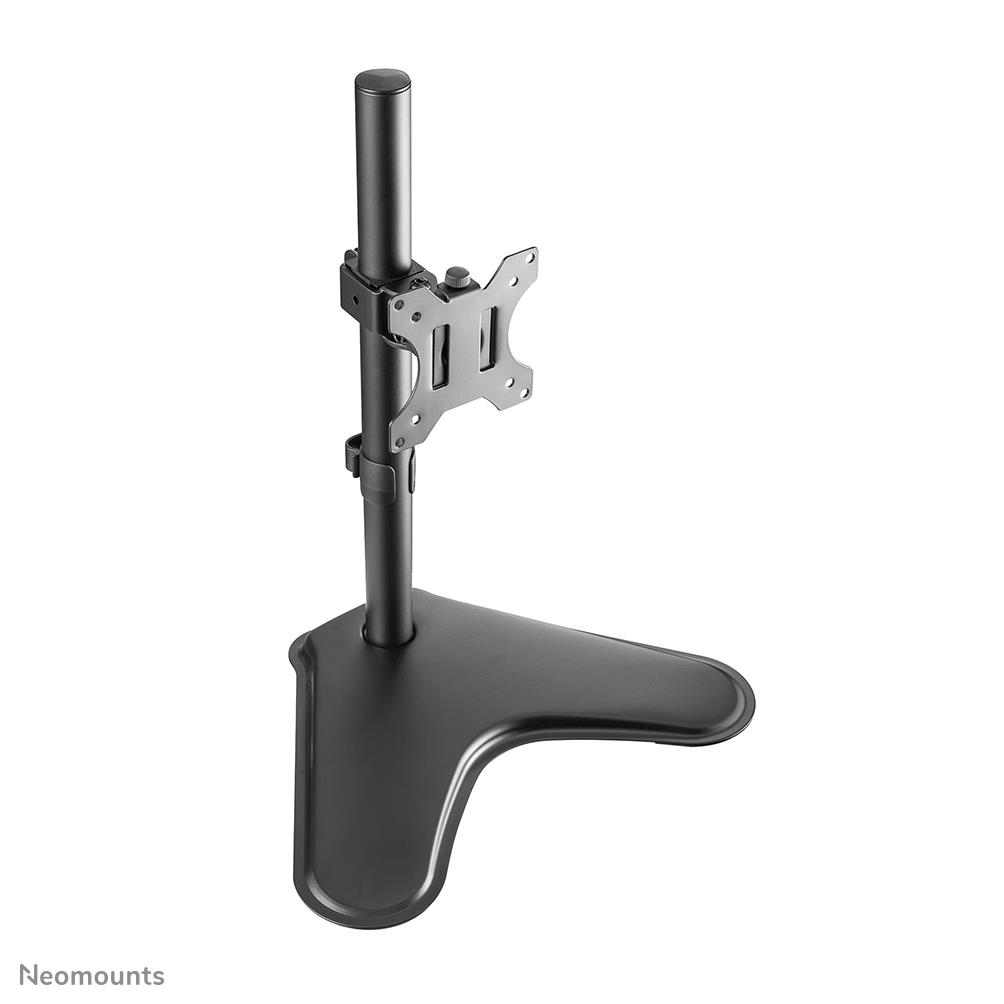

The Neomounts desk mount, model FPMA-D550SBLACK is a tilt-, swivel and rotatable desk mount for monitors up to 32". The monitor arm is easy to place on the desk using a stand.
Neomounts' versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 5,6 to 41,9 centimeters. An innovative cable management routes cables from mount to flat screen. Additionally, the mount features a Quick-release VESA, that allows you to attach the monitor in a wink of an eye.
Neomounts FPMA-D550SBLACK is suitable for screens up to 32". The weight capacity of this product is 8 kg. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
General
| Unit Calculated Weight | 3.36 kg |
| Unit Calculated Volume | 0.01124 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Summary | Neomounts FPMA-D550SBLACK Monitor stand 13-32". Mounting: Freestanding, Maximum weight capacity: 8 kg, Minimum screen size: 33 cm (13"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.47 |
| Unit Box Width | 0.29 |
Mounting
| Desk thickness (max) | 88 mm |
| Desk thickness (min) | 10 mm |
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 13 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Freestanding |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Height adjustment | Yes |
| Height adjustment range | 56 - 419 mm |
| Height adjustment type | Manual |
| Pivot angle | -180 - 180 ° |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | -90 - 90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 280 mm |
| Height | 501 mm |
| Weight | 2780 g |
| Width | 390 mm |
Packaging data
| Package depth | 289 mm |
| Package height | 70 mm |
| Package net weight | 3300 g |
| Package weight | 3300 g |
| Package width | 466 mm |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 17400 g |
| Master (outer) case height | 370 mm |
| Master (outer) case length | 305 mm |
| Master (outer) case net weight | 13900 g |
| Master (outer) case width | 480 mm |
| Products per master (outer) case | 5 pc(s) |
| Products per pallet (EU) | 100 pc(s) |
