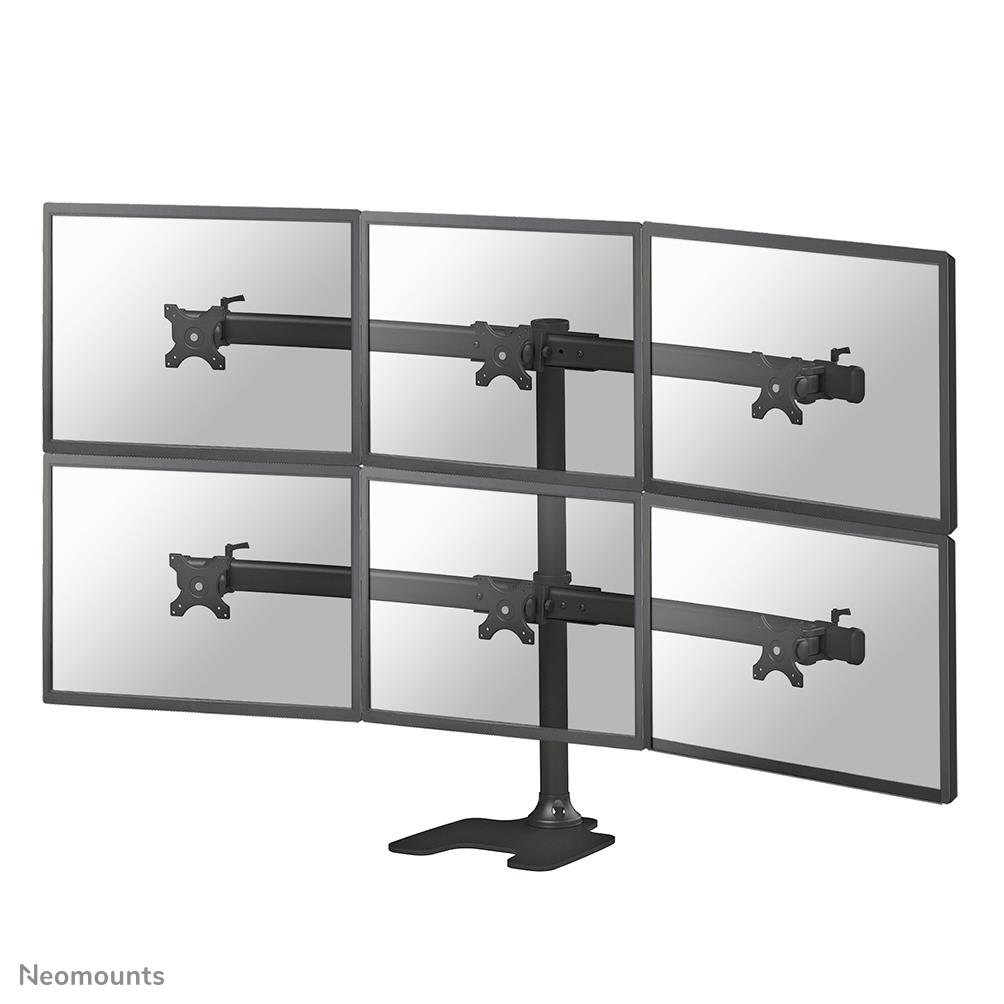

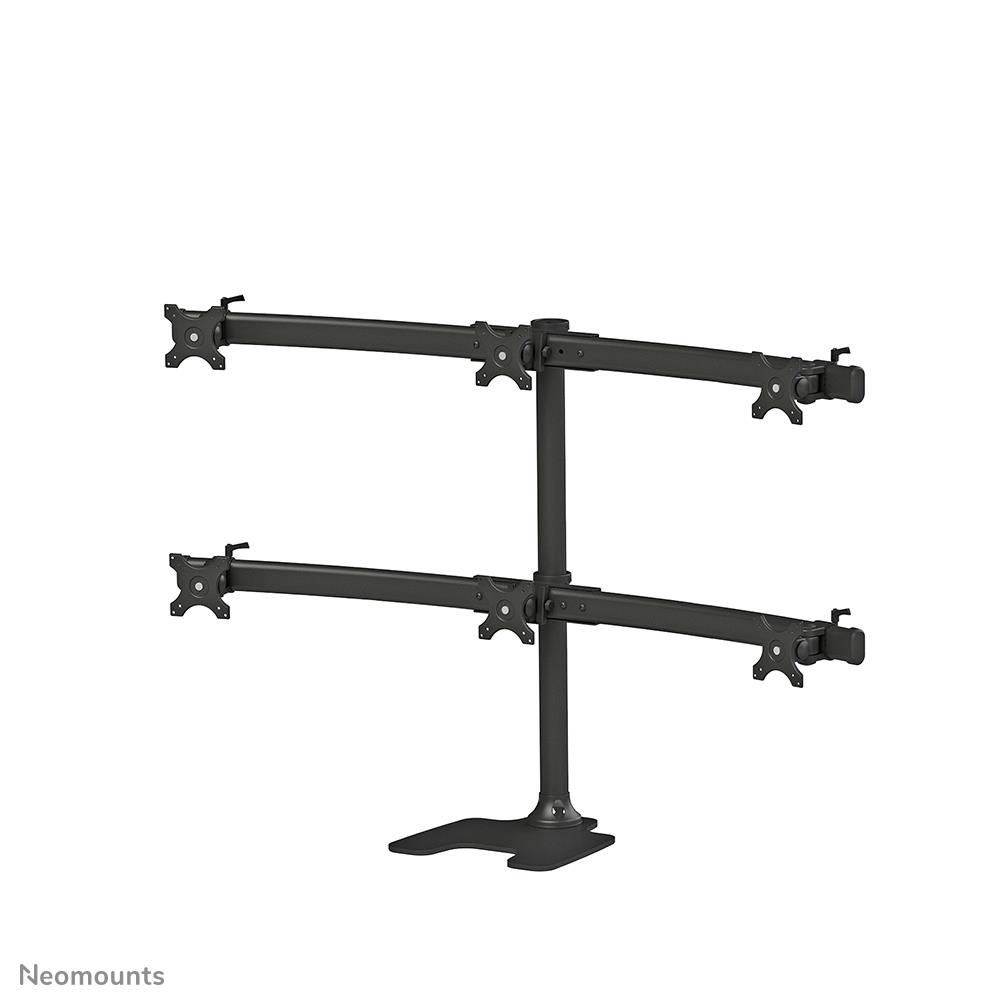

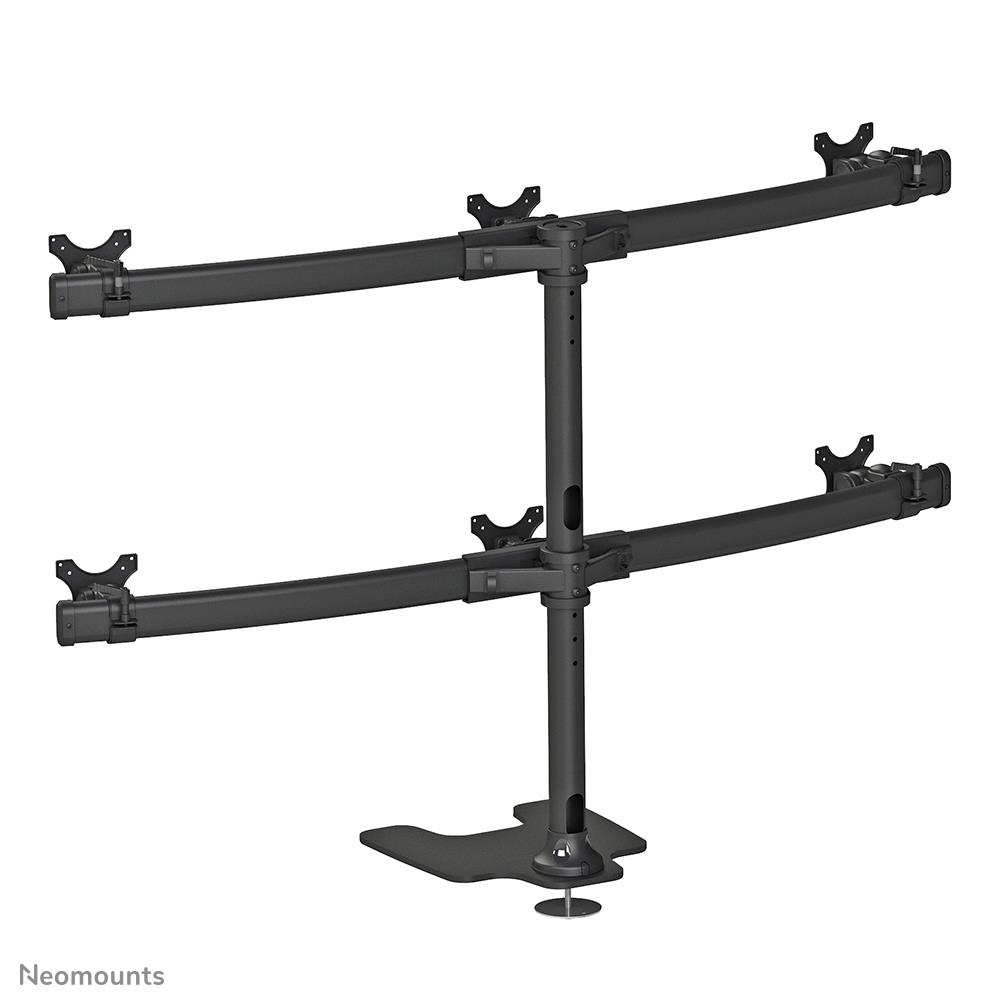

The Neomounts desk mount, model FPMA-D700DD6 is a tilt-, swivel and rotatable desk mount for 6 flat screens up to 27". This mount is a great choice for placement on desks using a desk stand.
Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 32 to 88 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D700DD6 has one pivot point and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
General
| Unit Calculated Weight | 23.6 kg |
| Unit Calculated Volume | 0.05415 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts FPMA-D700DD6 Monitor stand 10-27". Mounting: Freestanding/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 180°, Tilt angle range: 0 - 180°. Product colour: Black |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.932 |
| Unit Box Width | 0.415 |
Mounting
| Maximum screen size | 27 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Freestanding/Grommet |
| Mounting type | Desk |
| Number of displays supported | 6 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Suitable for TV | Yes |
Ergonomics

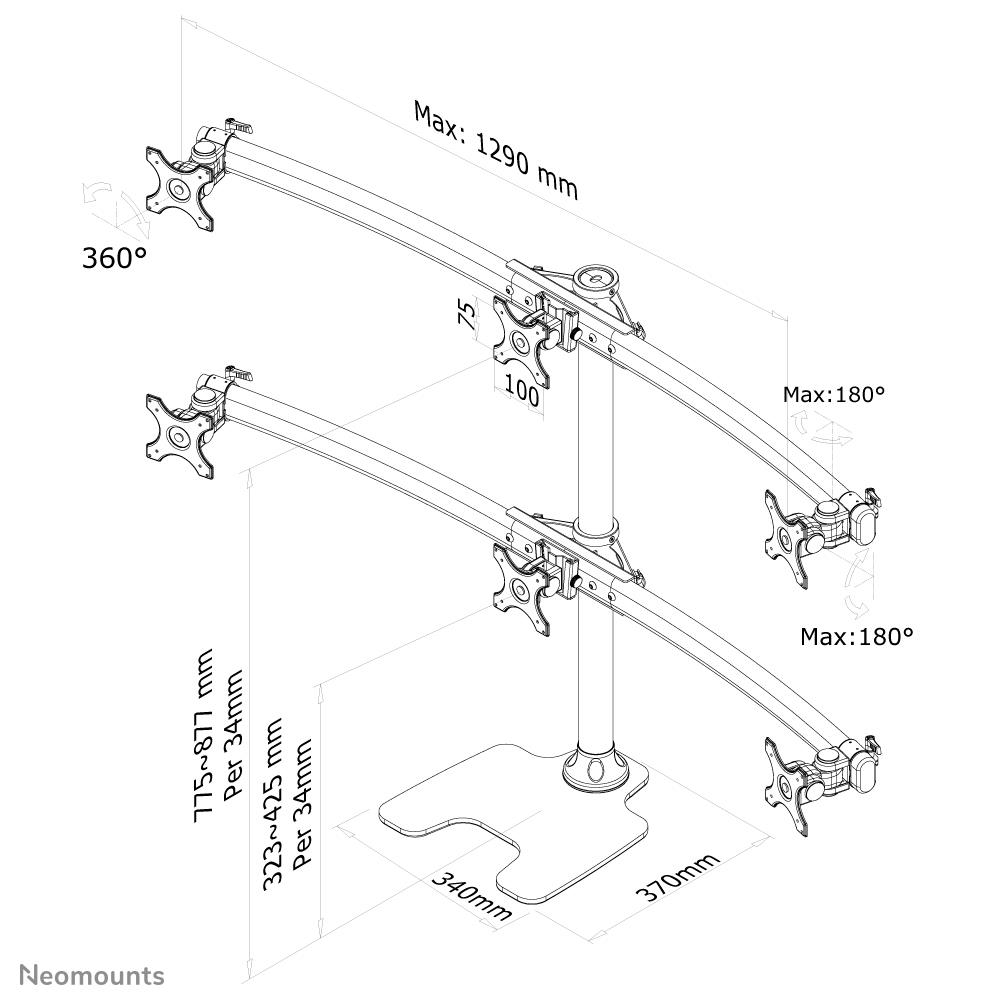

| Angle of rotation | 360 ° |
| Depth adjustment range | 0 - 370 mm |
| Height adjustment | Yes |
| Height adjustment range | 320 - 880 mm |
| Height adjustment type | Manual |
| Number of pivot points | 1 |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Tilt angle range | 0 - 180 ° |
| Width adjustment | 1290 mm |
Design
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 370 mm |
| Height | 880 mm |
| Weight | 21350 g |
| Width | 340 mm |
Packaging data
| Package depth | 420 mm |
| Package height | 155 mm |
| Package weight | 24100 g |
| Package width | 930 mm |
Other features
| Width adjustment range | 0 - 1290 mm |
Logistics data
| Country of origin | Taiwan |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 24100 g |
| Master (outer) case height | 930 mm |
| Master (outer) case length | 155 mm |
| Master (outer) case net weight | 24100 g |
| Master (outer) case width | 420 mm |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet (EU) | 20 pc(s) |
