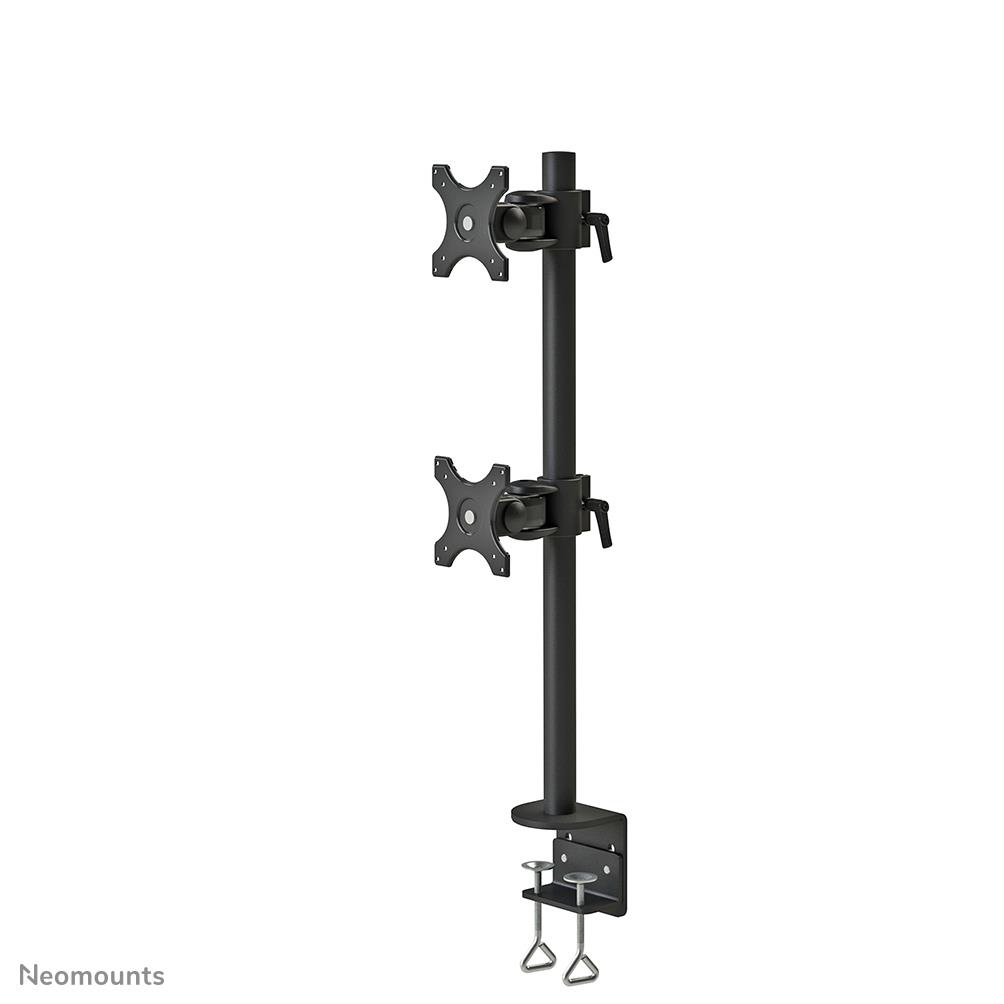

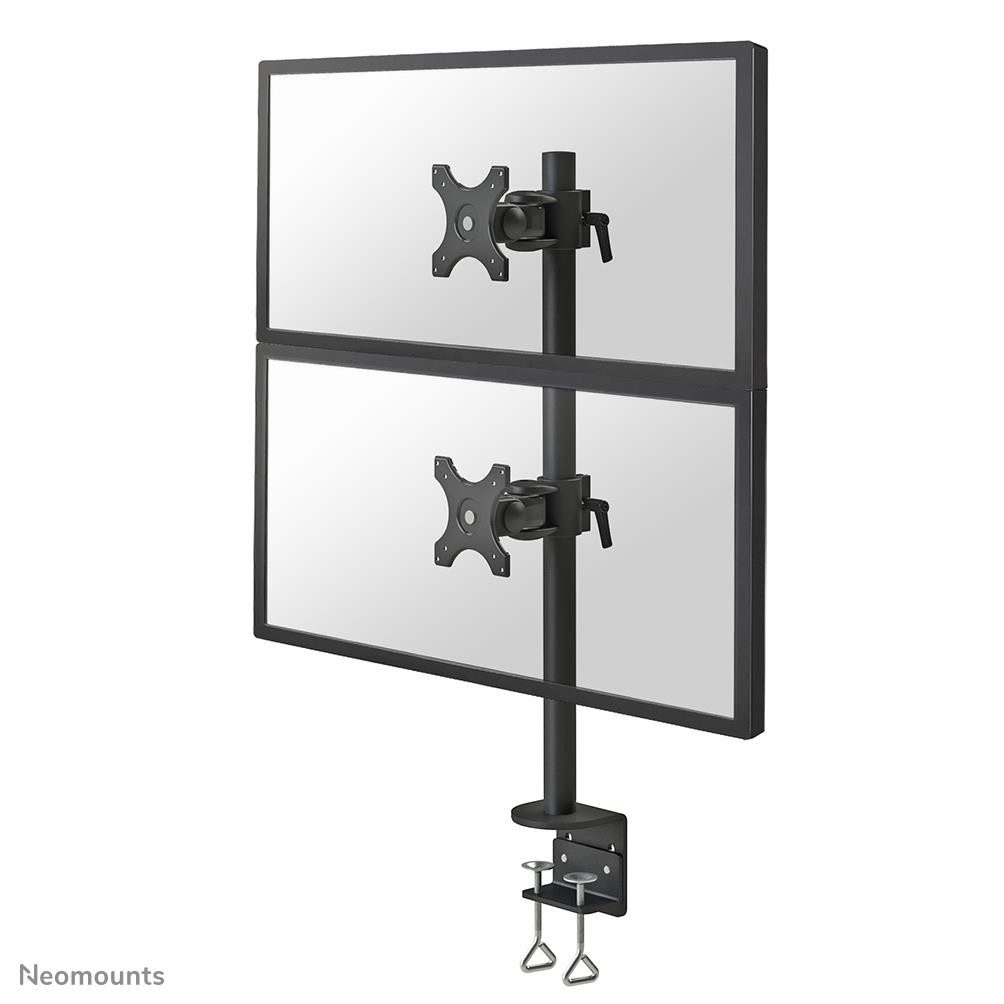

The Neomounts desk mount, model FPMA-D700DV is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 24". This mount is a great choice for space saving placement on desks using a desk clamp.

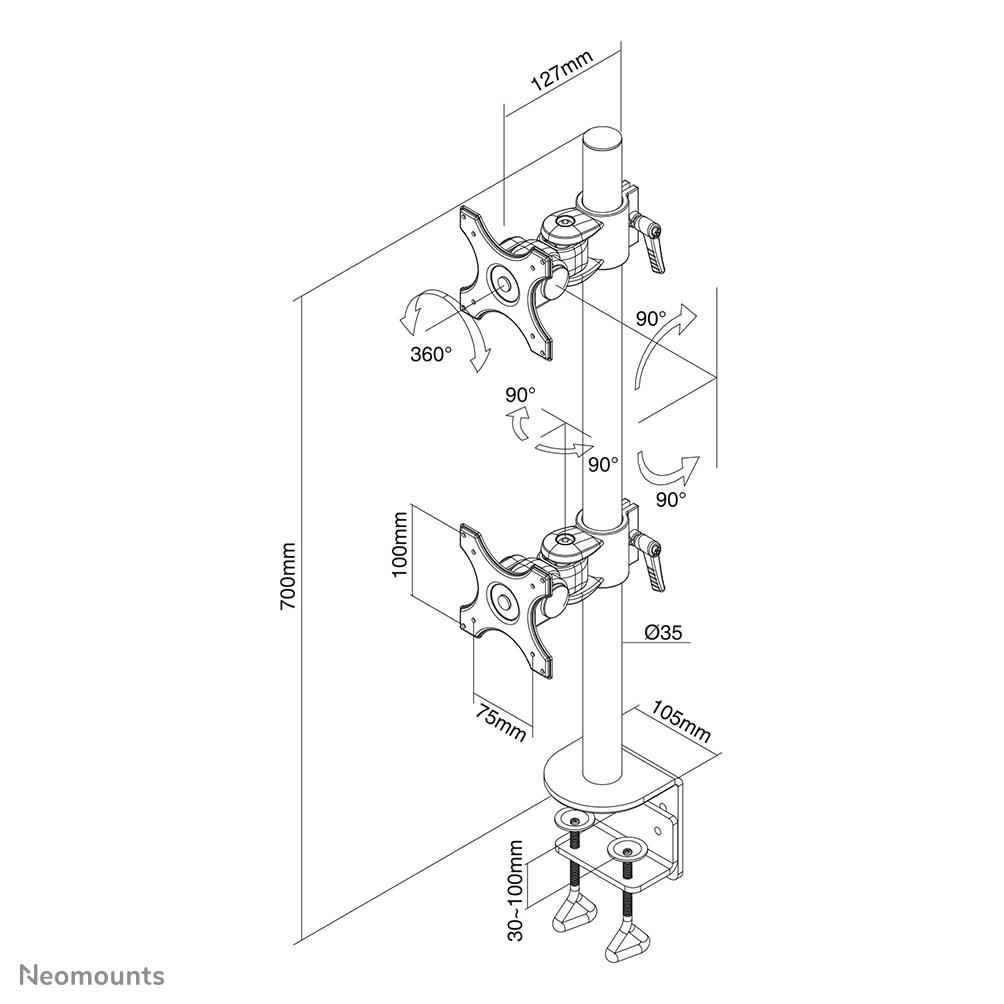

Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 70 centimetres. Depth 13 centimetres.

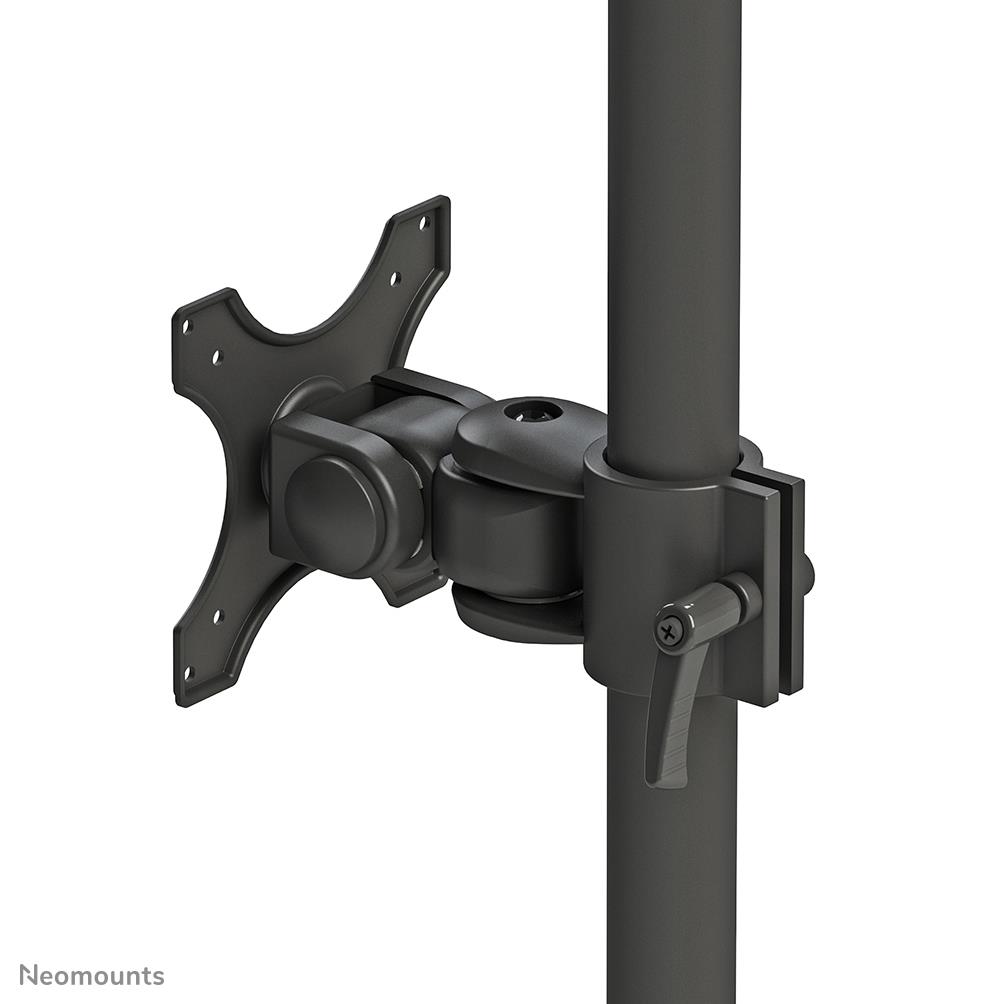

Neomounts FPMA-D700DV has two pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 6 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
General
| Unit Calculated Weight | 4.4 kg |
| Unit Calculated Volume | 0.01529 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts FPMA-D700DV Monitor arm 10-27". Mounting: Clamp, Maximum weight capacity: 6 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 180°, Tilt angle range: 0 - 180°. Product colour: Black |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.84 |
| Unit Box Width | 0.14 |
Mounting

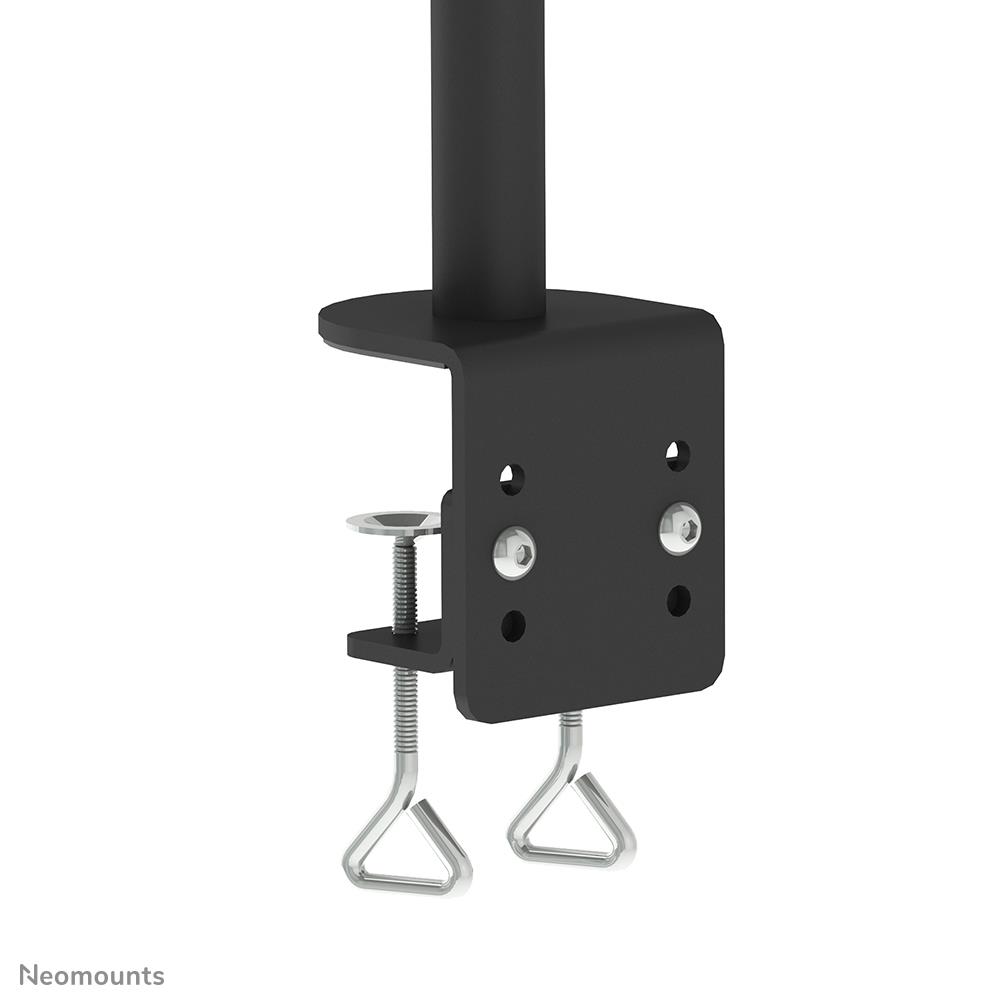

| Desk thickness (max) | 90 mm |
| Maximum screen size | 27 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 6 kg |
| Maximum weight capacity (per display) | 6 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |
| Depth adjustment range | 0 - 130 mm |
| Height adjustment | Yes |

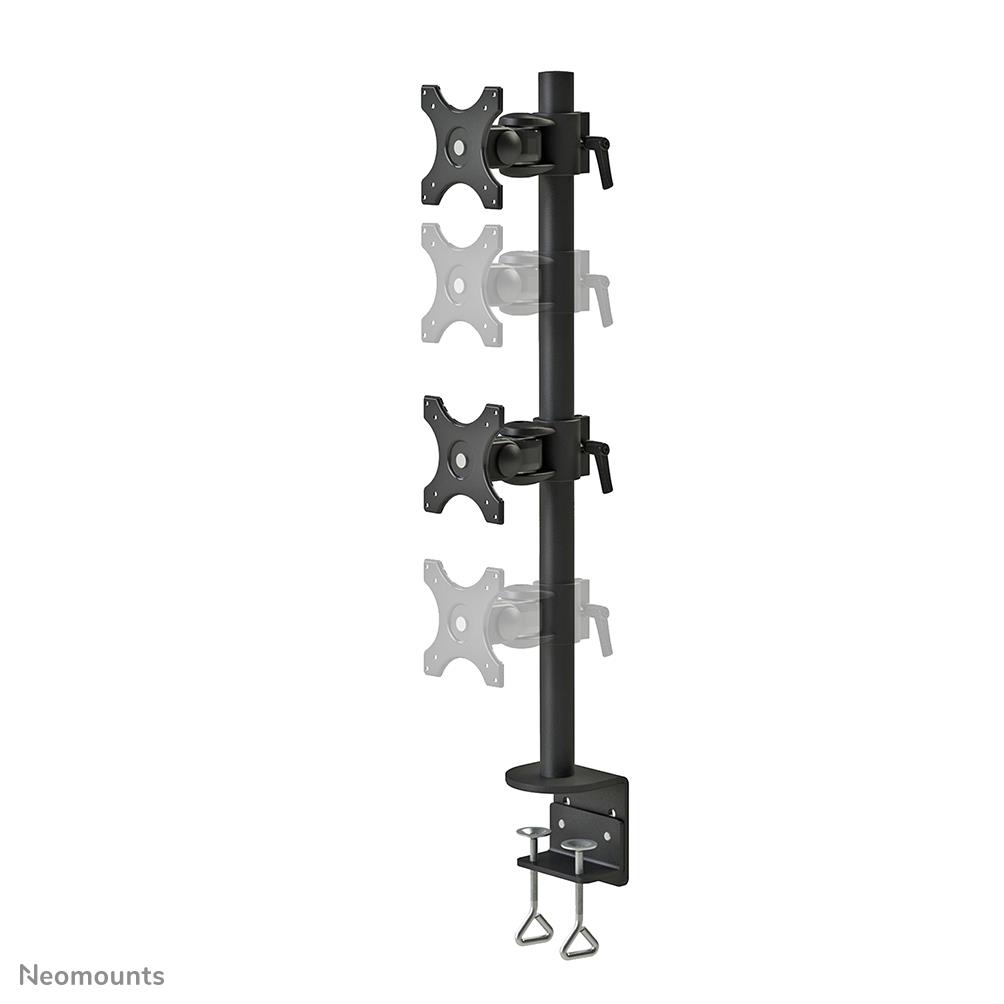

| Height adjustment range | 0 - 700 mm |
| Height adjustment type | Manual |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 180 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 130 mm |
| Height | 700 mm |
| Weight | 4420 g |
Packaging data
| Package depth | 127 mm |
| Package height | 127 mm |
| Package weight | 4500 g |
| Package width | 848 mm |
Logistics data
| Country of origin | Taiwan |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 15900 g |
| Master (outer) case height | 170 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case net weight | 14900 g |
| Master (outer) case width | 875 mm |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 45 pc(s) |
