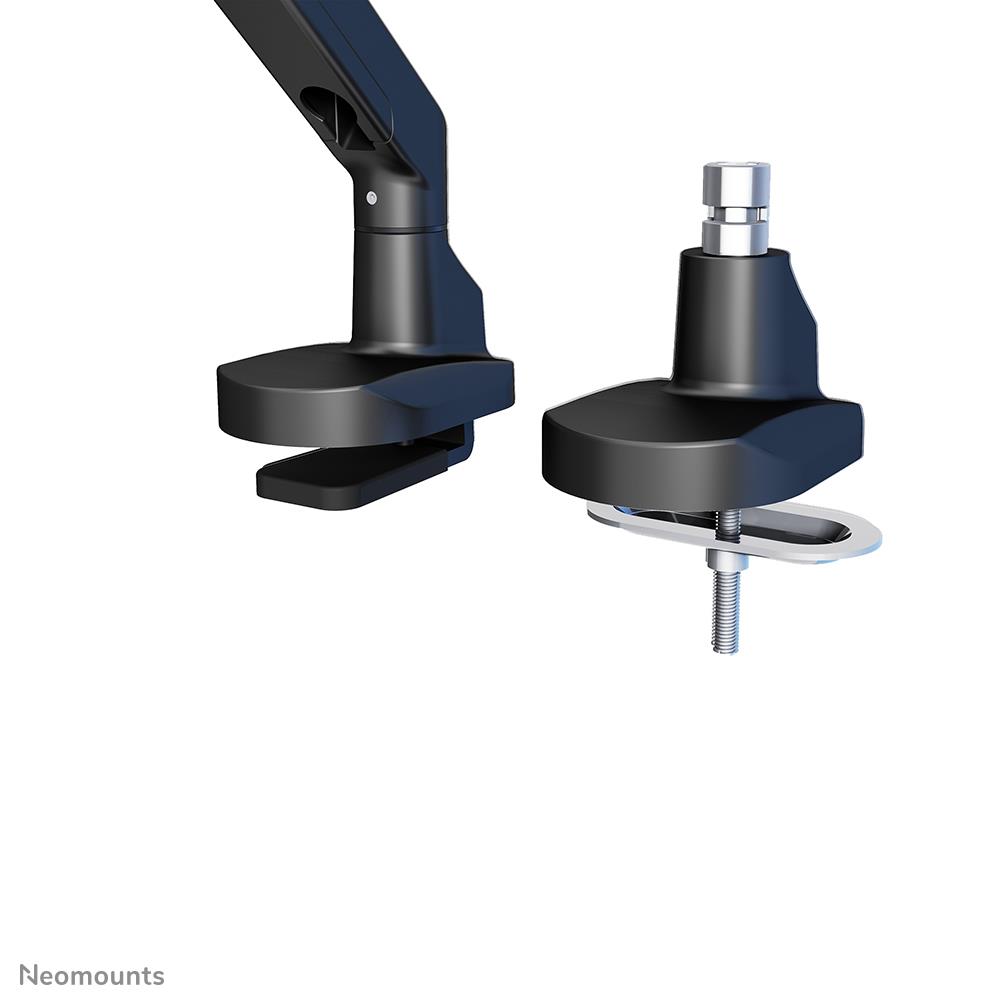

The Neomounts desk mount, model FPMA-D750BLACK2 is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks using a topfix desk clamp or grommet.
Neomounts versatile tilt (170°), rotate (180°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is equipped with a 180° stop mechanism. The mount is easily height adjustable from 19 to 50 centimetres using a gas spring. Depth adjustable from 0 to 53 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D750BLACK2 has three pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 2-8 kg. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
General
| Unit Calculated Weight | 2.7 kg |
| Unit Calculated Volume | 0.01404 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts FPMA-D750BLACK2 Monitor arm 10-32" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 180°, Tilt angle range: -50 - 120°. Product colour: Black |
| Unit Box Height | 0.27 |
| Unit Box Length | 0.4 |
| Unit Box Width | 0.13 |
Mounting
| Desk thickness (max) | 50 mm |
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Adjustable depth | Yes |
| Angle of rotation | 180 ° |
| Cable management | Yes |
| Depth adjustment range | 0 - 530 mm |
| Height adjustment | Yes |

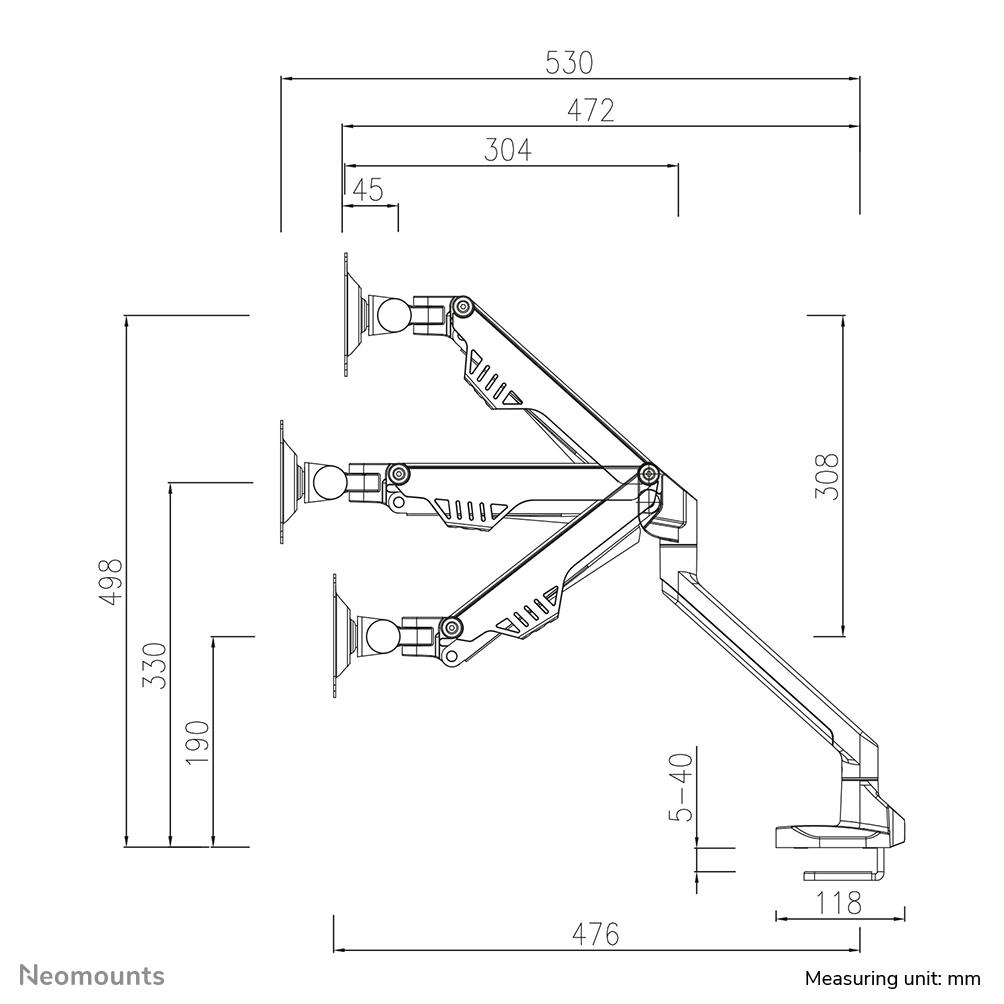

| Height adjustment range | 190 - 498 mm |
| Height adjustment type | Gas spring |
| Number of pivot points | 3 |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -50 - 120 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Weight | 2190 g |
Packaging data
| Package depth | 125 mm |
| Package height | 260 mm |
| Package net weight | 2700 g |
| Package weight | 2700 g |
| Package width | 395 mm |
| Quantity per pack | 1 pc(s) |
Other features
| Minimum weight | 2 kg |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 14700 g |
| Master (outer) case height | 670 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case net weight | 11500 g |
| Master (outer) case width | 290 mm |
| Products per master (outer) case | 5 pc(s) |
| Products per pallet (EU) | 75 pc(s) |
