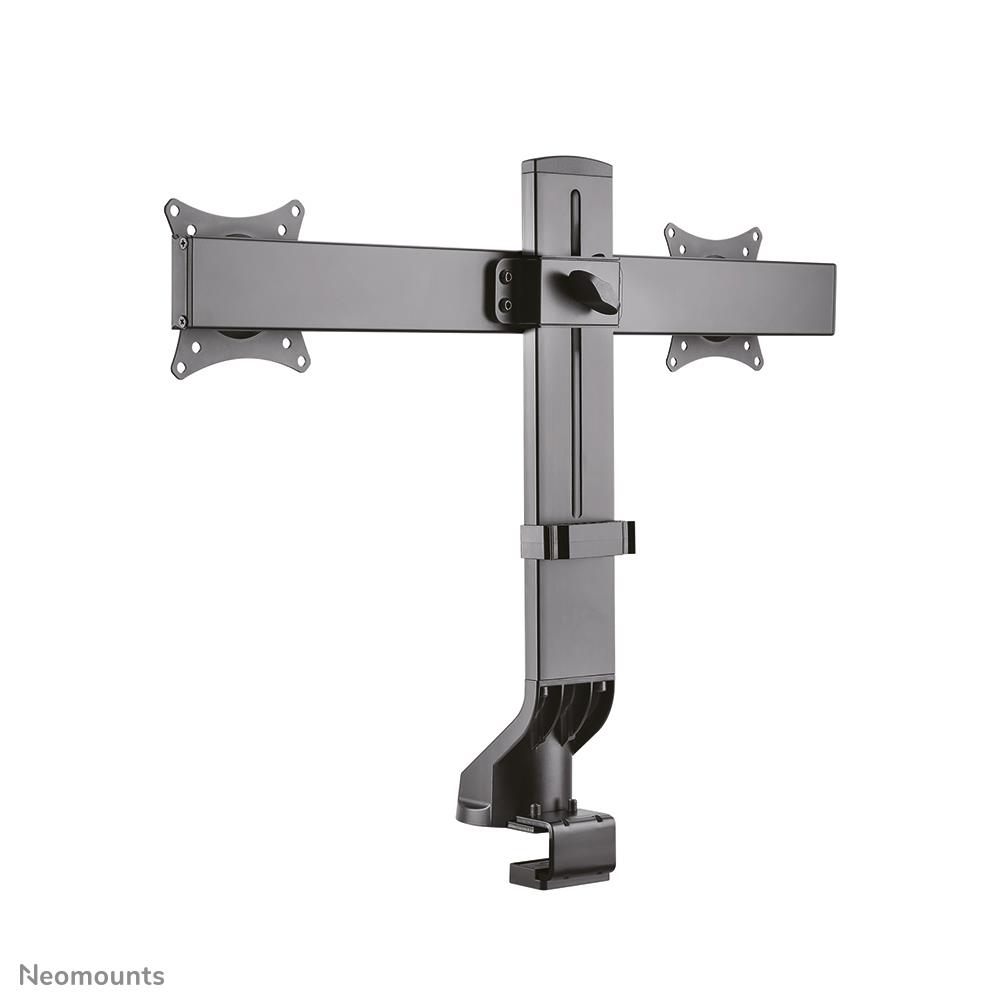

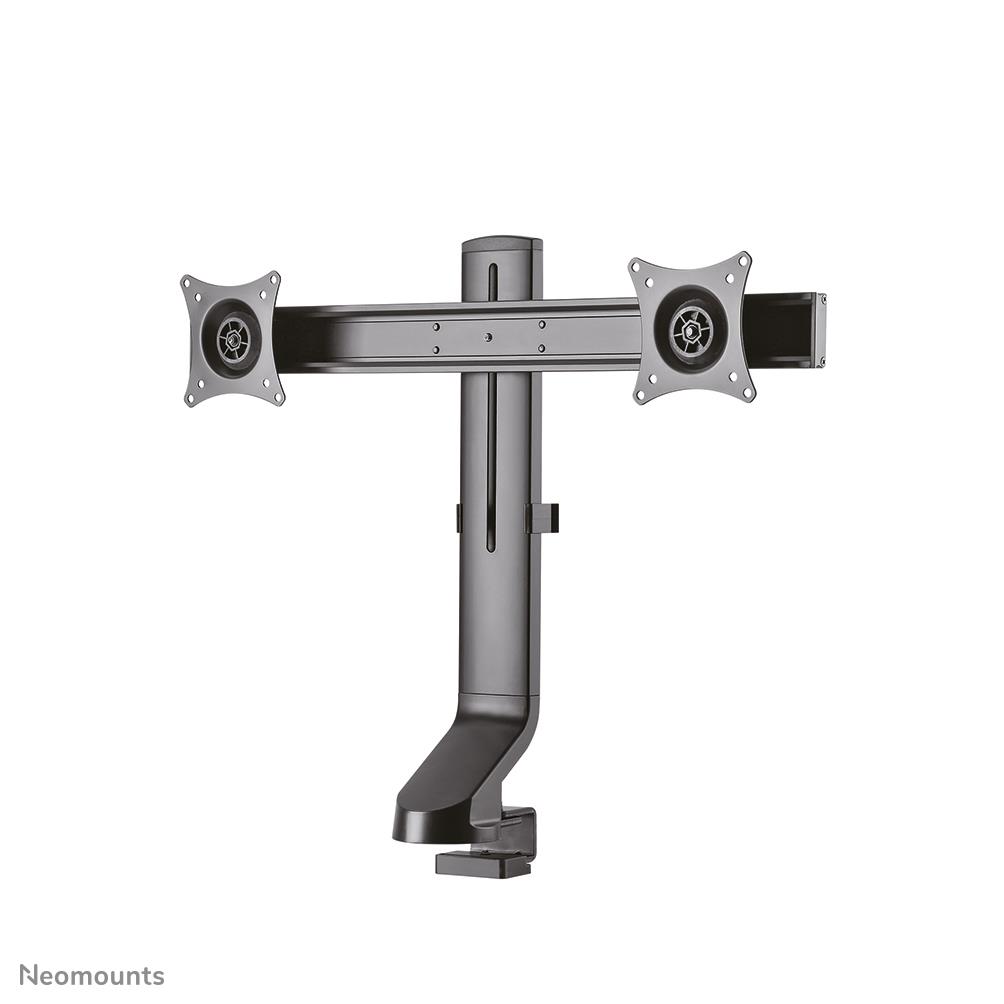

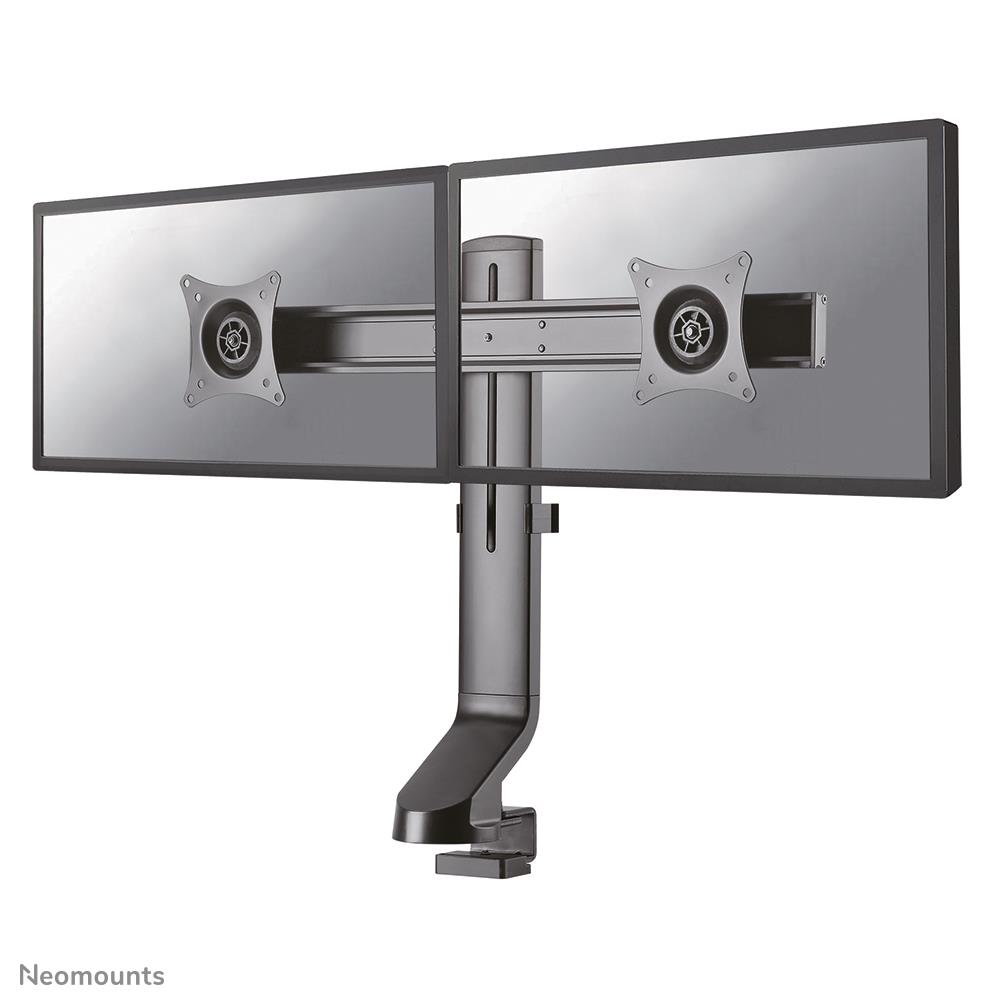

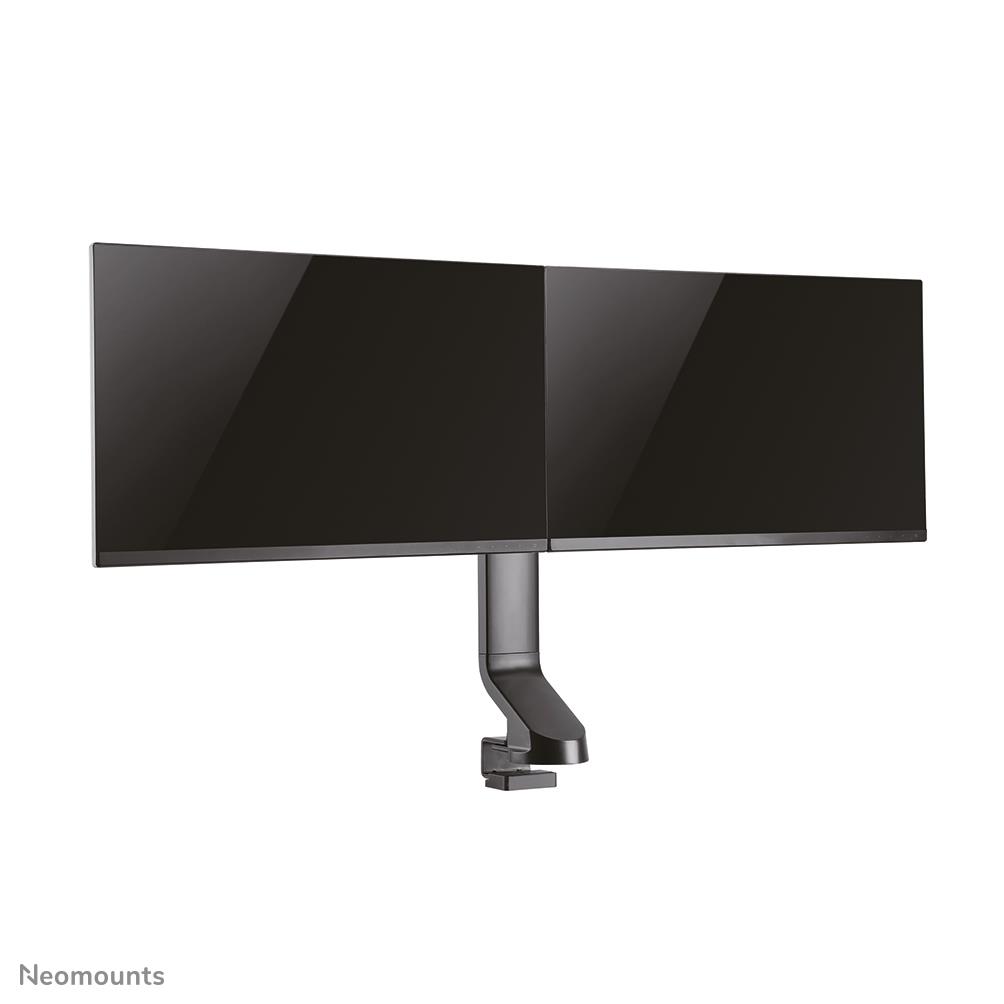

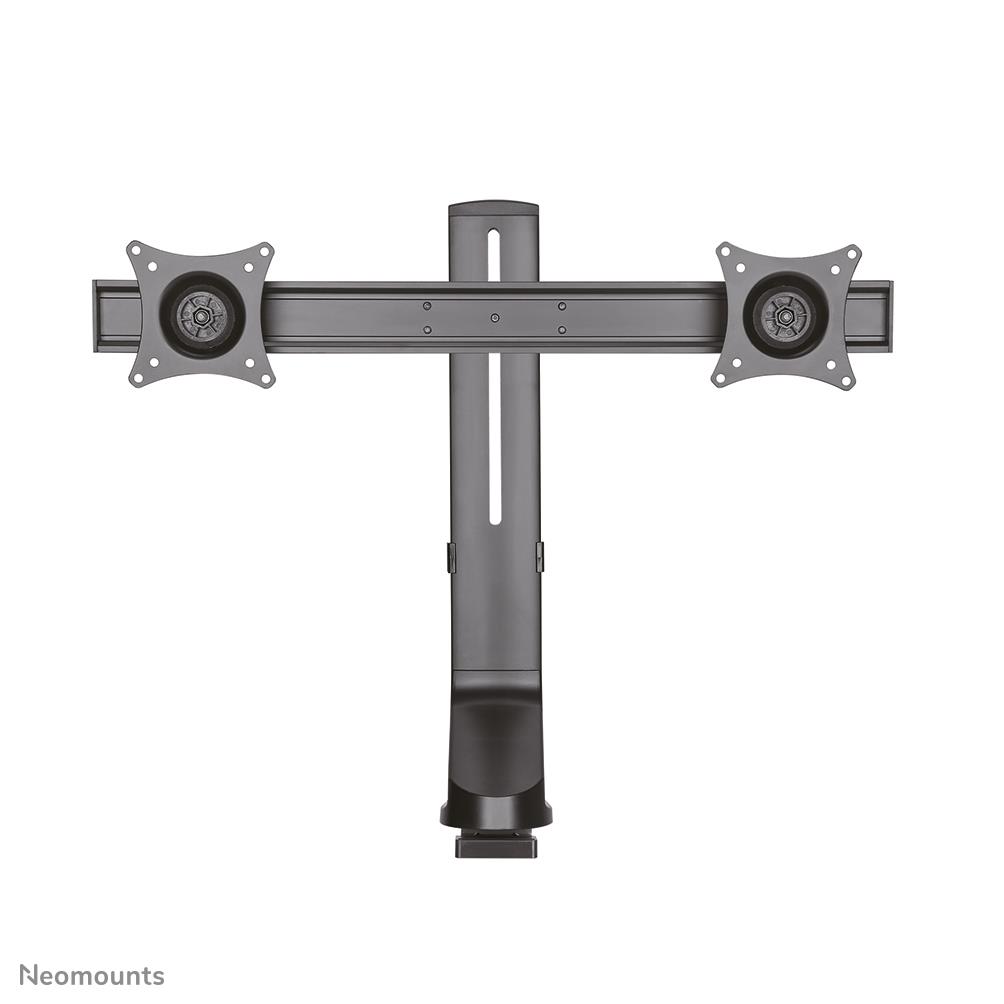

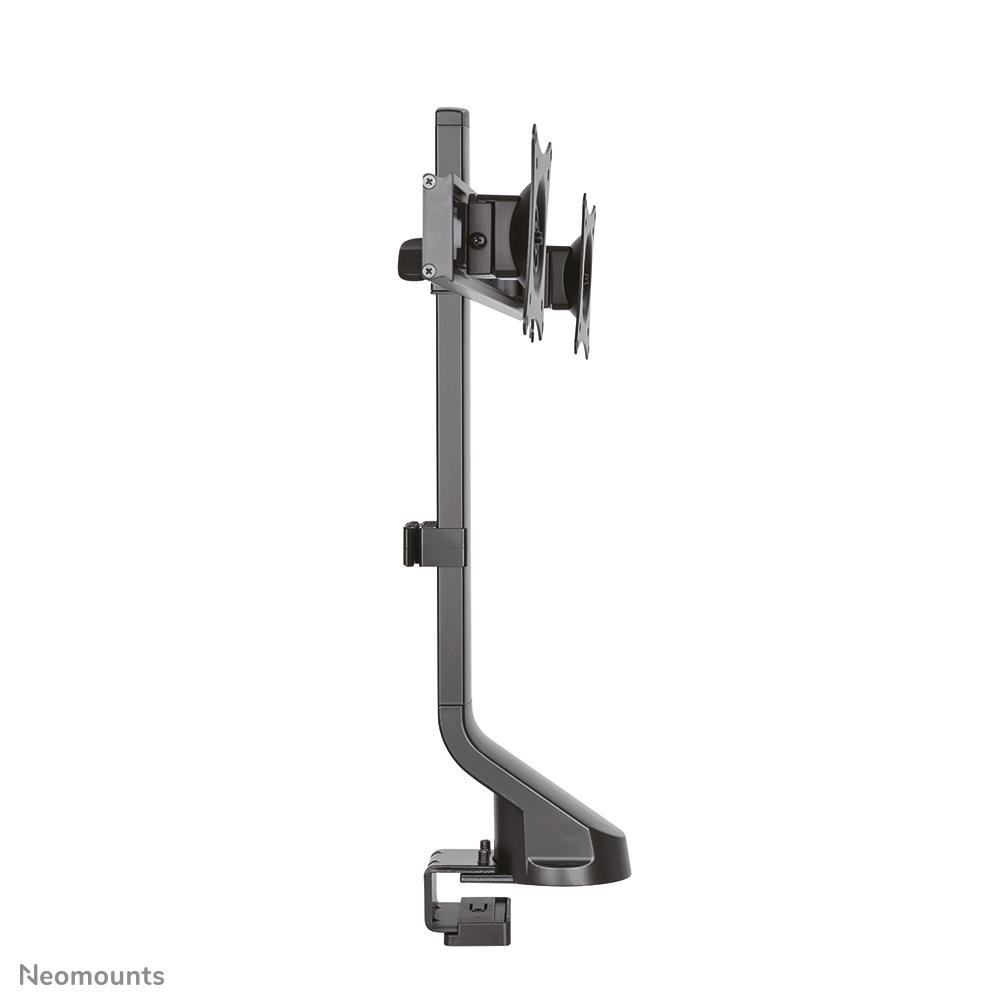

The Neomounts desk mount, model FPMA-D860DBLACK is a tilt-, swivel and rotatable desk mount for two flat screens up to 27". This mount is a great choice for space saving placement on desks.
Neomounts versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 24 to 47 centimetres. Depth 5 centimetres.
Neomounts FPMA-D860DBLACK has one pivot point and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 7 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
General
| Unit Calculated Weight | 3.7 kg |
| Unit Calculated Volume | 0.01062 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts FPMA-D860DBLACK Monitor arm 10-27". Mounting: Clamp/Grommet, Maximum weight capacity: 7 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -10 - 10°, Tilt angle range: -10 - 10°. Product colour: Black |
| Unit Box Height | 0.15 |
| Unit Box Length | 0.745 |
| Unit Box Width | 0.095 |
Mounting
| Desk thickness (max) | 25 mm |
| Maximum screen size | 27 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 7 kg |
| Maximum weight capacity (per display) | 7 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |

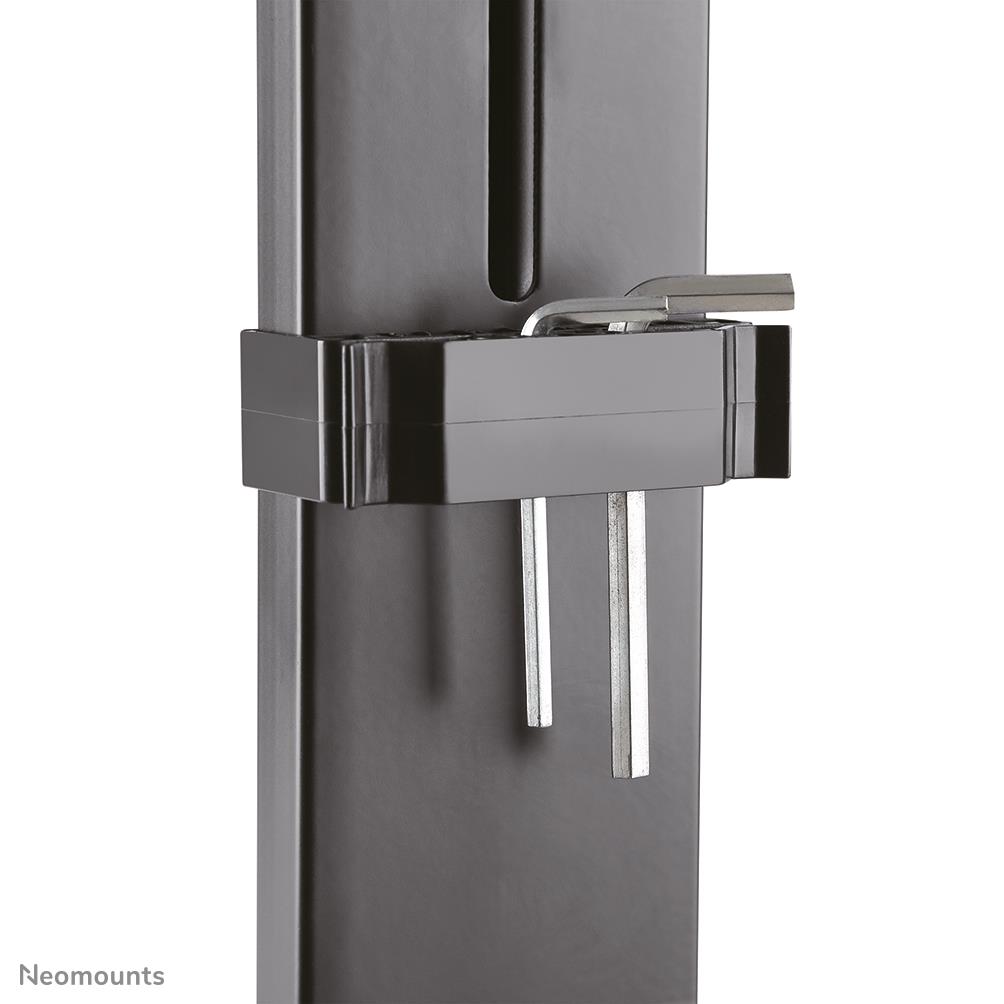

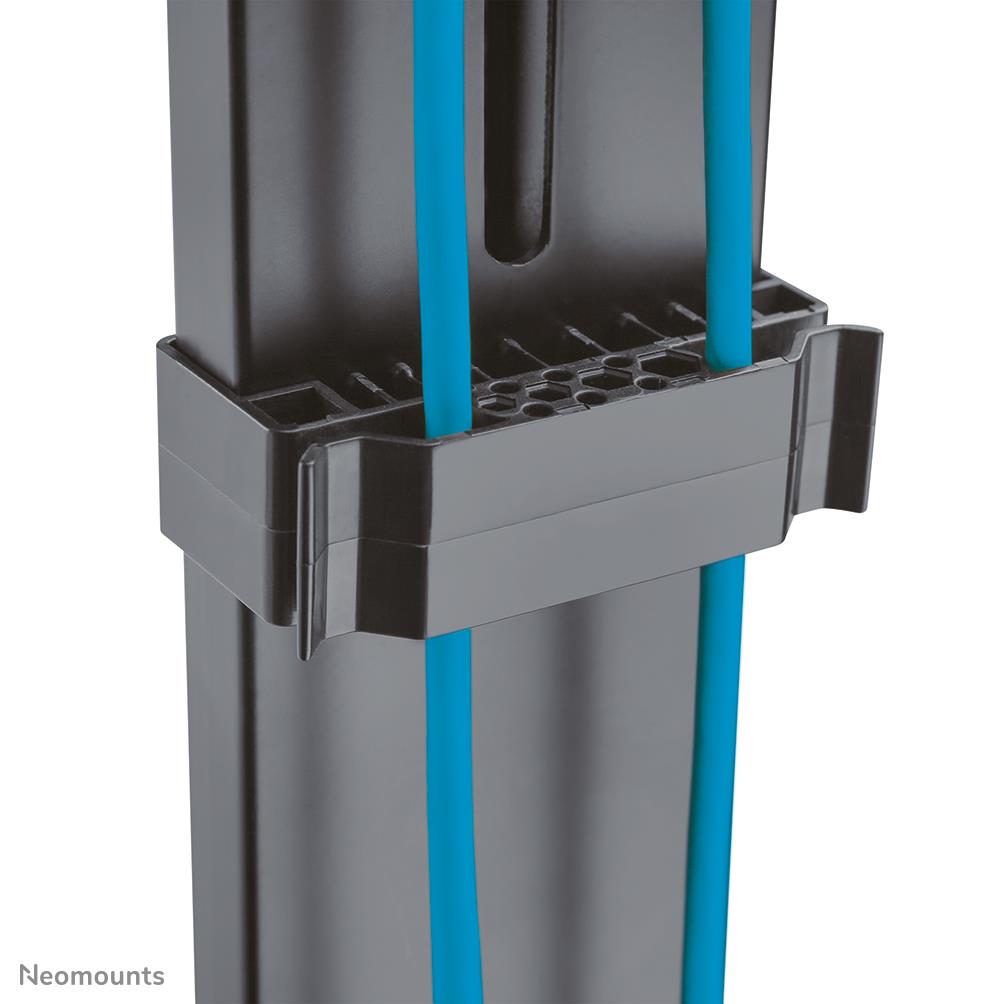

| Cable management | Yes |
| Depth adjustment range | 0 - 50 mm |
| Height adjustment | Yes |
| Height adjustment range | 240 - 470 mm |
| Height adjustment type | Manual |
| Number of pivot points | 1 |
| Pivot angle | -180 - 180 ° |
| Rotating | Yes |
| Swivel angle | 20 ° |
| Swivel angle range | -10 - 10 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 10 ° |
Design
| Housing material | Aluminium |
| Product colour | Black |
Weight & dimensions
| Depth | 50 mm |
| Height | 470 mm |
| Weight | 3210 g |
Packaging data
| Package depth | 90 mm |
| Package height | 745 mm |
| Package weight | 3800 g |
| Package width | 145 mm |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7616991099 |
| Master (outer) case gross weight | 12500 g |
| Master (outer) case height | 445 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case net weight | 10000 g |
| Master (outer) case width | 540 mm |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 88 pc(s) |
