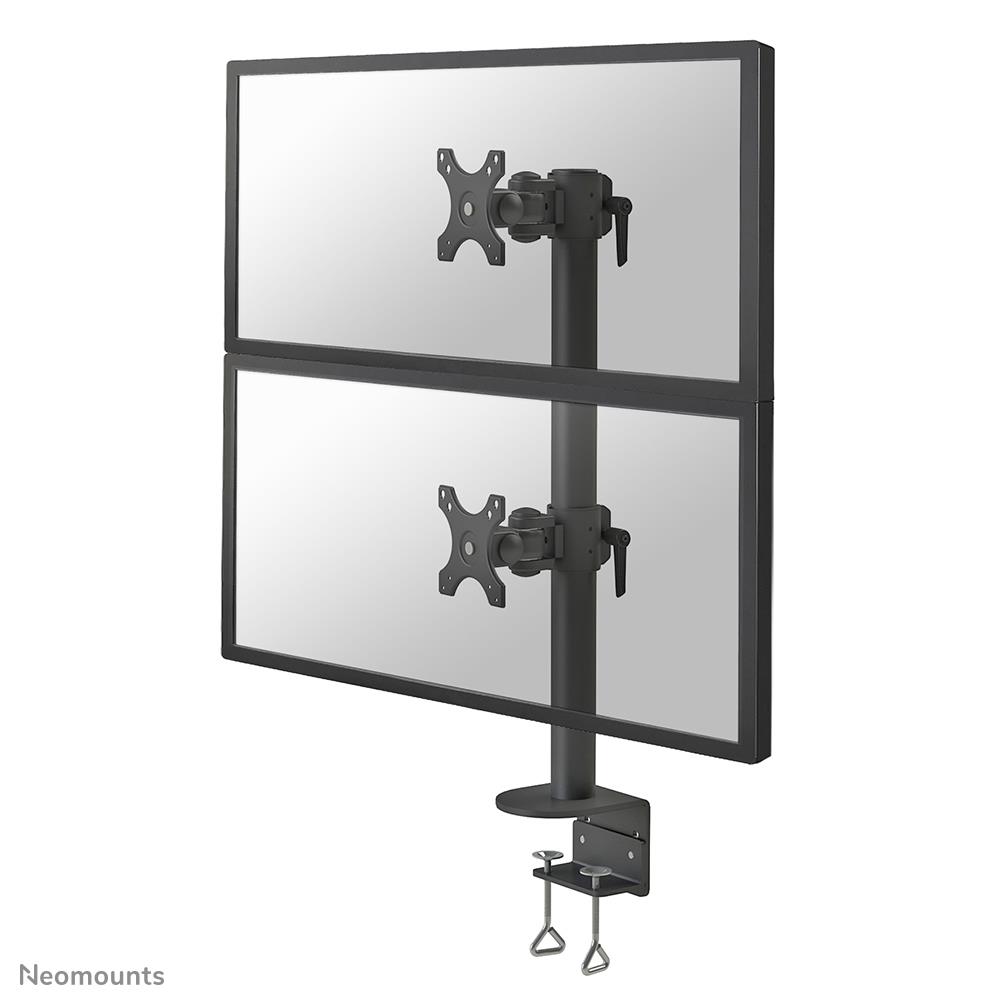

The Neomounts desk mount, model FPMA-D960DVBLACKPLUS is a tilt-, swivel and rotatable desk mount for two screens up to 49". This mount is a great choice for space saving placement on desks using a desk clamp.

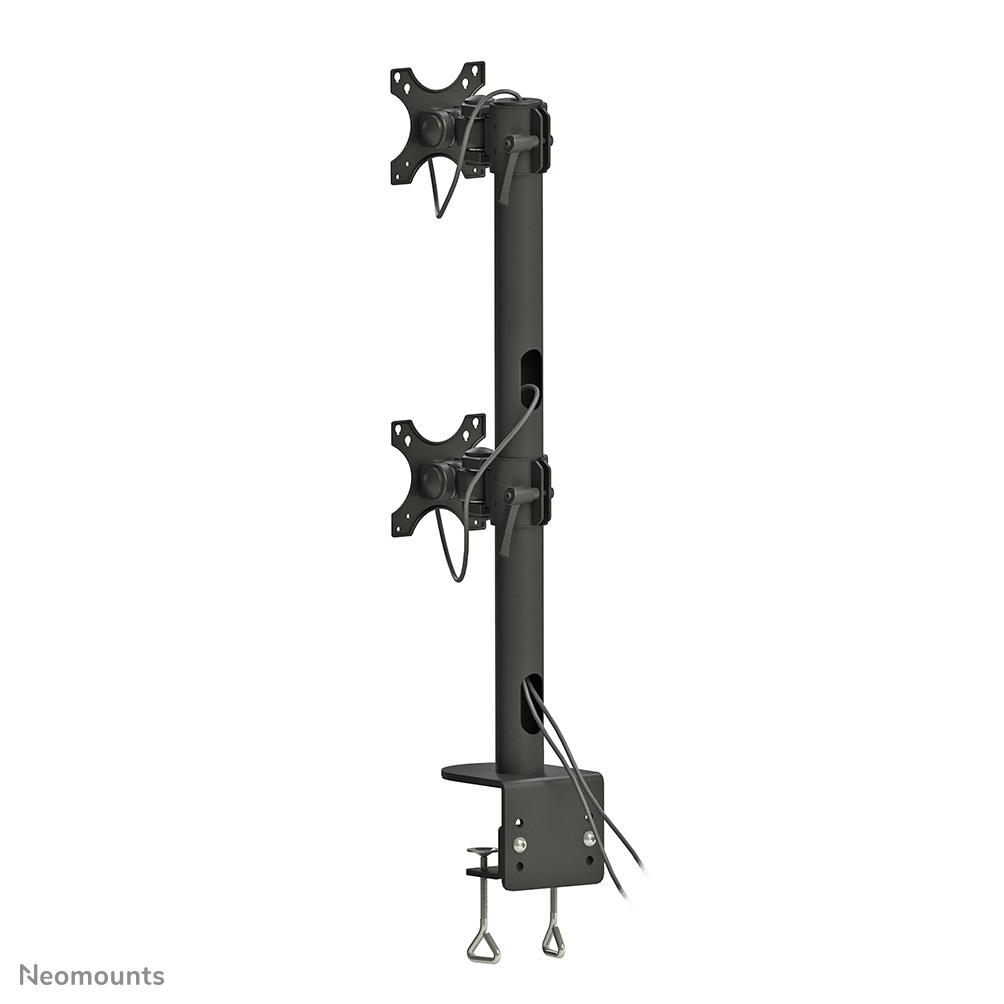

Neomounts versatile tilt (180°), rotate (180°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the curved screen. An innovative cable management conceals and routes cables from mount to curved screen. Hide your cables to keep the workplace nice and tidy.
The weight capacity of this product is 15 kg each screen. This monitor arm is therefore extremely suitable for widescreens and curved screens. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
General
| Unit Calculated Weight | 7.3 kg |
| Unit Calculated Volume | 0.02734 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts FPMA-D960DVBLACKPLUS Monitor arm 17-49" - vertical installation. Mounting: Clamp, Maximum weight capacity: 15 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 180°, Tilt angle range: 0 - 180°. Product colour: Black |
| CnCode | 83021000 |
| Unit Box Height | 0.155 |
| Unit Box Length | 0.84 |
| Unit Box Width | 0.21 |

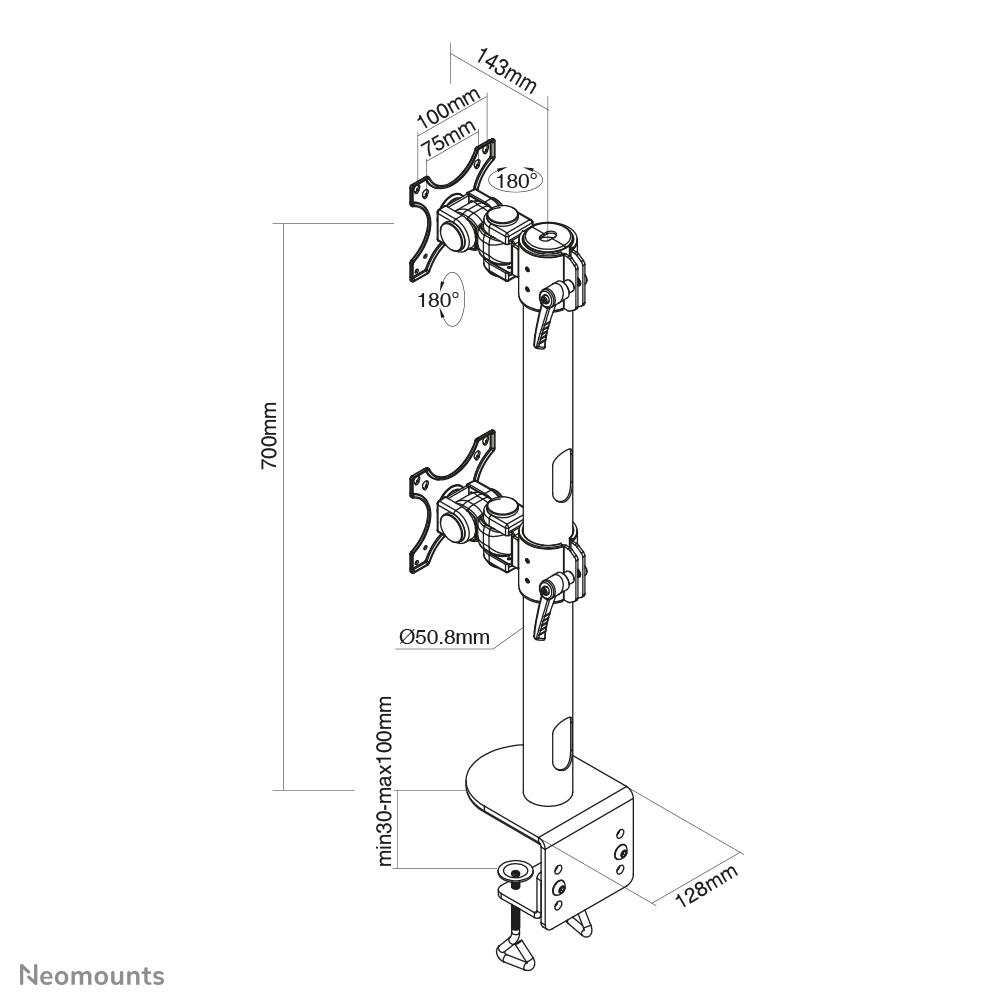

Mounting
| Desk thickness (max) | 100 mm |
| Desk thickness (min) | 30 mm |
| Maximum screen size | 49 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 15 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 13 kg |
| Maximum weight capacity (per display) | 15 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Suitable for TV | Yes |
Ergonomics
| Angle of rotation | 180 ° |
| Cable management | Yes |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 180 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 210 mm |
| Height | 66 mm |
| Weight | 6430 g |
| Width | 128 mm |
Packaging data
| Package depth | 840 mm |
| Package height | 165 mm |
| Package net weight | 7200 g |
| Package weight | 7200 g |
| Package width | 215 mm |
Logistics data
| Country of origin | Taiwan |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 15700 g |
| Master (outer) case height | 360 mm |
| Master (outer) case length | 860 mm |
| Master (outer) case net weight | 14500 g |
| Master (outer) case width | 235 mm |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 32 pc(s) |
