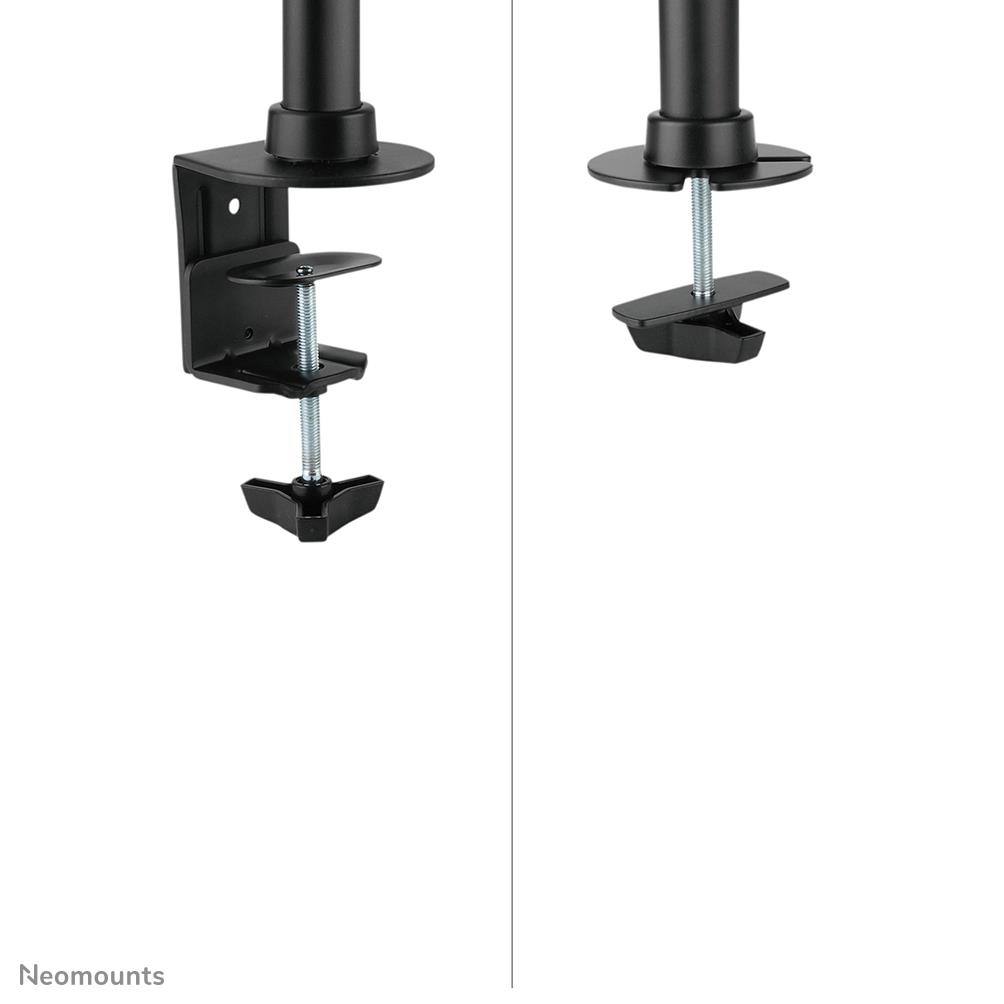

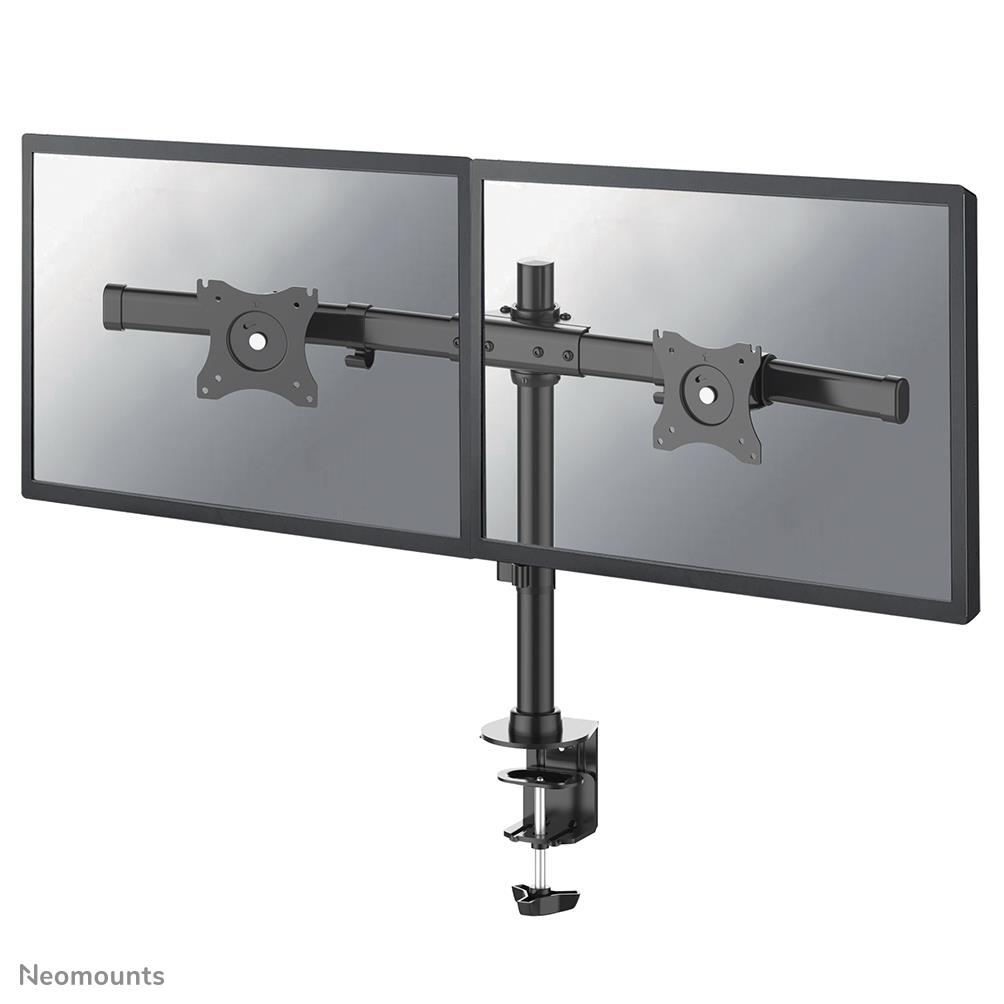

The Neomounts desk mount, model FPMA-DCB100DBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27". This dual crossbar mount is a great choice for space saving placement on desks using a desk clamp or desk grommet.
Neomounts versatile tilt (+45°/-45°), rotate (360°) and swivel (30°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 45 centimetres. The cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

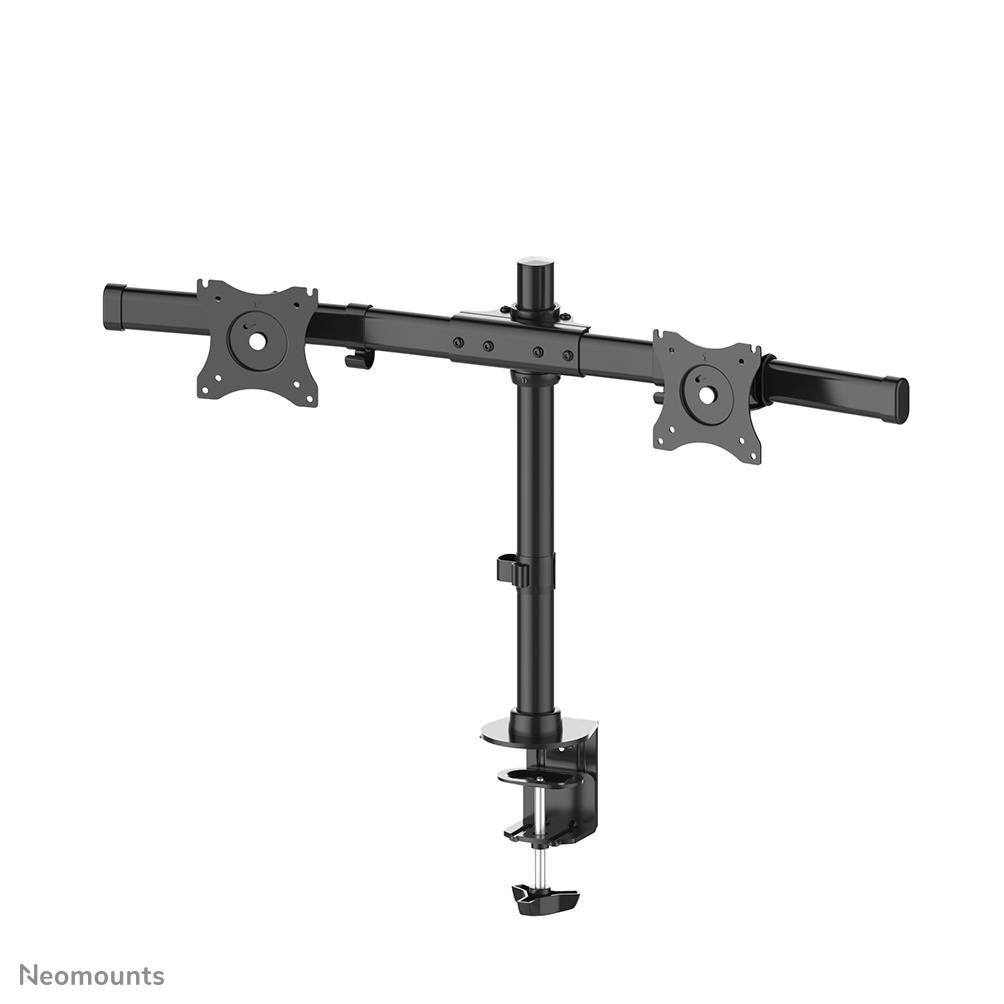

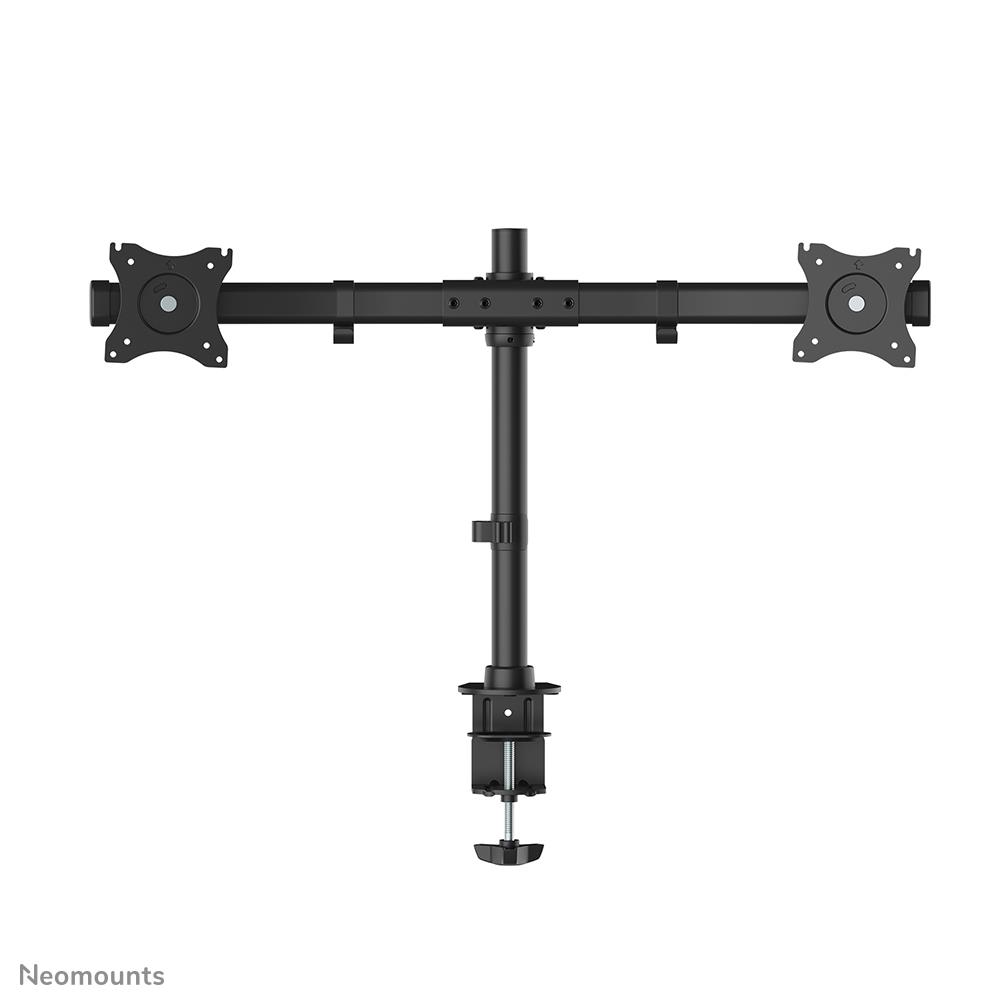

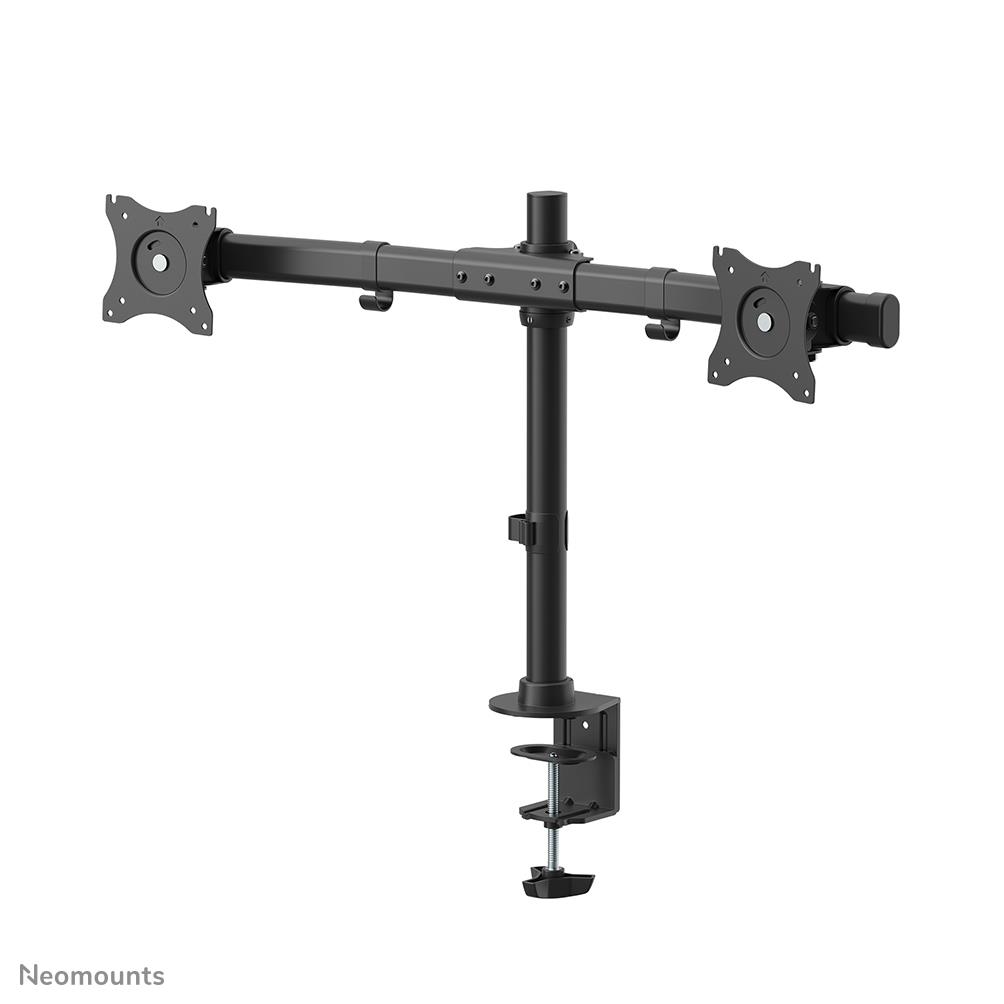

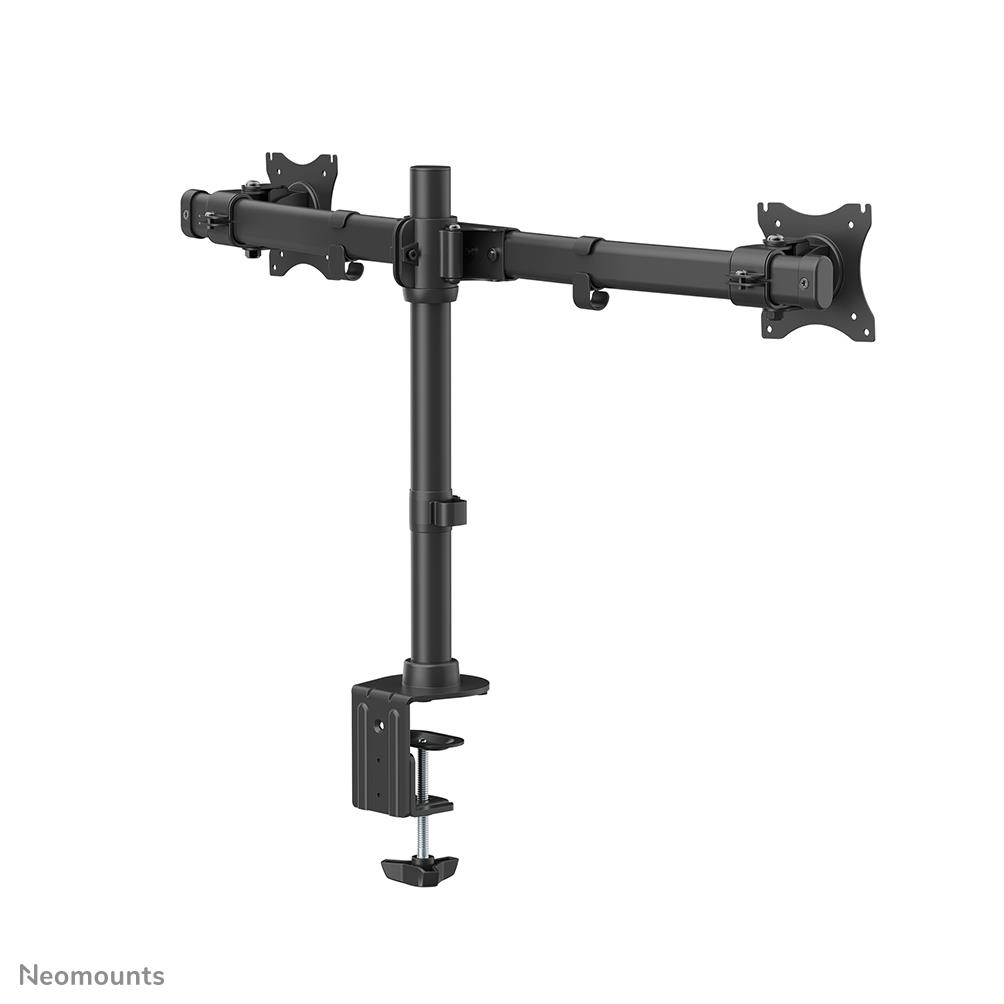

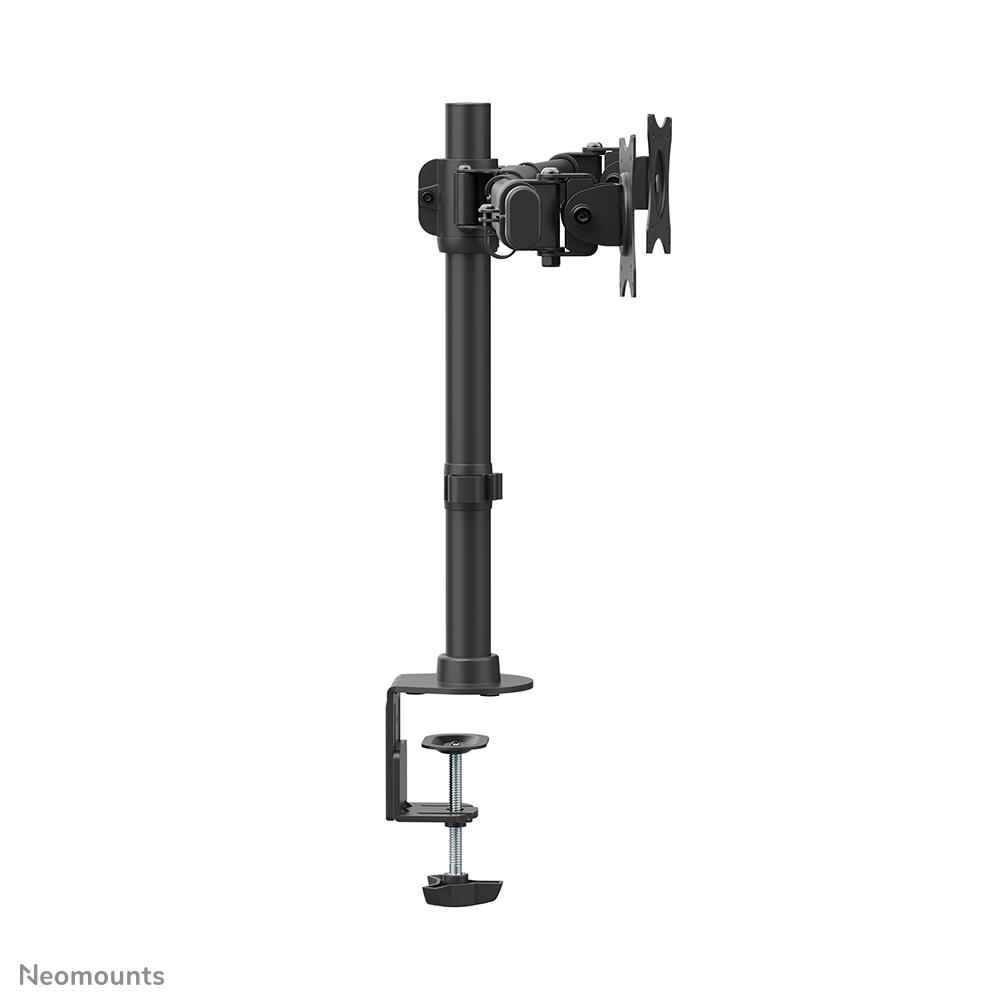

Neomounts FPMA-DCB100DBLACK has a crossbar with two monitor holders with one pivot point and is suitable for screens up to 27". The weight capacity of this product is 10 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates. The pole of the desk mount has a diameter of 35 mm.

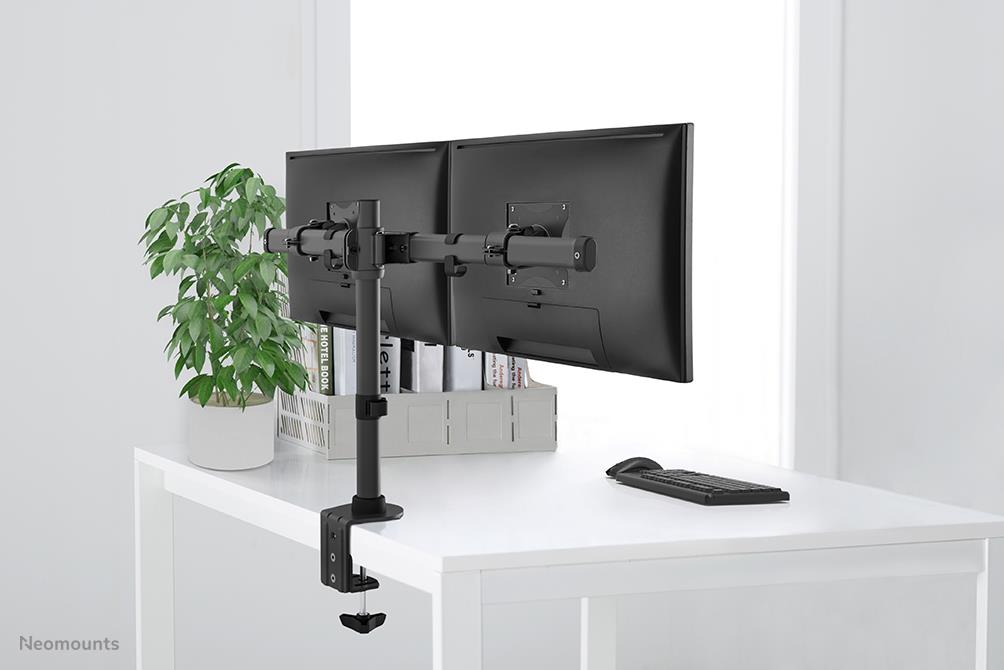

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. This mount is the ultimate save spacer on your desk.
All installation material is included with the product.
General
| Unit Calculated Weight | 4.93 kg |
| Unit Calculated Volume | 0.01061 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts FPMA-DCB100DBLACK Monitor arm 10-27". Mounting: Clamp/Grommet, Maximum weight capacity: 10 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -15 - 15°, Tilt angle range: -45 - 45°. Product colour: Black |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.52 |
| Unit Box Width | 0.17 |
Mounting
| Desk thickness (max) | 90 mm |
| Maximum screen size | 27 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 10 kg |
| Maximum weight capacity (per display) | 10 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |
| Depth adjustment range | 0 - 80 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 450 mm |
| Height adjustment type | Manual |
| Number of pivot points | 1 |
| Pivot angle | -180 - 180 ° |
| Rotating | Yes |
| Swivel angle | 30 ° |
| Swivel angle range | -15 - 15 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 80 mm |
| Height | 450 mm |
| Weight | 4030 g |
Packaging data
| Package depth | 120 mm |
| Package height | 512 mm |
| Package weight | 5300 g |
| Package width | 166 mm |
Logistics data
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 21100 g |
| Master (outer) case height | 525 mm |
| Master (outer) case length | 255 mm |
| Master (outer) case net weight | 16500 g |
| Master (outer) case width | 345 mm |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 100 pc(s) |
