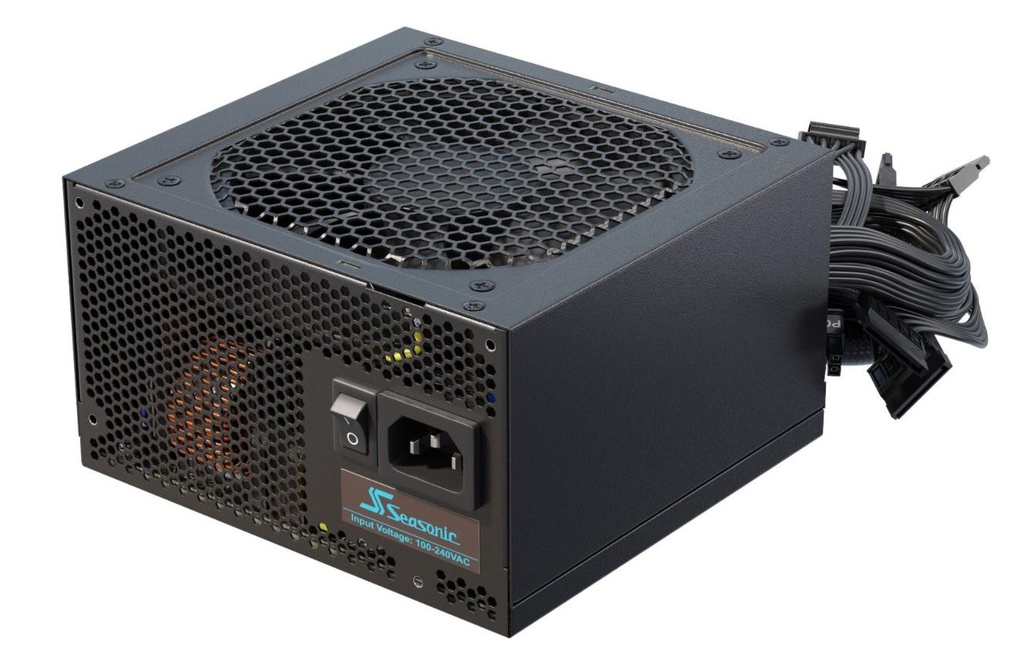

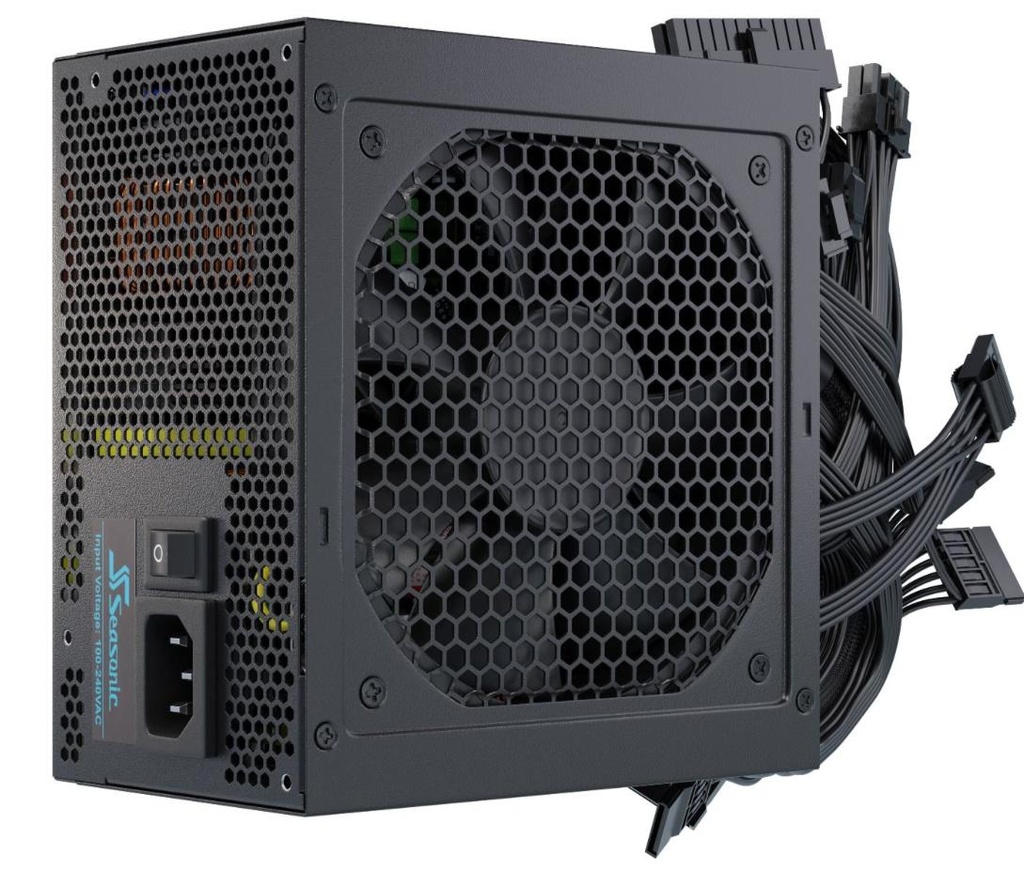

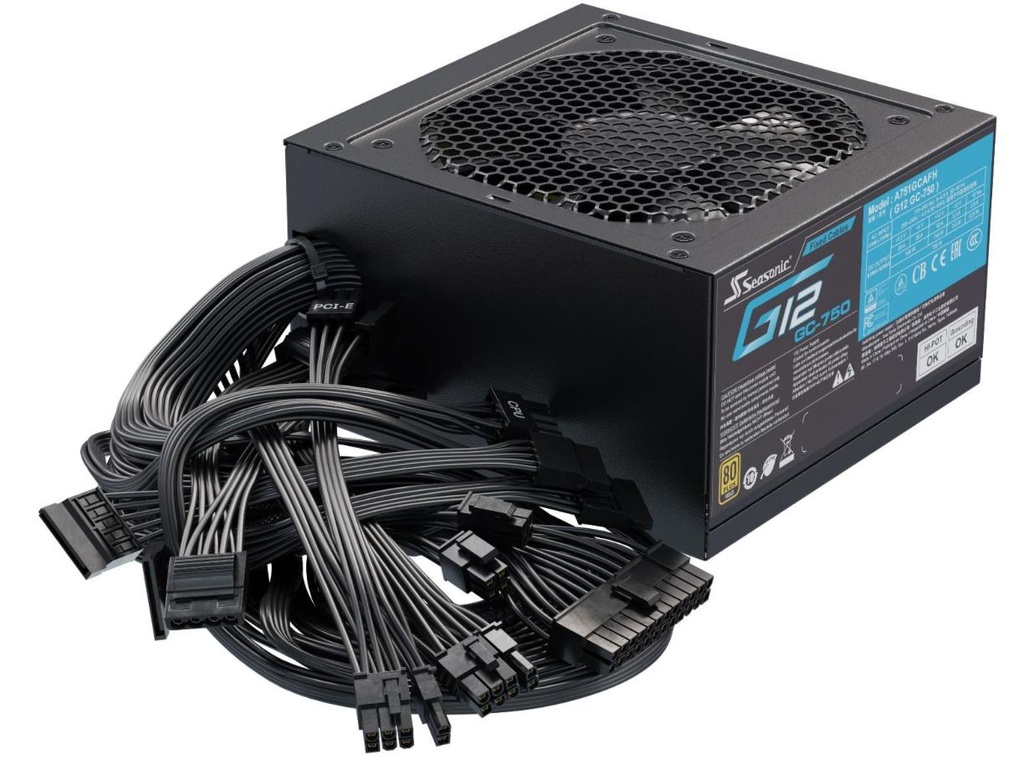

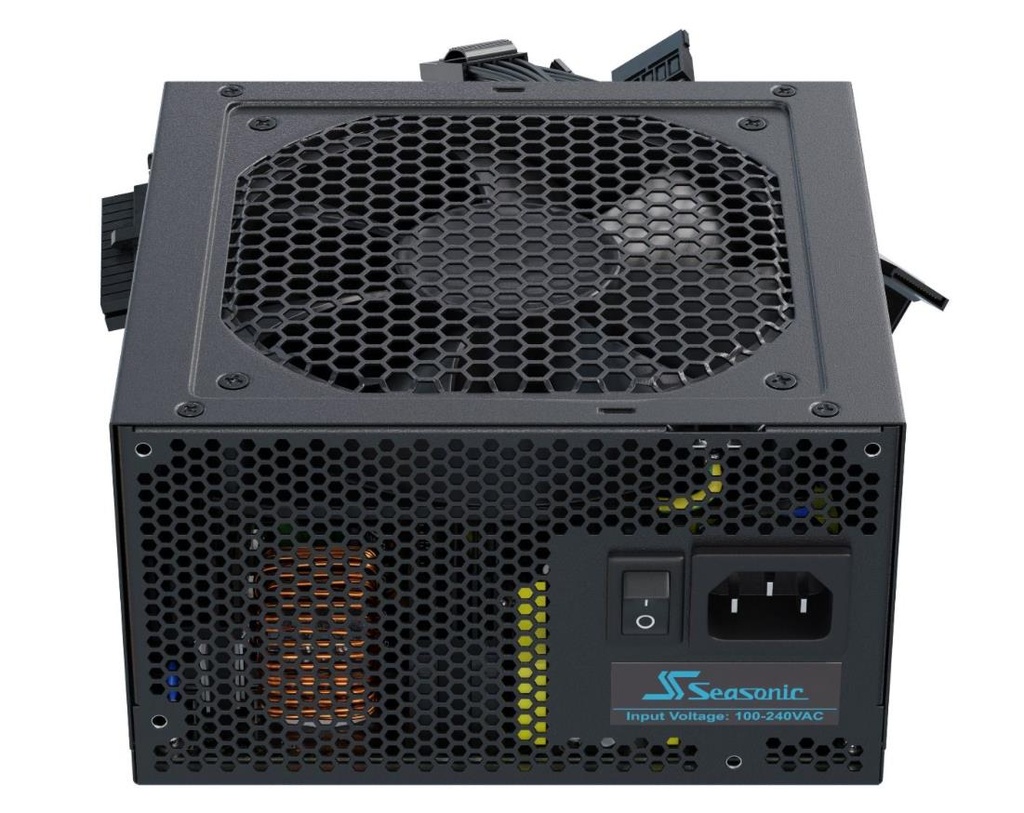

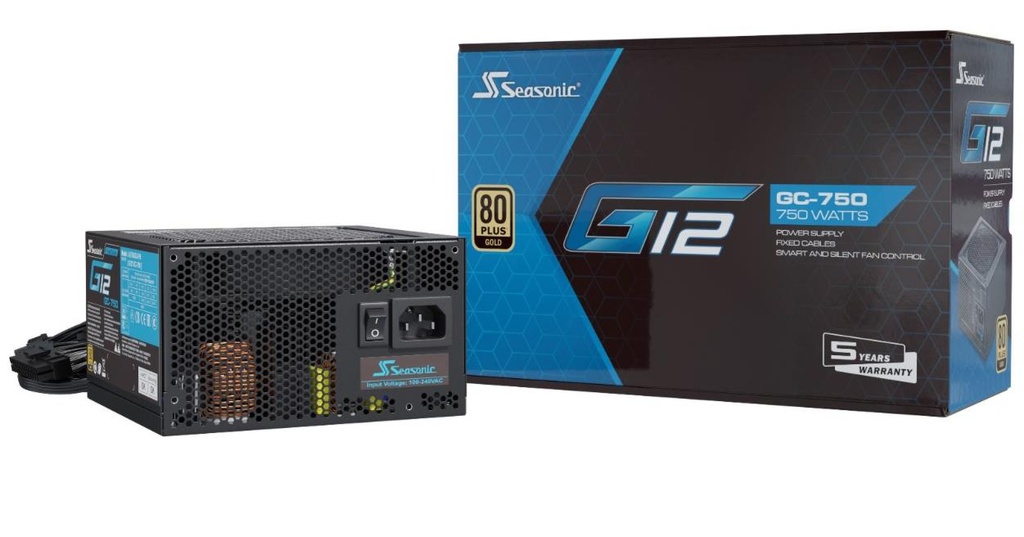

SEASONIC ATX PC 100 - 240 V 750 W G12GC-750
General
| Unit Calculated Weight | 2.68 kg |
| Unit Calculated Volume | 0.007812 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Unit Box Height | 0.185 |
| Unit Box Length | 0.275 |
| Unit Box Width | 0.12 |
Power
| AC input voltage | 100 - 240 V |
| Combined power (+12V) | 744 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Input current | 10 A |
| Max output current (+12V) | 62 A |
| Max output current (+3.3V) | 15 A |
| Max output current (+5V) | 15 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power Factor Correction (PFC) type | Active |
| Total power | 750 W |
Ports & interfaces
| Cabling type | Non-Modular |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express connector | Yes |
| PCI Express power cable length | 700 mm |
| PCI Express power connectors (6-pin) | 2 |
| PCI Express power connectors (8-pin) | 2 |
| Peripheral (Molex) power cable length | 690 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 690 mm |
Performance
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | Sleeve |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Silent mode | Yes |
| Supported motherboard form factors | ATX |
Design
| Fan diameter | 120 mm |
| Product colour | Black |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
Certificates
| Certification | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
Safety regulation & standards
| Safety | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
Weight & dimensions
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
Logistics data
| Harmonized System (HS) code | 84733020 |
