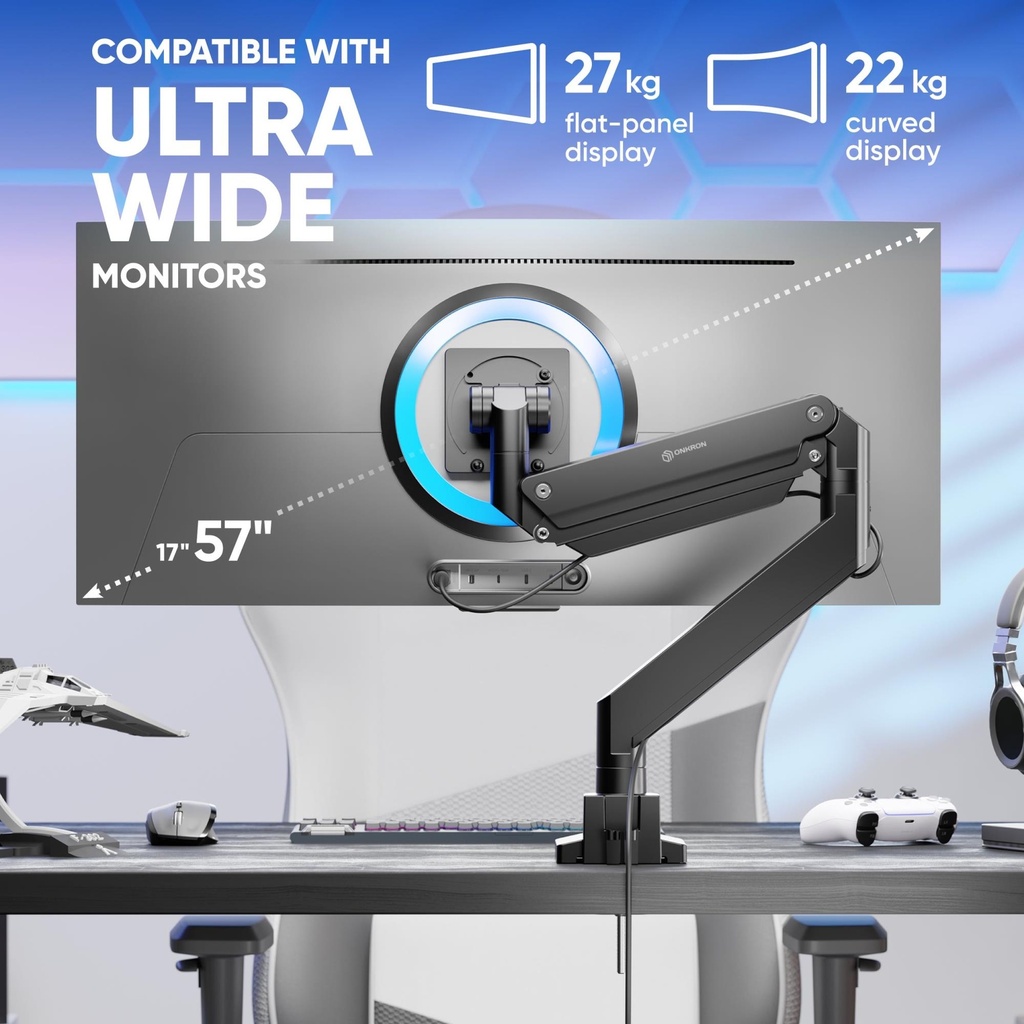

- For screens 17"-57"
- Load capacity (flat screen): 2-27 kg
- Load capacity (curved screen): 2-22 kg

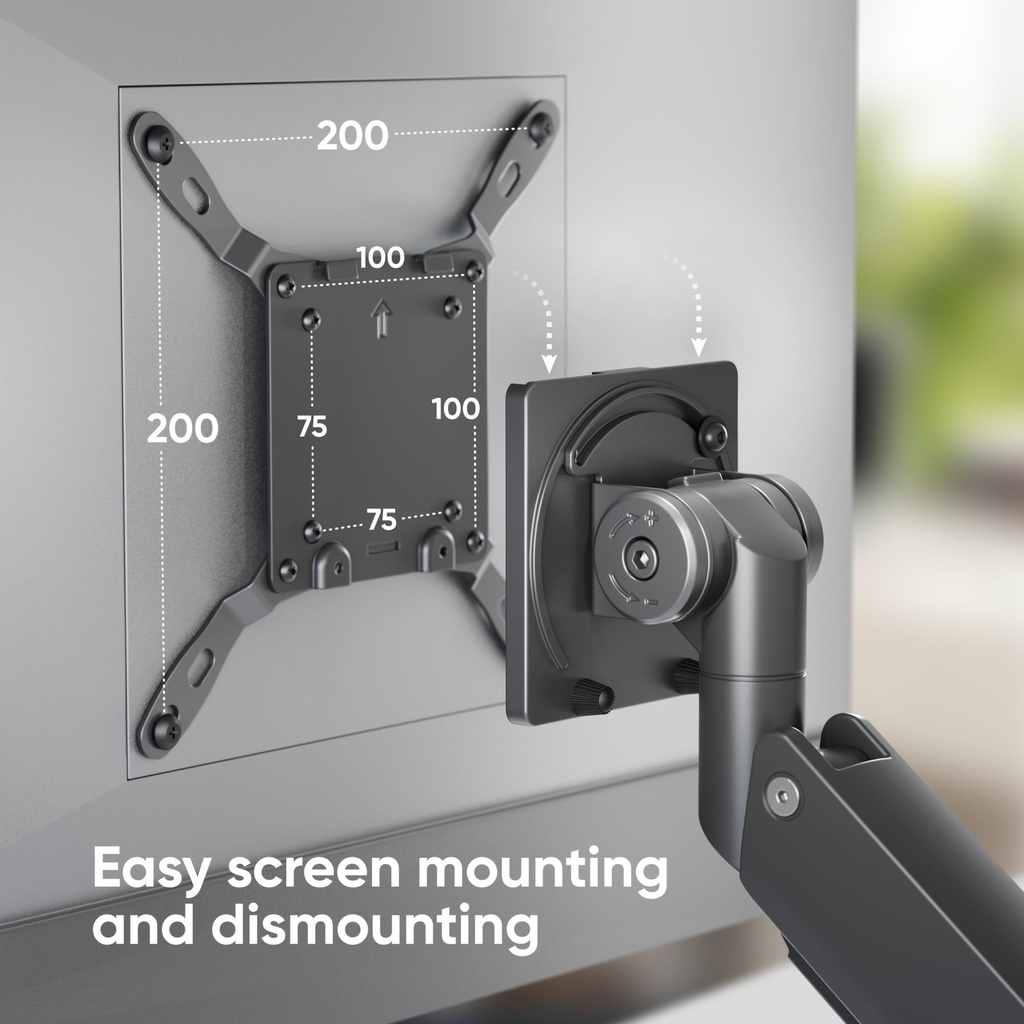

- VESA: 75x75, 100x100, 100x200, 200x100, 200x200 mm

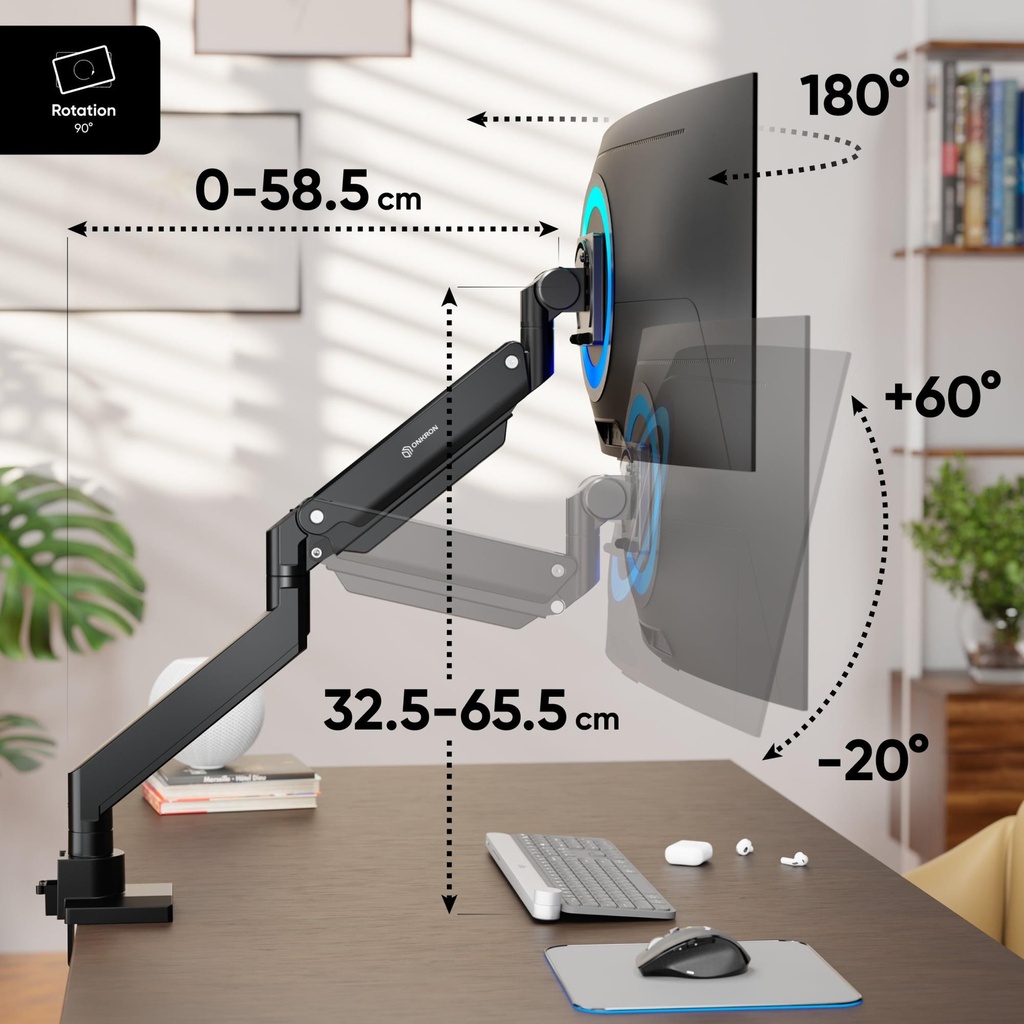

- Tilt: +60° ~ -20°
- Swivel: 180°
- VESA rotation: 180°
- Extension: 0-585 mm
- Vertical adjustment: 325-655 mm
- Portrait/Landscape orientation
- Installation: desk edge clamp or through desk
- Materials: Steel, Aluminium, Plastic
General
| Unit Calculated Weight | 6.1 kg |
| Unit Calculated Volume | 0.01656 cubm |
| Units per Shipping Box | 3 |
| Units per Pallet | 0 |
| Summary | ONKRON G130-B. Mounting: Clamp/Grommet, Maximum weight capacity: 27 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 144.8 cm (57"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 200 mm. Height adjustment, Tilt angle range: -20 - 60°. Product colour: Black |
| CnCode | 83021000 |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.44 |
| Unit Box Width | 0.25 |
| Model | G130 |
Mounting
| Maximum screen size | 57 " |
| Maximum VESA mount | 200 x 200 mm |
| Maximum weight capacity | 27 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 22 kg |
| Maximum weight capacity (per display) | 27 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 200/200 x 100/200 x 200/75 x 75 mm |
Ergonomics
| Angle of rotation | 180 ° |
| Height adjustment | Yes |
| Height adjustment range | 325 - 655 mm |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -20 - 60 ° |
Design
| Housing material | Aluminium/Plastic/Steel |
| Orientation | Landscape/Portrait |
| Product colour | Black |
Packaging data
| Package depth | 255 mm |
| Package height | 130 mm |
| Package weight | 5900 g |
| Package width | 440 mm |
| Quantity per pack | 1 pc(s) |
