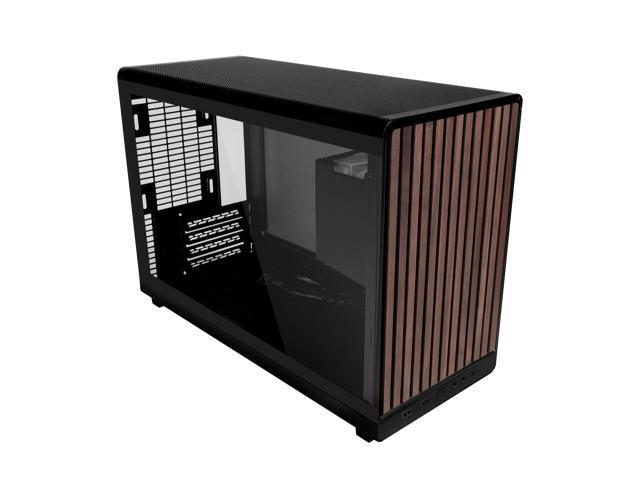

A3-mATX
- Minimalistic sleek design 26.3L micro form factor chassis
- Side and top panels are designed with steel mesh
- Accommodates M-ATX and ITX motherboard with 4 slots 415mm large GPU
- Supports up to 360 radiator and 10 x 120mm fans
- Supports ATX/SFX/SFX-L and LIAN LI Edge PSU that can be mounted sideways or frontways
- In collaboration with DAN Cases for the case design whereas manufactured and sold by LIAN LI.
General
| Unit Calculated Weight | 6 kg |
| Unit Calculated Volume | 0.0547 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Model | A3-mATX-WDG BLACK |
| Unit Box Height | 0.39 |
| Unit Box Length | 0.51 |
| Unit Box Width | 0.275 |
| Model name | A3X-WDG |
Design
| Anti-dust filter | Yes |
| Form factor | Micro Tower |
| Material | Steel |
| Number of expansion slots | 4 |
| Product colour | Black |
| Supported motherboard form factors | micro ATX/Mini-ITX |
Power supply
| Power supply included | No |
Ports & interfaces
| Audio output | Yes |
| USB 3.0 | 2 |
| USB Type-C ports quantity | 1 |
Cooling
| Bottom fans diameters supported | 120 mm |
| Bottom radiator sizes supported | 240 mm |
| Rear fans diameters supported | 120 mm |
| Side fans diameters supported | 120/140 mm |
| Side radiator sizes supported | 240/280/360 mm |
| Top fans diameters supported | 120 mm |
| Top radiator sizes supported | 240/360 mm |
Weight & dimensions
| Depth | 443 mm |
| Height | 321.5 mm |
| Weight | 5 g |
| Width | 194 mm |
