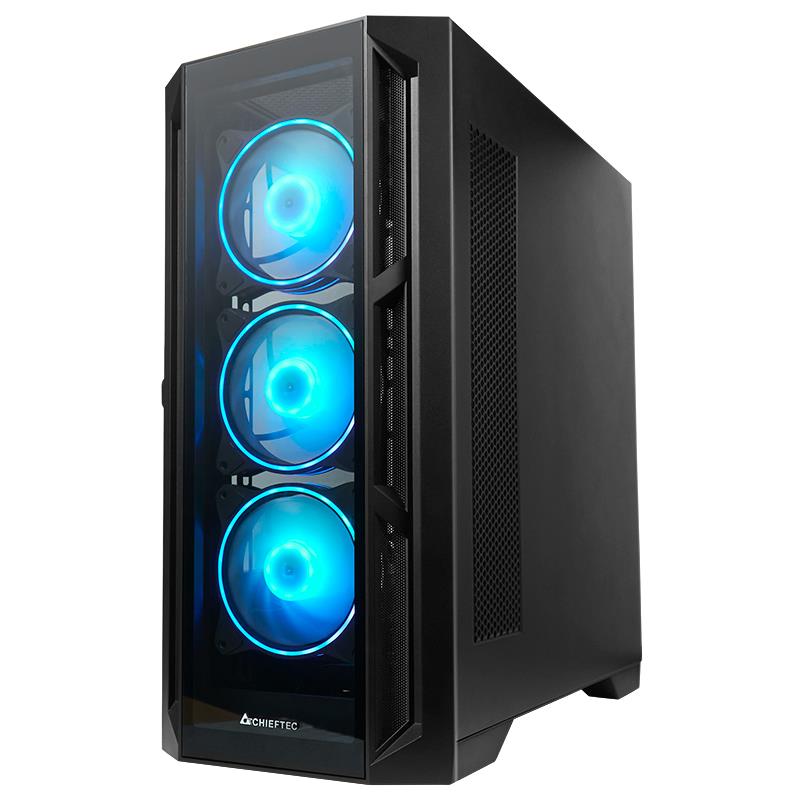

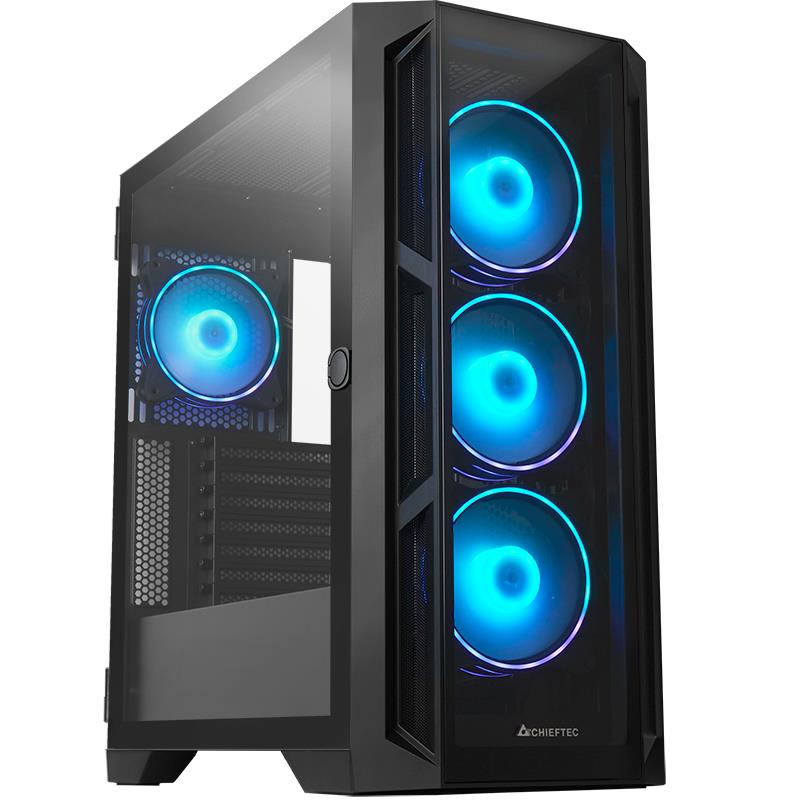

The CHIEFTEC APEX presents an E-ATX chassis with full clean tempered glass on the front and side panels, including four pre-installed 120mm ARGB fans that provide impressive style and cooling.
APEX with 4 pre-installed rainbow ARGB fans connected to a control hub that allows for ARGB M/B sync and fan speed control.
The case is generous with space, offering support for GPUs up to 400 mm in length, CPU coolers up to 175mm in height, and radiator support up to 360mm on the top and up to 420mm on the front.
CHIEFTEC APEX AIR is ready to bring more airflow and better cooling to modern gaming systems.
- A-RGB control hub with M/B sync and fan speed control
- Front & Side panel made of TEMPERED GLASS

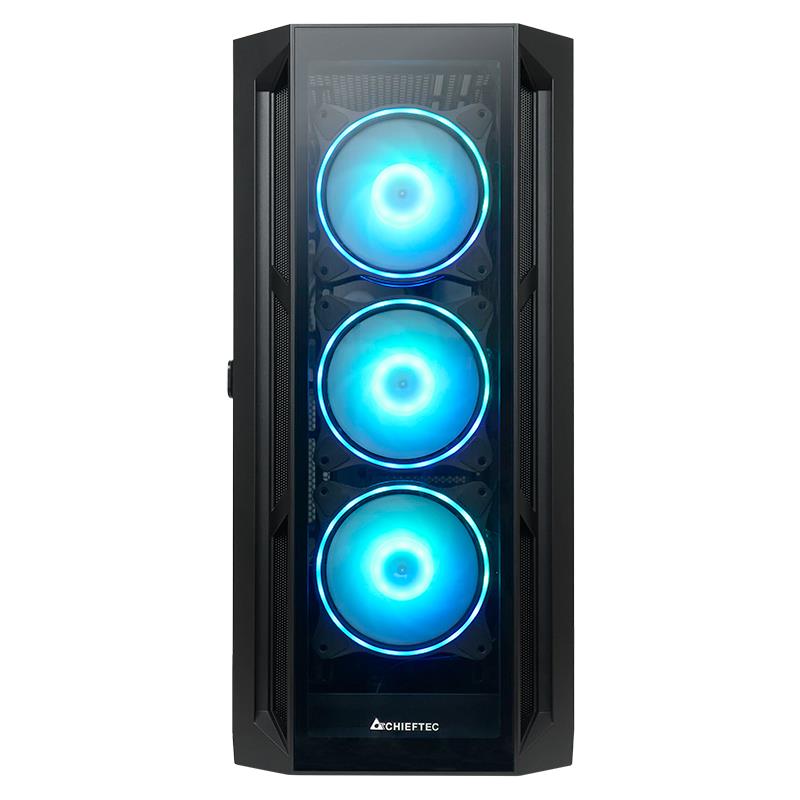

- 4x 120mm A-RGB fans pre-installed
General
| Unit Calculated Weight | 9.2 kg |
| Unit Calculated Volume | 0.09003 cubm |
| Units per Shipping Box | 1 |
| Model | GA-01B-TG-OP |
| Summary | Chieftec APEX GA-01B-TG-OP ATX. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 230 mm, Depth: 465 mm, Height: 495 mm |
| Unit Box Height | 0.545 |
| Unit Box Length | 0.56 |
| Unit Box Width | 0.295 |
| Model name | APEX ARGB |
Design

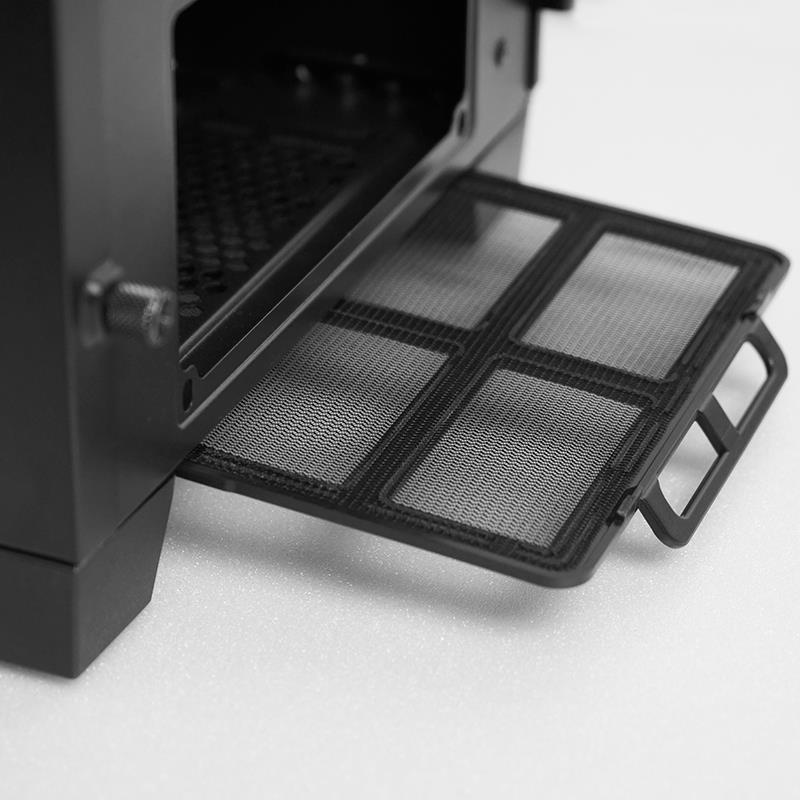

| Anti-dust filter | Yes |

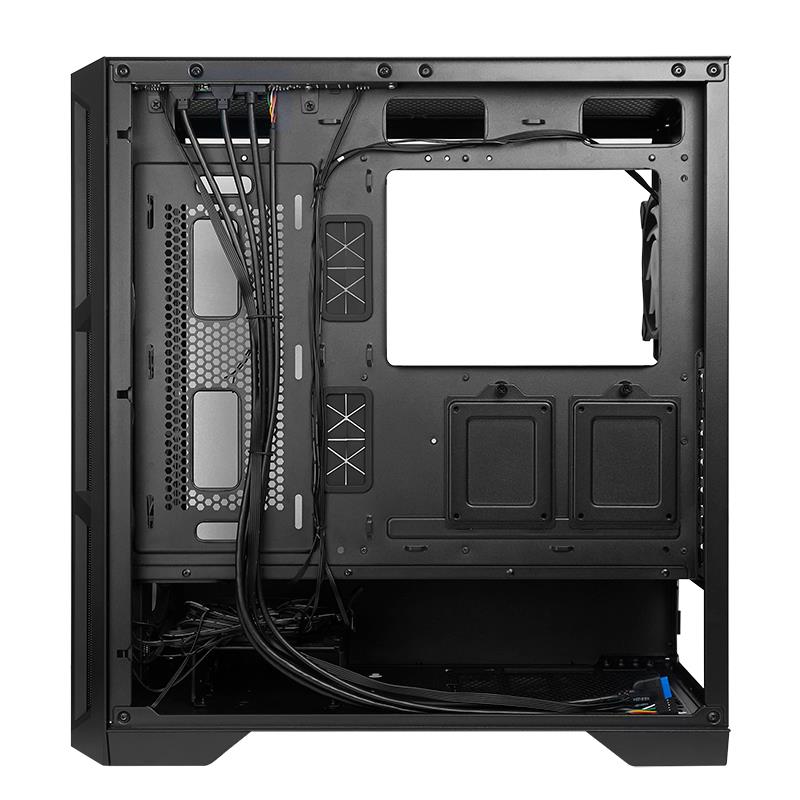

| Cable management | Yes |
| Form factor | Midi Tower |
| Full-Height expansion slots | 7 |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| Material | SPCC |
| Maximum CPU cooler height | 175 mm |
| Maximum graphics card length | 400 mm |
| Maximum PSU length | 220 mm |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 2 |
| Number of expansion slots | 7 |
| Number of internal 3.5" bays | 2 |
| Number of storage drives supported | 5 |
| On/off button | Yes |
| Product colour | Black |
| Reset button | Yes |
| RGB control button | Yes |
| Side window | Yes |
| Suitable for | Gaming |
| Supported motherboard form factors | ATX/EATX/ITX/micro ATX/Mini-ITX |
| Tempered glass panel(s) | Yes |
| Type | PC |
Power supply
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Audio input | Yes |
| Audio output | Yes |
| USB 3.0 | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C ports quantity | 1 |
Cooling
| Bottom fans diameters supported | 120 mm |
| Fan speed control | Yes |
| Front fans diameters supported | 120/140 mm |
| Front fans installed | 3x 120 mm |
| Front radiator sizes supported | 240/280/360/420 mm |
| Liquid cooling capability | Yes |
| Liquid cooling installed | No |
| Number of bottom fans supported (max) | 2 |
| Number of front fans supported (max) | 3 |
| Number of rear fans supported (max) | 1 |
| Number of side fans supported (max) | 2 |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120/140 mm |
| Rear fans installed | 1x 120 mm |
| Side radiator sizes supported | 240 mm |
| Top fans diameters supported | 120/140 mm |
| Top radiator sizes supported | 240/280/360 mm |
Storage
| Supported HDD sizes | 2.5/3.5 " |
Weight & dimensions
| Depth | 465 mm |
| Height | 495 mm |
| Material thickness | 0.6 mm |
| Weight | 8000 g |
| Width | 230 mm |
Packaging data
| LED controller | Yes |
| Package weight | 9500 g |
