With the PowerUp series, Chieftec aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.
- 80 PLUS® Gold certified efficiency
- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
General
| Unit Calculated Weight | 2.95 kg |
| Unit Calculated Volume | 0.01039 cubm |
| Units per Shipping Box | 4 |
| Units per Pallet | 0 |
| Summary | Chieftec PowerUp GPX-850FC. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 500,650,800 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA |
| Unit Box Height | 0.22 |
| Unit Box Length | 0.305 |
| Unit Box Width | 0.125 |
Power
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (+12V) | 846 W |
| Combined power (+3.3V) | 110 W |
| Combined power (+5V) | 110 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Input current | 12 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over power/Over voltage/Short circuit/Under voltage |
| Total power | 850 W |
Ports & interfaces
| ATX power connector (20+4 pin) | Yes |

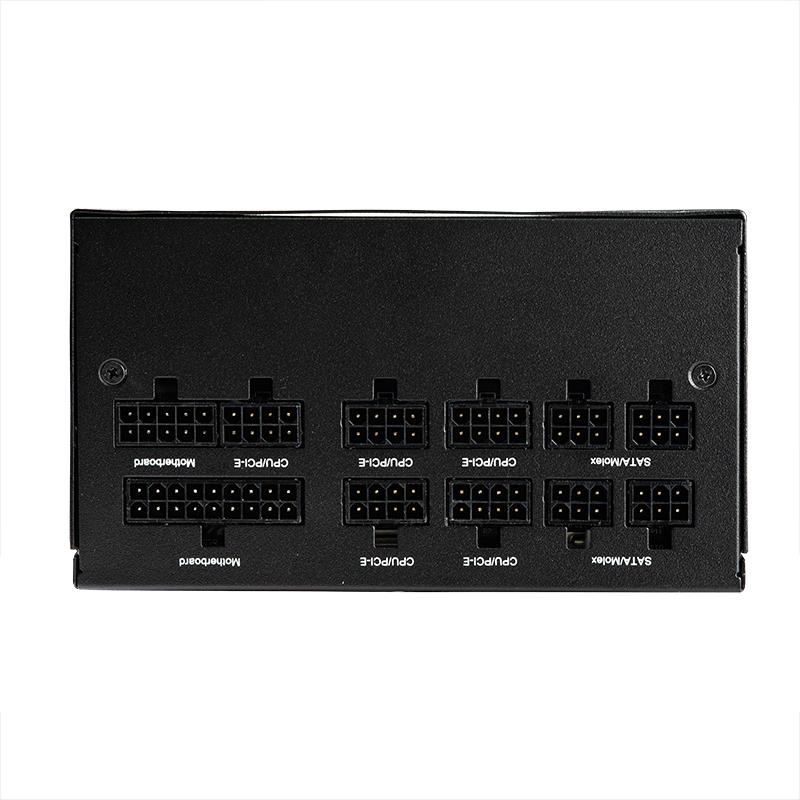

| Cabling type | Fully-Modular |
| CPU power cable length | 800 mm |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 650 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 9 |
| PCI Express power cable length | 650 mm |
| PCI Express power connectors (6+2 pin) | 6 |
| Peripheral (Molex) power cable length | 500/650/800/950 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 500/650/800 mm |
Performance
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.53 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design

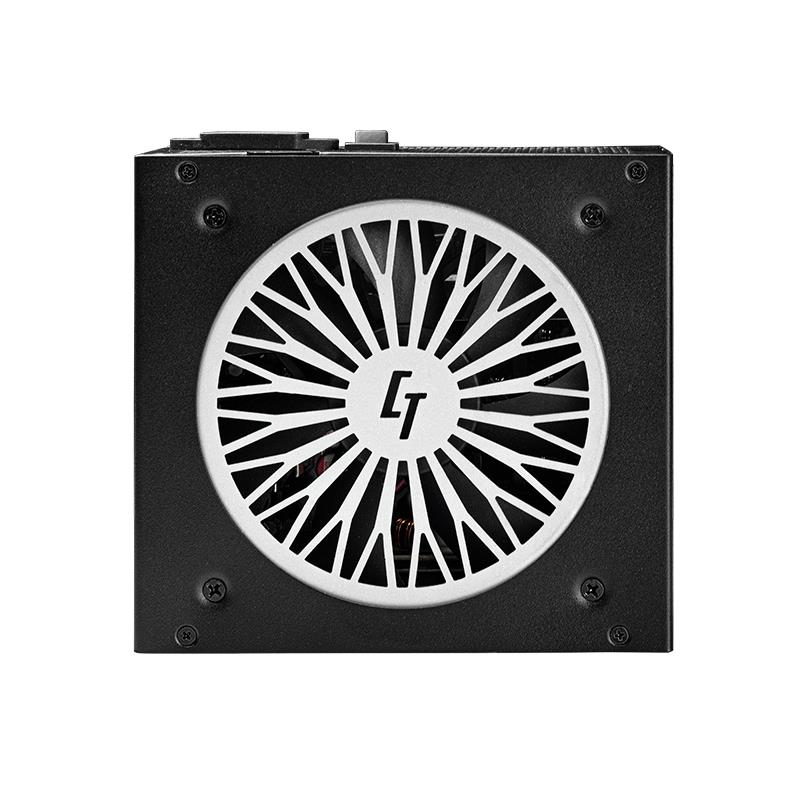

| Fan diameter | 120 mm |
| Fan location | Top |
| Number of fans | 1 fan(s) |

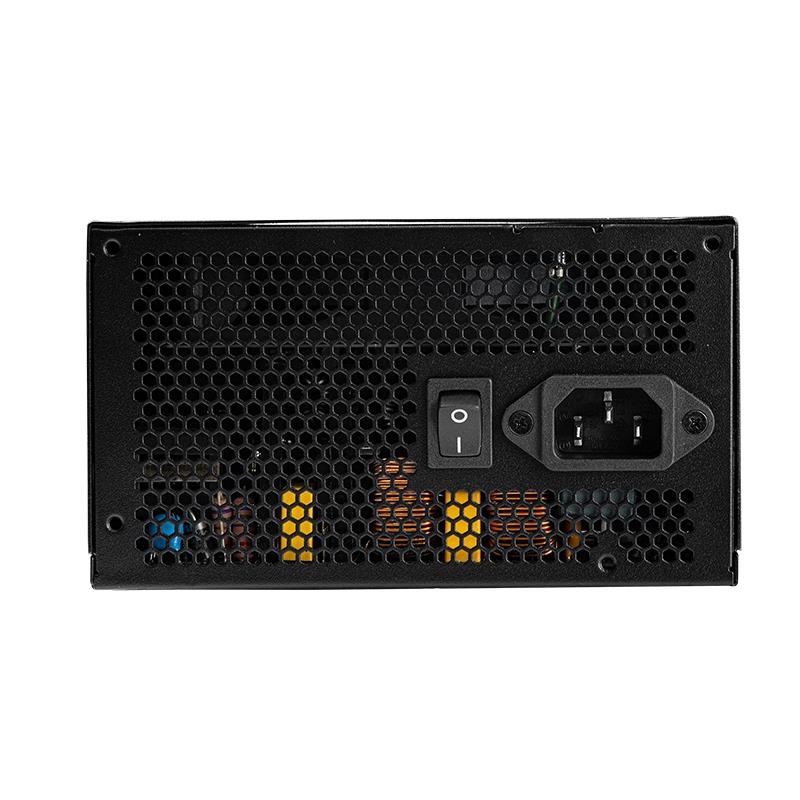

| On/off switch | Yes |
| Product colour | Black |
Packaging content

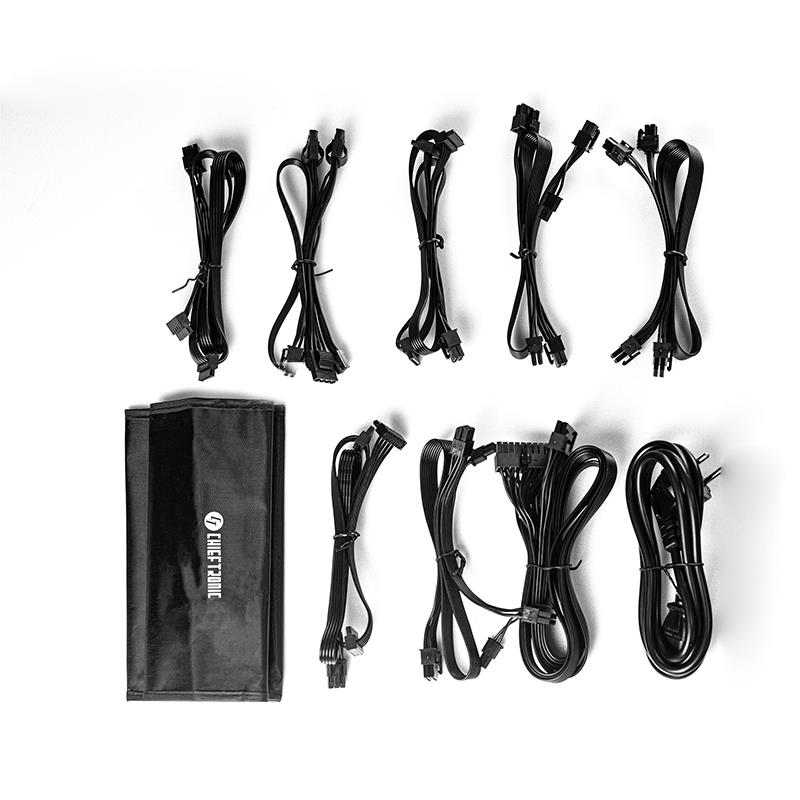

| Cables included | AC,CPU,PCIe,Peripheral (Molex),SATA |
Certificates
| Certification | 80PLUS Gold |
Weight & dimensions
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2400 g |
| Width | 150 mm |
Packaging data

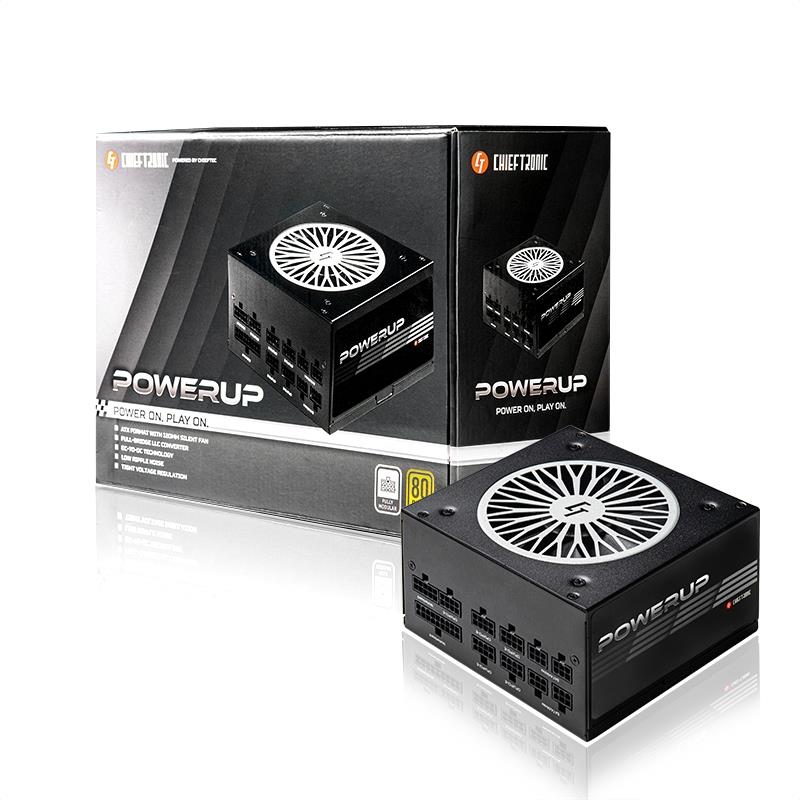

| Package type | Box |
| Package weight | 2950 g |
Logistics data
| Harmonized System (HS) code | 84733020 |
