Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5060
- Integrated with 8GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- Reinforced structure
General
| Unit Calculated Weight | 0.809 kg |
| Product Net Weight | 0.748 kg |
| Unit Calculated Volume | 0.003872 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Summary | GIGABYTE GeForce RTX 5060 WINDFORCE MAX OC 8G Graphics Card - 8GB GDDR7, 128bit, PCI-E 5.0, 2512MHz Core Clock, 3 x DP, 1 x HDMI, NVIDIA DLSS 4, GV-N5060WF2MAX OC-8GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060, Processor frequency: 2512 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit, Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s) |
| CnCode | 84718000 |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.21 |
Processor
| CUDA | Yes |
| CUDA cores | 3840 |
| Graphics processor | GeForce RTX 5060 |
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Processor frequency | 2512 MHz |
Memory
| Data transfer rate | 28 Gbit/s |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |

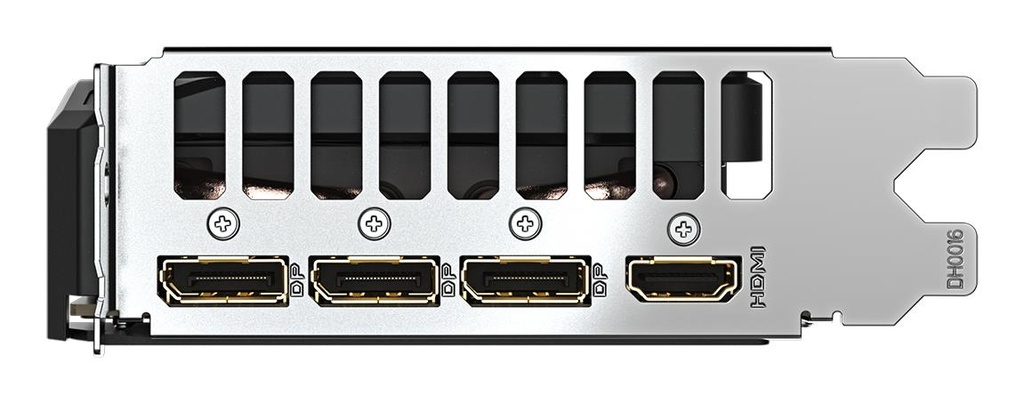

Ports & interfaces
| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Interface type | PCI Express 5.0 |
Performance
| DirectX version | 12.0 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| OpenGL version | 4.6 |
| Overclocked (OC) edition | Yes |
| TV tuner integrated | No |
| Warranty period | 3 year(s) |
Design
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Cooling type | Active |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of fans | 2 fan(s) |
| Number of slots | 2 |
| Product colour | Black |
Power
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 109 W |
Weight & dimensions
| Depth | 40 mm |
| Height | 116 mm |
| Length | 199 mm |
| Weight | 490 g |
Packaging data
| Package depth | 295 mm |
| Package height | 50 mm |
| Package type | Box |
| Package weight | 810 g |
| Package width | 210.5 mm |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
