Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5060 Ti
- Integrated with 8GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- Reinforced structure
General
| Summary | GIGABYTE GeForce RTX 5060 Ti EAGLE OC 8G Graphics Card - 8GB GDDR7, 128bit, PCI-E 5.0, 2617MHz Core Clock, 3 x DisplayPort, 1 x HDMI, GV-N506TEAGLE OC-8GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060 Ti, Processor frequency: 2617 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit, Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x8 5.0. Cooling type: Active, Number of fans: 2 fan(s) |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.335 |
| Unit Box Width | 0.24 |
| Name | VGA PCIE16 RTX5060TI 8GB GDDR7/GV-N506TEAGLE OC-8GD GIGABYTE |
| Model | GV-N506TEAGLE OC-8GD |
Processor
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| CUDA cores | 4608 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Processor frequency | 2617 MHz |
| Graphics processor | GeForce RTX 5060 Ti |
| Graphics processor family | NVIDIA |
Memory
| Data transfer rate | 28 Gbit/s |
| Memory clock speed | 28000 MHz |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR7 |
| Discrete graphics card memory | 8 GB |

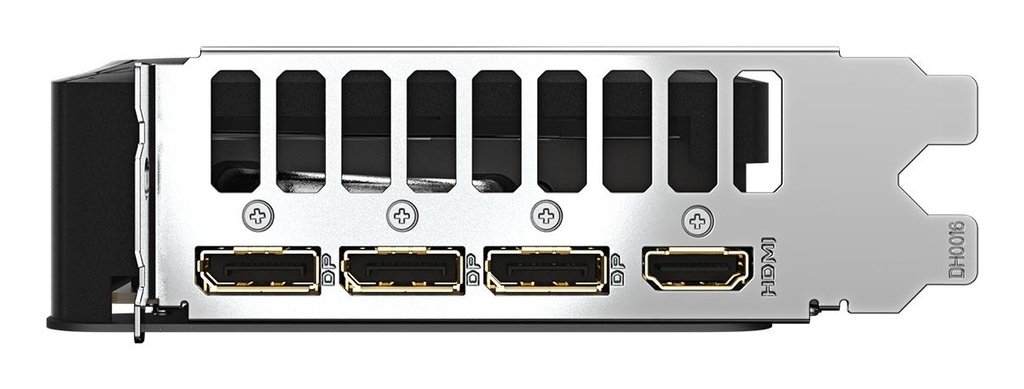

Ports & interfaces
| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1b |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 5.0 |
Performance
| Warranty period | 3 year(s) |
| Overclocked (OC) edition | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
Design
| Product colour | Black |
| Number of slots | 2 |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of fans | 2 fan(s) |
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Cooling type | Active |
Power
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 135 W |
| Minimum system power supply | 650 W |
Weight & dimensions
| Height | 122 mm |
| Depth | 40 mm |
| Length | 215 mm |
| Weight | 600 g |
Packaging data
| Package type | Box |
| Package weight | 960 g |
| Package height | 57 mm |
| Package depth | 330 mm |
| Package width | 235 mm |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
ELKO Logistics Data
| Units per Pallet | 0 |
| Units per Shipping Box | 10 |
| Product Net Weight | 0.5 kg |
| Unit Calculated Weight | 0.9 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 31 cm |
| Shipping Box Depth | 49 cm |
| Shipping Box Height | 35.5 cm |
| Shipping Box Weight | 9 kg |
| Unit Calculated Volume | 0.005392 cubm |
